Acuity Brands
  • WPX1-LED-P2-40K-MVOLT-DDBXD-M4 LITHONIA WALL LL WPX1 LED 40K DK BRNZ (CI# )
  • WPX1-LED-P2-40K-MVOLT-DDBXD-M4 LITHONIA WALL LL WPX1 LED 40K DK BRNZ (CI# )
  • WPX1-LED-P2-40K-MVOLT-DDBXD-M4 LITHONIA WALL LL WPX1 LED 40K DK BRNZ (CI# )
  • WPX1-LED-P2-40K-MVOLT-DDBXD-M4 LITHONIA WALL LL WPX1 LED 40K DK BRNZ (CI# )
  • WPX1-LED-P2-40K-MVOLT-DDBXD-M4 LITHONIA WALL LL WPX1 LED 40K DK BRNZ (CI# )
  • WPX1-LED-P2-40K-MVOLT-DDBXD-M4 LITHONIA WALL LL WPX1 LED 40K DK BRNZ (CI# )

Description: Lithonia Lighting® Wallpack, Architectural, Series: WPX1, 120 to 277 V, 24 W Fixture, LED Lamp, 1 Lamp, 2912 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 70 CRI, Electronic Ballast, Glass Lens, 2900 Lumens, IP66 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, Dark Bronze Housing Finish, 11.1 in W x 3.2 in D x 8.1 in H Dimensions

Manufacturer PN: WPX1LEDP240KMVOLTDDBXDM4

UPC:  19304887058

Kendall Electric Inc PN: 4195279

Invoice Description:

WPX1-LED-P2-40K-MVOLT-DDBXD-M4 LITHONIA WALL LL WPX1 LED 40K DK BRNZ (CI# )


SPEC SHEET

How Can We Make This Page Better?

Lithonia Lighting® WPX1 LED P2 40K MVOLT DDBXD M4 Architectural Wallpack, (1) LED Lamp, 24 W Fixture, 120 to 277 V, Dark Bronze Housing

Log In for Pricing and Availability




Description

Lithonia Lighting® WPX family of LED wall packs are your best choice for your everyday wall mounted lighting needs. With three sizes and lumen packages of 1,550 to 9,200 lumens, the WPX family is a site-wide solution, replacing up to 400W metal halide wall packs. Since the WPX footprints are larger than that of typical metal halide glass wall packs, they fully cover unsightly stains, resulting in a neat application without the need for additional patch and repair. WPX delivers a wide photometric distribution that reduces the number of luminaires required while creating a well-illuminated and safer nighttime environment.
Lithonia Lighting® Wallpack, Architectural, Series: WPX1, 120 to 277 V, 24 W Fixture, LED Lamp, 1 Lamp, 2912 Lumens/W Light Output, 100000 hr Average Life, 4000 K Color Temperature, 70 CRI, Electronic Ballast, Glass Lens, 2900 Lumens, IP66 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, Dark Bronze Housing Finish, 11.1 in W x 3.2 in D x 8.1 in H Dimensions

Specifications

 Application Automotive, Parking, Education, Government, Healthcare, Manufacturing, Offices, Banks, Parking Garage, Religious, Retail, Roadways, Bridges, Tunnels, Sports, Recreation, Utility, Closet and Warehouses Applications
 Average Life 100000 hr
 Ballast Type Electronic
 Brand Name Lithonia Lighting®
 Color Rendering Index CRI 70
 Color Temperature 4000 K
 Dimensions 11.1 in W x 3.2 in D x 8.1 in H
 Enclosure IP66
 Fixture Wattage 24 W
 Housing Finish Dark Bronze
 Housing Material Die Cast Aluminum
 Lamp Type LED
 Light Output 2912 Lumens/W
 Lumens 2900 Lumens
 Manufacturer Part Number WPX1 LED P2 40K MVOLT DDBXD M4
 Mounting Type Surface
 Number of Lamps 1
 PART NUMBER KEYWORDS WPX1 LED P2 40K MVOLT DDBXD M4 ; WPX1LEDP240KMVOLTDDBXDM4 ; 265SWK ; 16050243 ; 193048870589 ; 19304887058 ; 00193048870589
 Series WPX1
 Standards/Approvals CSA Certified|DLC Listed|DLC Premium Listed|ECCN EAR99 Certified|UL Listed
 Type Architectural
 Video Links
 Voltage Rating 120 to 277 V

Features

▪ DESIGN - Geometric shape covers the footprint of a typical HID wall pack, covering any unsightly stains
▪ Lithonia Lighting WPX family of LED wall packs are your best choice for your everyday wall mounted lighting needs
▪ With three sizes and lumen packages of 1,550 to 9,200 lumens, the WPX family is a site-wide solution, replacing up to 400W metal halide wall packs
▪ Since the WPX footprints are larger than that of typical metal halide glass wall packs, they fully cover unsightly stains, resulting in a neat application without the need for additional patch and repair

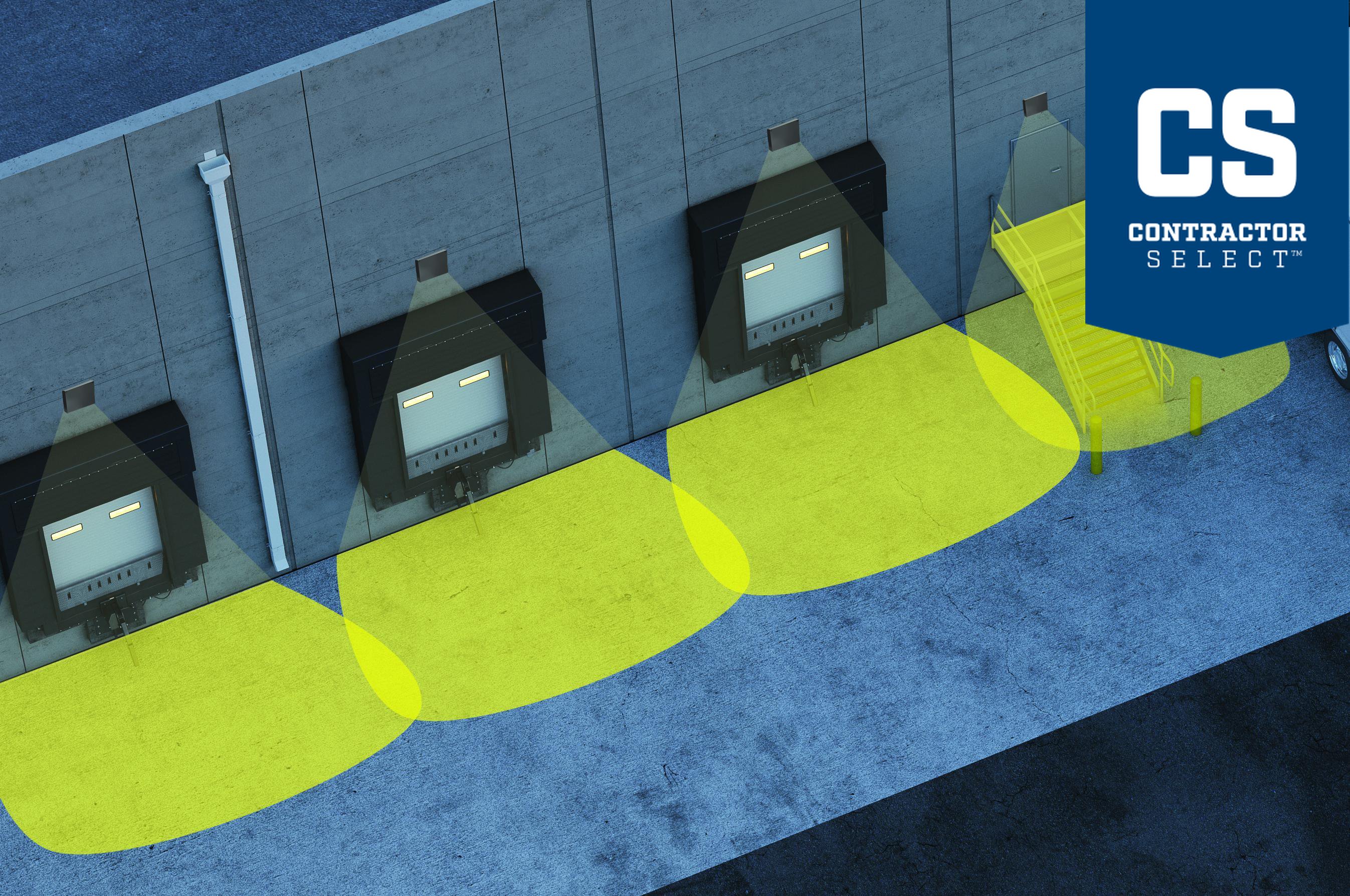

▪ WPX delivers a wide photometric distribution that reduces the number of luminaires required while creating a well-illuminated and safer nighttime environment
▪ DESIGN - The WPX LED wall packs are energy-efficient, cost effective, and aesthetically appealing solutions for both HID wall pack replacement and new construction opportunities
▪ ENERGY SAVINGS - Delivering 2,900 lumens at 24W make the WPX1 an energy efficient solution
▪ PHOTOCELL - Hardwired on/off capability only
▪ VOLTAGE - MVOLT for 120-277V (50/60Hz)
▪ HOURS OF LIFE - Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,000 hr
