Hubbell

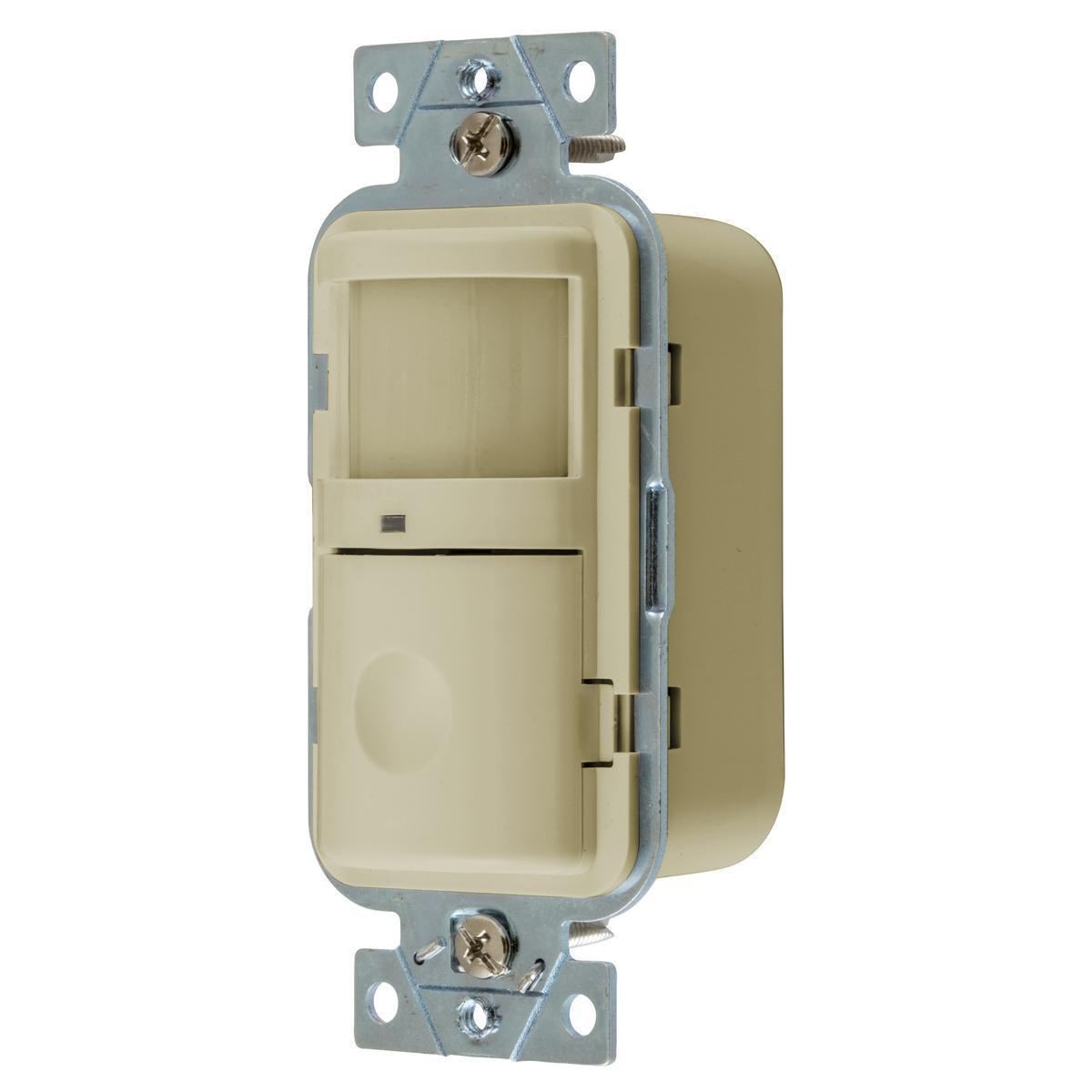

WIRING WS1001I VAC SENSOR PIR 120V 500W IV

Mouse over image to zoom, click to enlarge

  • WIRING WS1001I VAC SENSOR PIR 120V 500W IV
  • WIRING WS1001I VAC SENSOR PIR 120V 500W IV
  • WIRING WS1001I VAC SENSOR PIR 120V 500W IV
  • WIRING WS1001I VAC SENSOR PIR 120V 500W IV
  • WIRING WS1001I VAC SENSOR PIR 120V 500W IV

Description: Wiring Device-Kellems, WS1001I, Wall Switch Vacancy Sensor, 1-Circuit Adjustable Standard, Series: WS Series, 120 V AC, 500 W Power, Passive Infrared Sensor, 1000 sq-ft Coverage, 20 s to 30 min Time Delay, CFL/Incandescent/LED Lamp, Screw Terminal Connection, Manual On Control Output, Wall Mounting, 32 to 122 deg F, ABS, Ivory, 1.82 in W x 4.15 in H Dimensions

Manufacturer PN: WS1001I

UPC:  78358525626

Kendall Electric Inc PN: 4365478

Invoice Description:

WIRING WS1001I VAC SENSOR PIR 120V 500W IV


SPEC SHEET

▸ See All in Wall Mount Vacancy Sensors


How Can We Make This Page Better?

Wiring Device-Kellems WS1001I WS Series 1-Circuit Adjustable Standard Wall Switch Vacancy Sensor, 120 V AC, Passive Infrared Sensor, 1000 sq-ft Coverage, Wall Mounting

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell® WS/ATP series wall switches combine PIR sensing technology, photocell control and Hubbell® patented three wire method to provide the perfect light switch replacement solution. These sensors do not require a neutral connection and they have no minimum load requirements. The WS series has manual timer adjustment while the ATP series incorporates Hubbell® patented adaptive technology to automatically set timing and eliminate manual adjustments. The sensors come supplied with color matched faceplates. Manual-ON versions are available for enhanced savings. Four wire models support installations that require a neutral connection.
Wiring Device-Kellems, WS1001I, Wall Switch Vacancy Sensor, 1-Circuit Adjustable Standard, Series: WS Series, 120 V AC, 500 W Power, Passive Infrared Sensor, 1000 sq-ft Coverage, 20 s to 30 min Time Delay, CFL/Incandescent/LED Lamp, Screw Terminal Connection, Manual On Control Output, Wall Mounting, 32 to 122 deg F, ABS, Ivory, 1.82 in W x 4.15 in H Dimensions

Specifications

 Application For use with most LED and CFL and indoor applications
 Brand Name Hubbell Premise Wiring
 Color Ivory
 Connection Type Screw Terminal
 Control Output Manual On
 Coverage 1000 sq-ft
 Dimensions 1.82 in W x 4.15 in H
 Includes Wallplate
 Lamp Type CFL/Incandescent/LED
 Manufacturer Part Number WS1001I
 Material ABS
 Mounting Type Wall
 PART NUMBER KEYWORDS WS1001I ; 12060737 ; 783585256269 ; 78358525626 ; 00783585256269
 Power Rating 500 W
 Response Frequency 60 Hz
 Sensor Type Passive Infrared
 Series WS Series
 Standards/Approvals UL Listed to UL 773A|UL94 V-0 Flammability Rating|CEC Title 24 Compliant|CSA Certified|cULus Listed|UL 94 V-0 Flammability Rated
 Temperature Rating 32 to 122 deg F
 Time Delay 20 s to 30 min
 Type 1-Circuit Adjustable Standard
 Video Links
 Viewing Angle 180 deg
 Voltage Rating 120 V AC

Features

▪ LED lighting compatible
▪ Tamper-resistant lens
▪ Steel mounting strap
▪ Manual adjusting, manual On operation
▪ Designed for use on 120 VAC circuits, no neutral required, fast retrofits
