Hubbell

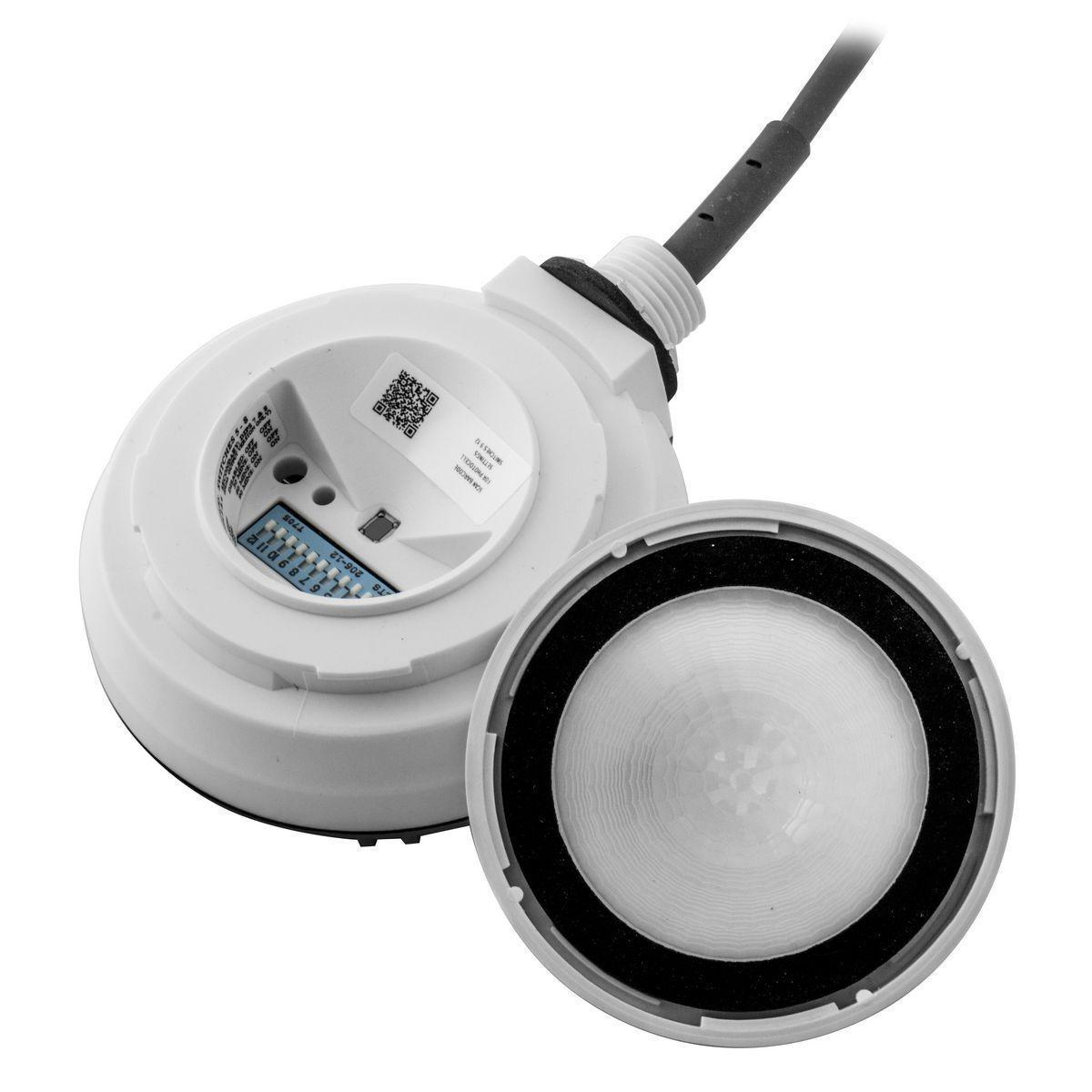

WIRING HBSXT13 H BAY SENS, 120-347V, XTEMP, OUTDOOR HBSXT13

Mouse over image to zoom, click to enlarge

  • WIRING HBSXT13 H BAY SENS, 120-347V, XTEMP, OUTDOOR HBSXT13
  • WIRING HBSXT13 H BAY SENS, 120-347V, XTEMP, OUTDOOR HBSXT13

Description: Hubbell Wiring Device-Kellems OptiMyzer® PIR Sensor, Watertight High Bay and Low Bay, 120 to 347 V AC, 800/1500 W Power, Passive Infrared Sensor, 0 to 45 ft Coverage, 360 deg Viewing, 8 s, 4/8/46/30 min Primary, 30/60/90 min Secondary Time Delay, Fluorescent/Incandescent Lamp, 12-Pin Dip Switch Interface, NEMA 3R/IP65 Enclosure, Fastened Mounting, -40 to 149 deg F, Thermoplastic, White, 4 in Dia x 1-1/2 in H Dimensions

Manufacturer PN: HBSXT13

UPC:  78358556509

Kendall Electric Inc PN: 4365665

Invoice Description:

WIRING HBSXT13 H BAY SENS, 120-347V, XTEMP, OUTDOOR HBSXT13


SPEC SHEET

▸ See All in Outdoor Occupancy Sensors


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems OptiMyzer® HBSXT13 Watertight High Bay and Low Bay PIR Sensor, 120 to 347 V AC, Passive Infrared Sensor, 0 to 45 ft Coverage, 360 deg Viewing, Fastened Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems OptiMyzer® PIR Sensor, Watertight High Bay and Low Bay, 120 to 347 V AC, 800/1500 W Power, Passive Infrared Sensor, 0 to 45 ft Coverage, 360 deg Viewing, 8 s, 4/8/46/30 min Primary, 30/60/90 min Secondary Time Delay, Fluorescent/Incandescent Lamp, 12-Pin Dip Switch Interface, NEMA 3R/IP65 Enclosure, Fastened Mounting, -40 to 149 deg F, Thermoplastic, White, 4 in Dia x 1-1/2 in H Dimensions

Specifications

 Application Single Circuit Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Coverage 0 to 45 ft
 Dimensions 4 in Dia x 1-1/2 in H
 Enclosure NEMA 3R/IP65
 Interface 12-Pin Dip Switch
 Lamp Type Fluorescent/Incandescent
 Manufacturer Part Number HBSXT13
 Material Thermoplastic
 Mounting Type Fastened
 Power Rating 800/1500 W
 Sensor Type Passive Infrared
 Standards/Approvals cULus Listed
 Temperature Rating -40 to 149 deg F
 Time Delay 8 s, 4/8/46/30 min Primary, 30/60/90 min Secondary
 Type Watertight High Bay and Low Bay
 Viewing Angle 360 deg
 Voltage Rating 120 to 347 V AC

Features

▪ Low profile design, no minimum load
▪ Two (2) Built-in photocell for daylight harvesting
▪ 120-347V AC, 1 relay
▪ Supports mounting heights up to 45 ft for high bay configurations and between 8-16 ft for low bay configurations
