Hubbell

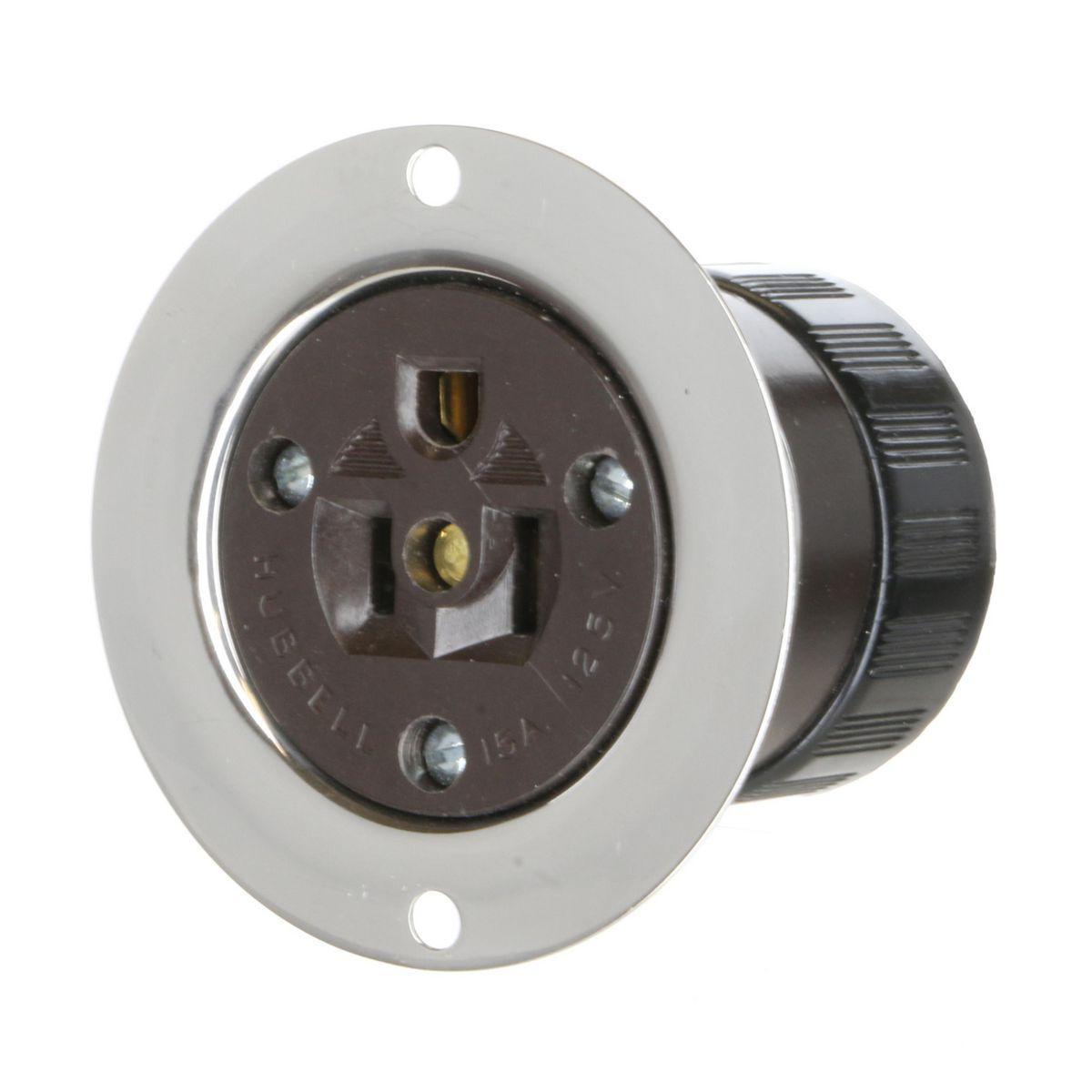

WIRING HBL5279 FLG-RCPT 15A 125V 5-15P SS

Mouse over image to zoom, click to enlarge

  • WIRING HBL5279 FLG-RCPT 15A 125V 5-15P SS
  • WIRING HBL5279 FLG-RCPT 15A 125V 5-15P SS

Description: Hubbell Wiring Device-Kellems Flanged Receptacle, 1-Phase Grounding Heavy Duty Standard Sized Screw Mount, 125 V AC, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Stainless Steel, Metallic, 2.44 in Dia x 1.62 in H

Manufacturer PN: HBL5279

UPC:  78358501336

Kendall Electric Inc PN: 4365368

Invoice Description:

WIRING HBL5279 FLG-RCPT 15A 125V 5-15P SS


SPEC SHEET

▸ See All in Straight Blade Flanged Inlets & Outlets


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL5279 1-Phase Grounding Heavy Duty Standard Sized Screw Mount Flanged Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Metallic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems Flanged Receptacle, 1-Phase Grounding Heavy Duty Standard Sized Screw Mount, 125 V AC, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Screw Terminal, Stainless Steel, Metallic, 2.44 in Dia x 1.62 in H

Specifications

 Amperage Rating 15 A
 Brand Name Hubbell Premise Wiring
 Color Metallic
 Dimensions 2.44 in Dia x 1.62 in H
 Grade Commercial/Industrial
 Manufacturer Part Number HBL5279
 Material Stainless Steel
 NEMA Rating 5-15R
 Number of Poles 2
 Number of Wires 3
 Standards/Approvals RoHS Compliant|UL 498 File No. E2186|CSA C22.2 No. 42|NEMA WD1/WD5/WD6
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 1-Phase Grounding Heavy Duty Standard Sized Screw Mount
 Video Links
 Voltage Rating 125 V AC

Features

▪ Covered terminal screws

Resources

 Catalog
 Catalog Page
 Full Engineering Drawing
 Line Drawing
 Line Drawing URL
 MSDS URL None Required
 Product Data Sheet
