Hubbell

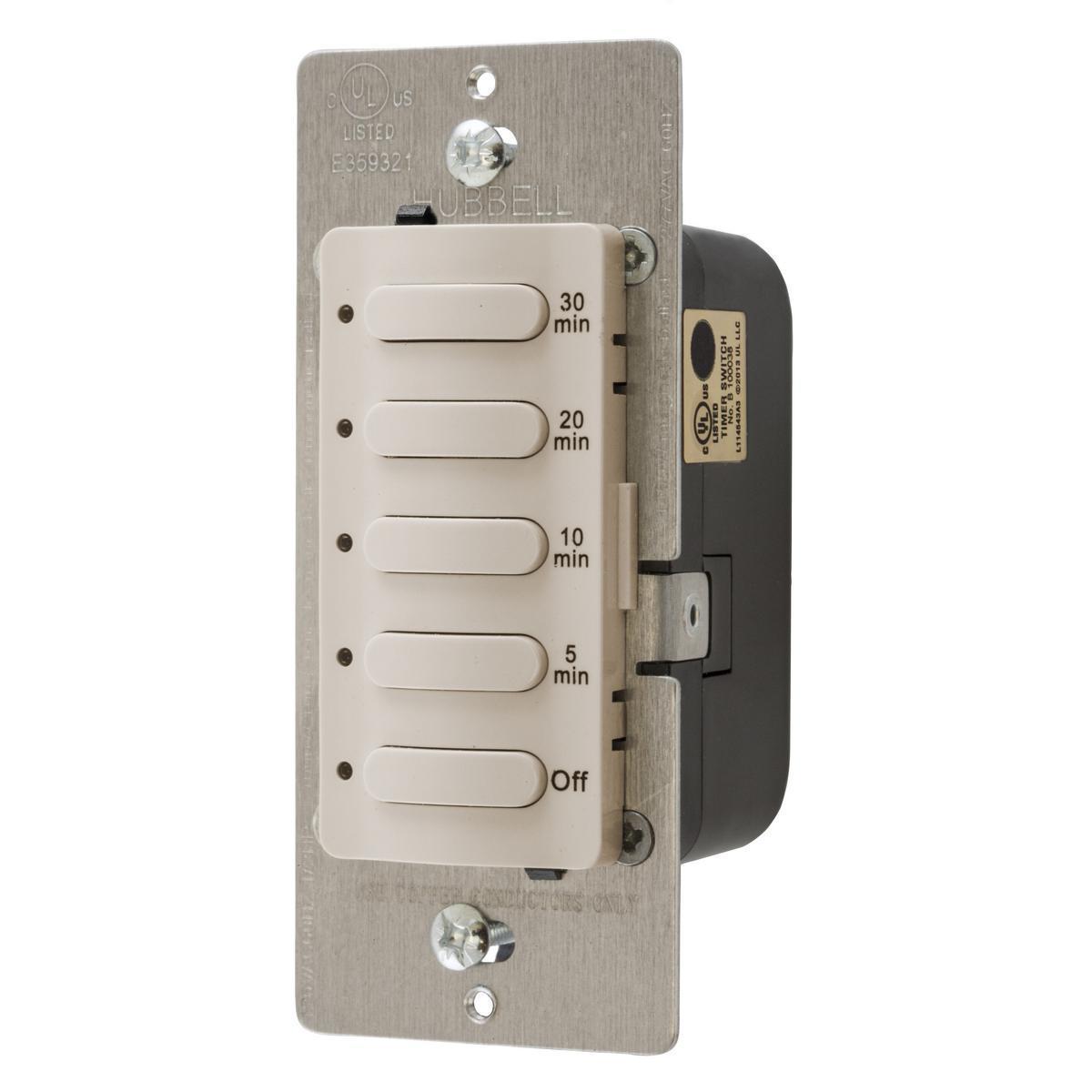

WIRING DT5030LA TIMER 30MIN 8.3A 120/277V LT ALM

Mouse over image to zoom, click to enlarge

  • WIRING DT5030LA TIMER 30MIN 8.3A 120/277V LT ALM
  • WIRING DT5030LA TIMER 30MIN 8.3A 120/277V LT ALM

Description: Hubbell Wiring Device-Kellems Countdown Timer, Digital Standard, 120/277 V AC, 8.3 A, 1/6 hp, 1 Pole, OFF, 5, 10,20, 30 min Time Setting, Screw Terminal Electrical Connections, 32 to 104 deg F, Threaded Mounting, 1.75 in W x 2.27 in D x 3.81 in H

Manufacturer PN: DT5030LA

UPC:  78358525639

Kendall Electric Inc PN: 4404220

Invoice Description:

WIRING DT5030LA TIMER 30MIN 8.3A 120/277V LT ALM


SPEC SHEET

▸ See All in Electronic Timers


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems DT5030LA Digital Standard Countdown Timer, OFF, 5, 10,20, 30 min Setting, 120/277 V AC, 1/6 hp, 1 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems Countdown Timer, Digital Standard, 120/277 V AC, 8.3 A, 1/6 hp, 1 Pole, OFF, 5, 10,20, 30 min Time Setting, Screw Terminal Electrical Connections, 32 to 104 deg F, Threaded Mounting, 1.75 in W x 2.27 in D x 3.81 in H

Specifications

 Amperage Rating 8.3 A
 Application Indoor Application
 Brand Name Hubbell Premise Wiring
 Dimensions 1.75 in W x 2.27 in D x 3.81 in H
 Electrical Connections Screw Terminal
 Horsepower 1/6 hp
 Manufacturer Part Number DT5030LA
 Mounting Type Threaded
 Number of Poles 1
 Standards/Approvals PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating 32 to 104 deg F
 Time Setting OFF, 5, 10,20, 30 min
 Type Digital Standard
 Voltage Rating 120/277 V AC

Features

▪ Pre-set 5 button selection with permanent time markings
▪ Manual override to OFF
▪ Alert to OFF function - red LED will flash during the final 30 seconds
