Hubbell

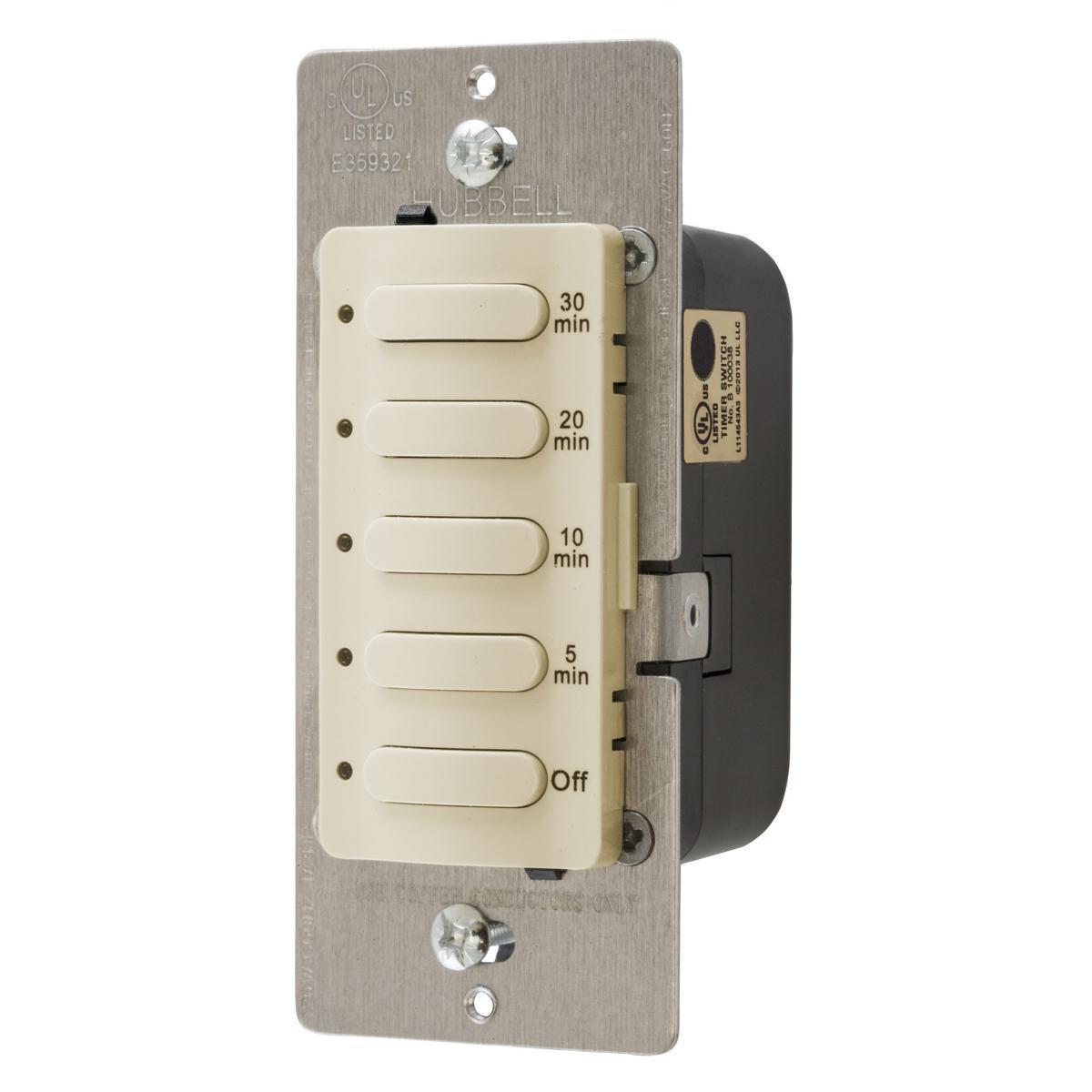

WIRING DT5030I TIMER 30MIN 8.3A 120/277V IVORY

Mouse over image to zoom, click to enlarge

  • WIRING DT5030I TIMER 30MIN 8.3A 120/277V IVORY
  • WIRING DT5030I TIMER 30MIN 8.3A 120/277V IVORY

Description: Hubbell Wiring Device-Kellems, DT5030I, Timer Wall Switch, Countdown Fixed Standard, 120/277 V AC, 8.3 A, 2 Pole, OFF, 5, 10,20, 30 min Time Setting, Digital Display, Screw Terminal Electrical Connections, -40 to 75 deg C, Threaded Mounting, 1.75 in W x 2.27 in H x 3.81 in L Dimensions

Manufacturer PN: DT5030I

UPC:  78358525640

Kendall Electric Inc PN: 4414594

Invoice Description:

WIRING DT5030I TIMER 30MIN 8.3A 120/277V IVORY


SPEC SHEET

▸ See All in Electronic Timers


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems DT5030I Countdown Fixed Standard Timer Wall Switch, OFF, 5, 10,20, 30 min Setting, 120/277 V AC, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems, DT5030I, Timer Wall Switch, Countdown Fixed Standard, 120/277 V AC, 8.3 A, 2 Pole, OFF, 5, 10,20, 30 min Time Setting, Digital Display, Screw Terminal Electrical Connections, -40 to 75 deg C, Threaded Mounting, 1.75 in W x 2.27 in H x 3.81 in L Dimensions

Specifications

 Amperage Rating 8.3 A
 Application Indoor Dry Environment and Circuit Control Applications
 Brand Name Hubbell Premise Wiring
 Dimensions 1.75 in W x 2.27 in H x 3.81 in L
 Electrical Connections Screw Terminal
 Manufacturer Part Number DT5030I
 Mounting Type Threaded
 Number of Poles 2
 PART NUMBER KEYWORDS DT5030I ; 12259557 ; 13490593 ; 783585256405 ; 78358525640 ; 00783585256405 ; 0783585256405
 Standards/Approvals CEC Title 24 Compliant|UL 20, 60730-1/2|ASHRAE 90.1|CSA Certified|cULus Listed to UL60730-1/UL60730-2
 Temperature Rating -40 to 75 deg C
 Time Setting OFF, 5, 10,20, 30 min
 Type Countdown Fixed Standard
 Voltage Rating 120/277 V AC

Features

▪ Pre-set 5 button selection with permanent time markings
▪ Manual override to OFF
▪ Alert to OFF function - red LED will flash during the final 30 seconds
