Leviton

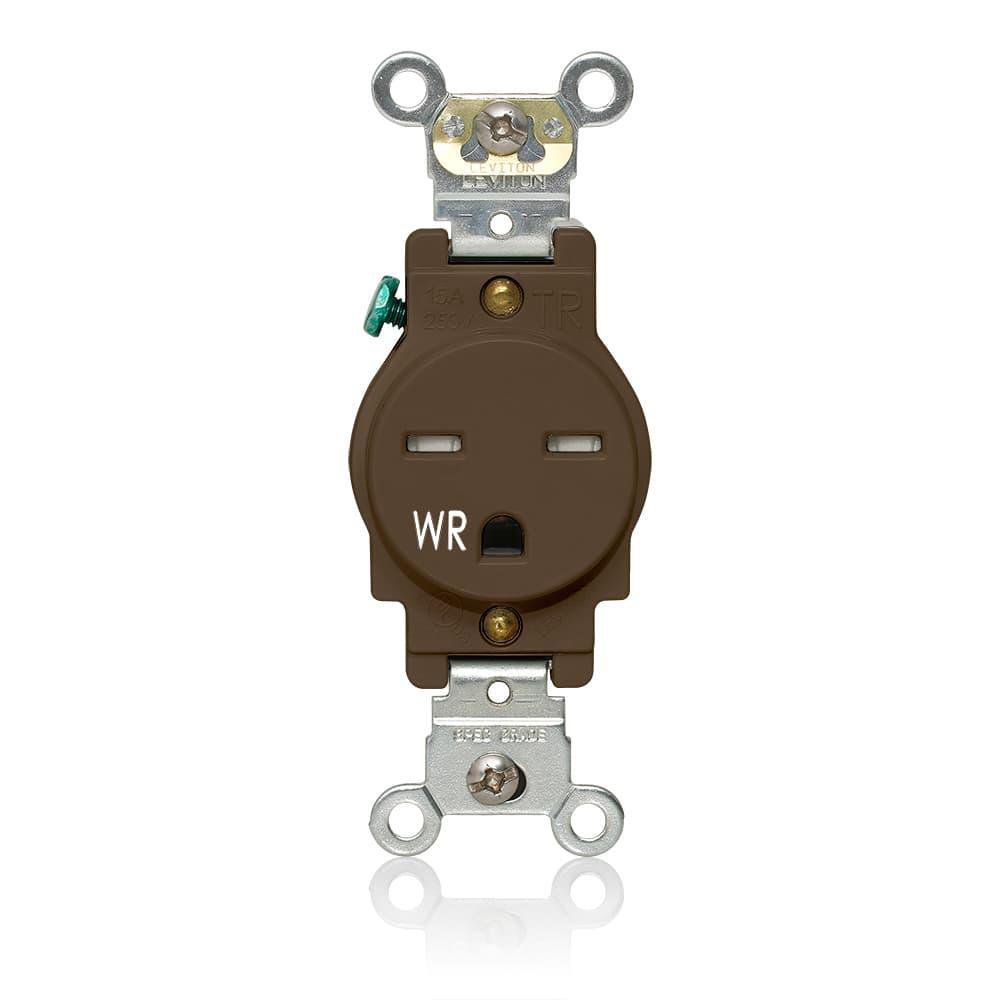

W5661-T00 LEVITON 15A-250V WR/TR SNGL OUTL BCK/SDE WRE BR..

Mouse over image to zoom, click to enlarge

Description: Leviton® Straight Blade Receptacle, Heavy Duty Self-Grounding Single Smooth Face Standard, Series: W5661-T, 250 V AC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Brown, 4.06 in H x 1.53 in W x 1.11 in D Dimensions

Manufacturer PN: W5661-T00

UPC:  07847765001

Kendall Electric Inc PN: 4633698

Invoice Description:

W5661-T00 LEVITON 15A-250V WR/TR SNGL OUTL BCK/SDE WRE BR..


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Leviton® W5661-T00 W5661-T Heavy Duty Self-Grounding Single Smooth Face Standard Straight Blade Receptacle, 250 V AC, 15 A, 2 Poles, 3 Wires, Brown

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® 250 VAC tamper-resistant receptacles are the industry's first and only solution to the revisions of the NEC® Article 406.12. These weather-resistant single receptacles also provide compliance for Article 406.9 of the NEC® for wet and damp locations and include added protection against corrosion, UV degradation and cold impact damage.
Leviton® Straight Blade Receptacle, Heavy Duty Self-Grounding Single Smooth Face Standard, Series: W5661-T, 250 V AC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Brown, 4.06 in H x 1.53 in W x 1.11 in D Dimensions

Specifications

 Amperage Rating 15 A
 Application Education Facilities, Commercial Buildings, Health Care Facilities, Transportation Facilities, Hospitality and Multiple Dwelling Units Applications
 Brand Name Leviton®
 Color Brown
 Dimensions 4.06 in H x 1.53 in W x 1.11 in D
 Grade Industrial
 Horsepower 1-1/2 hp
 Manufacturer Part Number W5661-T00
 Material Nylon
 NEMA Rating NEMA 6-15R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS W5661-T00 ; W5661T00
 Series W5661-T
 Standards/Approvals UL 498|CSA C22.2 No. 42|Federal Specification WC-596|NOM Certified|UL 94 V-2 Flammability Rating|NEMA WD-1|NEMA WD-6|NEC 406.9
 Temperature Rating -40 to 75 deg C
 Terminal Type Back/Side Wire
 Type Heavy Duty Self-Grounding Single Smooth Face Standard
 Voltage Rating 250 V AC

Features

▪ Accommodates back and side wiring
▪ Nickel plated steel strap maximizes corrosion-resistance
▪ Brass self-grounding clip is permanently staked on for secure and reliable performance
▪ Face made of impact-resistant engineering polymer
▪ Weather and tamper-resistant
