Leviton

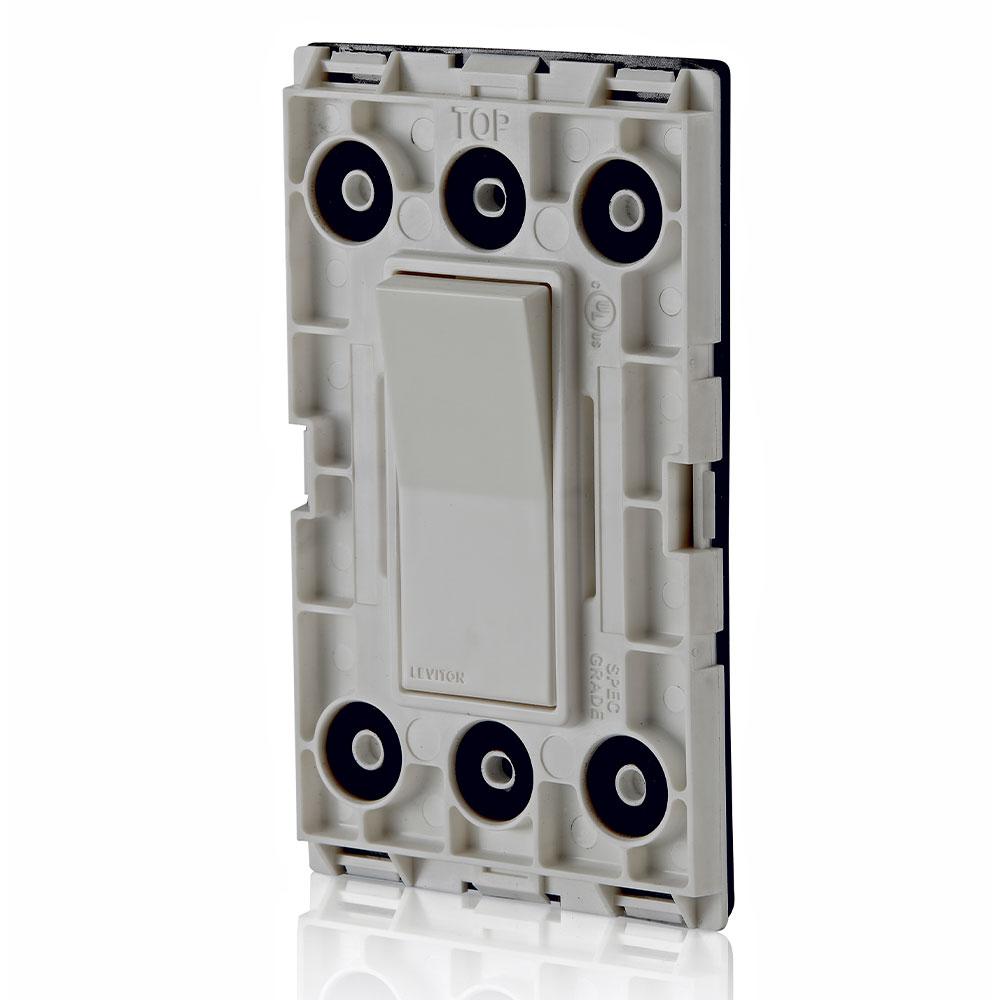

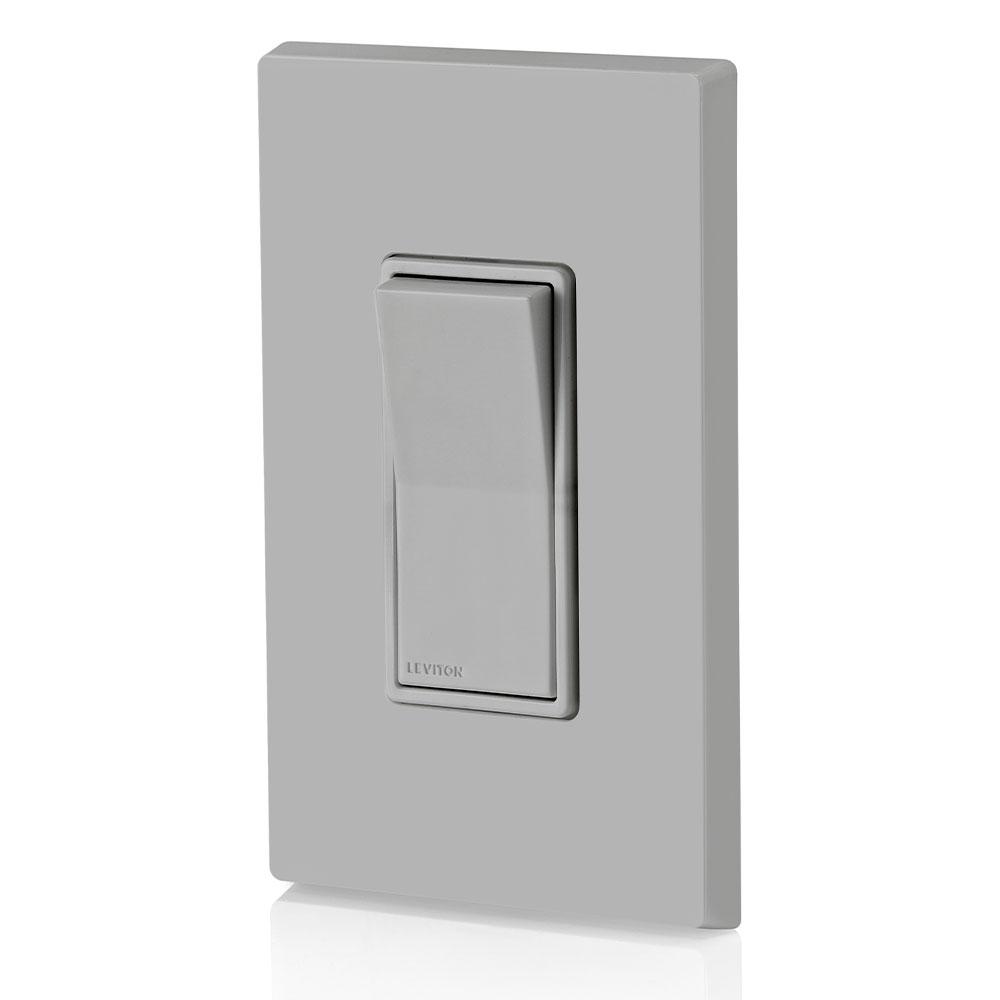

W5601-2GY LEVITON WR SWITCH SINGLE POLE 15A-120/277V GRAY

Mouse over image to zoom, click to enlarge

  • W5601-2GY LEVITON WR SWITCH SINGLE POLE 15A-120/277V GRAY
  • W5601-2GY LEVITON WR SWITCH SINGLE POLE 15A-120/277V GRAY
  • W5601-2GY LEVITON WR SWITCH SINGLE POLE 15A-120/277V GRAY
  • W5601-2GY LEVITON WR SWITCH SINGLE POLE 15A-120/277V GRAY

Description: Leviton®, W5601-2GY, Switch, Weather-Resistant, 120/277 VAC, 15 A, 1/2, 2 hp Power, SP Contact Configuration, 12 A at 120/277 VAC Contact, 1 Pole, Rocker Actuator, Back/Side Wired Connection, Thermoplastic, Gray, 5 in H x 3.13 in W x 1.55 in D Dimensions

Manufacturer PN: W5601-2GY

UPC:  07847722383

Kendall Electric Inc PN: 4890858

Invoice Description:

W5601-2GY LEVITON WR SWITCH SINGLE POLE 15A-120/277V GRAY


SPEC SHEET

▸ See All in AC Switches


How Can We Make This Page Better?

Leviton® W5601-2GY Weather-Resistant Switch, 120/277 VAC, 15 A, 1/2, 2 hp Power Rating, SP Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton®, W5601-2GY, Switch, Weather-Resistant, 120/277 VAC, 15 A, 1/2, 2 hp Power, SP Contact Configuration, 12 A at 120/277 VAC Contact, 1 Pole, Rocker Actuator, Back/Side Wired Connection, Thermoplastic, Gray, 5 in H x 3.13 in W x 1.55 in D Dimensions

Specifications

 Actuator Rocker
 Amperage Rating 15 A
 Application Designed for wet and damp locations and Ideal for residential and commercial outdoor kitchens and bars, outdoor lighting, patio, pool and spa areas, sheds, gazebos, cabanas, outdoor ceiling fans and fountains
 Brand Name Leviton®
 Color Gray
 Connection Side Wired
 Contact Configuration SP
 Contact Rating 12 A at 120/277 VAC
 Dimensions 5 in H x 3.13 in W x 1.55 in D
 Manufacturer Part Number W5601-2GY
 Material Thermoplastic
 Number of Poles 1
 Power Rating 1/2, 2 hp
 Standards/Approvals NEMA 3R Rated|NOM|cULus Listed|CODE COMPLIANT
 Type Weather-Resistant
 Voltage Rating 120/277 VAC

Features

▪ All-in-one weather-resistant switch solution, no outdoor cover required
▪ Patent-pending actuation done with magnets, allowing the subplate/switch to be impervious to water intrusion
▪ Side and back wire for easy installation
