ABB
  • W40-1 ITB 4/0AWG AL WEDGE CLAMP CU & ALUM 4/0- 2/0
  • W40-1 ITB 4/0AWG AL WEDGE CLAMP CU & ALUM 4/0- 2/0
  • W40-1 ITB 4/0AWG AL WEDGE CLAMP CU & ALUM 4/0- 2/0
  • W40-1 ITB 4/0AWG AL WEDGE CLAMP CU & ALUM 4/0- 2/0

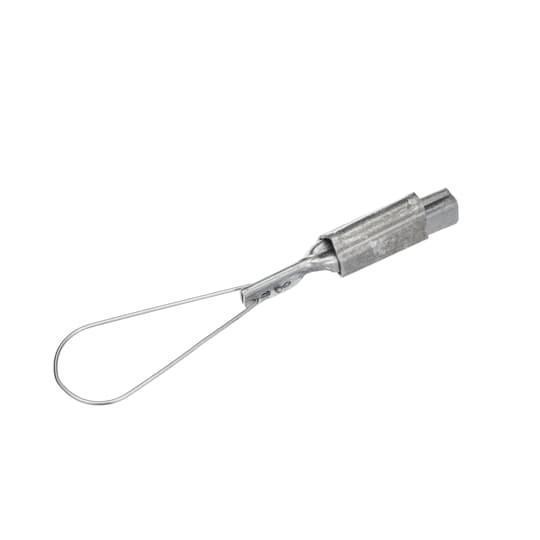

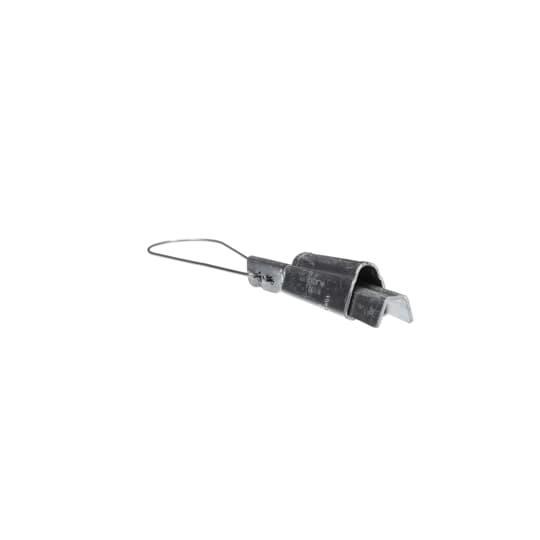

Description: Blackburn® Service Entrance Wedge Clamp, Type W, Series: W-1, ASCR/AAAC/Stranded Conductor, 4/0 to 2/0 AWG Conductor, 35 kV, 1-Conductor, Tension Connection, Aluminum, Bare, Red, 12-3/4 in L x 2-3/8 in D

Manufacturer PN: W40-1

UPC:  78378633204

Kendall Electric Inc PN: 39073

Invoice Description:

W40-1 ITB 4/0AWG AL WEDGE CLAMP CU & ALUM 4/0- 2/0


SPEC SHEET

▸ See All in Overhead Service Entrance Wedge Clamps


How Can We Make This Page Better?

Blackburn® W40-1 W-1 Type W Service Entrance Wedge Clamp, 4/0 to 2/0 AWG ASCR/AAAC/Stranded Conductor, Aluminum, Bare

Log In for Pricing and Availability




Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.
Blackburn® Service Entrance Wedge Clamp, Type W, Series: W-1, ASCR/AAAC/Stranded Conductor, 4/0 to 2/0 AWG Conductor, 35 kV, 1-Conductor, Tension Connection, Aluminum, Bare, Red, 12-3/4 in L x 2-3/8 in D

Specifications

 Application For dead end self supporting drop wire applications
 Brand Name Blackburn
 Color Red
 Conductor Size 4/0 to 2/0 AWG
 Conductor Type ASCR/AAAC/Stranded
 Dimensions 12-3/4 in L x 2-3/8 in D
 Finish Bare
 Manufacturer Part Number W40-1
 Material Aluminum
 PART NUMBER KEYWORDS W40-1 ; W401 ; 7TAA267150R0008 ; 10902427 ; 783786332045 ; 78378633204 ; 00783786332045
 Series W-1
 Specifications 1-Conductor, Tension Connection
 Type Type W
 Voltage Rating 35 kV

Features

▪ Drop wire may be cut to exact length for adjustments in drop wire sag
▪ Can be attached to bare neutral at any point in the span
▪ Versatile use, flexible and rigid bails grip ACSR, AAC and AAAC conductors
▪ All seasons environmental conditions
▪ Saves conductor - drop wire may be cut to exact length
▪ Aluminum wedge and slider
▪ W40 series clamps rated 850 lb, ultimate tension for 1/0 AWG ASCR, AL or AAAC

Resources

 Catalog
 Catalog Page
 Product Data Sheet
