Schneider Electric
VZN05 SQD AUXILIARY CONTACT NO

Mouse over image to zoom, click to enlarge

Description: Schneider Electric Square D™ TeSys™ Auxiliary Contact Block, Late Make Standard, Series: VZN, 690 V AC, 6 A, 50/60 Hz Frequency, 1NO Contacts, Left/Right Mounting, 50000/30000 cycles Operating Cycles, -25 to 50 deg C Operating, Environmental Conditions: IP20, For Use With: TeSys™ Mini-Vario™ and Vario™ VCFN Motor Disconnect Switch, 12 mm W x 39 mm D x 45.5 mm H Dimensions

Manufacturer PN: VZN05

UPC:  38911076005

Kendall Electric Inc PN: 3961503

Invoice Description:

VZN05 SQD AUXILIARY CONTACT NO


SPEC SHEET

▸ See All in Safety/Disconnect Auxiliary Contacts


How Can We Make This Page Better?

Schneider Electric Square D™ TeSys™ VZN05 Late Make Standard Auxiliary Contact Block, 690 V AC, 6 A, 1NO Contacts

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

VZN05 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it includes 1NO contact rated for AC and DC operation. VZN05 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it is mounted on one side of the switch body. It includes 1NO contact rated for AC operation until 690V and DC operation until 250V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Auxiliary contacts module, including 1NO "late make" contact, for Vario switch types VN12 and VN20. Rated for operation in AC-15 operation until 690V and DC-01 operation until 250V. To be installed on one side of a switch body.
Schneider Electric Square D™ TeSys™ Auxiliary Contact Block, Late Make Standard, Series: VZN, 690 V AC, 6 A, 50/60 Hz Frequency, 1NO Contacts, Left/Right Mounting, 50000/30000 cycles Operating Cycles, -25 to 50 deg C Operating, Environmental Conditions: IP20, For Use With: TeSys™ Mini-Vario™ and Vario™ VCFN Motor Disconnect Switch, 12 mm W x 39 mm D x 45.5 mm H Dimensions

Specifications

 Amperage Rating 6 A
 Brand Name Square D

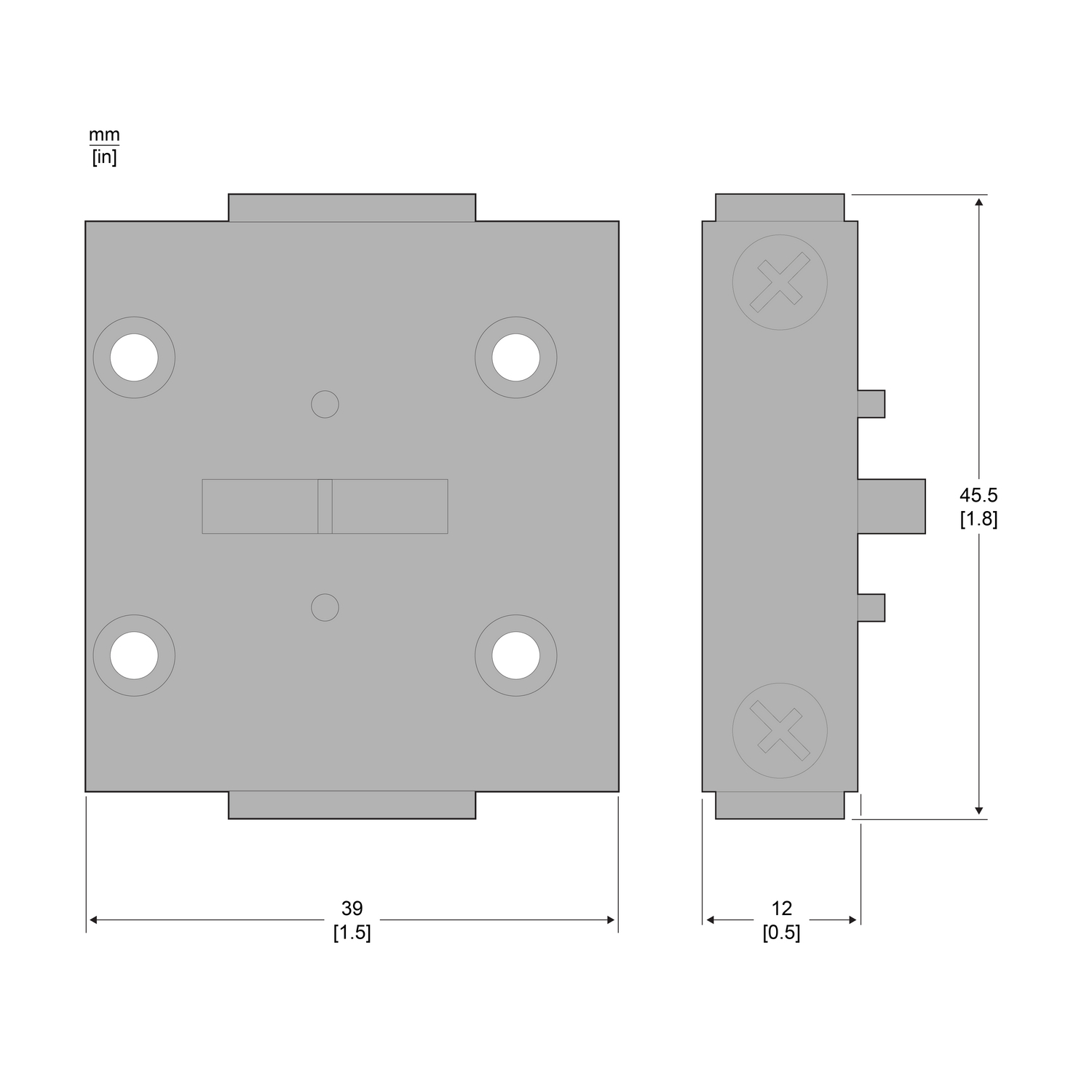

 Dimensions 12 mm W x 39 mm D x 45.5 mm H
 Environmental Conditions IP20
 Frequency Rating 50/60 Hz
 Manufacturer Part Number VZN05
 Mounting Type Left/Right
 Operating Cycles 50000/30000 cycles
 Operating Temperature -25 to 50 deg C
 PART NUMBER KEYWORDS VZN05 ; 8159933 ; 785901760054 ; 78590176005 ; 03389110760057 ; 3389110760057
 Series VZN
 Standards/Approvals CSA Certified|ECCN: EAR99|GL Certified|IEC 60529|IEC Certified|RoHS Compliant|UL Listed
 Suitable For Use With TeSys™ Mini-Vario™ and Vario™ VCFN Motor Disconnect Switch
 Type Late Make Standard
 Voltage Rating 690 V AC
