Eaton

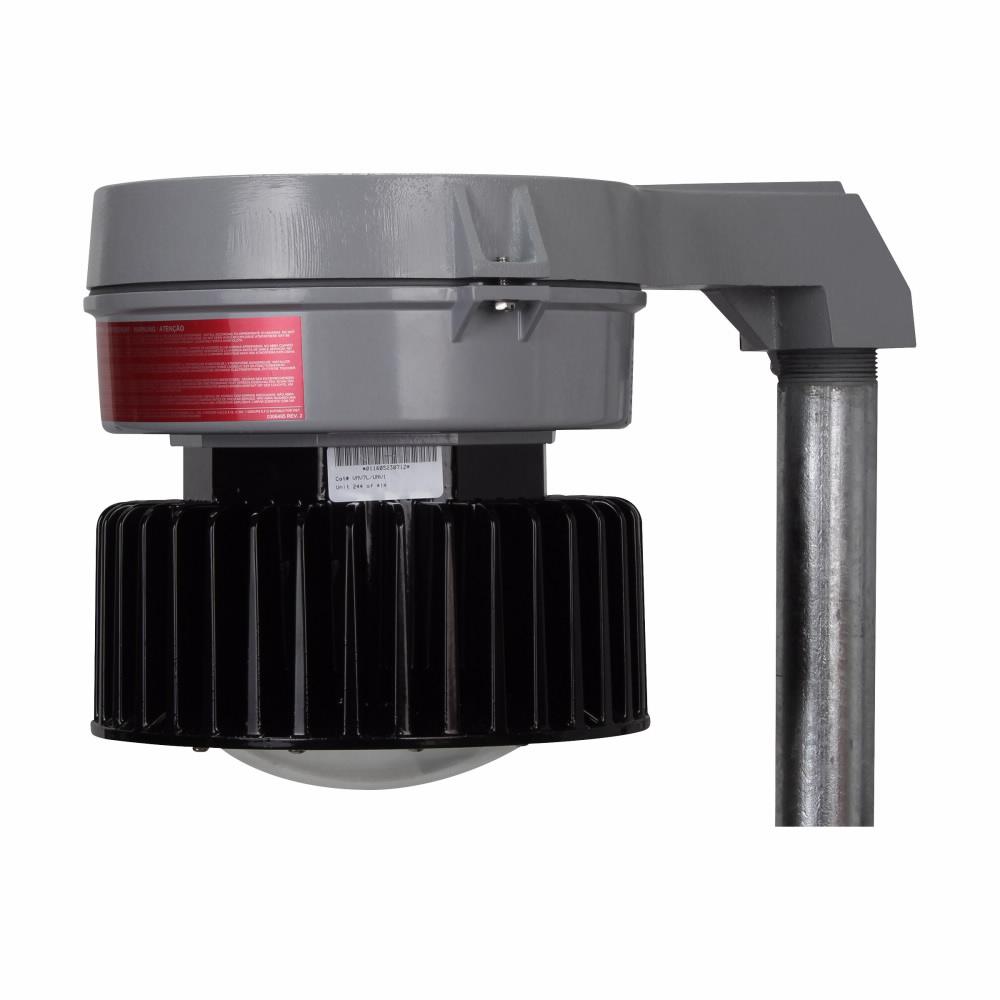

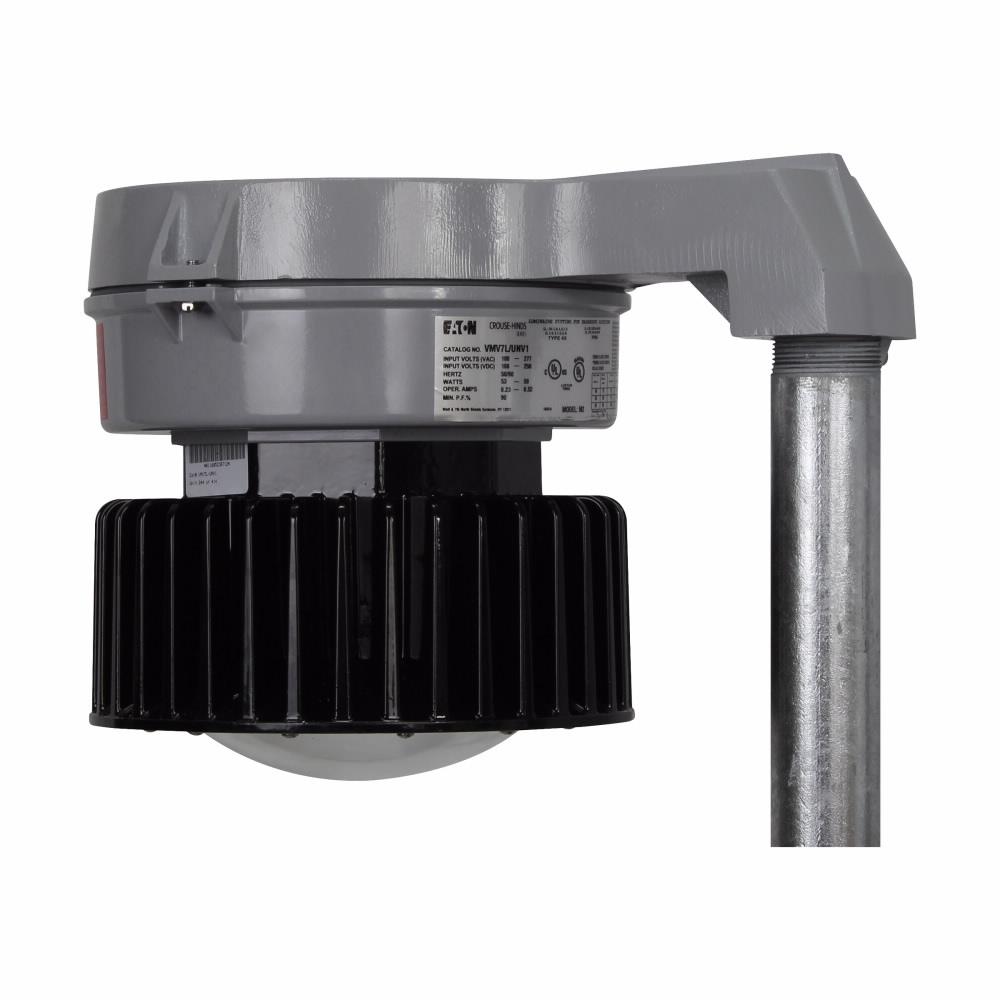

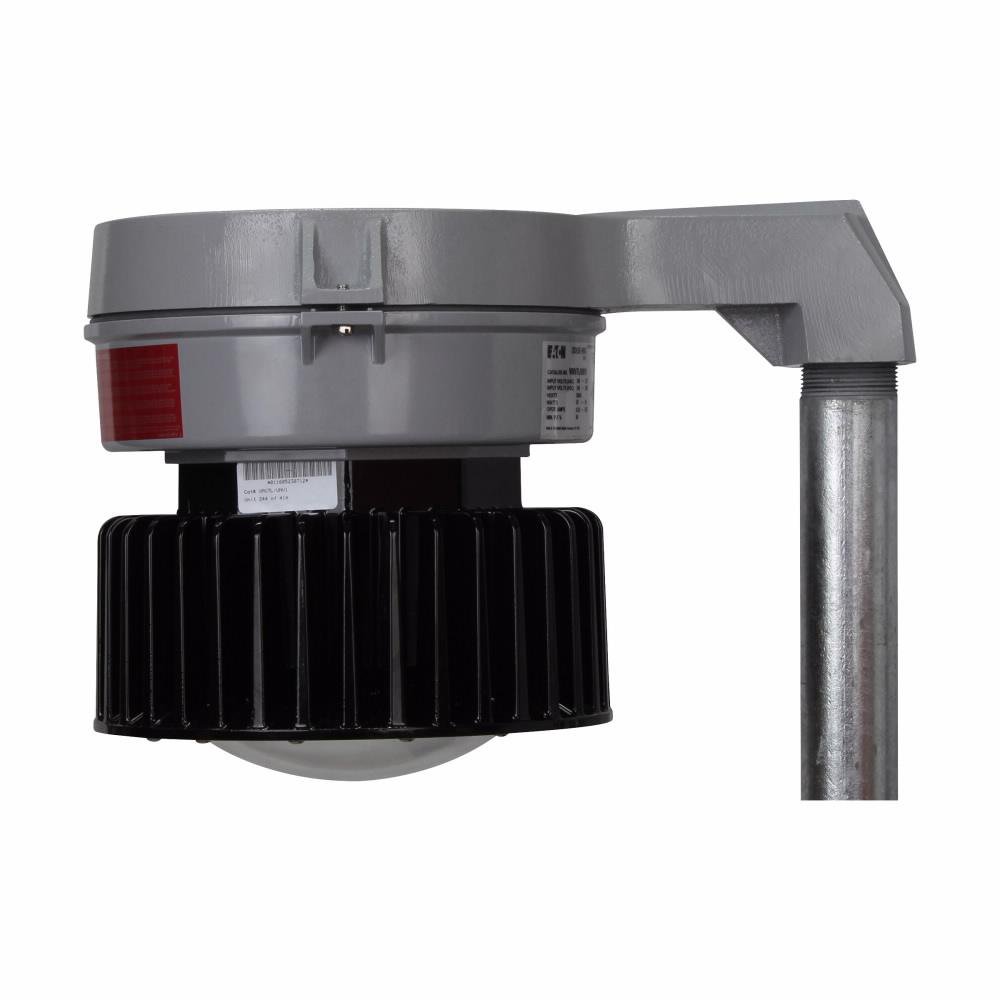

VMVL-5-P-UNV1 C-HINDS LED LT STNCH MNT 1 1/2 IN HUB 5000 LUMENS..

Mouse over image to zoom, click to enlarge

  • VMVL-5-P-UNV1 C-HINDS LED LT STNCH MNT 1 1/2 IN HUB 5000 LUMENS..
  • VMVL-5-P-UNV1 C-HINDS LED LT STNCH MNT 1 1/2 IN HUB 5000 LUMENS..
  • VMVL-5-P-UNV1 C-HINDS LED LT STNCH MNT 1 1/2 IN HUB 5000 LUMENS..

Description: Crouse-Hinds Champ® Luminaire, Type V Optic Straight, Series: VMVL, 100 to 277 VAC/127 to 250 VDC VAC/VDC, 43 W Fixture, 0.45 to 0.16 A, LED Lamp, 127 Lumens/W, 60000 hr Average Life, Cool White Light, 5000 K Color, 70 CRI, Dimmable Ballast, Clear Glass Lens, 5537 Lumens, NEMA 4X, Stanchion Mount, Die Cast Aluminum Housing, Epoxy Powder Coated Housing, 16.03 in L x 11.1 in H

Manufacturer PN: VMVL-5-P-UNV1

UPC:  66227686137

Kendall Electric Inc PN: 4548515

Invoice Description:

VMVL-5-P-UNV1 C-HINDS LED LT STNCH MNT 1 1/2 IN HUB 5000 LUMENS..


SPEC SHEET

▸ See All in Explosion Proof Indoor Lighting


How Can We Make This Page Better?

Crouse-Hinds Champ® VMVL-5-P-UNV1 Type V Optic Straight Luminaire, LED Lamp, 43 W Fixture, 100 to 277 VAC/127 to 250 VDC VAC/VDC, Epoxy Powder Coated Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Type 4X fixture provides up to 137 lumens per watt, and custom Type I, III and V optics maximize light distribution and intensity. Champ VMVL LEDs are certified for use in NEC, CEC and IEC hazardous locations, providing a single solution for applications around the world. These light fixtures are ideal for indoor and outdoor general area lighting in oil and gas refineries, drilling rigs, petrochemical plants, food and beverage facilities, and other industrial applications where flammable gases, vapors, dusts, fibers or flyings are present. The Crouse-Hinds series Champ VMVL LED is our flagship LED fixture for Class I and Class II hazardous area mid bay and high bay downlighting. It is available in 9 models ranging from 3,000 lumens to 25,000 lumens. This offers a lighting solution for areas with mounting heights from 8’ all the way up to 60’. Champ VMVL LED light fixtures are engineered to provide maintenance-free operation, while delivering long life and high lumen performance.
Crouse-Hinds Champ® Luminaire, Type V Optic Straight, Series: VMVL, 100 to 277 VAC/127 to 250 VDC VAC/VDC, 43 W Fixture, 0.45 to 0.16 A, LED Lamp, 127 Lumens/W, 60000 hr Average Life, Cool White Light, 5000 K Color, 70 CRI, Dimmable Ballast, Clear Glass Lens, 5537 Lumens, NEMA 4X, Stanchion Mount, Die Cast Aluminum Housing, Epoxy Powder Coated Housing, 16.03 in L x 11.1 in H

Specifications

 Amperage Rating 0.45 to 0.16 A
 Application Oil, Gas Refineries, Drilling Rigs, Petrochemical Facilities, Food, Beverage Facilities, Platforms, Loading Docks, Tunnels, Indoor, Outdoor Spotlighting, Outdoor Wall and Stanchion Mounted General Area Lighting
 Average Life 60000 hr
 Ballast Type Dimmable
 Brand Name Crouse-Hinds
 Color Rendering Index CRI 70
 Color Temperature 5000 K
 Dimensions 16.03 in L x 11.1 in H
 Enclosure NEMA 4X
 Fixture Wattage 43 W
 Housing Finish Epoxy Powder Coated
 Housing Material Die Cast Aluminum
 Lamp Type LED
 Light Color Cool White
 Light Output 127 Lumens/W
 Lumens 5537 Lumens
 Manufacturer Part Number VMVL-5-P-UNV1
 Mounting Type Stanchion
 PART NUMBER KEYWORDS VMVL-5-P-UNV1 ; VMVL5PUNV1 ; 662276861374 ; 66227686137 ; 00662276861374
 Series VMVL
 Standards/Approvals Class I, Division 2, Groups A, B, C, D|Class II, Groups E, F, G|Class III|Class I, Zone 2 AEx ec mb IICT*GC|Zone 21 tb IIIC|CSA C22.2 No. 137|CEC Certified|DEMKO 13 ATEX 1305741X|DEMKO 13 ATEX 1475031X|IEC 60079-0:2011|IEC 60079-7:2010|IEC 60079-31:2008|IEC 60529:2001/EN 60529:2001|IEC 60598-1:2008/EN 60598-1:2008|IEC 60598-2:2008/EN 60598-2:2008|IEC 60079-18:2017, 4.1 Edition/EN 60079-18:2015 + A1:2017|IECEx UL 13.0052X|NEC Certified|UL 844/1598/1598A
 Type Type V Optic Straight
 Voltage Rating 100 to 277 VAC/127 to 250 VDC VAC/VDC

Features

▪ Instant illumination and restrike
▪ Cold temperature operation, no warm
▪ Easy installation - compact modular fixture attaches onto existing champ mounting module
▪ Energy efficient technology up to 77% energy savings over HID fixtures
▪ Contains no mercury or other hazardous substances
▪ Shock and vibration resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
▪ Up to 60000 hr life time at 55 deg C
▪ Without wire guard
