Schneider Electric
  • VHU362DSGL SQD 3P 60A SFTY SWITCH
  • VHU362DSGL SQD 3P 60A SFTY SWITCH
  • VHU362DSGL SQD 3P 60A SFTY SWITCH
  • VHU362DSGL SQD 3P 60A SFTY SWITCH
  • VHU362DSGL SQD 3P 60A SFTY SWITCH
  • VHU362DSGL SQD 3P 60A SFTY SWITCH

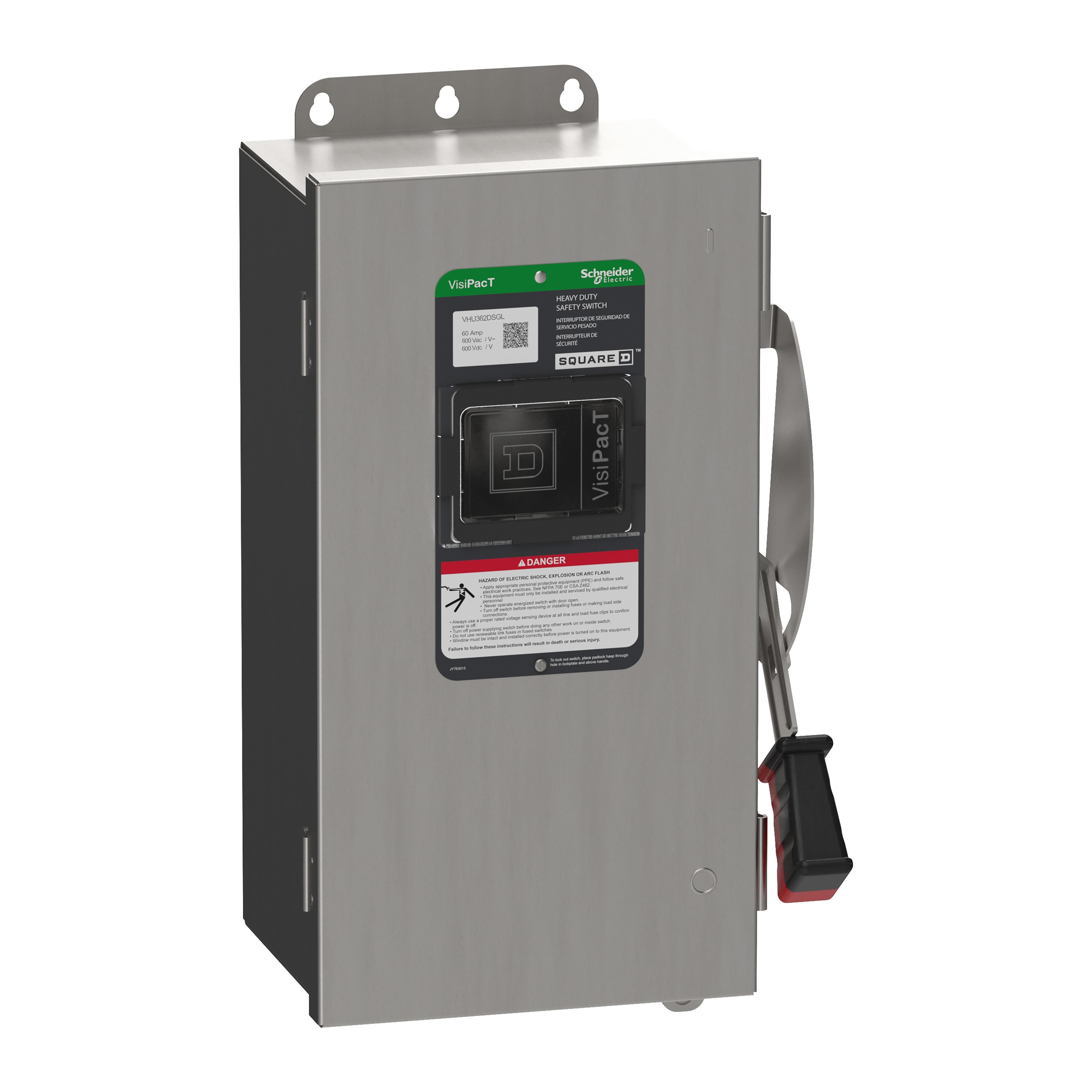

Description: Square D™, VHU362DSGL, Safety Switch, Heavy Duty Non-Fusible Disconnect, 600 VAC, 600 VDC, 60 A, 10, 20, 25, 30, 50, 60 hp, 1, 3 pH, 50 to 60 Hz Frequency, 3 Pole, 3 Wires, Single Throw Contact Form, NEMA 4X Enclosure, Surface Mounting, Lug Terminal, 7.37 in H x 8.92 in W x 7.26 in D Dimensions, 304 Stainless Steel

Manufacturer PN: VHU362DSGL

UPC:  60648589468

Kendall Electric Inc PN: 4757237

Invoice Description:

VHU362DSGL SQD 3P 60A SFTY SWITCH


SPEC SHEET

▸ See All in Heavy Duty Safety Switches


How Can We Make This Page Better?

Square D™ VHU362DSGL Heavy Duty Non-Fusible Disconnect Safety Switch, 600 VAC, 600 VDC, 60 A, 10, 20, 25, 30, 50, 60 hp, Single Throw Contact, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™, VHU362DSGL, Safety Switch, Heavy Duty Non-Fusible Disconnect, 600 VAC, 600 VDC, 60 A, 10, 20, 25, 30, 50, 60 hp, 1, 3 pH, 50 to 60 Hz Frequency, 3 Pole, 3 Wires, Single Throw Contact Form, NEMA 4X Enclosure, Surface Mounting, Lug Terminal, 7.37 in H x 8.92 in W x 7.26 in D Dimensions, 304 Stainless Steel

Specifications

 Amperage Rating 60 A
 Application For Heavy application
 Brand Name Square D
 Contact Form Single Throw
 Dimensions 7.37 in H x 8.92 in W x 7.26 in D
 Enclosure NEMA 4X
 Frequency Rating 50 to 60 Hz
 Horsepower 10, 20, 25, 30, 50, 60 hp
 Manufacturer Part Number VHU362DSGL
 Material 304 Stainless Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 Phase 1, 3
 Standards/Approvals UL Listed File E2875
 Terminal Type Lug
 Type Heavy Duty Non-Fusible Disconnect
 Voltage Rating 600 VAC/600 VDC

Features

▪ Fusible and Non-Fusible options
▪ Rated Horsepower, 500hp maximum
▪ Short Circuit Current Rating, Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
