Schneider Electric
  • VH362RB SQD 3P 60A SFTY SWITCH
  • VH362RB SQD 3P 60A SFTY SWITCH
  • VH362RB SQD 3P 60A SFTY SWITCH
  • VH362RB SQD 3P 60A SFTY SWITCH
  • VH362RB SQD 3P 60A SFTY SWITCH

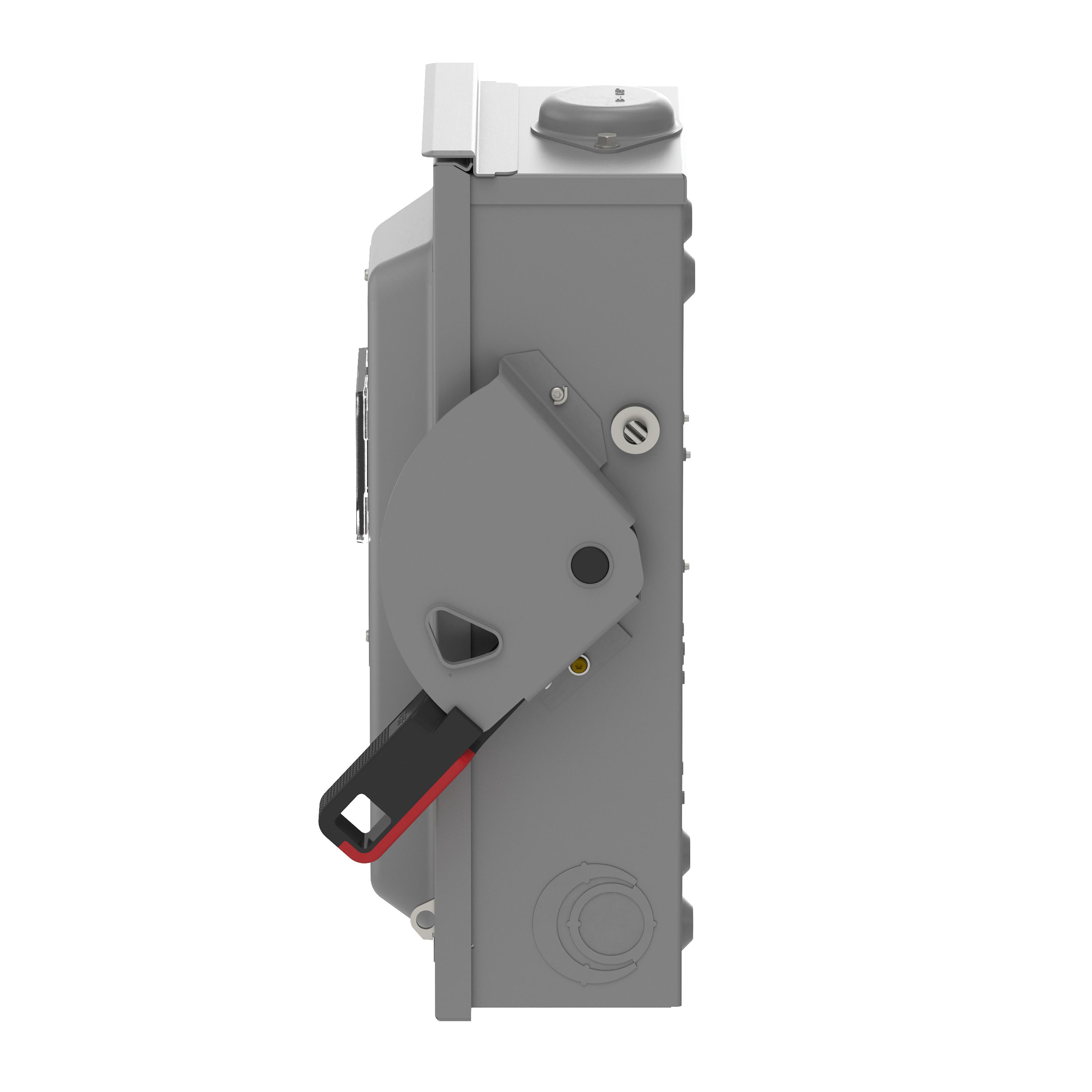

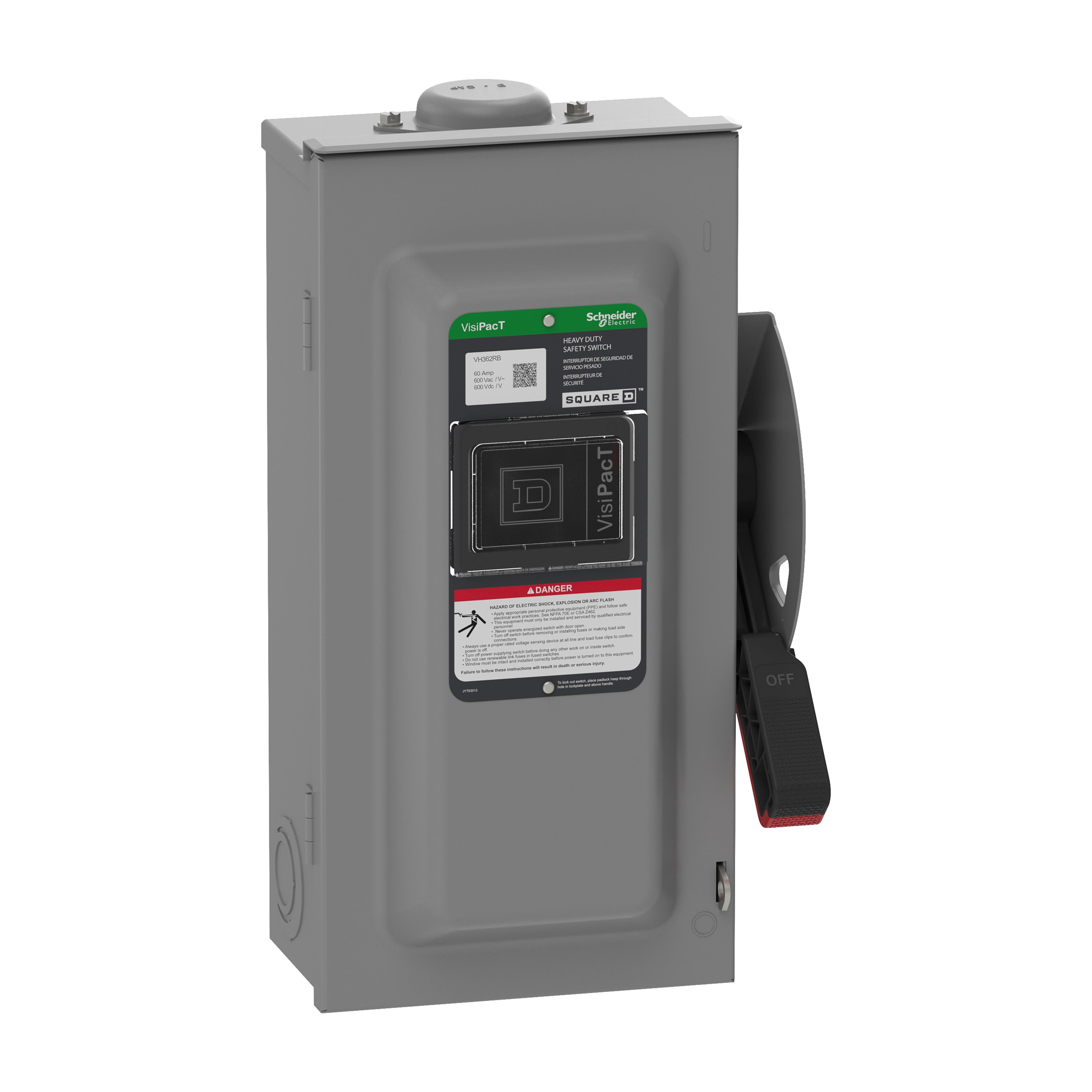

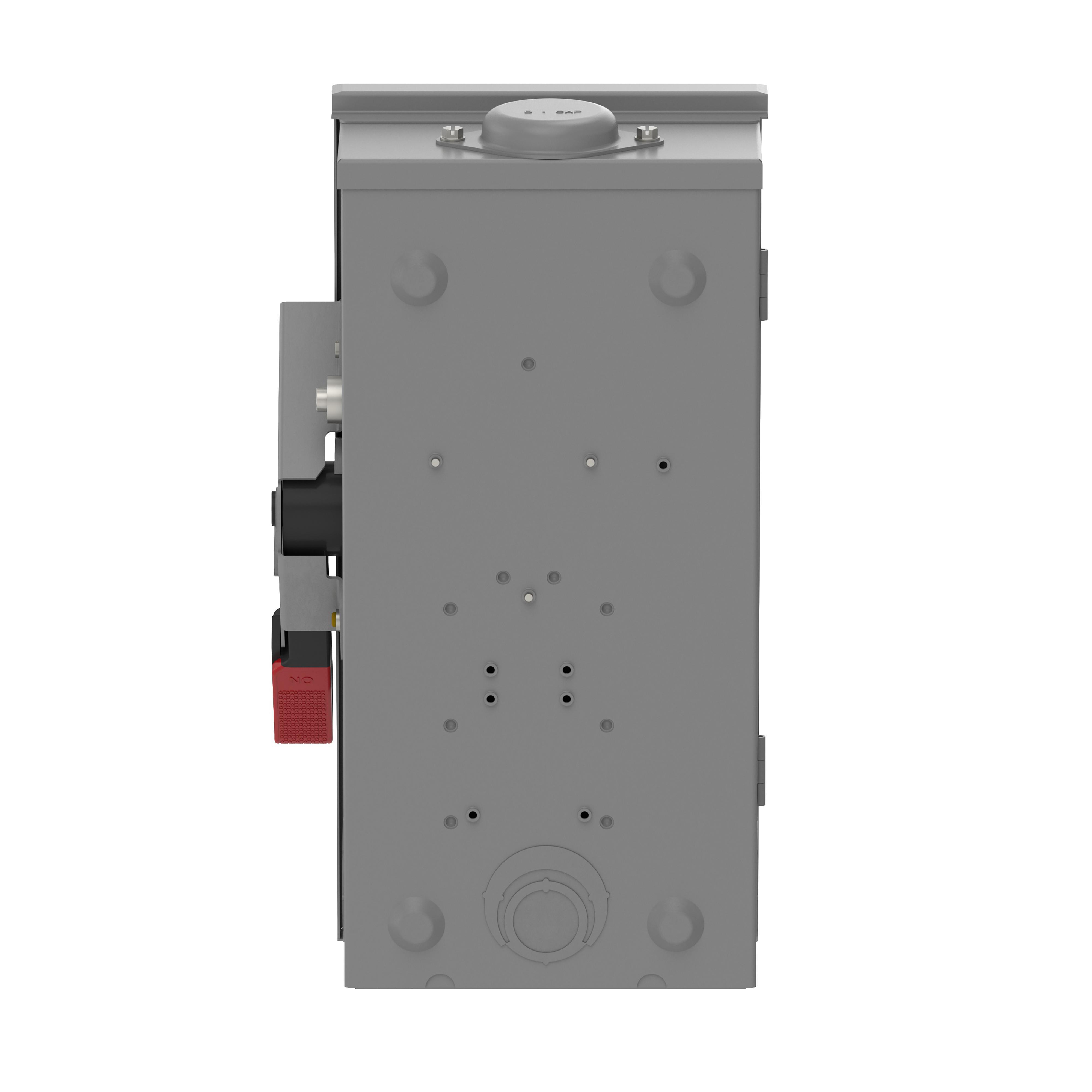

Description: Square D™, VH362RB, Safety Switch, Heavy Duty Fusible Disconnect, 600 VAC, 600 VDC, 60 A, 15, 30, 50 hp, 3 ph, 50 to 60 Hz Frequency, 3 Pole, 3 Wires, 10, 200 kA Short Circuit, Single Throw Contact Form, Handle Actuator, Class H/J/K/R Insulation, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 18.75 in H x 9.08 in W x 7.038 in D Dimensions, Steel, Galvannealed

Manufacturer PN: VH362RB

UPC:  60648589403

Kendall Electric Inc PN: 4753558

Invoice Description:

VH362RB SQD 3P 60A SFTY SWITCH


SPEC SHEET

▸ See All in Heavy Duty Safety Switches


How Can We Make This Page Better?

Square D™ VH362RB Heavy Duty Fusible Disconnect Safety Switch, 600 VAC, 600 VDC, 60 A, 15, 30, 50 hp, Single Throw Contact, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 3R rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with standard lugs that are not grounded but equipment grounding kits can be used make lugs grounded. The wire range for this switch is AWG 12...AWG 3 aluminium and AWG 14...AWG 3 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.
Square D™, VH362RB, Safety Switch, Heavy Duty Fusible Disconnect, 600 VAC, 600 VDC, 60 A, 15, 30, 50 hp, 3 ph, 50 to 60 Hz Frequency, 3 Pole, 3 Wires, 10, 200 kA Short Circuit, Single Throw Contact Form, Handle Actuator, Class H/J/K/R Insulation, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 18.75 in H x 9.08 in W x 7.038 in D Dimensions, Steel, Galvannealed

Specifications

 Actuator Type Handle
 Amperage Rating 60 A
 Application Ideal for all your commercial and industrial needs
 Brand Name Square D
 Contact Form Single Throw
 Dimensions 18.75 in H x 9.08 in W x 7.038 in D
 Enclosure NEMA 3R
 Finish Galvannealed
 Frequency Rating 50 to 60 Hz
 Horsepower 15, 30, 50 hp
 Manufacturer Part Number VH362RB
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 Phase 3
 Short Circuit Current Rating 10, 200 kA
 Standards/Approvals UL98/NEMA KS1 Standards|UL Files E2875/E154828
 Terminal Type Lug
 Type Heavy Duty Fusible Disconnect
 Voltage Rating 600 VAC/600 VDC

Features

▪ Fusible and Non-Fusible options
▪ Rated Horsepower, 500hp maximum
▪ Short Circuit Current Rating, Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
