Schneider Electric
VCF4 SQD 63A SW KIT W/4HOLE

Mouse over image to zoom, click to enlarge

  • VCF4 SQD 63A SW KIT W/4HOLE
  • VCF4 SQD 63A SW KIT W/4HOLE
  • VCF4 SQD 63A SW KIT W/4HOLE
  • VCF4 SQD 63A SW KIT W/4HOLE

Description: Schneider Electric Square D™ TeSys™ Vario™ Disconnect Switch, Emergency Stop High Performance Main, 690 VAC, 57 A, 50/60 Hz Frequency, 3 Pole, 10 kA Short Circuit, 3NO Contact Form, Padlockable Rotary Handle Actuator, IP20/IP65/Open Enclosure, Clip/Surface Mounting, Screw Clamp Terminal, -20 to 50 deg C, 60 mm W x 60 mm D x 83 mm H Dimensions, Red/Yellow

Manufacturer PN: VCF4

UPC:  38911016600

Kendall Electric Inc PN: 3959421

Invoice Description:

VCF4 SQD 63A SW KIT W/4HOLE


SPEC SHEET

▸ See All in Door Mount Switches


How Can We Make This Page Better?

Schneider Electric Square D™ TeSys™ Vario™ VCF4 Emergency Stop High Performance Main Disconnect Switch With 4-Hole Mounting, 690 VAC, 57 A, 3NO Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

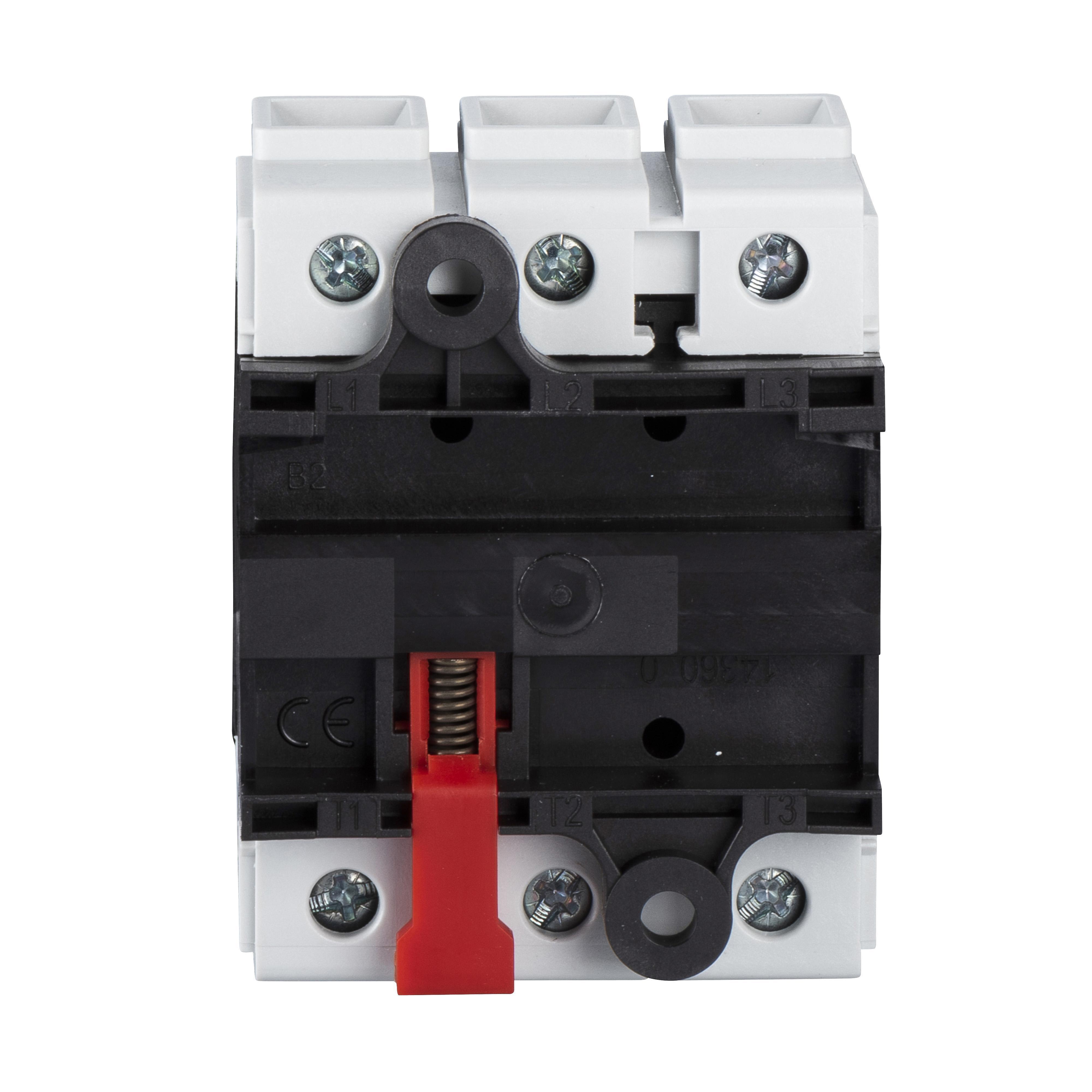

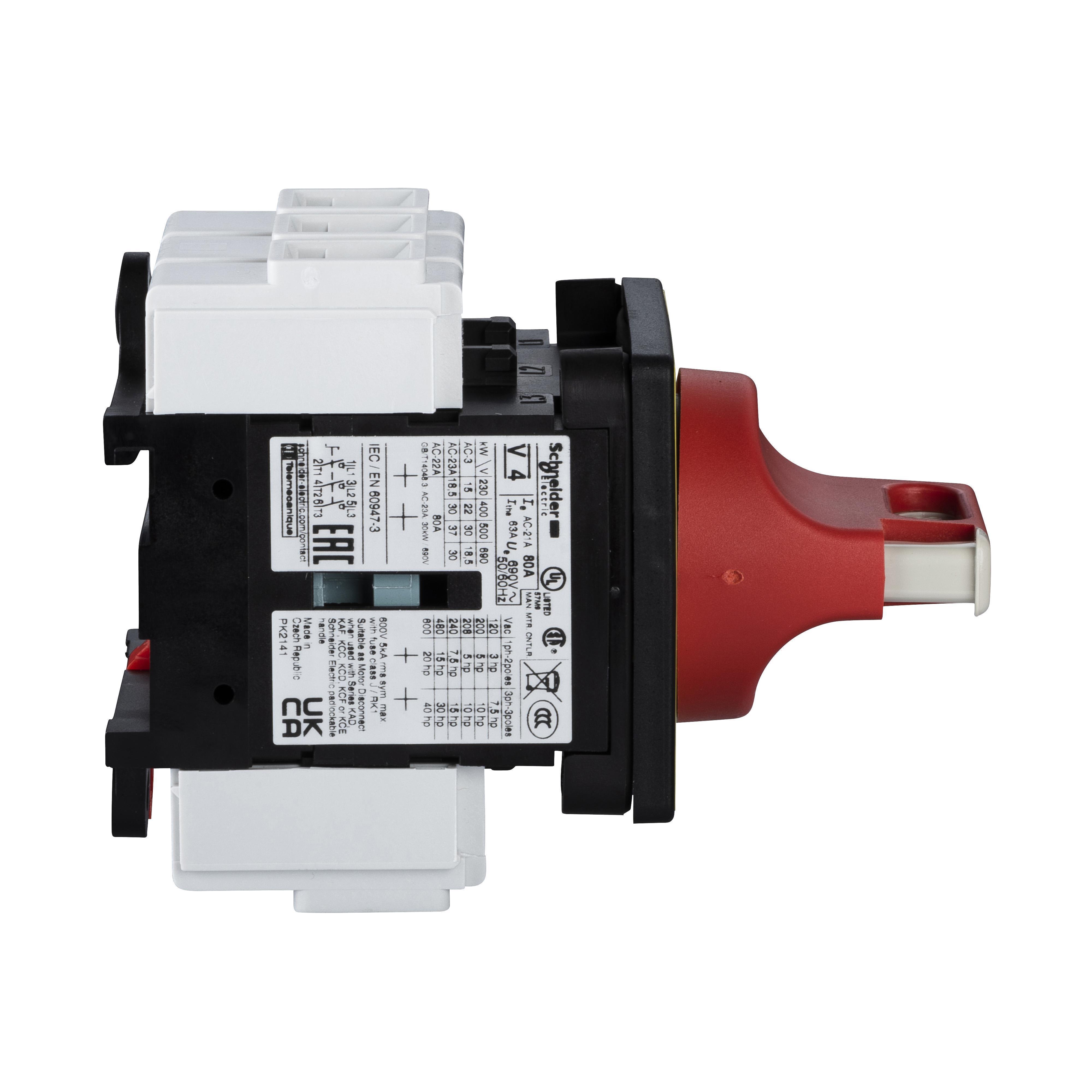

VCF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30 kW at 400 V AC-23. It consists of a V4 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHS/Reach).
Schneider Electric Square D™ TeSys™ Vario™ Disconnect Switch, Emergency Stop High Performance Main, 690 VAC, 57 A, 50/60 Hz Frequency, 3 Pole, 10 kA Short Circuit, 3NO Contact Form, Padlockable Rotary Handle Actuator, IP20/IP65/Open Enclosure, Clip/Surface Mounting, Screw Clamp Terminal, -20 to 50 deg C, 60 mm W x 60 mm D x 83 mm H Dimensions, Red/Yellow

Specifications

 Actuator Type Padlockable Rotary Handle
 Amperage Rating 57 A
 Application Main Switch Disconnection Applications
 Brand Name Square D
 Color Red/Yellow
 Contact Form 3NO
 Dimensions 60 mm W x 60 mm D x 83 mm H
 Enclosure IP20/IP65/Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number VCF4
 Mounting Type Clip/Surface
 Number of Poles 3
 Short Circuit Current Rating 10 kA
 Standards/Approvals CCC Certified|CE Certified|CSA File No. LR81630 Class 3211 05|ECCN EAR99|GL Certified|IEC 60947-3/60529-2-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL File No. E164864 CCN NLRV
 Temperature Rating -20 to 50 deg C
 Terminal Type Screw Clamp
 Type Emergency Stop High Performance Main
 Voltage Rating 690 VAC

Features

▪ Available in open or enclosed version
▪ Local motor control
▪ Add on contact modules available
▪ Low profile handle available
