Stanley Black & Decker
VB9 LEN VARI-BIT 7/8,1-1/8,1-7/32 30909-VB9

Mouse over image to zoom, click to enlarge

  • VB9 LEN VARI-BIT 7/8,1-1/8,1-7/32 30909-VB9
  • VB9 LEN VARI-BIT 7/8,1-1/8,1-7/32 30909-VB9
  • VB9 LEN VARI-BIT 7/8,1-1/8,1-7/32 30909-VB9
  • VB9 LEN VARI-BIT 7/8,1-1/8,1-7/32 30909-VB9
  • VB9 LEN VARI-BIT 7/8,1-1/8,1-7/32 30909-VB9

Description: Lenox® Vari-Bit® Step Drill Bit, Imperial, 7/8 in Diameter Minimum Hole, 1-7/32 in Diameter Maximum Hole, 3 in Overall Length, 2 in Cutting Depth, 3 Hole, 7/8 in, 1-1/8 in, 1-7/32 in, 3/8 in Shank, Flat/Round Shank, Split Point, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Carbon Metal, Ferrous Metal and Stainless Steel

Manufacturer PN: 30909VB9

UPC:  08247230909

Kendall Electric Inc PN: 41670

Invoice Description:

VB9 LEN VARI-BIT 7/8,1-1/8,1-7/32 30909-VB9


SPEC SHEET

▸ See All in Step Drills


How Can We Make This Page Better?

Lenox® Vari-Bit® 30909VB9 Step Drill Bit, 7/8 in Dia Min Hole, 1-7/32 in Dia Max Hole, HSS, 3 Hole Sizes, 3/8 in Shank

Log In for Pricing and Availability




Description

Lenox® Vari-Bit® Step Drill Bit, Imperial, 7/8 in Diameter Minimum Hole, 1-7/32 in Diameter Maximum Hole, 3 in Overall Length, 2 in Cutting Depth, 3 Hole, 7/8 in, 1-1/8 in, 1-7/32 in, 3/8 in Shank, Flat/Round Shank, Split Point, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Carbon Metal, Ferrous Metal and Stainless Steel

Specifications

 Applicable Materials Carbon Metal, Ferrous Metal and Stainless Steel
 Brand Name Lenox
 Cutting Depth 2 in
 Cutting Edge Material HSS
 Drill Diameter Measurement System Imperial
 Finish Steam Oxide
 Hole Sizes Cut 7/8 in, 1-1/8 in, 1-7/32 in
 Manufacturer Part Number 30909VB9
 Material HSS
 Maximum Hole Diameter 1-7/32 in
 Minimum Hole Diameter 7/8 in
 Number of Hole Sizes 3
 Overall Length 3 in
 Point Type Split
 Shank Size 3/8 in
 Shank Type Flat/Round
 Standards/Approvals ARRA Compliant|Buy American Act Compliant

Features

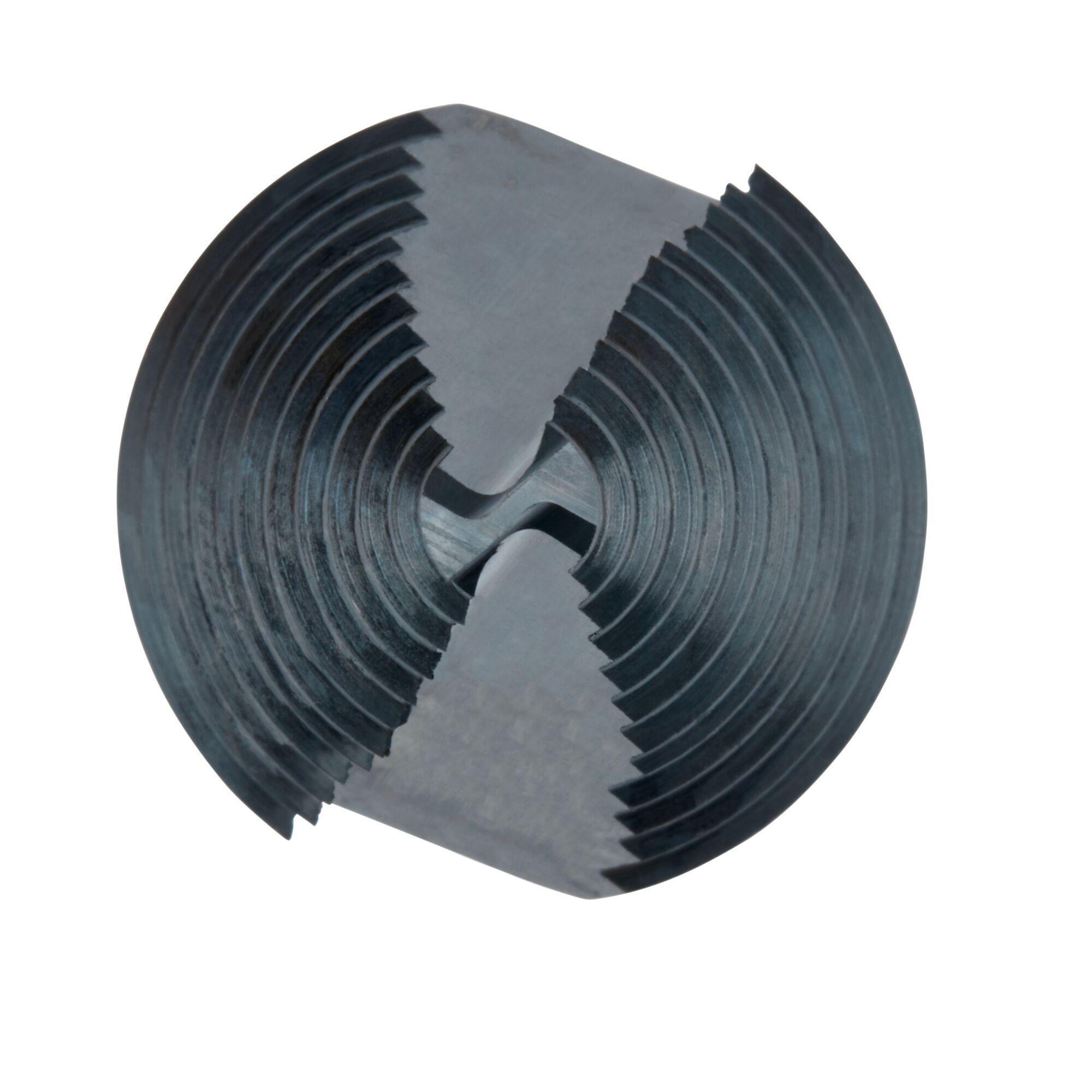

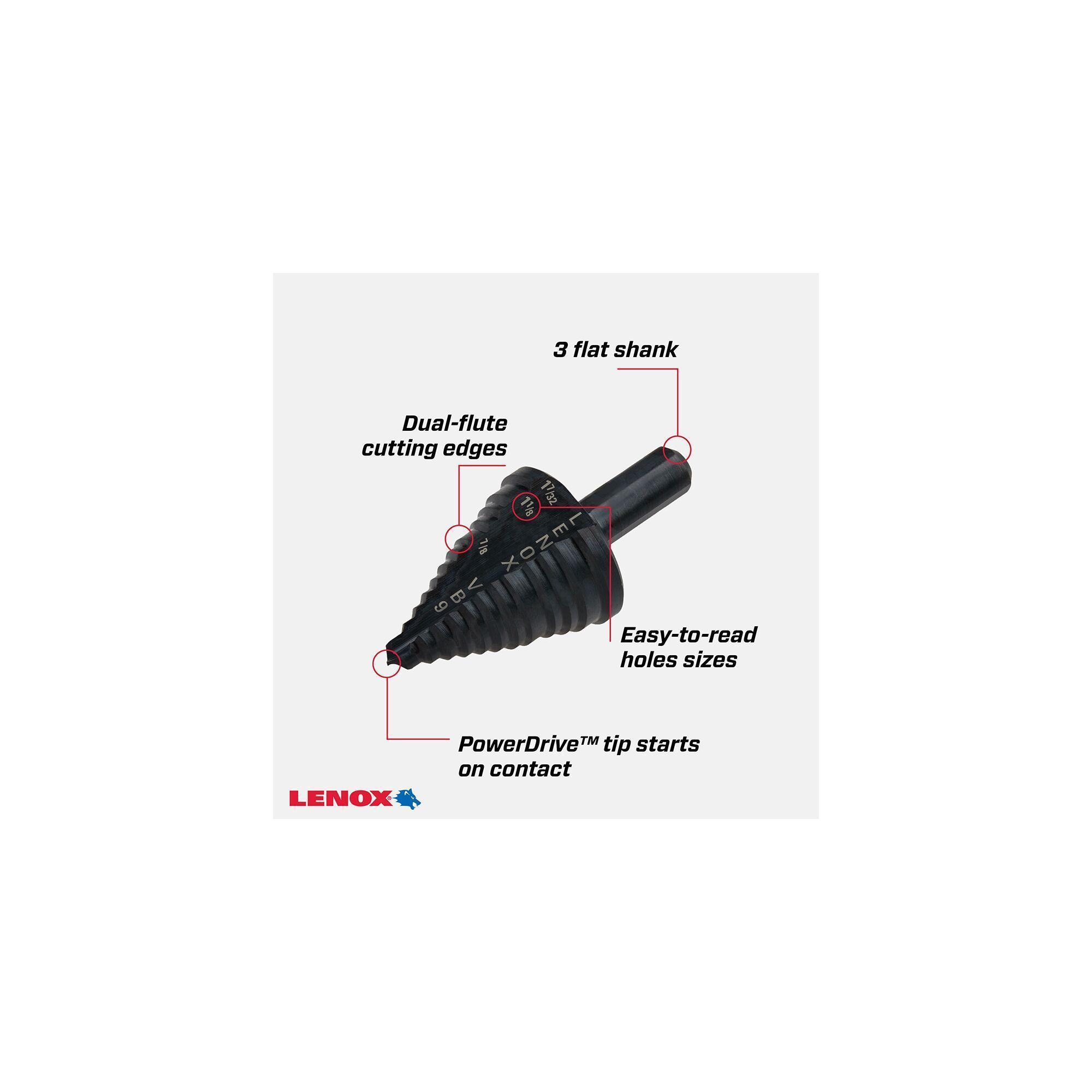

▪ Accurate, patented two flute design with burr-free holes, cuts fast, clean and round holes
▪ Split point design for faster penetration and less walking
▪ Steam oxide coating adds durability
▪ Enhanced flute design removes chips rapidly
▪ Use of LENOX® BANDSAW PROTOOL Lube® recommended to extend tool life
