RAB Lighting
VAN17-60 RAB

Mouse over image to zoom, click to enlarge

  • VAN17-60 RAB
  • VAN17-60 RAB

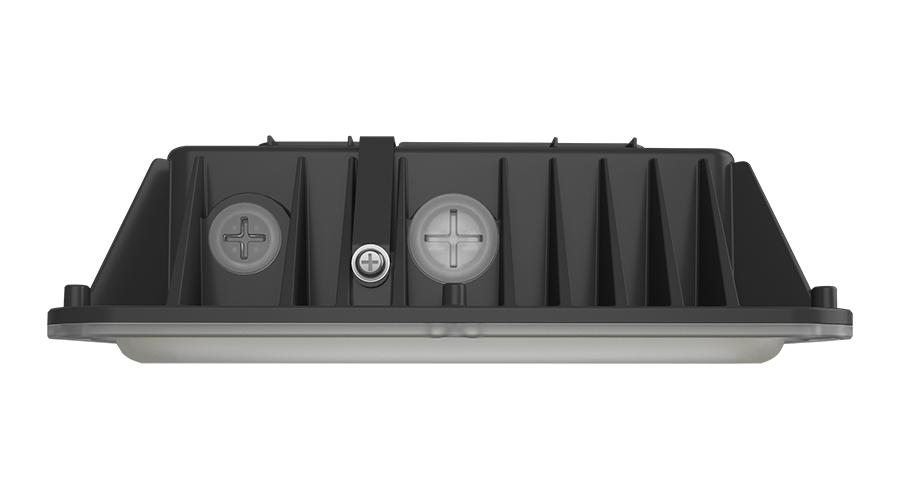

Description: RAB, VAN17-60, Canopy Light, Series: VAN17, 120 to 277 V, 38.8 to 59.9 W Fixture, 0.50 to 0.14 A, LED Lamp, 135.4 to 157.2 Lumens/W Light Output, 50000 hr Average Life, 3000, 4000, 5000 K Color Temperature, 81 to 83 CRI, 0 to 10 V Dimming Ballast, Vandal-Resistant Polycarbonate Textured Opaque Lens, 5736 to 8806 Lumens, IP65 Enclosure, Ceiling Mounting, Aluminum Housing Material, Bronze Housing Finish, 3 in H x 10 in W x 10 in L Dimensions

Manufacturer PN: VAN17-60

Kendall Electric Inc PN: 4808608

Invoice Description:

VAN17-60 RAB


SPEC SHEET

▸ See All in Outdoor Canopy Lighting


How Can We Make This Page Better?

RAB VAN17-60 VAN17 Canopy Light, LED Lamp, 38.8 to 59.9 W Fixture, 120 to 277 V, Bronze Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

RAB, VAN17-60, Canopy Light, Series: VAN17, 120 to 277 V, 38.8 to 59.9 W Fixture, 0.50 to 0.14 A, LED Lamp, 135.4 to 157.2 Lumens/W Light Output, 50000 hr Average Life, 3000, 4000, 5000 K Color Temperature, 81 to 83 CRI, 0 to 10 V Dimming Ballast, Vandal-Resistant Polycarbonate Textured Opaque Lens, 5736 to 8806 Lumens, IP65 Enclosure, Ceiling Mounting, Aluminum Housing Material, Bronze Housing Finish, 3 in H x 10 in W x 10 in L Dimensions

Specifications

 Amperage Rating 0.50 to 0.14 A
 Application For Outdoor
 Average Life 50000 hr
 Ballast Type 0 to 10 V Dimming
 Brand Name RAB
 Color Rendering Index CRI 81 to 83
 Color Temperature 3000, 4000, 5000 K
 Dimensions 3 in H x 10 in W x 10 in L
 Enclosure IP65
 Fixture Wattage 38.8 to 59.9 W
 Housing Finish Bronze
 Housing Material Aluminum
 Includes Bulit-in photocell
 Lamp Type LED
 Light Output 135.4 to 157.2 Lumens/W
 Lumens 5736 to 8806 Lumens
 Manufacturer Part Number VAN17-60
 Mounting Type Ceiling
 Series VAN17
 Standards/Approvals BAA Compliant|DLC Listed|RoHS compliant|ANSI C78.377-2017|IESNA LM-79 and LM-80|UL Listed
 Voltage Rating 120 to 277 V
