RAB Lighting

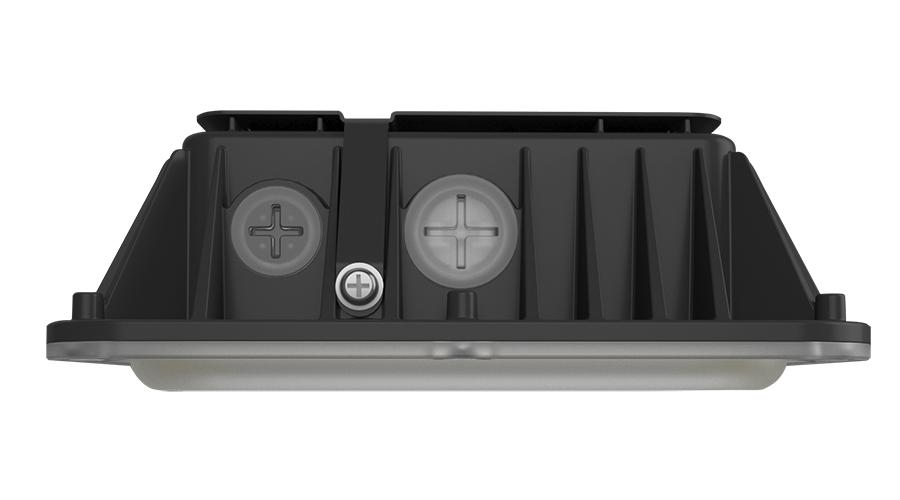

VAN17-30/E RAB VAN17 30/25/20W FA 3/4/5K PC BATT BZ

Mouse over image to zoom, click to enlarge

  • VAN17-30/E RAB VAN17 30/25/20W FA 3/4/5K PC BATT BZ
  • VAN17-30/E RAB VAN17 30/25/20W FA 3/4/5K PC BATT BZ

Description: RAB, VAN17-30/E, Canopy Light, Series: VAN17, 120 to 277 V, 19.9 to 29.8 W Fixture, 0.25 to 0.07 A, LED Lamp, 140.8 to 153.1 Lumens/W Light Output, 50000 hr Average Life, 3000/4000/5000 K Color Temperature, 81 to 83 CRI, 0 to 10 V Dimming Ballast, Vandal-Resistant Polycarbonate Textured Opaque Lens, 2883 to 4453 Lumens, IP65 Enclosure, Ceiling Mounting, Aluminum Housing Material, Bronze Housing Finish, 2-13/16 in H x 8 in W x 8 in L Dimensions

Manufacturer PN: VAN17-30/E

UPC:  19255203298

Kendall Electric Inc PN: 4868852

Invoice Description:

VAN17-30/E RAB VAN17 30/25/20W FA 3/4/5K PC BATT BZ


SPEC SHEET

▸ See All in Outdoor Canopy Lighting


How Can We Make This Page Better?

RAB VAN17-30/E VAN17 Canopy Light, LED Lamp, 19.9 to 29.8 W Fixture, 120 to 277 V, Bronze Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

RAB, VAN17-30/E, Canopy Light, Series: VAN17, 120 to 277 V, 19.9 to 29.8 W Fixture, 0.25 to 0.07 A, LED Lamp, 140.8 to 153.1 Lumens/W Light Output, 50000 hr Average Life, 3000/4000/5000 K Color Temperature, 81 to 83 CRI, 0 to 10 V Dimming Ballast, Vandal-Resistant Polycarbonate Textured Opaque Lens, 2883 to 4453 Lumens, IP65 Enclosure, Ceiling Mounting, Aluminum Housing Material, Bronze Housing Finish, 2-13/16 in H x 8 in W x 8 in L Dimensions

Specifications

 Amperage Rating 0.25 to 0.07 A
 Application For Outdoor
 Average Life 50000 hr
 Ballast Type 0 to 10 V Dimming
 Brand Name RAB
 Color Rendering Index CRI 81 to 83
 Color Temperature 3000/4000/5000 K
 Dimensions 2-13/16 in H x 8 in W x 8 in L
 Enclosure IP65
 Fixture Wattage 19.9 to 29.8 W
 Housing Finish Bronze
 Housing Material Aluminum
 Includes Bulit-in photocell
 Lamp Type LED
 Light Output 140.8 to 153.1 Lumens/W
 Lumens 2883 to 4453 Lumens
 Manufacturer Part Number VAN17-30/E
 Mounting Type Ceiling
 Series VAN17
 Standards/Approvals BAA Compliant|DLC Listed|RoHS compliant|ANSI C78.377-2017|IESNA LM-79 and LM-80|UL Listed
 Voltage Rating 120 to 277 V
