Legrand

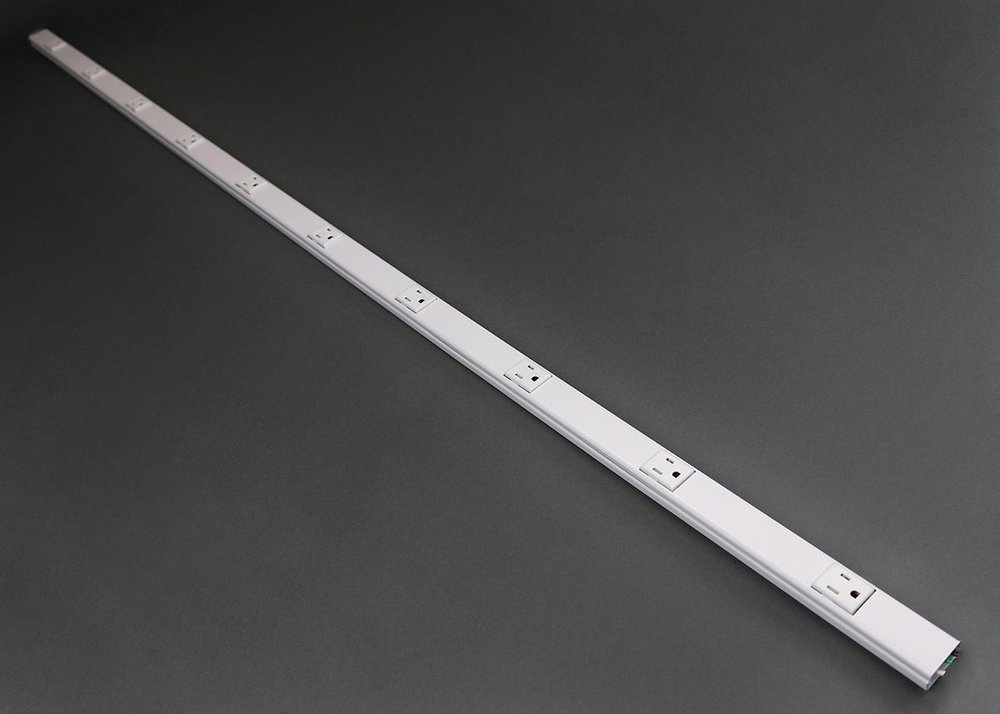

WH20GB506TR WIREMOLD TR PLUGMOLD 5FT WHITE 2/BOX..

Mouse over image to zoom, click to enlarge

Description: Wiremold® Plugmold® Multi-Outlet System, 1-Circuit 3-Wire, Series: 2000, 5 ft Length, 1-9/32 in Width, 3/4 in Height, 125 V AC, 1 Channels, 12 AWG THHN Cable, 10 Outlets, 6 in Outlet Center Distance, Outlet Configuration: (9) Single Tamper Resistant Receptacle, 15 A Receptacle Outlet, Screw-On Mounting, Steel, White, Enamel

Manufacturer PN: WH20GB506TR

UPC:  78677617487

Kendall Electric Inc PN: 2849974

Invoice Description:

WH20GB506TR WIREMOLD TR PLUGMOLD 5FT WHITE 2/BOX..


SPEC SHEET

▸ See All in Power Outlet Strips


How Can We Make This Page Better?

Wiremold® Plugmold® WH20GB506TR 2000 1-Circuit 3-Wire Multi-Outlet System, 5 ft L x 1-9/32 in W x 3/4 in H, 1 Channel, Steel

Log In for Pricing and Availability




Description

Steel Plugmold® multioutlet systems are available in a wide range of lengths and finishes to provide a versatile solution for many applications. Options include versions with single or alternating circuits, standard, or isolated ground receptacles, Snapicoil® harnesses of prewired receptacles, USB charging options, GFCI protection, tamper resistance, plug-in and cord-ended units. Steel Plugmold® Multioutlet Systems are available in black or ivory ScuffCoat™ finish, painted white or gray enamel finish, or stylish.
Wiremold® Plugmold® Multi-Outlet System, 1-Circuit 3-Wire, Series: 2000, 5 ft Length, 1-9/32 in Width, 3/4 in Height, 125 V AC, 1 Channels, 12 AWG THHN Cable, 10 Outlets, 6 in Outlet Center Distance, Outlet Configuration: (9) Single Tamper Resistant Receptacle, 15 A Receptacle Outlet, Screw-On Mounting, Steel, White, Enamel

Specifications

 Application Commercial, Office, Residential and Dry Interior Locations Applications
 Brand Name Wiremold®
 Cable Type 12 AWG THHN
 Color White
 Finish Enamel
 Height 3/4 in
 Includes (1) Coupling, (2) Blank End Fittings
 Length 5 ft
 Manufacturer Part Number WH20GB506TR
 Material Steel
 Mounting Type Screw-On
 Number of Outlets 10
 Outlet Center Distance 6 in
 Outlet Configuration (9) Single Tamper Resistant Receptacle
 Outlet Rating 15 A Receptacle
 PART NUMBER KEYWORDS WH20GB506TR ; 11130798 ; 786776174878 ; 78677617487 ; 00786776174878
 Series 2000
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|cULus File No. E4376 Guide RJBT, File No.E15191 Guide PVGT|Article No. 380 NEC, 406.11
 Type 1-Circuit 3-Wire
 Video Links
 Voltage Rating 125 V AC
 Width 1-9/32 in

Features

▪ Easier and more convenient installation
▪ Eliminates the need to break through walls
▪ Provide clean, attractive installations with concealed power sources
▪ Custom configurations and finish options are also available
▪ Consult the factory for more information
▪ Built-in shutter system
▪ Prevents the insertion of unwanted objects such as hairpins, keys and nails
▪ Providing additional protection for occupants including small children
▪ Available in 3 ft and 5 ft 914mm and 1.5m lengths with 6 in 305mm receptacle spacing
▪ Provides additional power access in smaller, more confined areas
▪ Multiple lengths present more mounting options
▪ 15A Proprietary Simplex Decorator Receptacle
▪ Functional and aesthetically pleasing, matches any decor
▪ Steel or aluminum construction
