Hubbell

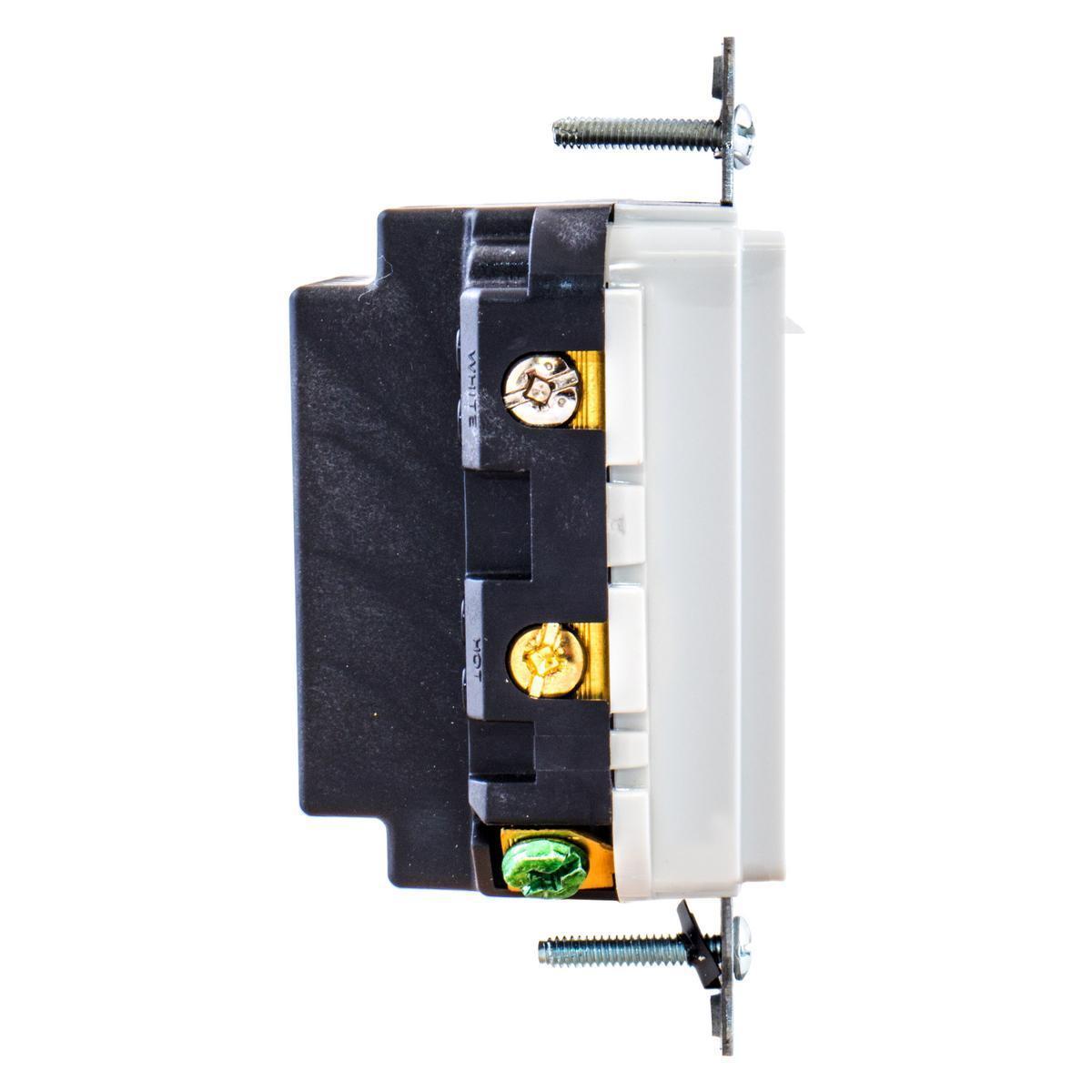

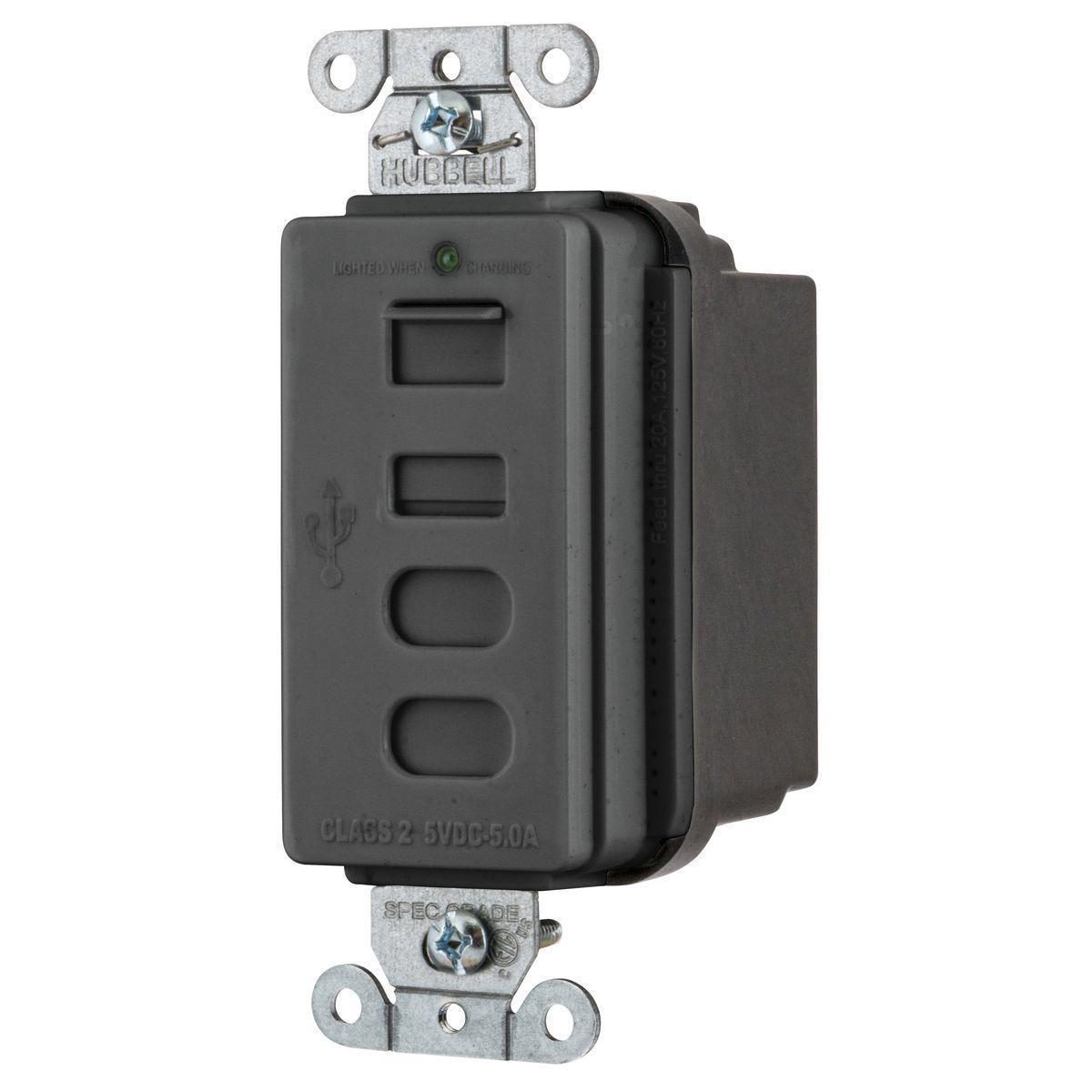

USB4ACBK HUBBELL USB CHRGR 4 PORT 5AMP 5 TYPE AC, BLACK

Mouse over image to zoom, click to enlarge

  • USB4ACBK HUBBELL USB CHRGR 4 PORT 5AMP 5 TYPE AC, BLACK
  • USB4ACBK HUBBELL USB CHRGR 4 PORT 5AMP 5 TYPE AC, BLACK
  • USB4ACBK HUBBELL USB CHRGR 4 PORT 5AMP 5 TYPE AC, BLACK

Description: Hubbell Wiring Device-Kellems Style Line® Receptacle and USB Charger, Decorator Duplex Grounding Non-NEMA Standard Tamper-Resistant, 125 V, 15 A Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 4 USB Quantity, 5 A, 5 V DC USB, Class 2.0 Insulation, Threaded Mounting, Hospital/Standard Grade, Wiring Method: Grounding, Thermoplastic, Black, Environmental Conditions: -40 to 75 deg C

Manufacturer PN: USB4ACBK

UPC:  88377830894

Kendall Electric Inc PN: 4053636

Invoice Description:

USB4ACBK HUBBELL USB CHRGR 4 PORT 5AMP 5 TYPE AC, BLACK


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Style Line® USB4ACBK Decorator Duplex Grounding Non-NEMA Standard Tamper-Resistant Receptacle and USB Charger, 125 V, 15 A, 2 Poles, 3 Wires, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This device will communicate with mobile devices to determine what voltage is required and provide 5V or 9V, based on the make and model. The two USB Type A ports offer high power at 5 volts.
Hubbell Wiring Device-Kellems Style Line® Receptacle and USB Charger, Decorator Duplex Grounding Non-NEMA Standard Tamper-Resistant, 125 V, 15 A Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0/C USB, 4 USB Quantity, 5 A, 5 V DC USB, Class 2.0 Insulation, Threaded Mounting, Hospital/Standard Grade, Wiring Method: Grounding, Thermoplastic, Black, Environmental Conditions: -40 to 75 deg C

Specifications

 Brand Name Hubbell Premise Wiring
 Color Black
 Electrical Ratings 125 V, 15 A
 Environmental Conditions -40 to 75 deg C
 Grade Hospital/Standard
 Includes (4) 5 A USB Ports, (2) 5 VDC, Class 2.0 Type A and (2) Type C USB
 Insulation Class 2.0
 Manufacturer Part Number USB4ACBK
 Material Thermoplastic
 Mounting Threaded
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS USB4ACBK ; 14284258 ; 883778308949 ; 88377830894 ; 00883778308949
 Standards/Approvals cETLus Listed|cULus Listed|UL 498|UL 1310|FCC Approved
 Type Decorator Duplex Grounding Non-NEMA Standard Tamper-Resistant
 USB Quantity 4
 USB Rating 5 A, 5 V DC
 USB Type Type-A USB 2.0/C
 Video Links
 Wiring Method Grounding

Features

▪ Fast charge enabled modulates up to 9 V
▪ Switch activated port door
▪ when closed, all power is switched off, for a "zero" no-load draw
▪ Green LED indicator to show USB power available
▪ Compatible with USB 1.1/2.0/3.0 devices, including Apple products
