Hubbell

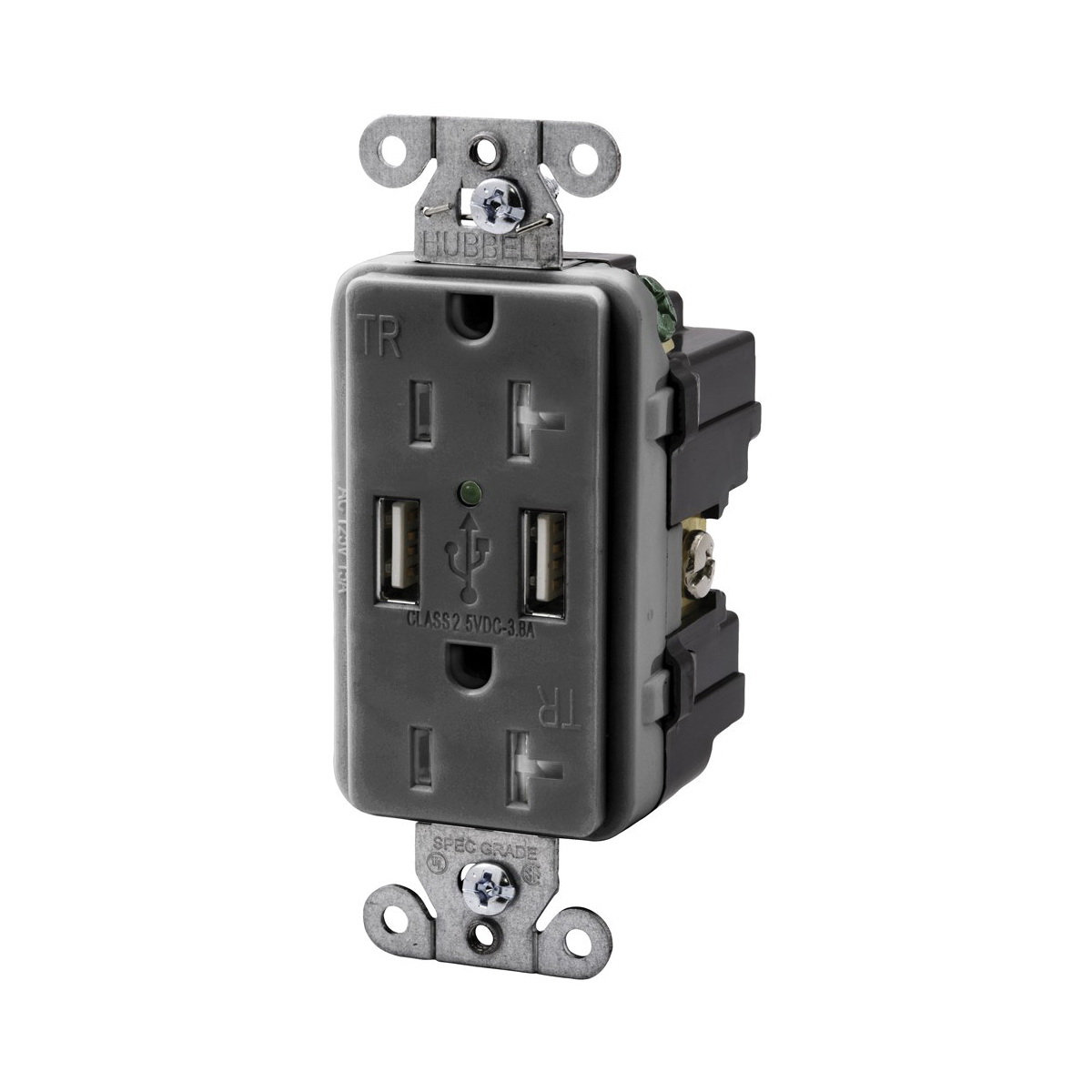

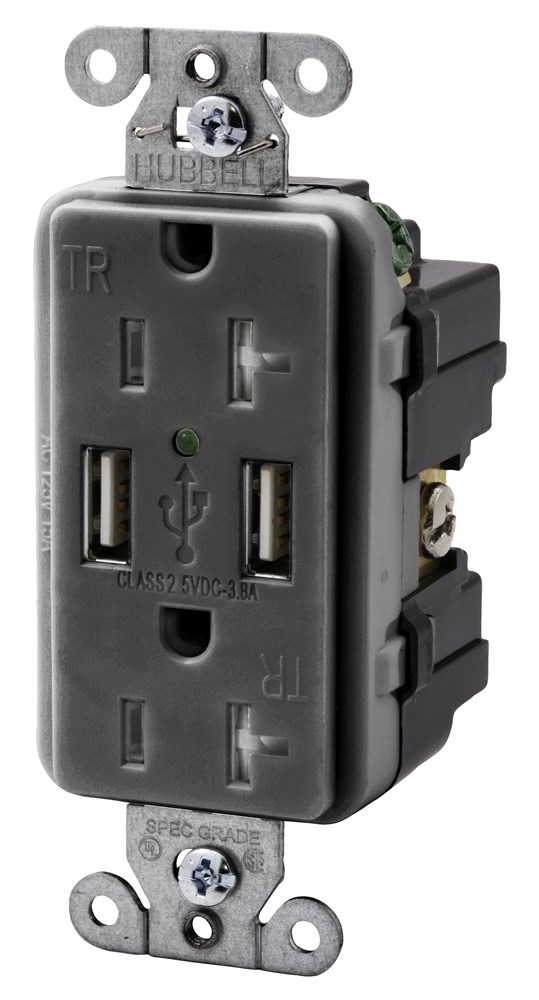

USB20X2GY HUBBELL RECEP, DUP, 20A 125V, 3A 5V USB PORT, GY 88377830489 ZZZZZZZZZZ

Mouse over image to zoom, click to enlarge

  • USB20X2GY HUBBELL RECEP, DUP, 20A 125V, 3A 5V USB PORT, GY 88377830489 ZZZZZZZZZZ
  • USB20X2GY HUBBELL RECEP, DUP, 20A 125V, 3A 5V USB PORT, GY 88377830489 ZZZZZZZZZZ
  • USB20X2GY HUBBELL RECEP, DUP, 20A 125V, 3A 5V USB PORT, GY 88377830489 ZZZZZZZZZZ

Description: Hubbell Wiring Device-Kellems USB Charger Receptacle, Decorator Duplex Standard Tamper Resistant, 20 A, 125 V AC, 1 hp Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, 2.0 Type USB, 2 USB Quantity, 5 VDC USB, 1.3 in W x 1.96 in D x 4.12 in H Size, Screw Connection, Commercial/Industrial/Specification Grade, Thermoplastic, Gray, Environmental Conditions: -40 to 75 deg C Operating Temperature

Manufacturer PN: USB20X2GY

UPC:  88377830489

Kendall Electric Inc PN: 2985690

Invoice Description:

USB20X2GY HUBBELL RECEP, DUP, 20A 125V, 3A 5V USB PORT, GY 88377830489 ZZZZZZZZZZ


SPEC SHEET

▸ See All in Receptacles & USB Ports


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems USB20X2GY Decorator Duplex Standard Tamper Resistant USB Charger Receptacle, 20 A, 125 V AC, 1 hp, 2 Poles, 3 Wires, Gray

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell® USB Charger receptacle provides both USB and AC electrical power in a standard single gang electrical opening. Designed to provide more charging options for personal electronics.
Hubbell Wiring Device-Kellems USB Charger Receptacle, Decorator Duplex Standard Tamper Resistant, 20 A, 125 V AC, 1 hp Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, 2.0 Type USB, 2 USB Quantity, 5 VDC USB, 1.3 in W x 1.96 in D x 4.12 in H Size, Screw Connection, Commercial/Industrial/Specification Grade, Thermoplastic, Gray, Environmental Conditions: -40 to 75 deg C Operating Temperature

Specifications

 Application For use in renovation, new construction and to add capacity for USB charging and especially suited for use in hotels, hospitals, offices, homes and more
 Brand Name Hubbell Premise Wiring
 Color Gray
 Connection Screw
 Electrical Ratings 20 A, 125 V AC, 1 hp
 Environmental Conditions -40 to 75 deg C Operating Temperature
 Grade Commercial/Industrial/Specification
 Manufacturer Part Number USB20X2GY
 Material Thermoplastic
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS USB20X2GY ; 883778304897 ; 88377830489 ; 00883778304897
 Size 1.3 in W x 1.96 in D x 4.12 in H
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|CSA Certified|FCC Part 15|NEMA WD1/WD5|WD6|UL 498|1310|UL94 V-2 Flammability Rating
 Type Decorator Duplex Standard Tamper Resistant
 USB Quantity 2
 USB Rating 5 V DC
 USB Type 2.0 Type
 Video Links

Features

▪ Two USB ports 3 A, 5V DC, type A, 2.0
▪ Tamper resistant decorator duplex receptacle
▪ Green LED indicator to show USB power available
▪ Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
▪ Back and side wire for solid or stranded wire
▪ Flush fit design
