Hubbell
USB20AC5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT AC WH..

Mouse over image to zoom, click to enlarge

  • USB20AC5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT AC WH..
  • USB20AC5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT AC WH..
  • USB20AC5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT AC WH..

Description: Hubbell Wiring Device-Kellems tradeSELECT® USB Charger Receptacle, Duplex Grounding Standard Tamper-Resistant, 125 V AC, 20 A, 2500 W Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type-A USB 2.0/C USB, 1 USB Quantity, 5 A, 5 VDC USB, 1.75 in W x 1.82 in D x 3.28 in H Size, Screw Terminal Connection, Commercial Grade, Composite, White, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-20R Enclosure

Manufacturer PN: USB20AC5W

UPC:  88377830724

Kendall Electric Inc PN: 3791580

Invoice Description:

USB20AC5W HUBBELL RCPT DUP 20A 125V 5A 5V USB PORT AC WH..


SPEC SHEET

How Can We Make This Page Better?

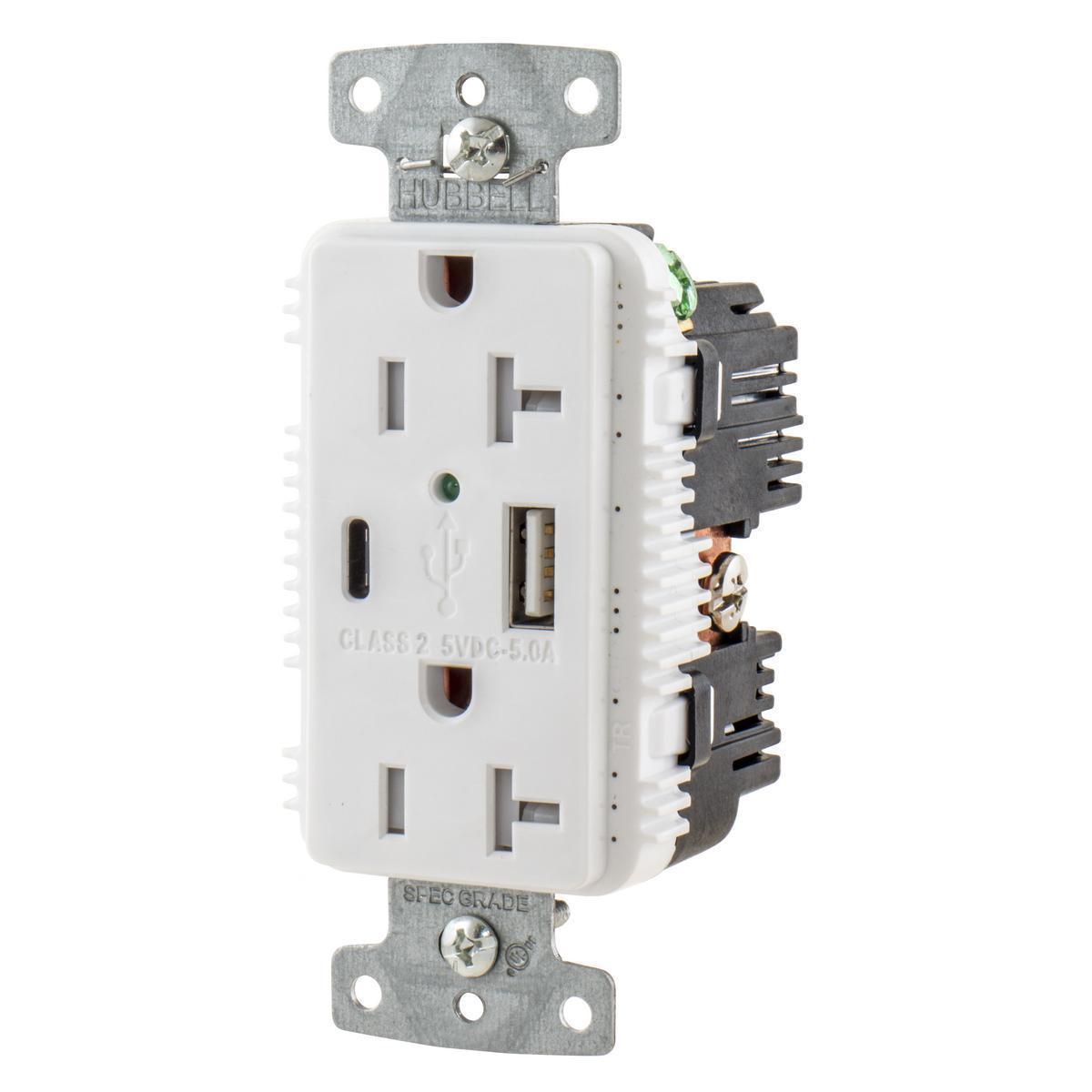

Hubbell Wiring Device-Kellems tradeSELECT® USB20AC5W Duplex Grounding Standard Tamper-Resistant USB Charger Receptacle With Green LED, 125 V AC, 20 A, 2500 W, 1 Phase, 2 Poles, 3 Wires, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell® USB chargers are available in the new type C port, a combination unit with type A and C and the legacy type A, all with more power. The increase in power to a 5 A, 5 VAC USB port adds capacity so that there is always ample current to support multiple device charging. Portable mobile manufacturers are using the faster type C ports. More phones, tablets and other electronic devices are expected to use this new standard.
Hubbell Wiring Device-Kellems tradeSELECT® USB Charger Receptacle, Duplex Grounding Standard Tamper-Resistant, 125 V AC, 20 A, 2500 W Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type-A USB 2.0/C USB, 1 USB Quantity, 5 A, 5 VDC USB, 1.75 in W x 1.82 in D x 3.28 in H Size, Screw Terminal Connection, Commercial Grade, Composite, White, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-20R Enclosure

Specifications

 Application USB Charging, Power, Commercial, Industrial, Home, Phones, Tablets, Indoor Dry Environment and Other Electronic Device Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Connection Screw Terminal
 Electrical Ratings 125 V AC, 20 A, 2500 W
 Environmental Conditions -40 to 75 deg C Operating, NEMA 5-20R Enclosure
 Grade Commercial
 Manufacturer Part Number USB20AC5W
 Material Composite
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS USB20AC5W ; 13848924 ; 883778307249 ; 88377830724 ; 00883778307249
 Phase 1
 Size 1.75 in W x 1.82 in D x 3.28 in H
 Standards/Approvals RoHS Compliant|cULus Listed|UL 498|UL 1310|CSA Certified|UL 94 V-2 Flammability Rating
 Type Duplex Grounding Standard Tamper-Resistant
 USB Quantity 1
 USB Rating 5 A, 5 V DC
 USB Type Type-A USB 2.0/C

Features

▪ High Power 5 A 5 V USB Output
▪ Combination Ports, One Type A, One Type C
▪ USB Ports Rated 10,000 Cycles
