Hubbell

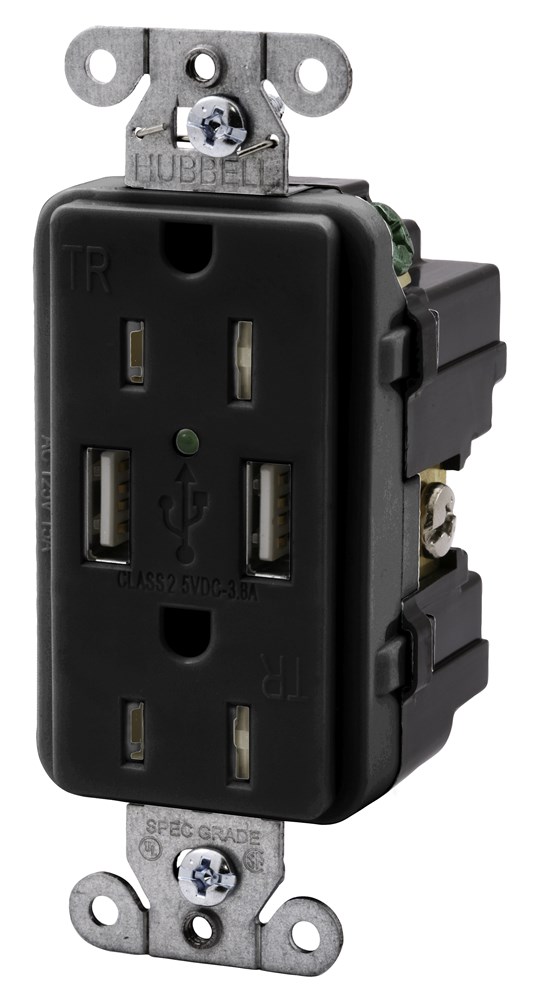

USB15X2BK HUBBELL USB CHRGR 15A 125V DUP, 3A 5V PORT, BK 88377830463

Mouse over image to zoom, click to enlarge

  • USB15X2BK HUBBELL USB CHRGR 15A 125V DUP, 3A 5V PORT, BK 88377830463
  • USB15X2BK HUBBELL USB CHRGR 15A 125V DUP, 3A 5V PORT, BK 88377830463
  • USB15X2BK HUBBELL USB CHRGR 15A 125V DUP, 3A 5V PORT, BK 88377830463

Description: Hubbell Wiring Device-Kellems USB Charger Receptacle, Duplex, Series: Decorator, 15 A at 125 V AC Electrical Rating, 1 ph ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, 1.1/2.0/3.0 USB, 2 USB Quantity, 3.8 A at 5 VDC USB, 4.12 in H x 1.3 in W x 1.96 in D Size, Thread Connection, Threaded Mounting, Commercial/Specification Grade, Wiring Method: Back/Side Wired, Composite/Thermoplastic, Black, Environmental Conditions: -40 to 75 deg C

Manufacturer PN: USB15X2BK

UPC:  88377830463

Kendall Electric Inc PN: 2941432

Invoice Description:

USB15X2BK HUBBELL USB CHRGR 15A 125V DUP, 3A 5V PORT, BK 88377830463


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems USB15X2BK Decorator Duplex USB Charger Receptacle, 15 A at 125 V AC, 1 Phase , 2 Poles, 3 Wires, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell® USB Charger receptacle provides both USB and AC electrical power in a standard single gang electrical opening. Designed to provide more charging options for personal electronics. Ideal for use in renovation, new construction and to add capacity for USB charging. Especially suited for use in hotels, hospitals, offices, homes and more.
Hubbell Wiring Device-Kellems USB Charger Receptacle, Duplex, Series: Decorator, 15 A at 125 V AC Electrical Rating, 1 ph ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, 1.1/2.0/3.0 USB, 2 USB Quantity, 3.8 A at 5 VDC USB, 4.12 in H x 1.3 in W x 1.96 in D Size, Thread Connection, Threaded Mounting, Commercial/Specification Grade, Wiring Method: Back/Side Wired, Composite/Thermoplastic, Black, Environmental Conditions: -40 to 75 deg C

Specifications

 Brand Name Hubbell Premise Wiring
 Color Black
 Connection Thread
 Electrical Ratings 15 A at 125 V AC
 Environmental Conditions -40 to 75 deg C
 Grade Commercial/Specification
 Manufacturer Part Number USB15X2BK
 Material Composite/Thermoplastic
 Mounting Threaded
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS USB15X2BK ; 883778304637 ; 88377830463 ; 00883778304637
 Phase 1
 Series Decorator
 Size 4.12 in H x 1.3 in W x 1.96 in D
 Standards/Approvals cULus|UL 498|UL 94-V-2 Rating|NEMA WD1|WD5 Compliant|Part 15 FCC
 Type Duplex
 USB Quantity 2
 USB Rating 3.8 A at 5 V DC
 USB Type 1.1/2.0/3.0
 Wiring Method Back/Side Wired

Features

▪ Flush fit in design
▪ NEMA 5-15R rated
▪ Energy consumed by USB when 0.0013 A at 0.63 W no-load and 0.323 A at 19.7 W full load
▪ Brass contacts, plated steel clamp/terminal screws, nylon top, stainless steel USB port
▪ 1875 W power rating
▪ Two USB ports 3.8 A, 5 VDC type A, class 2
▪ Tamper resistant decorator duplex receptacle
▪ Green LED indicator to show USB power available
▪ Compatible with USB 1.1/2.0/3.0 devices, Apple® products
▪ RTP face and base
▪ 0.04 in zinc plated steel mounting strap
▪ Certified for current interrupting at full rated current
▪ Withstands 2000 VAC minimum dielectric voltage
▪ Terminal accommodates 14 to 10 AWG copper solid or stranded conductor
▪ Stainless steel rated for 10000 plug insertions and removal

Resources

 Catalog Page
 MSDS URL None Required
 Product Data Sheet
