Hubbell
USB15AC5WWR HUBBELL DUP TRWR 15A125V USB PORT 5A5V AC WH

Mouse over image to zoom, click to enlarge

  • USB15AC5WWR HUBBELL DUP TRWR 15A125V USB PORT 5A5V AC WH
  • USB15AC5WWR HUBBELL DUP TRWR 15A125V USB PORT 5A5V AC WH
  • USB15AC5WWR HUBBELL DUP TRWR 15A125V USB PORT 5A5V AC WH
  • USB15AC5WWR HUBBELL DUP TRWR 15A125V USB PORT 5A5V AC WH
  • USB15AC5WWR HUBBELL DUP TRWR 15A125V USB PORT 5A5V AC WH

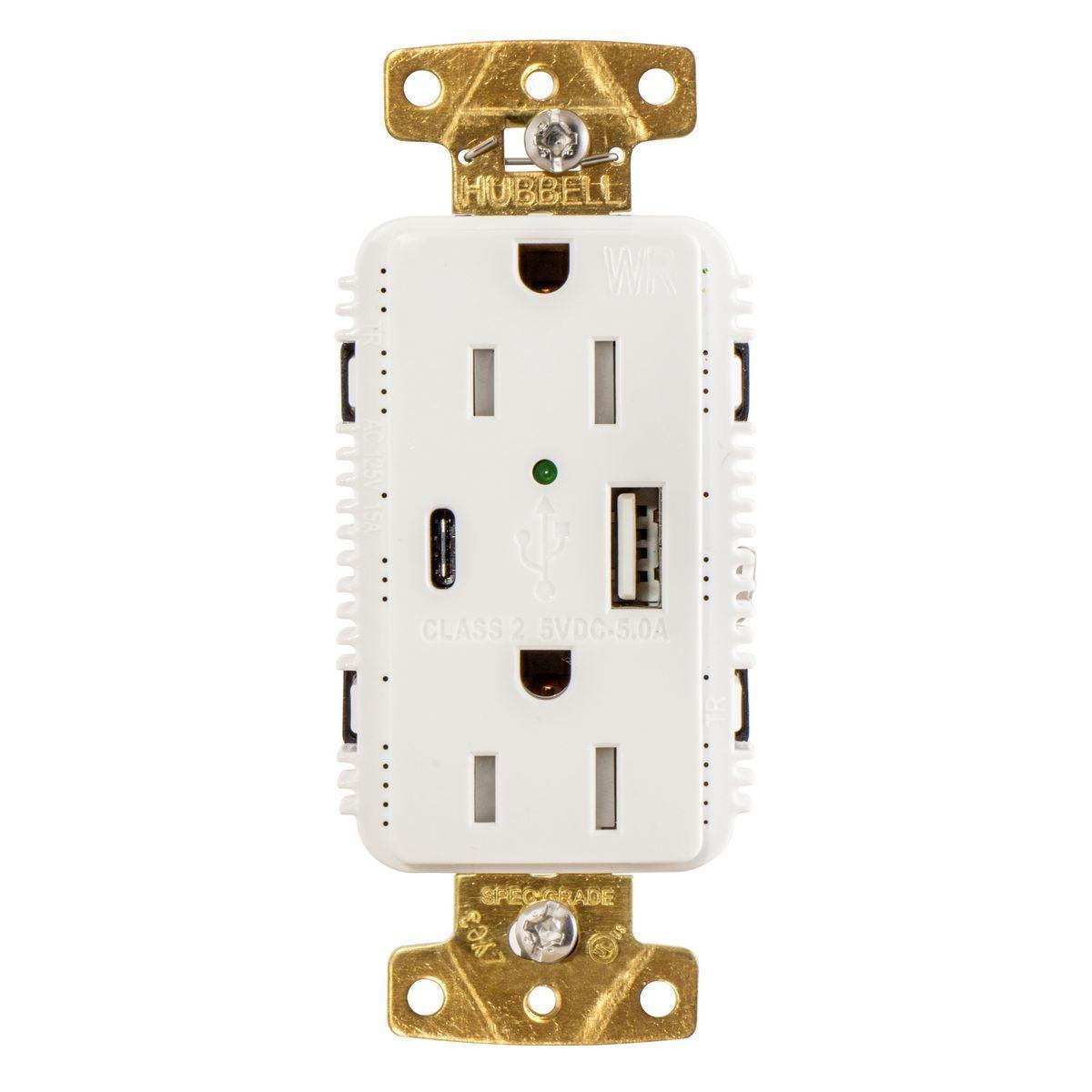

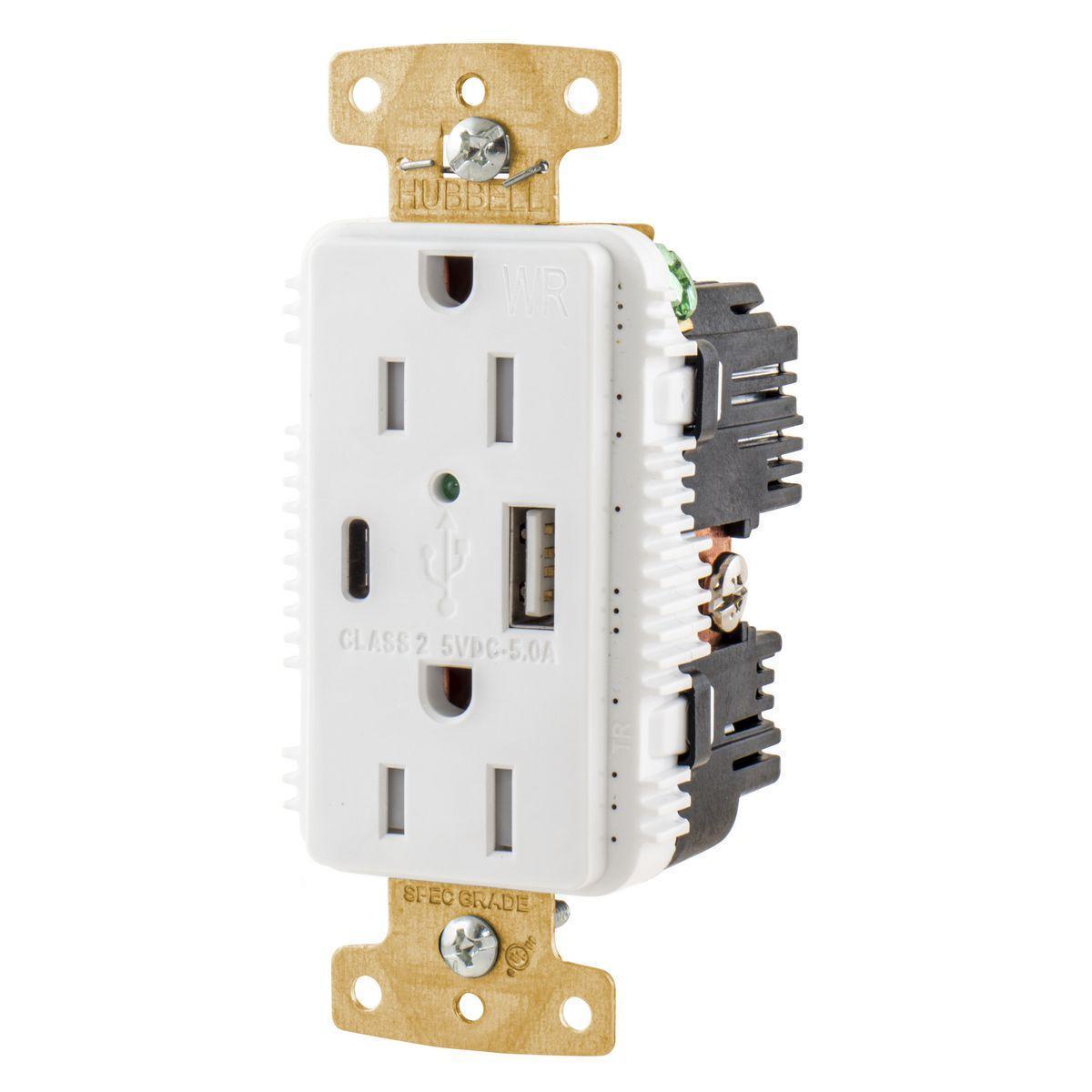

Description: Hubbell Wiring Device-Kellems tradeSELECT® USB Charger Receptacle, Decorator Duplex Heavy Duty Grounding Standard Tamper-Resistant Weather-Resistant, 125 V, 15 A, 1875 W Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type-A USB 2.0/C USB, 1 USB Quantity, 5 A, 5 V DC USB, 1.75 in W x 1.82 in D x 3.28 in H Size, Screw Terminal Connection, Commercial Grade, Composite, White, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-15R Enclosure

Manufacturer PN: USB15AC5WWR

UPC:  88377830916

Kendall Electric Inc PN: 3989251

Invoice Description:

USB15AC5WWR HUBBELL DUP TRWR 15A125V USB PORT 5A5V AC WH


SPEC SHEET

▸ See All in Receptacles & USB Ports


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems tradeSELECT® USB15AC5WWR Decorator Duplex Heavy Duty Grounding Standard Tamper-Resistant Weather-Resistant USB Charger Receptacle With Green LED, 125 V, 15 A, 1875 W, 1 Phase, 2 Poles, 3 Wires, White

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell® USB chargers are available in the new type C port, a combination unit with type A and C and the legacy type A, all with more power. The increase in power to a 5 A, 5 VAC USB port adds capacity so that there is always ample current to support multiple device charging. Portable mobile manufacturers are using the faster type C ports. More phones, tablets and other electronic devices are expected to use this new standard.
Hubbell Wiring Device-Kellems tradeSELECT® USB Charger Receptacle, Decorator Duplex Heavy Duty Grounding Standard Tamper-Resistant Weather-Resistant, 125 V, 15 A, 1875 W Electrical Rating, 1 ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, Type-A USB 2.0/C USB, 1 USB Quantity, 5 A, 5 V DC USB, 1.75 in W x 1.82 in D x 3.28 in H Size, Screw Terminal Connection, Commercial Grade, Composite, White, Environmental Conditions: -40 to 75 deg C Operating, NEMA 5-15R Enclosure

Specifications

 Application USB Charging, Power, Commercial, Industrial, Home, Phones, Tablets, Indoor Dry Environment and Other Electronic Device Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Connection Screw Terminal
 Electrical Ratings 125 V, 15 A, 1875 W
 Environmental Conditions -40 to 75 deg C Operating, NEMA 5-15R Enclosure
 Grade Commercial
 Manufacturer Part Number USB15AC5WWR
 Material Composite
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS USB15AC5WWR ; 14180370 ; 883778309168 ; 88377830916 ; 00883778309168
 Phase 1
 Size 1.75 in W x 1.82 in D x 3.28 in H
 Standards/Approvals cULus Listed|UL 498|UL 1310|CSA Certified|UL 94 V-2 Flammability Rating
 Type Decorator Duplex Heavy Duty Grounding Standard Tamper-Resistant Weather-Resistant
 USB Quantity 1
 USB Rating 5 A, 5 V DC
 USB Type Type-A USB 2.0/C
 Video Links

Features

▪ Combination Ports, One Type A, One Type C
▪ High Power 5 A 5 V USB Output
▪ USB Ports Rated 10,000 Cycles
