Milbank Manufacturing
UQFB-A-200-X1 MILBANK 200A 4T RL 2P CTR WY 78457219361

Mouse over image to zoom, click to enlarge

  • UQFB-A-200-X1 MILBANK 200A 4T RL 2P CTR WY 78457219361
  • UQFB-A-200-X1 MILBANK 200A 4T RL 2P CTR WY 78457219361
  • UQFB-A-200-X1 MILBANK 200A 4T RL 2P CTR WY 78457219361
  • UQFB-A-200-X1 MILBANK 200A 4T RL 2P CTR WY 78457219361
  • UQFB-A-200-X1 MILBANK 200A 4T RL 2P CTR WY 78457219361

Description: Milbank® Circuit Breaker, Bolt-On, Series: UQFB, 240 V AC, 200 A, 1 Phase, 60 Hz, 1/0 AWG to 300 kcmil, 2/0 AWG to 300 kcmil Wire, 40 deg C Operating, NEMA 3R, 7-7/16 in H x 3 in W x 2-11/16 in D

Manufacturer PN: UQFB-A-200-X1

UPC:  78457219361

Kendall Electric Inc PN: 2871243

Invoice Description:

UQFB-A-200-X1 MILBANK 200A 4T RL 2P CTR WY 78457219361


SPEC SHEET

▸ See All in Meter Pedestals


How Can We Make This Page Better?

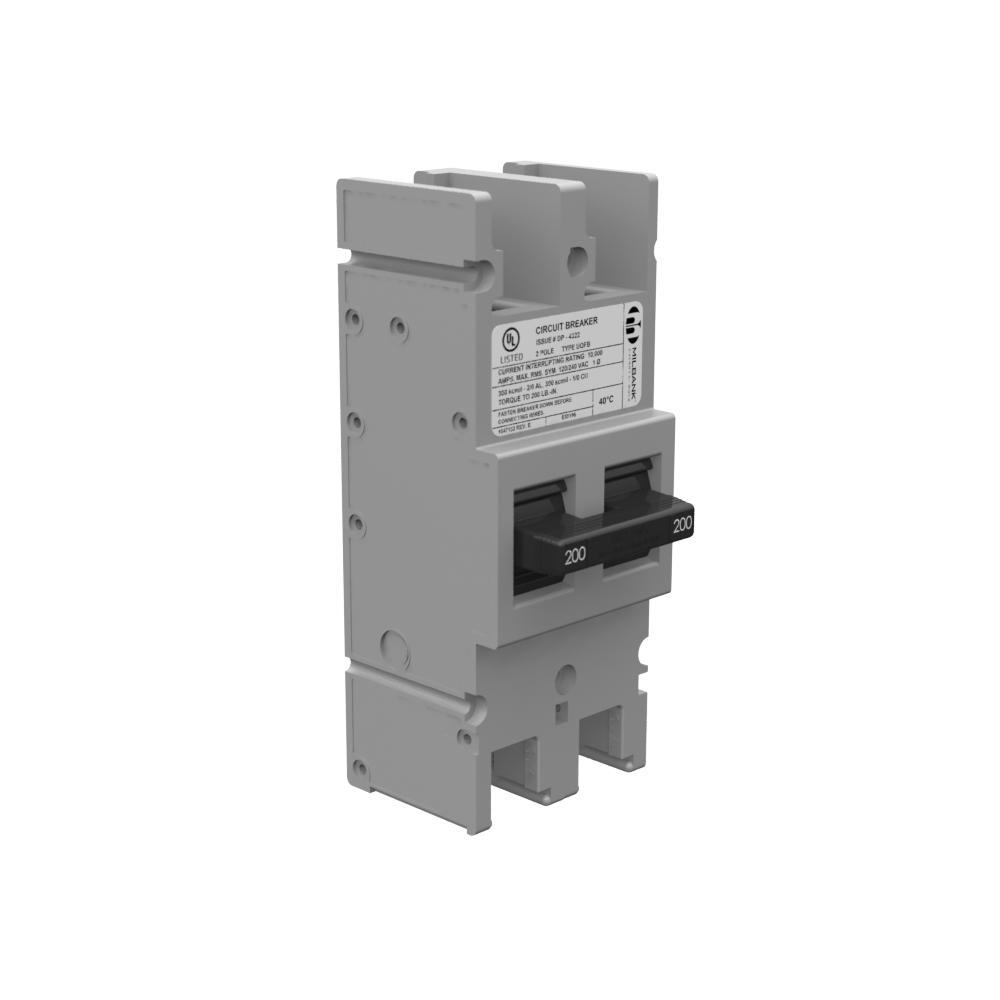

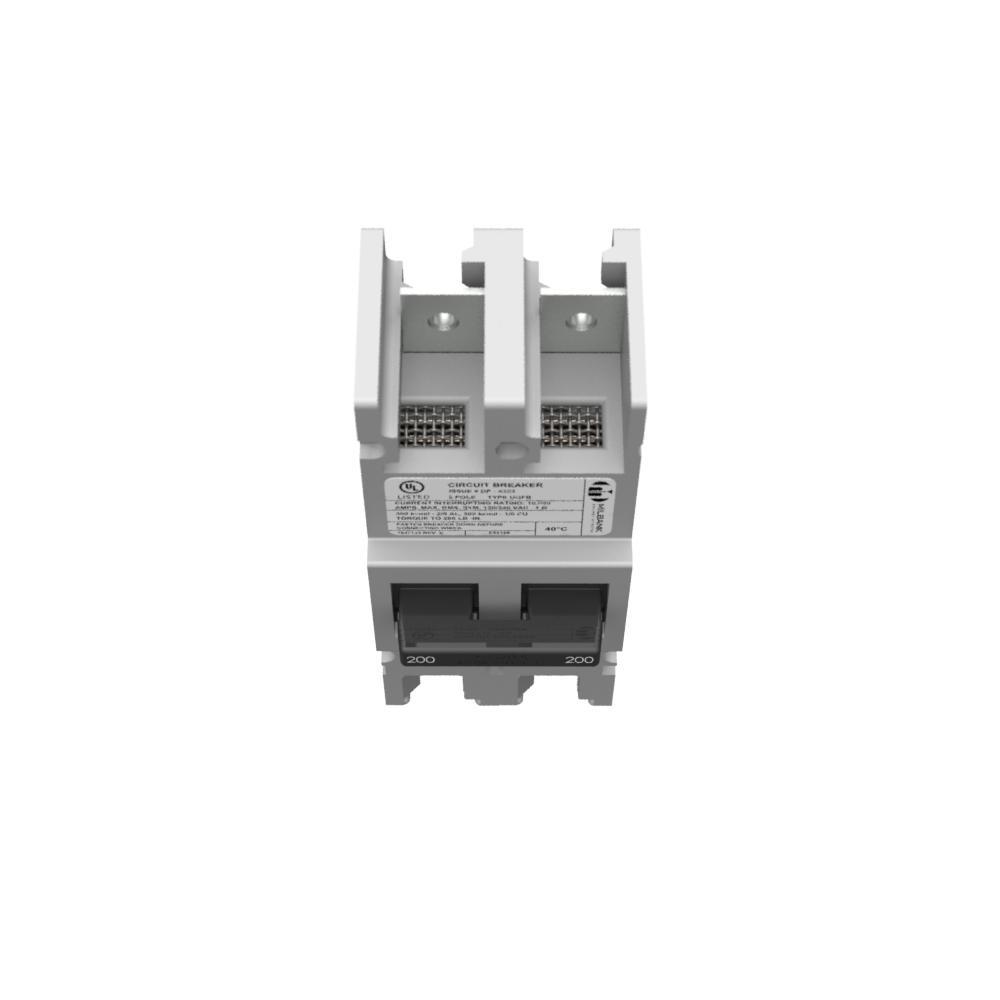

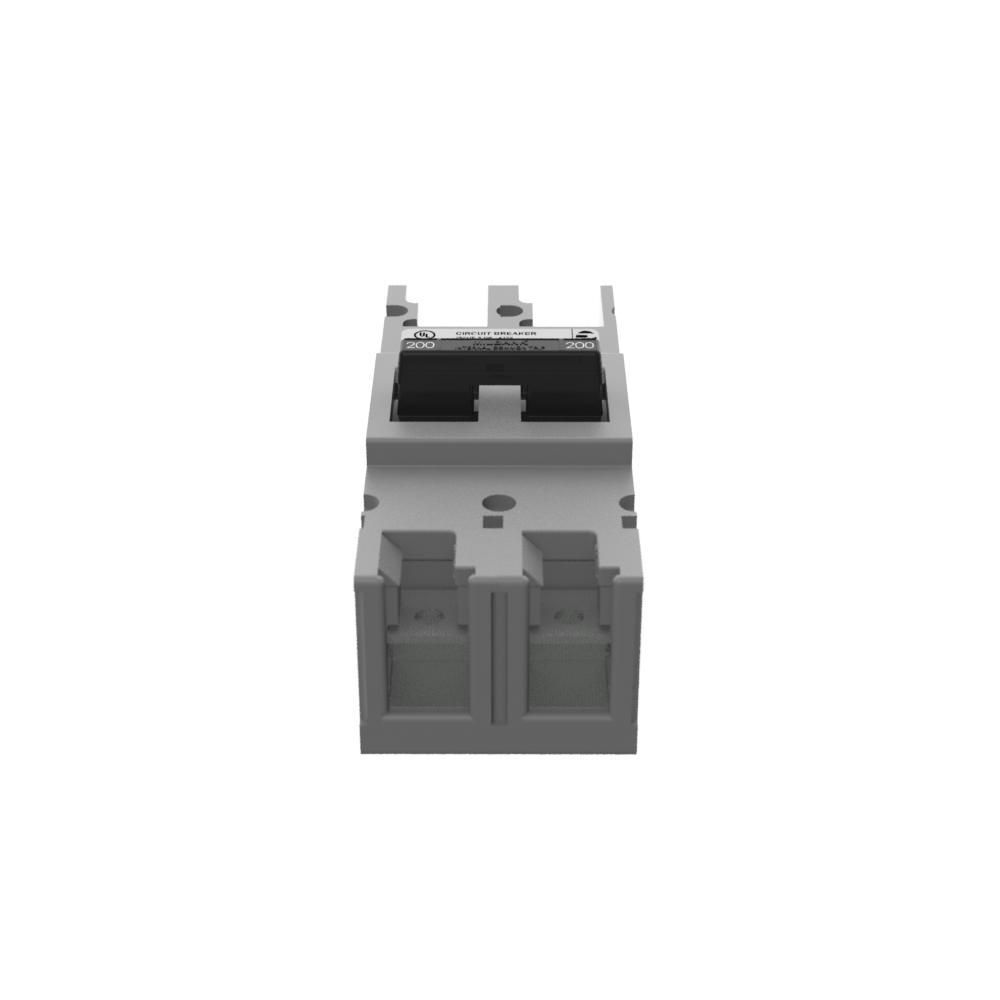

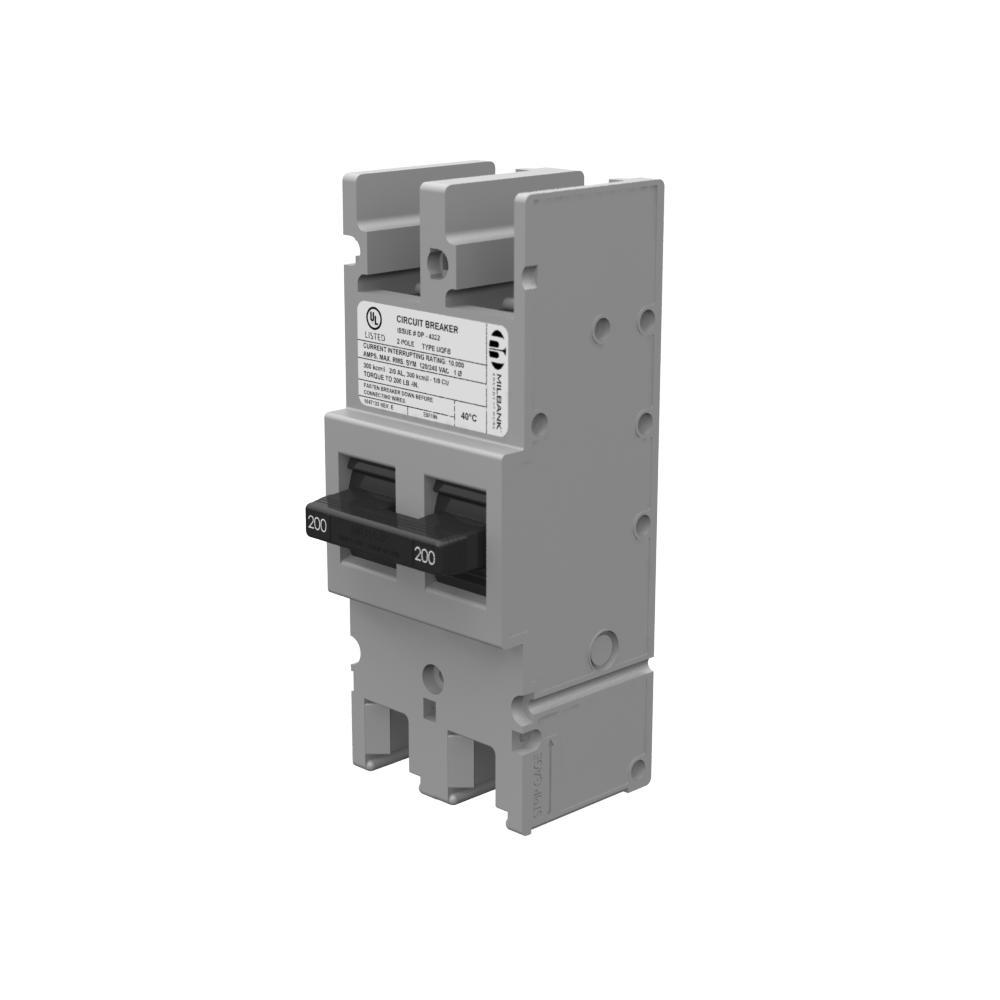

Milbank® UQFB-A-200-X1 Bolt-On Circuit Breaker, 240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability




Description

Milbank® Circuit Breaker, Bolt-On, Series: UQFB, 240 V AC, 200 A, 1 Phase, 60 Hz, 1/0 AWG to 300 kcmil, 2/0 AWG to 300 kcmil Wire, 40 deg C Operating, NEMA 3R, 7-7/16 in H x 3 in W x 2-11/16 in D

Specifications

 Amperage Rating 200 A
 Application For metering accessory and ringless/ring type meter main
 Brand Name Milbank
 Dimensions 7-7/16 in H x 3 in W x 2-11/16 in D
 Enclosure NEMA 3R
 Frequency Rating 60 Hz
 Manufacturer Part Number UQFB-A-200-X1
 Operating Temperature 40 deg C
 Phase 1
 Series UQFB
 Standards/Approvals UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
 Type Bolt-On
 Voltage Rating 240 V AC

Features

▪ Thermal magnetic trip
▪ F-frame
▪ 2-pole
▪ Lever actuator
▪ Non-metallic material
▪ 10 kAIC interrupting capacity
