Eaton

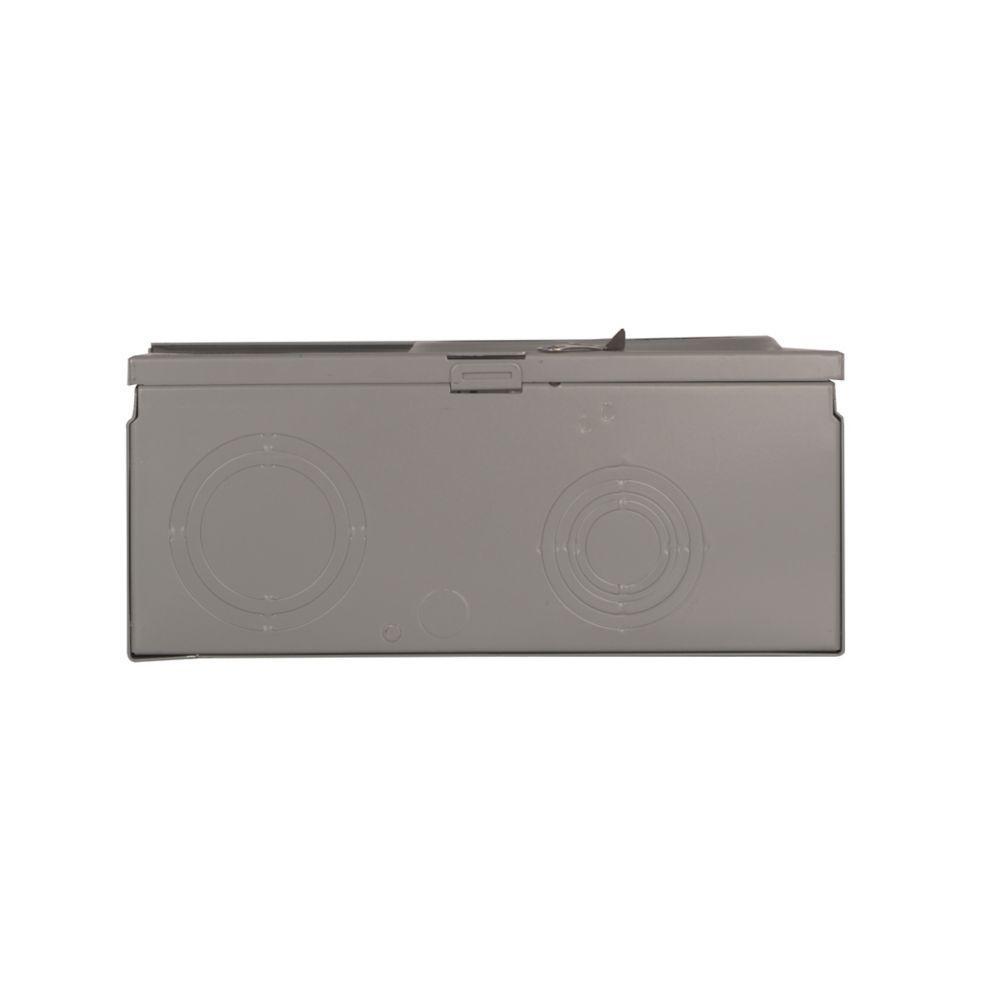

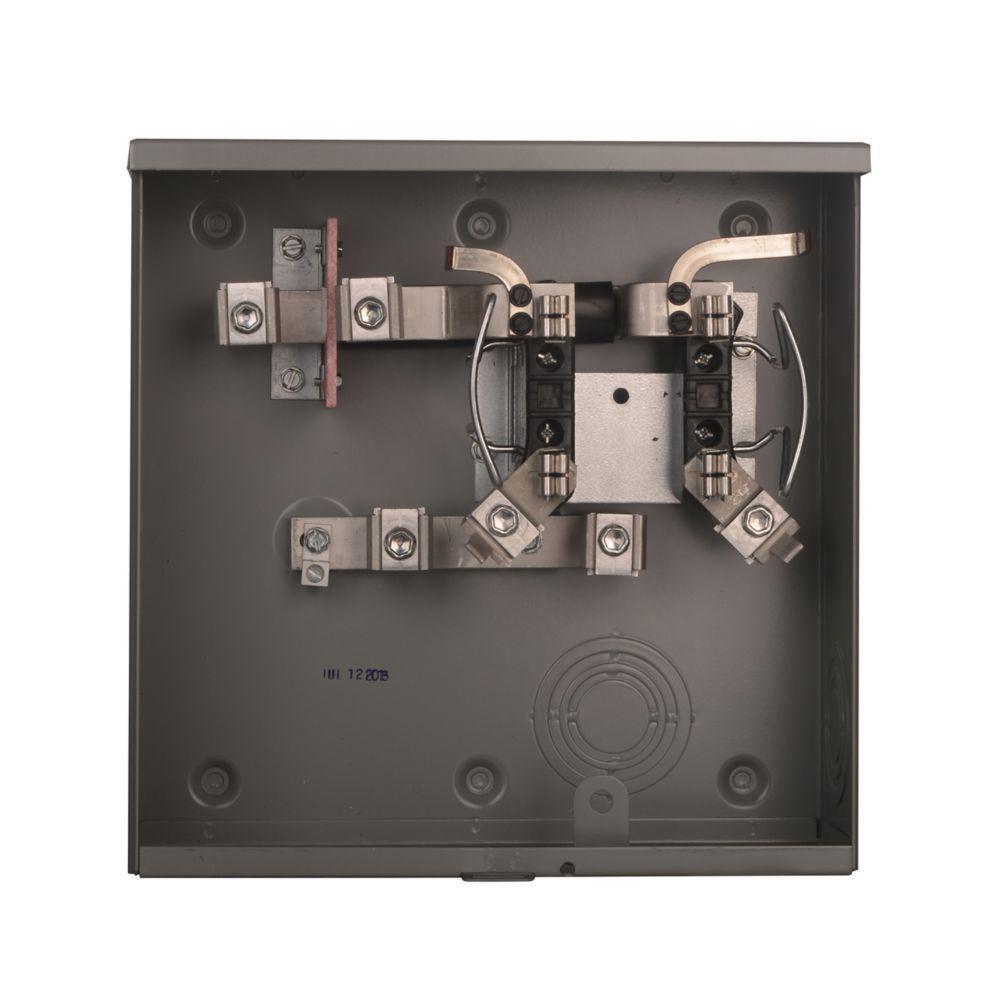

UFHTRS223ACH CH METER SOCKET 1P 200 AMP RINGLESS UG 4 JAW

Mouse over image to zoom, click to enlarge

  • UFHTRS223ACH CH METER SOCKET 1P 200 AMP RINGLESS UG 4 JAW
  • UFHTRS223ACH CH METER SOCKET 1P 200 AMP RINGLESS UG 4 JAW
  • UFHTRS223ACH CH METER SOCKET 1P 200 AMP RINGLESS UG 4 JAW

Description: EATON Meter Socket, 3-Wire 1-Position Residential Service, 600 V AC, 200 A, 1 ph, Underground Feed, 4 Jaws, 8 AWG to 350 kcmil, 6 AWG to 350 kcmil Wire, Solid Top, Ringless Cover, Line/Load Terminal, 4.94 in L x 13 in W x 13 in H

Manufacturer PN: UFHTRS223ACH

UPC:  78211601617

Kendall Electric Inc PN: 3621519

Invoice Description:

UFHTRS223ACH CH METER SOCKET 1P 200 AMP RINGLESS UG 4 JAW


SPEC SHEET

▸ See All in Meter Sockets - Single Position


How Can We Make This Page Better?

EATON UFHTRS223ACH 3-Wire 1-Position Residential Service Meter Socket, 600 V AC, 200 A, 1 Phase

Log In for Pricing and Availability




Description

Eaton is your one-stop shop for the widest range of residential and light commercial electric meter sockets in the industry. These single-socket surface- or flush-mount outdoor enclosures come in two styles, allowing for both easy, cost-saving installation, and for the use of BR- or CH-type branch breakers. The one-piece, die-run electric meter socket enclosures eliminate tampering and extend product life. These are utility approved and can be used for residential meter socket installations, rural service entrances, mobile homes, or for temporary power on construction sites.
EATON Meter Socket, 3-Wire 1-Position Residential Service, 600 V AC, 200 A, 1 ph, Underground Feed, 4 Jaws, 8 AWG to 350 kcmil, 6 AWG to 350 kcmil Wire, Solid Top, Ringless Cover, Line/Load Terminal, 4.94 in L x 13 in W x 13 in H

Specifications

 Amperage Rating 200 A
 Application Residential Buildings and Facilities Applications
 Brand Name EATON
 Cover Type Ringless
 Dimensions 4.94 in L x 13 in W x 13 in H
 Feed Type Underground
 Hub Type Solid Top
 Includes Internal Lock Receiver Bracket and Barrel Lock Provisions
 Manufacturer Part Number UFHTRS223ACH
 Number of Jaws 4
 Phase 1
 Standards/Approvals UL Listed
 Terminal Type Line/Load
 Type 3-Wire 1-Position Residential Service
 Voltage Rating 600 V AC

Features

▪ Rating up to 200 kA interrupt rating with specified overcurrent protection devices
▪ Provides a complete EATON residential solution
▪ Copper plated alloy jaws with reinforcing spring
▪ Steel reinforcing springs used in all socket jaws to maintain electrical connections
▪ Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
▪ One-piece, die-run enclosure eliminates tampering and extends product life
▪ High visibility EATON name embossed on cover
▪ Knockouts are installer friendly, labor savings, less time needed for removing knockouts
▪ Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
▪ Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
▪ Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
▪ One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
▪ 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
