Hubbell

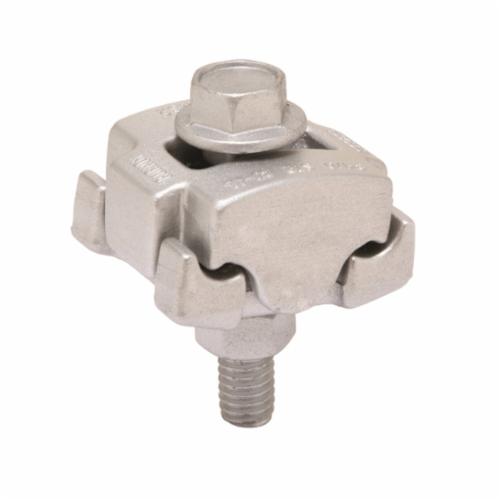

UCG28RS BURNDY PARALLEL CLAMP 78181001280

Mouse over image to zoom, click to enlarge

  • UCG28RS BURNDY PARALLEL CLAMP 78181001280
  • UCG28RS BURNDY PARALLEL CLAMP 78181001280

Description: BURNDY® TAPIT Parallel Groove Clamp, Multi-Purpose, Series: UCG-RS, Aluminum/Copper Conductor, 1/0 to 4/0 AWG Stranded ACSR Main/Run Size, 3/8-16 in Bolt, Specifications: 1/2 in Hex, 250 in-lb Torque Square Shank, Hex Head, Round Collar, Aluminum, Galvanized, 1.38 in L x 1.87 in W x 2.21 in H

Manufacturer PN: UCG28RS

UPC:  78181001280

Kendall Electric Inc PN: 2990306

Invoice Description:

UCG28RS BURNDY PARALLEL CLAMP 78181001280


SPEC SHEET

▸ See All in Parallel Groove Connectors


How Can We Make This Page Better?

BURNDY® TAPIT UCG28RS UCG-RS Multi-Purpose Parallel Groove Clamp, Aluminum/Copper Conductor, 1/0 to 4/0 AWG Stranded ACSR Main/Run, 3/8-16 in Bolt, Aluminum

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Multiple purpose parallel groove clamp made of high strength, high conductivity aluminum alloy. Hardware allows for one of two wrench installation,torque:250 in lbs.
BURNDY® TAPIT Parallel Groove Clamp, Multi-Purpose, Series: UCG-RS, Aluminum/Copper Conductor, 1/0 to 4/0 AWG Stranded ACSR Main/Run Size, 3/8-16 in Bolt, Specifications: 1/2 in Hex, 250 in-lb Torque Square Shank, Hex Head, Round Collar, Aluminum, Galvanized, 1.38 in L x 1.87 in W x 2.21 in H

Specifications

 Application For all combinations of copper, aluminum, ACSR, 6201 and 5005 conductor
 Bolt Size 3/8-16 in
 Brand Name BURNDY
 Conductor Type Aluminum/Copper
 Dimensions 1.38 in L x 1.87 in W x 2.21 in H
 Finish Galvanized
 Main Run Size 1/0 to 4/0 AWG Stranded ACSR
 Manufacturer Part Number UCG28RS
 Material Aluminum
 Series UCG-RS
 Specifications 1/2 in Hex, 250 in-lb Torque Square Shank, Hex Head, Round Collar
 Standards/Approvals ARRA Compliant|BAA Compliant|RoHS Compliant|RUS Certified|PROP65 - This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other rEPRoductive harm. For more information go to www.P65Warnings.ca.gov
 Type Multi-Purpose

Features

▪ Properly proportioned to minimize stress corrosion and deterioration by galvanic action
▪ Interlocking fingers on connector body halves prevent mismatching
▪ Supplied pre-filled with PENETROX joint compound and strip sealed
