Puls

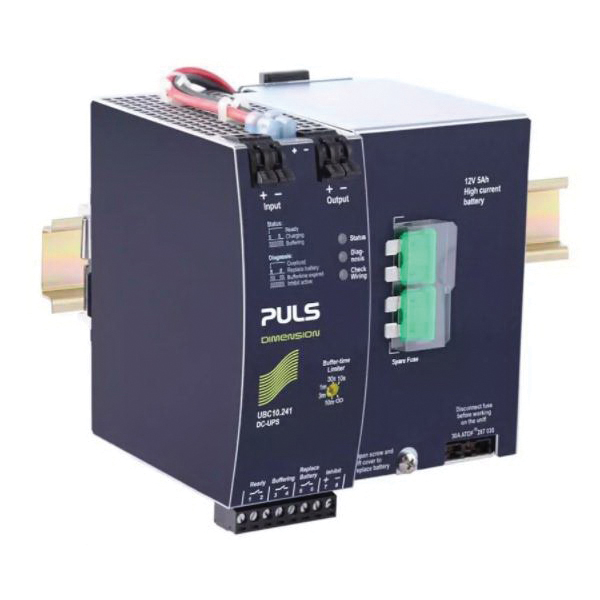

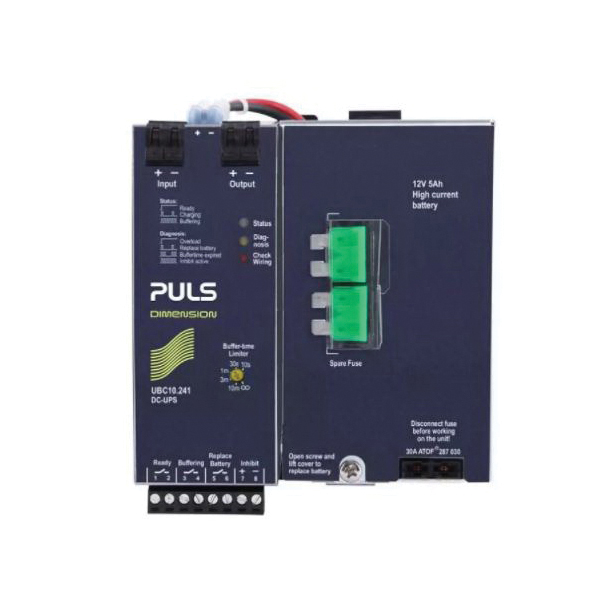

UBC10.241 PULS DC-UPS CONTROLLER W/INTERNAL 5Ah BATTERY, 10AMP@24VDC 124X123X119mm (LxWxH)

Mouse over image to zoom, click to enlarge

  • UBC10.241 PULS DC-UPS CONTROLLER W/INTERNAL 5Ah BATTERY, 10AMP@24VDC 124X123X119mm (LxWxH)
  • UBC10.241 PULS DC-UPS CONTROLLER W/INTERNAL 5Ah BATTERY, 10AMP@24VDC 124X123X119mm (LxWxH)
  • UBC10.241 PULS DC-UPS CONTROLLER W/INTERNAL 5Ah BATTERY, 10AMP@24VDC 124X123X119mm (LxWxH)

Manufacturer PN: UBC10.241

Kendall Electric Inc PN: 2707225

Invoice Description:

UBC10.241 PULS DC-UPS CONTROLLER W/INTERNAL 5Ah BATTERY, 10AMP@24VDC 124X123X119mm (LxWxH)


SPEC SHEET

▸ See All in Uninterruptible Power Supplies - AC



Puls UBC10.241 DC-UPS for Built-In Battery, 24 V, 10 A

Log In for Pricing and Availability




Specifications

 Allowed Battery Size 12 V, 5A h
 Brand Name Puls
 DC Input Voltage DC 24 V
 Int Current Consumption Incl Charging Current 1.3 A
 Output Current 15 A
 Storage Element Built-in lead acid battery
 Temperature Tracking Of The End Of Charge Voltage automatically with temp. sensor

Features

▪ Compact and easy to install
▪ Longest buffer time in class
▪ Easy battery access
▪ Stable output voltage in buffer mode
▪ Superior battery management for longest battery life
▪ Temperature compensated battery charging
▪ Comprehensive diagnostics and monitoring functions
▪ Replace battery signal included
▪ Electronically overload and short circuit protected
▪ 50 % power reserves
▪ Selectable buffer time limiter
