Milbank Manufacturing

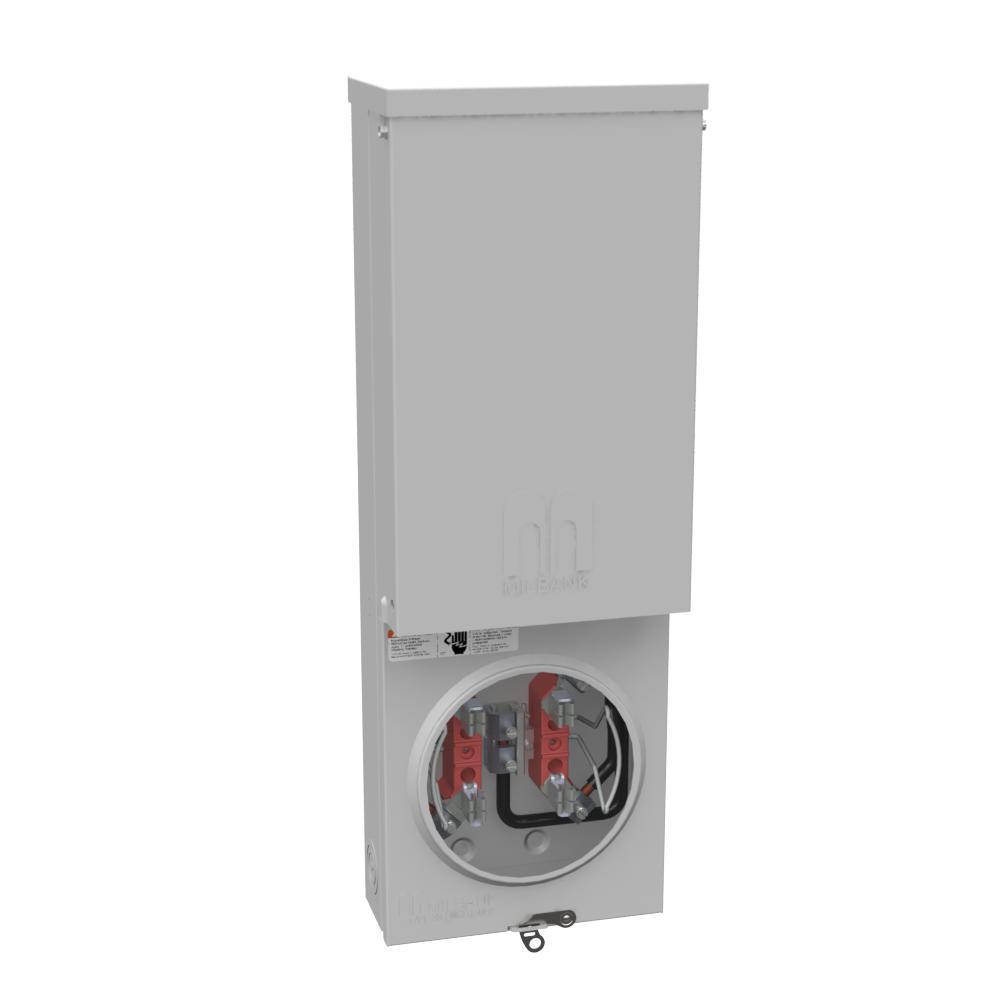

U4908-O-11GR MILB TEMP POWER W/2-GFI RECP AND 100A BOTTOM MOUNTED METER BASE FOR U/G SERVICE

Mouse over image to zoom, click to enlarge

  • U4908-O-11GR MILB TEMP POWER W/2-GFI RECP AND 100A BOTTOM MOUNTED METER BASE FOR U/G SERVICE
  • U4908-O-11GR MILB TEMP POWER W/2-GFI RECP AND 100A BOTTOM MOUNTED METER BASE FOR U/G SERVICE
  • U4908-O-11GR MILB TEMP POWER W/2-GFI RECP AND 100A BOTTOM MOUNTED METER BASE FOR U/G SERVICE
  • U4908-O-11GR MILB TEMP POWER W/2-GFI RECP AND 100A BOTTOM MOUNTED METER BASE FOR U/G SERVICE
  • U4908-O-11GR MILB TEMP POWER W/2-GFI RECP AND 100A BOTTOM MOUNTED METER BASE FOR U/G SERVICE

Description: Milbank® Meter Socket, Ringless Multi-Position, Series: U4908, 240 V AC, 125 A, 1 Phase , 60 Hz, Underground Feed, Single Mechanical Terminal, Surface Mount, NEMA 3R, 25-15/16 in H x 9 in W x 5-3/16 in D

Manufacturer PN: U4908-O-11GR

UPC:  78457227195

Kendall Electric Inc PN: 2543823

Invoice Description:

U4908-O-11GR MILB TEMP POWER W/2-GFI RECP AND 100A BOTTOM MOUNTED METER BASE FOR U/G SERVICE


SPEC SHEET

▸ See All in Meter Sockets - Multi Position


How Can We Make This Page Better?

Milbank® U4908-O-11GR U4908 Ringless Multi-Position Meter Socket, 240 V AC, 125 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability




Description

Milbank® Meter Socket, Ringless Multi-Position, Series: U4908, 240 V AC, 125 A, 1 Phase , 60 Hz, Underground Feed, Single Mechanical Terminal, Surface Mount, NEMA 3R, 25-15/16 in H x 9 in W x 5-3/16 in D

Specifications

 Amperage Rating 125 A
 Application For temporary power application
 Brand Name Milbank
 Dimensions 25-15/16 in H x 9 in W x 5-3/16 in D
 Enclosure NEMA 3R
 Feed Type Underground
 Frequency Rating 60 Hz
 Manufacturer Part Number U4908-O-11GR
 Mounting Type Surface
 Phase 1
 Series U4908
 Standards/Approvals UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
 Terminal Type Single Mechanical
 Type Ringless Multi-Position
 Voltage Rating 240 V AC

Features

▪ 25-15/16 in H x 9 in W
▪ G90 galvanized steel with powder coat finish enclosure
▪ Receptacle NEMA 5-20
▪ Short circuit current withstand rating 10,000 RMS symmetrical amperes
▪ Enclosure constructed with galvanized 16 ga steel
▪ ASA 61 grey polyester powder coat finish
▪ Convenient concentric knock-out configurations and mounting embosses
▪ Wire terminations accept copper or aluminum conductors
▪ Six circuit plated copper interior accepts standard plug-in type circuit breakers
▪ Three position self-grounded receptacle bridge accepts most standard NEMA receptacles with mounting plates
▪ Four terminal, ringless meter socket with stainless steel locking hasp ring type socket has aluminum MR-2 snap action sealing ring
▪ Lockable hinge cover and dead front are removable for installation and maintenance
