Milbank Manufacturing
U4492-XL MILBANK 80A 8T RL LVR OU 20865

Mouse over image to zoom, click to enlarge

  • U4492-XL MILBANK 80A 8T RL LVR OU 20865
  • U4492-XL MILBANK 80A 8T RL LVR OU 20865
  • U4492-XL MILBANK 80A 8T RL LVR OU 20865
  • U4492-XL MILBANK 80A 8T RL LVR OU 20865
  • U4492-XL MILBANK 80A 8T RL LVR OU 20865

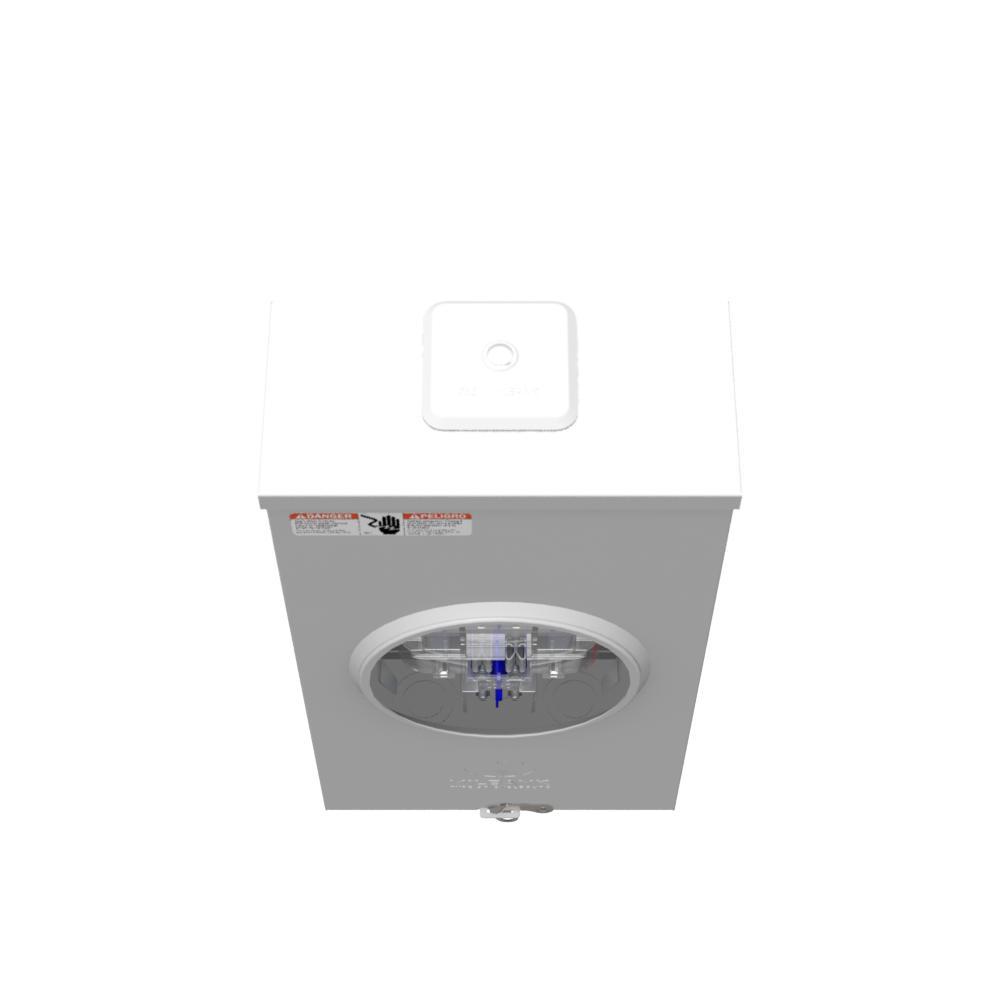

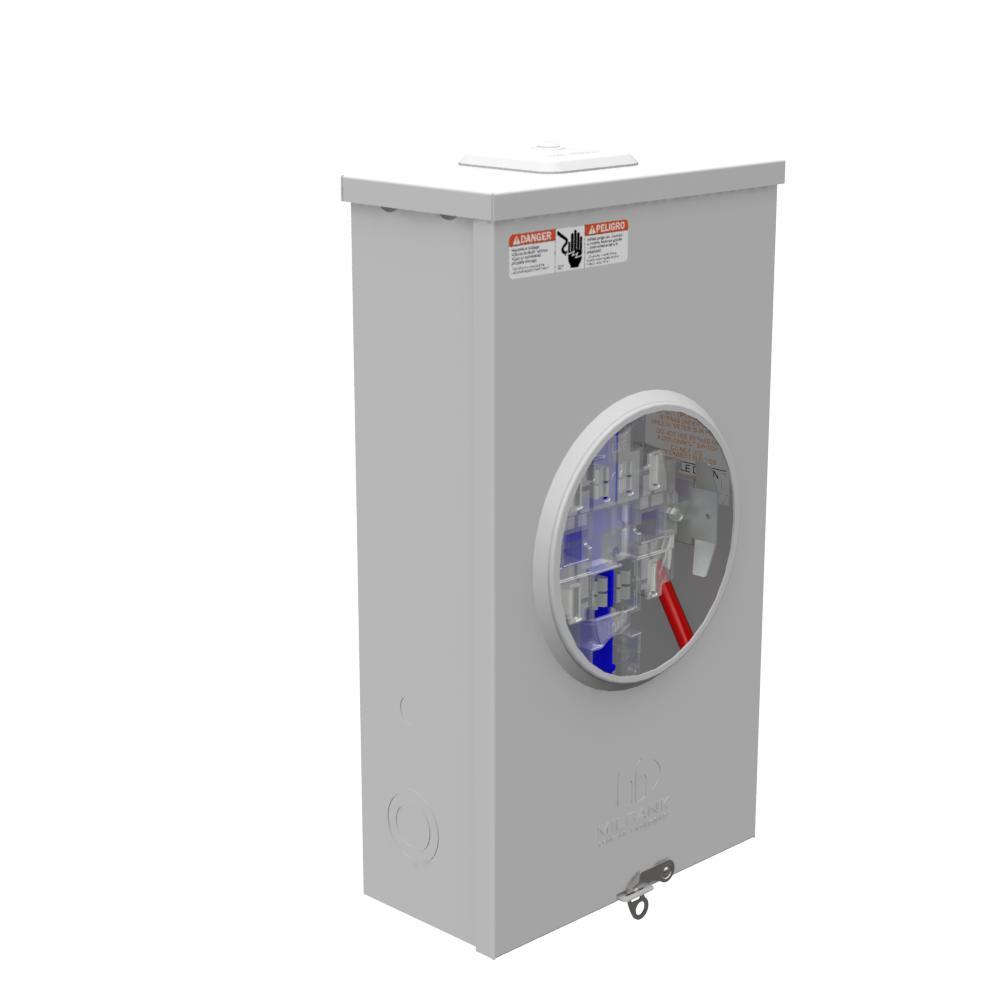

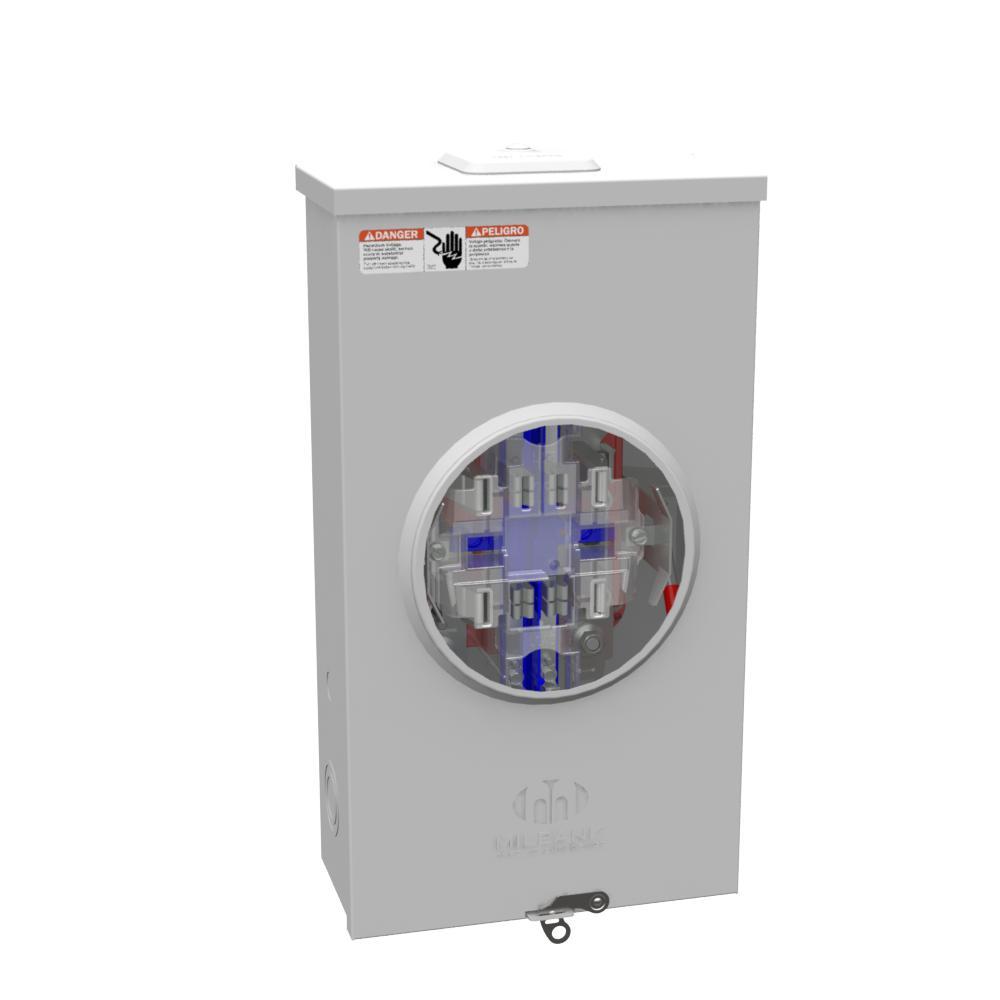

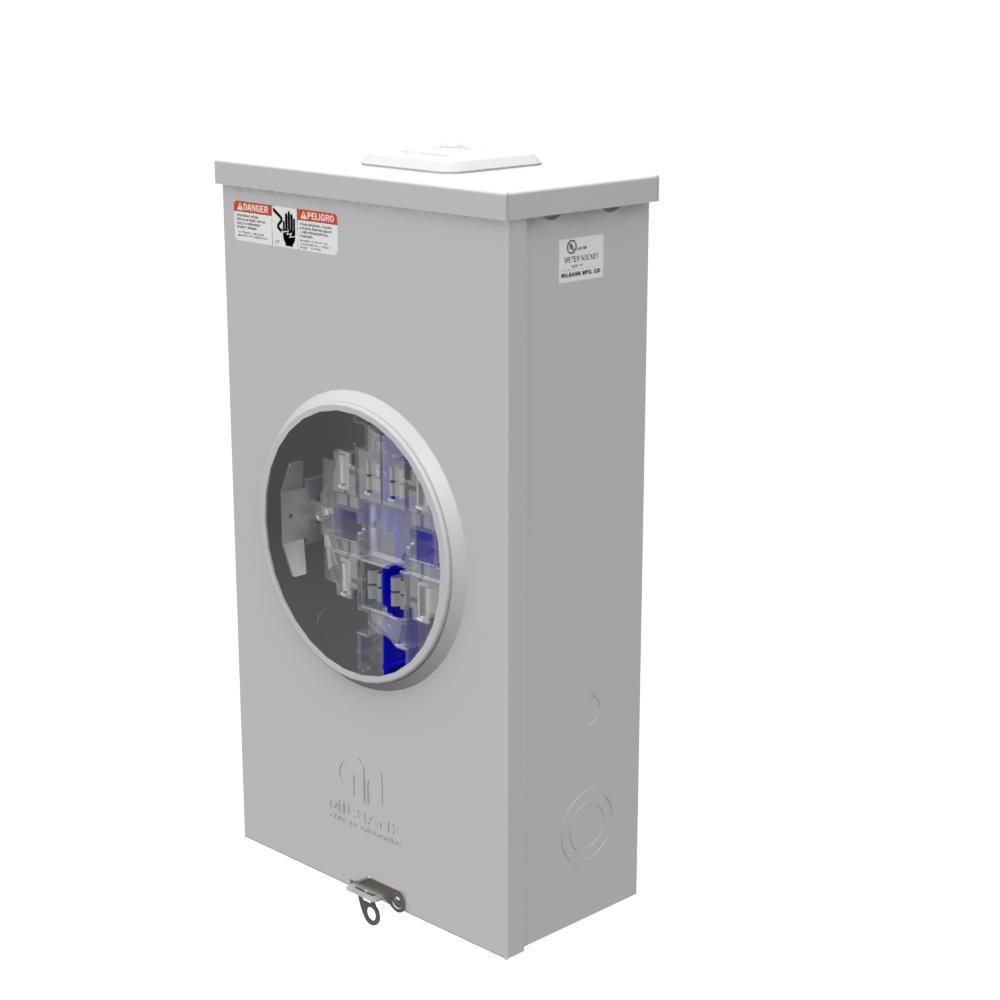

Description: Milbank® Meter Socket, 1-Position Lever Bypass, 600 V AC, 80 A, 3 Phase, 60 Hz Frequency, Overhead/Underground Feed, 8 Jaws, 14 to 2 AWG Wire, Small Closing Plate Hub, Ringless Cover, Single Mechanical Terminal, Surface Mounting, NEMA 3R Enclosure, 18-1/2 in H x 10 in W x 4-13/16 in D Dimensions

Manufacturer PN: U4492-XL

UPC:  78457220865

Kendall Electric Inc PN: 4067568

Invoice Description:

U4492-XL MILBANK 80A 8T RL LVR OU 20865


SPEC SHEET

▸ See All in Meter Sockets - Transformer Rated


How Can We Make This Page Better?

Milbank® U4492-XL 1-Position Lever Bypass Meter Socket, 600 V AC, 80 A, 3 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Milbank® Meter Socket, 1-Position Lever Bypass, 600 V AC, 80 A, 3 Phase, 60 Hz Frequency, Overhead/Underground Feed, 8 Jaws, 14 to 2 AWG Wire, Small Closing Plate Hub, Ringless Cover, Single Mechanical Terminal, Surface Mounting, NEMA 3R Enclosure, 18-1/2 in H x 10 in W x 4-13/16 in D Dimensions

Specifications

 Amperage Rating 80 A
 Brand Name Milbank
 Cover Type Ringless
 Dimensions 18-1/2 in H x 10 in W x 4-13/16 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Frequency Rating 60 Hz
 Hub Type Small Closing Plate
 Manufacturer Part Number U4492-XL
 Mounting Type Surface
 Number of Jaws 8
 Phase 3
 Standards/Approvals UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
 Terminal Type Single Mechanical
 Type 1-Position Lever Bypass
 Voltage Rating 600 V AC

Features

▪ G90 galvanized steel with powder coat finish enclosure
