Milbank Manufacturing

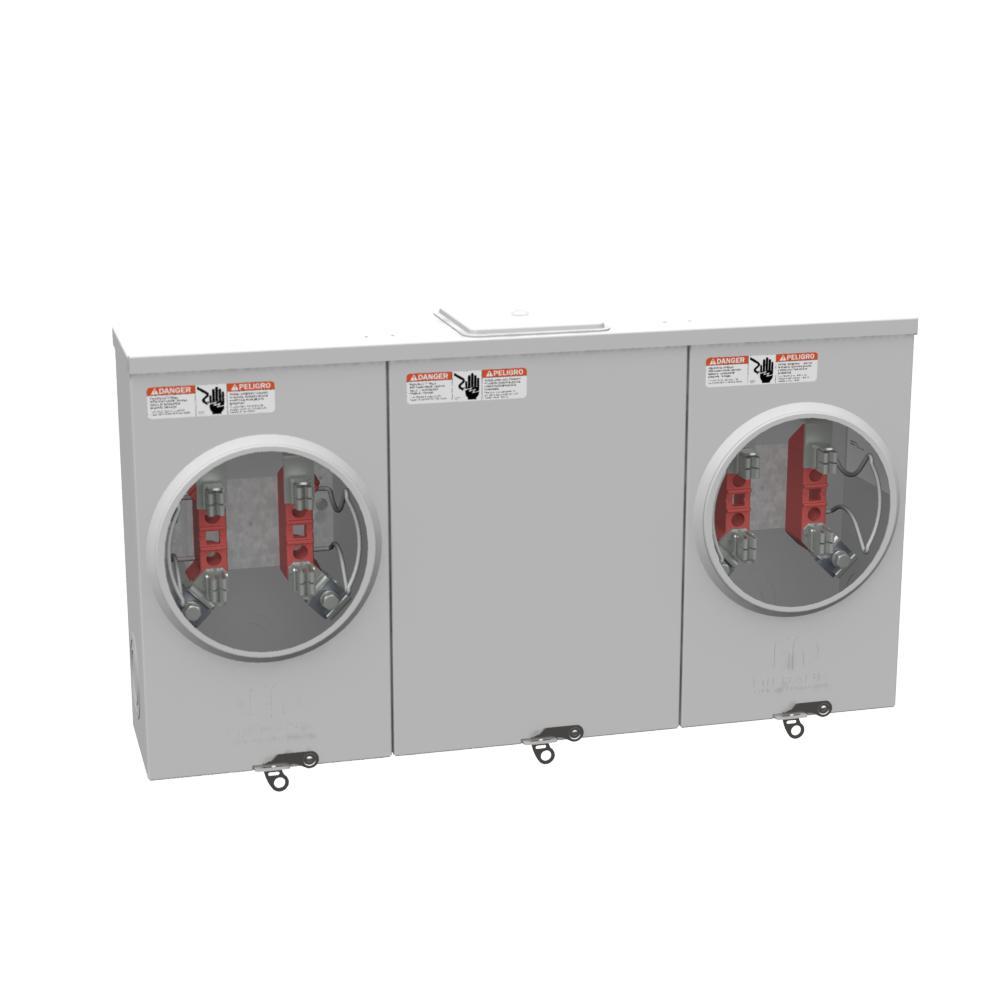

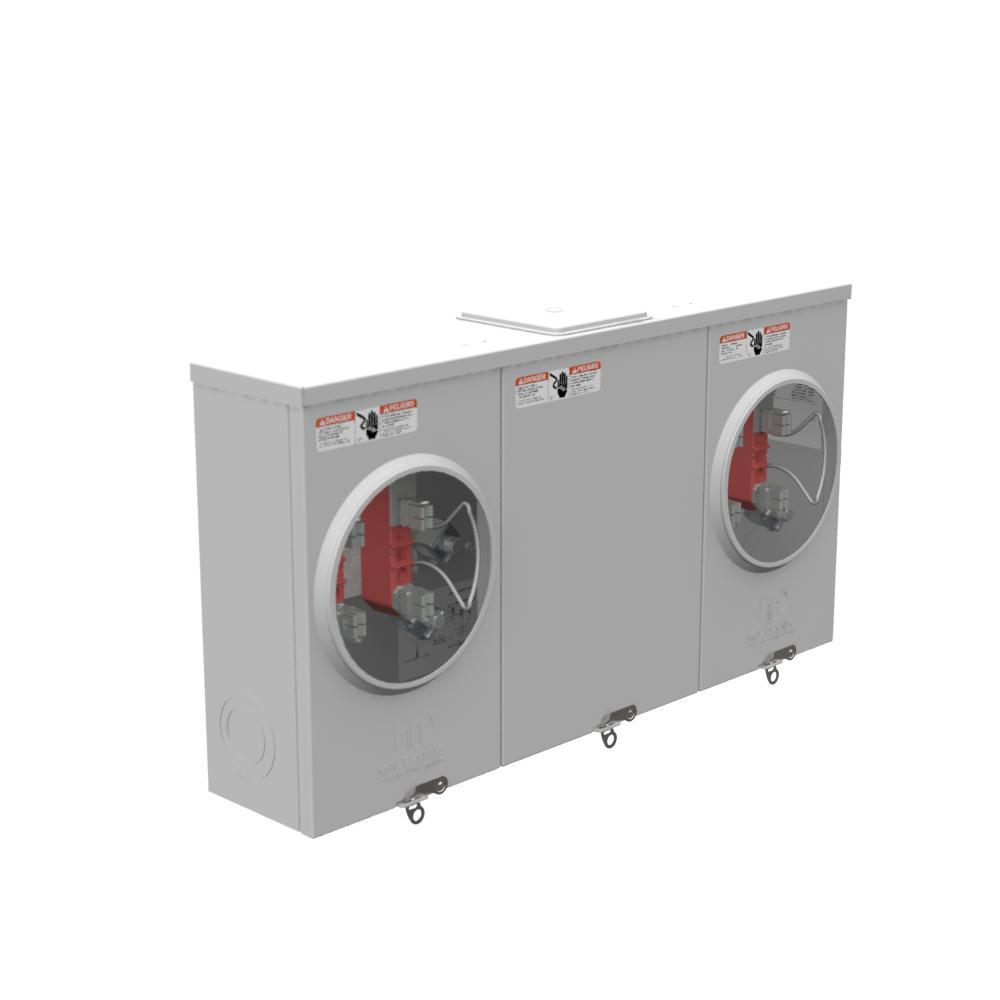

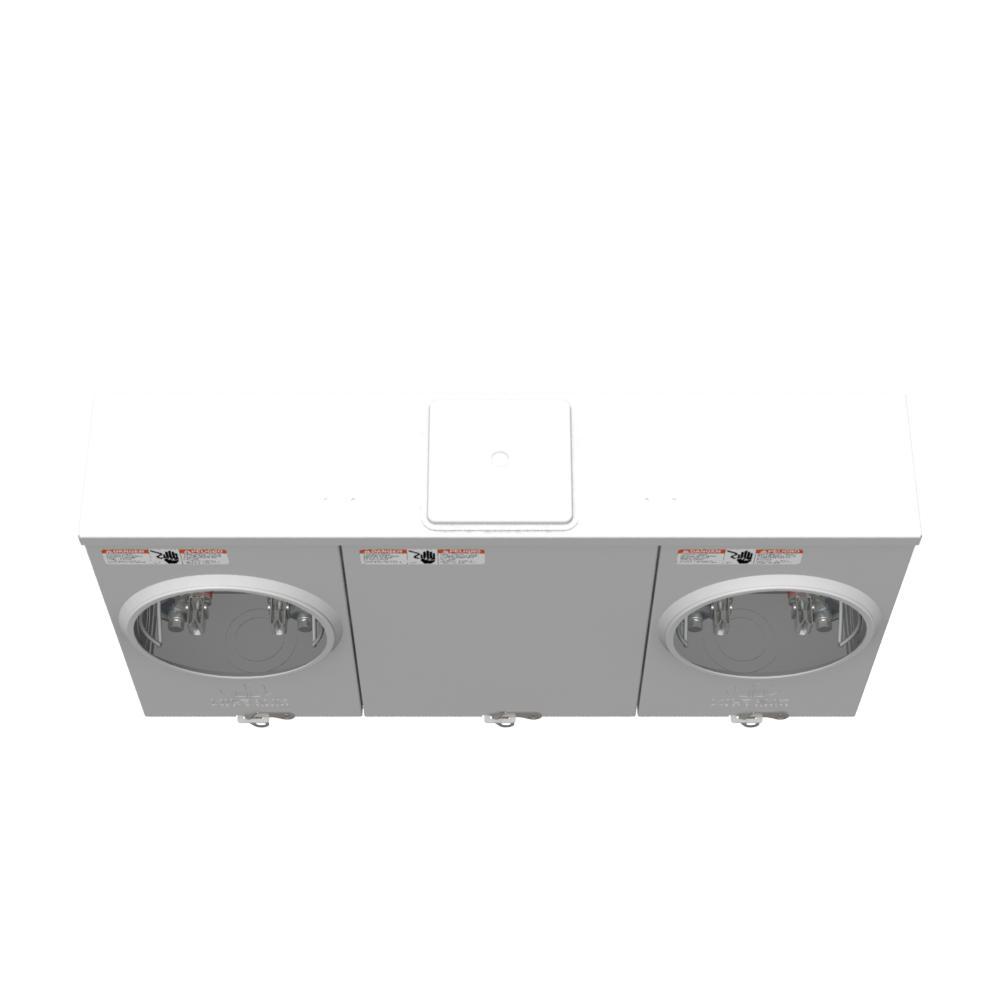

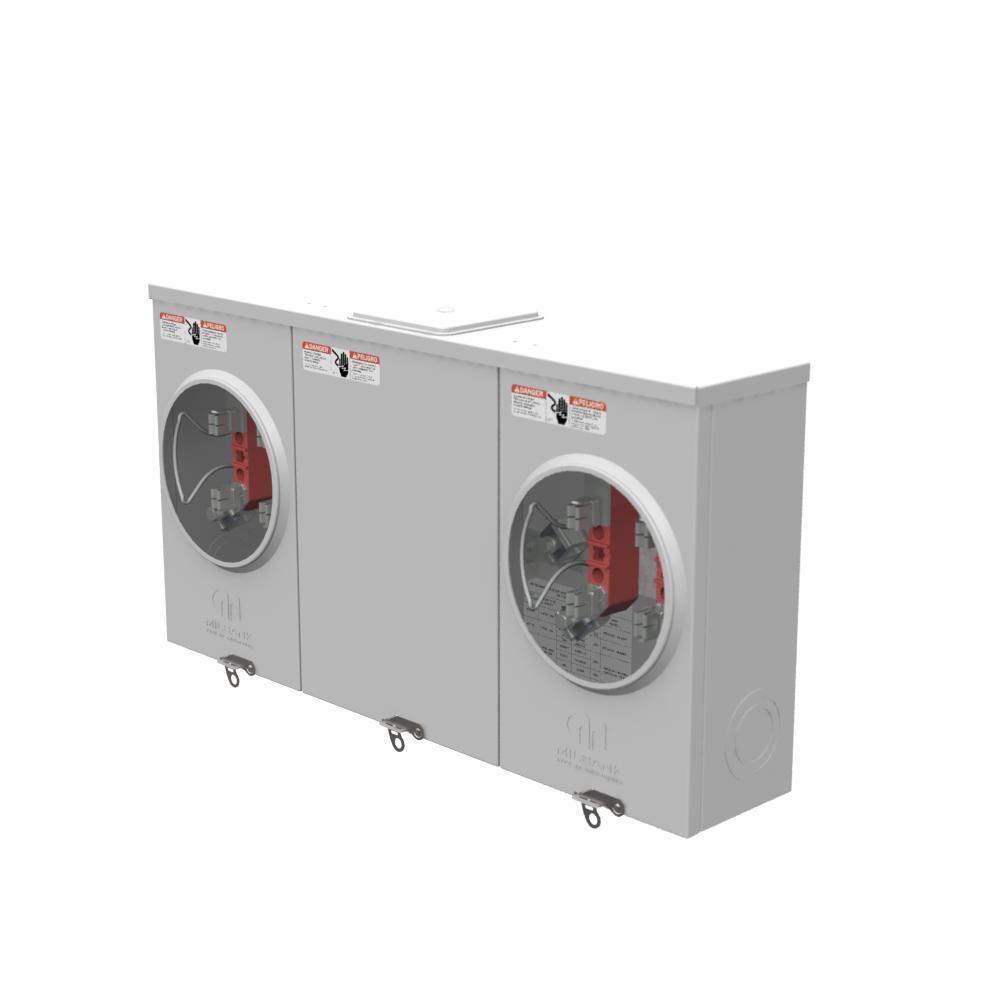

U1252-X MILBANK 200A 4T RL 2P CTR WY

Mouse over image to zoom, click to enlarge

  • U1252-X MILBANK 200A 4T RL 2P CTR WY
  • U1252-X MILBANK 200A 4T RL 2P CTR WY
  • U1252-X MILBANK 200A 4T RL 2P CTR WY
  • U1252-X MILBANK 200A 4T RL 2P CTR WY
  • U1252-X MILBANK 200A 4T RL 2P CTR WY

Description: Milbank® Meter Socket, Ringless, 300 V AC, 200 A, 1 Phase , 60 Hz, Center/Overhead/Underground Feed, 4 Jaws, 2 AWG to 350 kcmil Wire, Large Closing Plate, Line Side/Lay-In Load Side Terminal, Surface Mount, NEMA 3R, 14 in H x 26-1/2 in W x 5-1/8 in D

Manufacturer PN: U1252-X

UPC:  78457213330

Kendall Electric Inc PN: 2936120

Invoice Description:

U1252-X MILBANK 200A 4T RL 2P CTR WY


SPEC SHEET

How Can We Make This Page Better?

Milbank® U1252-X Ringless Meter Socket, 300 V AC, 200 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability




Description

Milbank® Meter Socket, Ringless, 300 V AC, 200 A, 1 Phase , 60 Hz, Center/Overhead/Underground Feed, 4 Jaws, 2 AWG to 350 kcmil Wire, Large Closing Plate, Line Side/Lay-In Load Side Terminal, Surface Mount, NEMA 3R, 14 in H x 26-1/2 in W x 5-1/8 in D

Specifications

 Amperage Rating 200 A
 Brand Name Milbank
 Dimensions 14 in H x 26-1/2 in W x 5-1/8 in D
 Enclosure NEMA 3R
 Feed Type Center/Overhead/Underground
 Frequency Rating 60 Hz
 Hub Type Large Closing Plate
 Manufacturer Part Number U1252-X
 Mounting Type Surface
 Number of Jaws 4
 PART NUMBER KEYWORDS U1252-X ; U1252X ; 784572133303 ; 78457213330 ; 00784572133303
 Phase 1
 Standards/Approvals UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
 Terminal Type Line Side/Lay-In Load Side
 Type Ringless
 Voltage Rating 300 V AC

Features

▪ G90 galvanized steel with powder coat finish enclosure
▪ 3/8 in line side and lay in load side terminal
