TWX3-LED-ALO-40K-MVOLT-PE-DDBTXD LITHONIA TWX LED SIZE 3 WALLPACK,LED,ADJUSTABLE LIGHT OUTPUT,4000K,120-277V,PHOTOCELL, BUTTONTYPE,TEXTURED DARK BRONZE, SUPER DURABLE 268TV0

Mouse over image to zoom, click to enlarge

  • TWX3-LED-ALO-40K-MVOLT-PE-DDBTXD LITHONIA TWX LED SIZE 3 WALLPACK,LED,ADJUSTABLE LIGHT OUTPUT,4000K,120-277V,PHOTOCELL, BUTTONTYPE,TEXTURED DARK BRONZE, SUPER DURABLE 268TV0
  • TWX3-LED-ALO-40K-MVOLT-PE-DDBTXD LITHONIA TWX LED SIZE 3 WALLPACK,LED,ADJUSTABLE LIGHT OUTPUT,4000K,120-277V,PHOTOCELL, BUTTONTYPE,TEXTURED DARK BRONZE, SUPER DURABLE 268TV0
  • TWX3-LED-ALO-40K-MVOLT-PE-DDBTXD LITHONIA TWX LED SIZE 3 WALLPACK,LED,ADJUSTABLE LIGHT OUTPUT,4000K,120-277V,PHOTOCELL, BUTTONTYPE,TEXTURED DARK BRONZE, SUPER DURABLE 268TV0
  • TWX3-LED-ALO-40K-MVOLT-PE-DDBTXD LITHONIA TWX LED SIZE 3 WALLPACK,LED,ADJUSTABLE LIGHT OUTPUT,4000K,120-277V,PHOTOCELL, BUTTONTYPE,TEXTURED DARK BRONZE, SUPER DURABLE 268TV0
  • TWX3-LED-ALO-40K-MVOLT-PE-DDBTXD LITHONIA TWX LED SIZE 3 WALLPACK,LED,ADJUSTABLE LIGHT OUTPUT,4000K,120-277V,PHOTOCELL, BUTTONTYPE,TEXTURED DARK BRONZE, SUPER DURABLE 268TV0

Description: Lithonia Lighting® Wall Luminaire, Adjustable Light Output, Series: TWX3, 120 to 277 V AC, 108 W Fixture, 0.45 to 0.9 A, LED Lamp, 100000 hr Average Life, 4000 K Color Temperature, Borosilicate Glass Lens, 2900 to 13850 Lumens, IP65 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, Textured Dark Bronze Housing Finish, 18 in W x 5 in D x 14 in H Dimensions

Manufacturer PN: TWX3LEDALO40KMVOLTPEDDBTXD

UPC:  19499462060

Kendall Electric Inc PN: 4351781

Invoice Description:

TWX3-LED-ALO-40K-MVOLT-PE-DDBTXD LITHONIA TWX LED SIZE 3 WALLPACK,LED,ADJUSTABLE LIGHT OUTPUT,4000K,120-277V,PHOTOCELL, BUTTONTYPE,TEXTURED DARK BRONZE, SUPER DURABLE 268TV0


SPEC SHEET

▸ See All in Outdoor Wallpacks


How Can We Make This Page Better?

Lithonia Lighting® TWX3 LED ALO 40K MVOLT PE DDBTXD Adjustable Light Output Wall Luminaire, LED Lamp, 108 W Fixture, 120 to 277 V AC, Textured Dark Bronze Housing

Log In for Pricing and Availability




Description

The TWX LED wall pack family features a ground-up design with a low initial cost customers demand while providing superior performance in a traditional form. The TWX LED wall packs feature premium borosilicate glass lenses that work in conjunction with the high efficiency light engine to provide superior illumination while minimizing wasted up-light. The new slim design creates a less obtrusive appearance on the building while still fully covering the unsightly stains leftover from typical HID glass wall packs. The Adjustable Light Output (ALO) option maximizes flexibility both in the field and on distributor shelves. The TWX family has three sizes with lumen packages ranging from 2950 to 13850 Lumens and are designed to replace 70 to 400 W HID wall packs.
Lithonia Lighting® Wall Luminaire, Adjustable Light Output, Series: TWX3, 120 to 277 V AC, 108 W Fixture, 0.45 to 0.9 A, LED Lamp, 100000 hr Average Life, 4000 K Color Temperature, Borosilicate Glass Lens, 2900 to 13850 Lumens, IP65 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, Textured Dark Bronze Housing Finish, 18 in W x 5 in D x 14 in H Dimensions

Specifications

 Amperage Rating 0.45 to 0.9 A

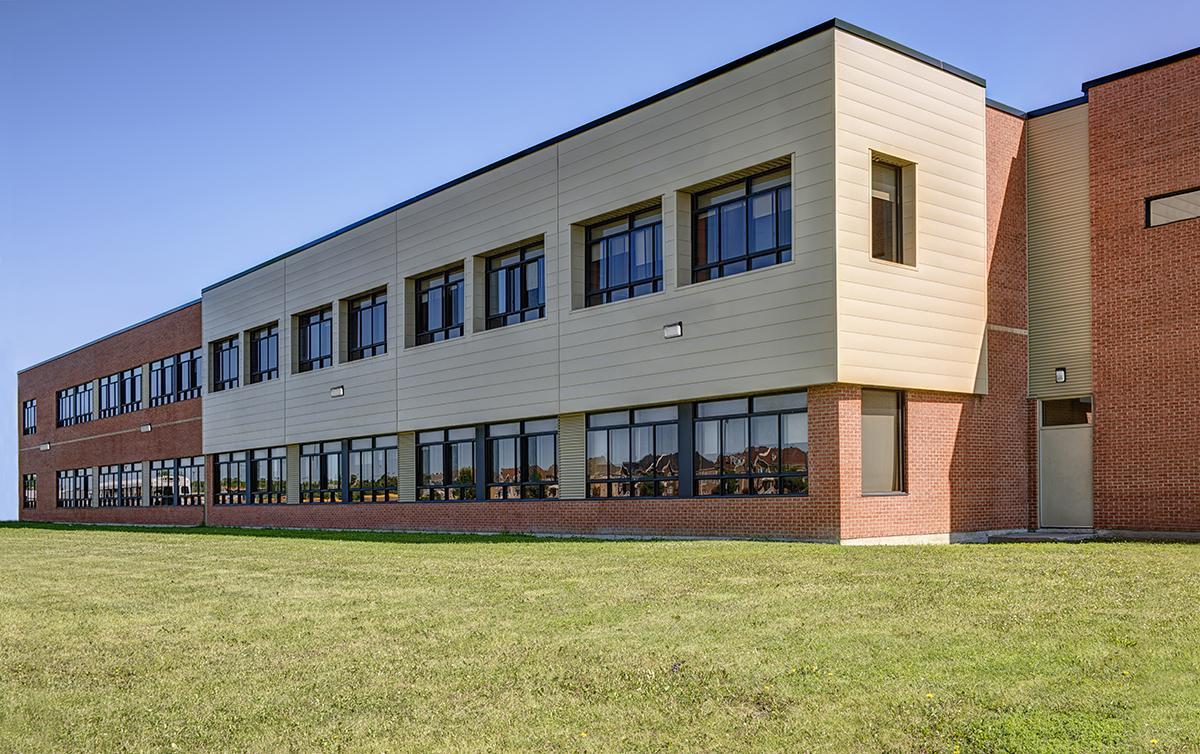

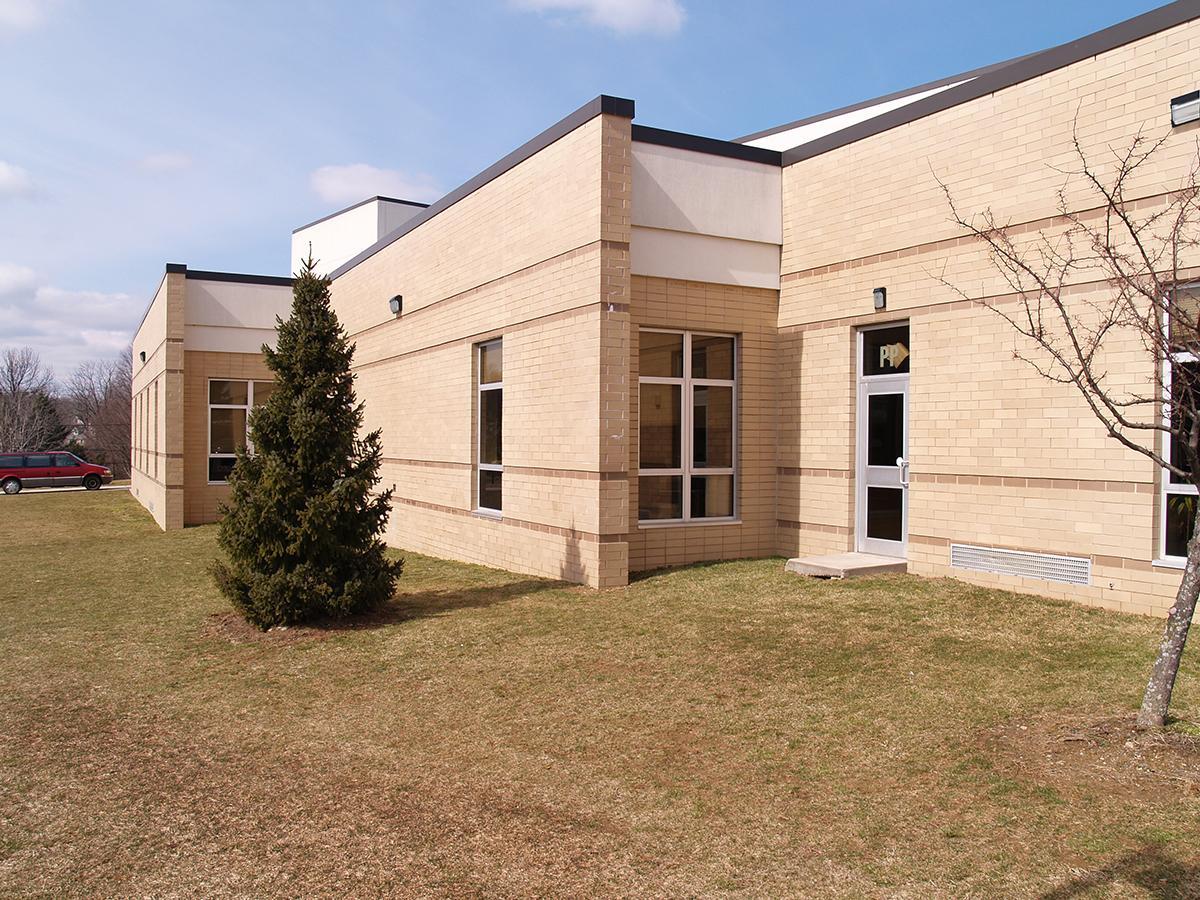

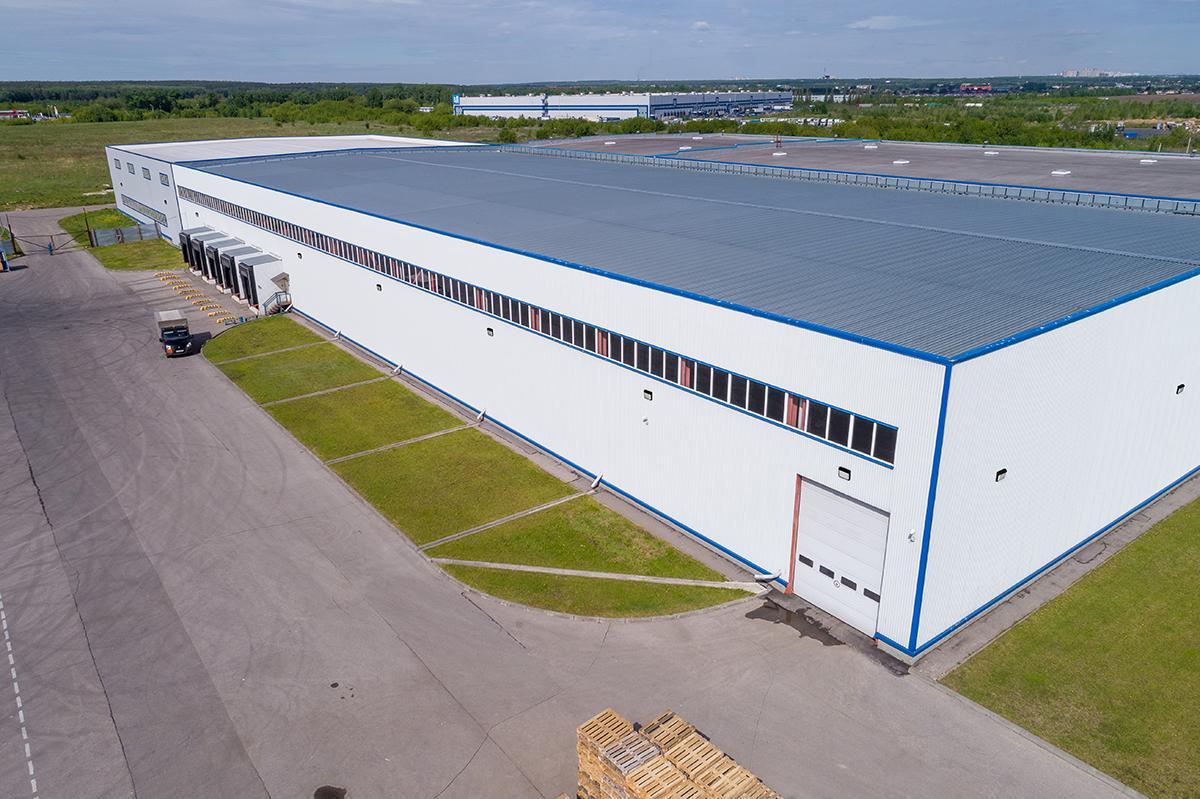

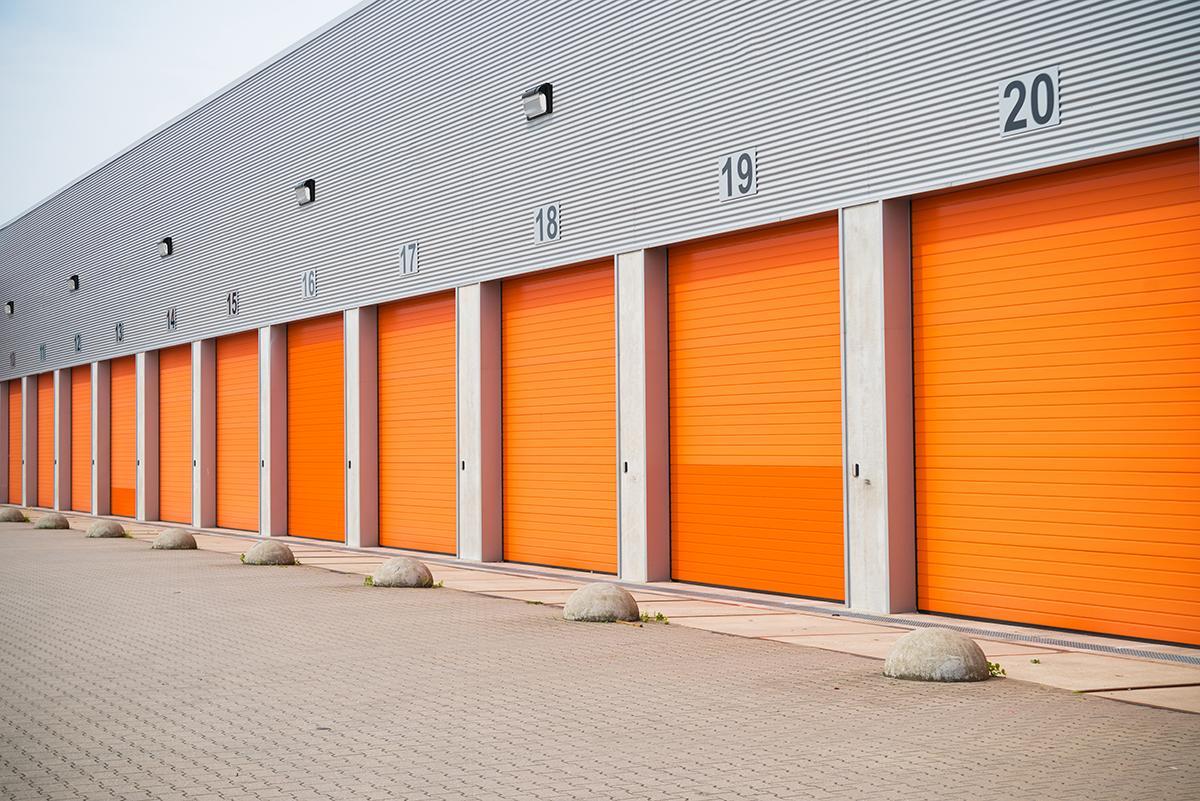

 Application Industrial Buildings, Warehouses and Schools Applications
 Average Life 100000 hr
 Brand Name Lithonia Lighting®
 Color Temperature 4000 K
 Dimensions 18 in W x 5 in D x 14 in H
 Enclosure IP65
 Fixture Wattage 108 W
 Housing Finish Textured Dark Bronze
 Housing Material Die Cast Aluminum
 Lamp Type LED
 Lumens 2900 to 13850 Lumens
 Manufacturer Part Number TWX3 LED ALO 40K MVOLT PE DDBTXD
 Mounting Type Surface
 Series TWX3
 Standards/Approvals CSA Certified|DLC Listed|IESNA LM-79|IESNA LM-80|UL Listed For Wet Locations
 Type Adjustable Light Output
 Video Links
 Voltage Rating 120 to 277 V AC

Features

▪ TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form
▪ The TWX3 LED is energy efficient saving up to 84 Percent in energy costs when replacing a metal halide luminaire
▪ The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site
▪ Hardwired on/off capability only
▪ MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box or back wiring can be connected and stored in the internal compartment
▪ Light engine(s) configurations consist of high-efficacy LEDs where the advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
▪ Exterior painted parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
▪ No emergency battery back-up available in this version
