Eaton

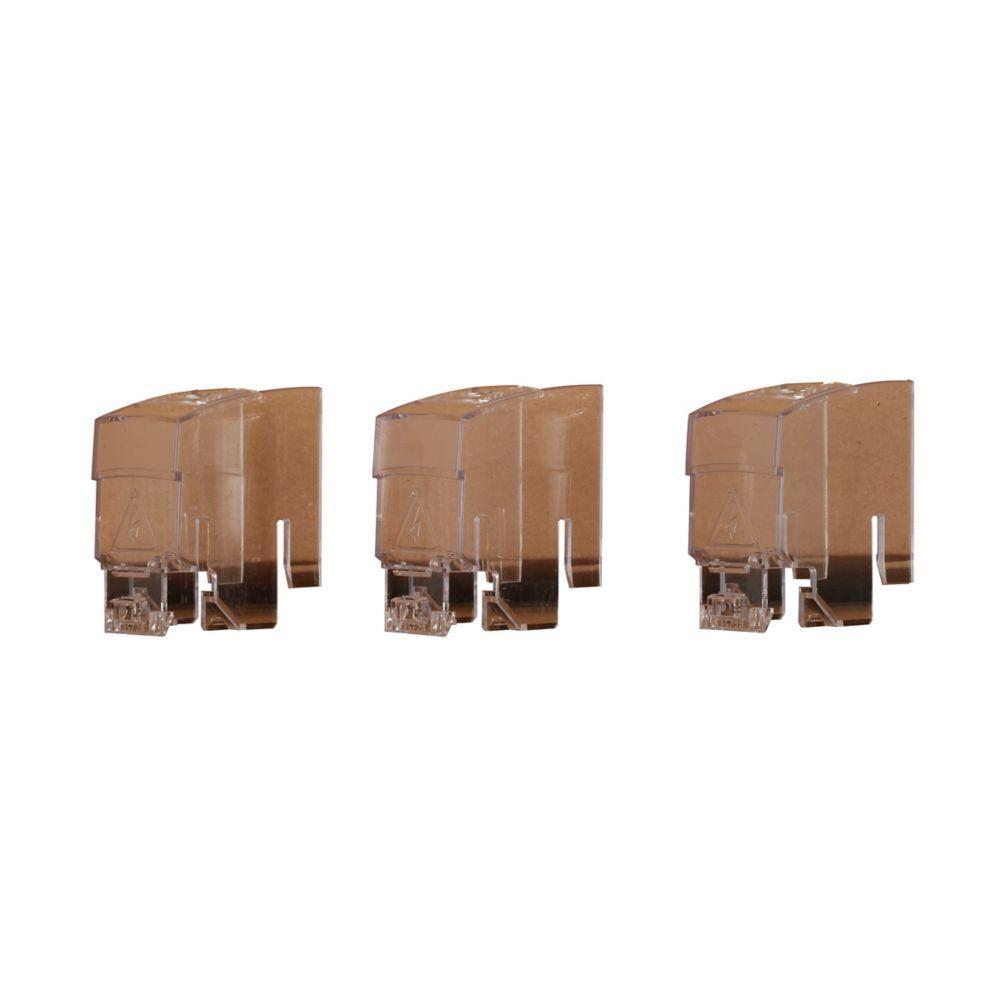

TSR9N3 CH TERMINAL SHROUD FOR R9 SERIES N FRAME SWITCH, 3 POLE TOP OR

Mouse over image to zoom, click to enlarge

  • TSR9N3 CH TERMINAL SHROUD FOR R9 SERIES N FRAME SWITCH, 3 POLE TOP OR
  • TSR9N3 CH TERMINAL SHROUD FOR R9 SERIES N FRAME SWITCH, 3 POLE TOP OR

Description: EATON Rotary Disconnect Terminal Shroud, 3-Pole Line/Load Side, Series: R9, 600 to 800 A Switch, For Use With: R9 Series N-Frame Non-Fusible Enclosed Rotary Disconnects, 9-1/2 in L x 6 in W x 7-1/2 in H Dimensions

Manufacturer PN: TSR9N3

UPC:  78668541026

Kendall Electric Inc PN: 2888045

Invoice Description:

TSR9N3 CH TERMINAL SHROUD FOR R9 SERIES N FRAME SWITCH, 3 POLE TOP OR


SPEC SHEET

▸ See All in Safety/Disconnect Switch Terminal Shroud


How Can We Make This Page Better?

EATON TSR9N3 R9 3-Pole Line/Load Side Rotary Disconnect Terminal Shroud, Switch Rating 600 to 800 A, For Use With R9 Series N-Frame Non-Fusible Enclosed Rotary Disconnects

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's full-range of rotary disconnects offers a compact, economical, and high-quality choice for switching and isolation spanning a range from 16A - 1200A. The R5 Series of switches are UL 508 listed devices, suitable for use as motor disconnects. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance, or anywhere a local means of disconnect is needed or required.
EATON Rotary Disconnect Terminal Shroud, 3-Pole Line/Load Side, Series: R9, 600 to 800 A Switch, For Use With: R9 Series N-Frame Non-Fusible Enclosed Rotary Disconnects, 9-1/2 in L x 6 in W x 7-1/2 in H Dimensions

Specifications

 Brand Name EATON
 Dimensions 9-1/2 in L x 6 in W x 7-1/2 in H
 Manufacturer Part Number TSR9N3
 PART NUMBER KEYWORDS TSR9N3 ; 11039466 ; 786685410265 ; 78668541026 ; 00786685410265
 Series R9
 Standards/Approvals Contact Manufacturer
 Suitable For Use With R9 Series N-Frame Non-Fusible Enclosed Rotary Disconnects
 Switch Amperage Rating 600 to 800 A
 Type 3-Pole Line/Load Side
 Video Links

Features

▪ Line and load protection against direct contact with terminals or connection parts
