Eaton

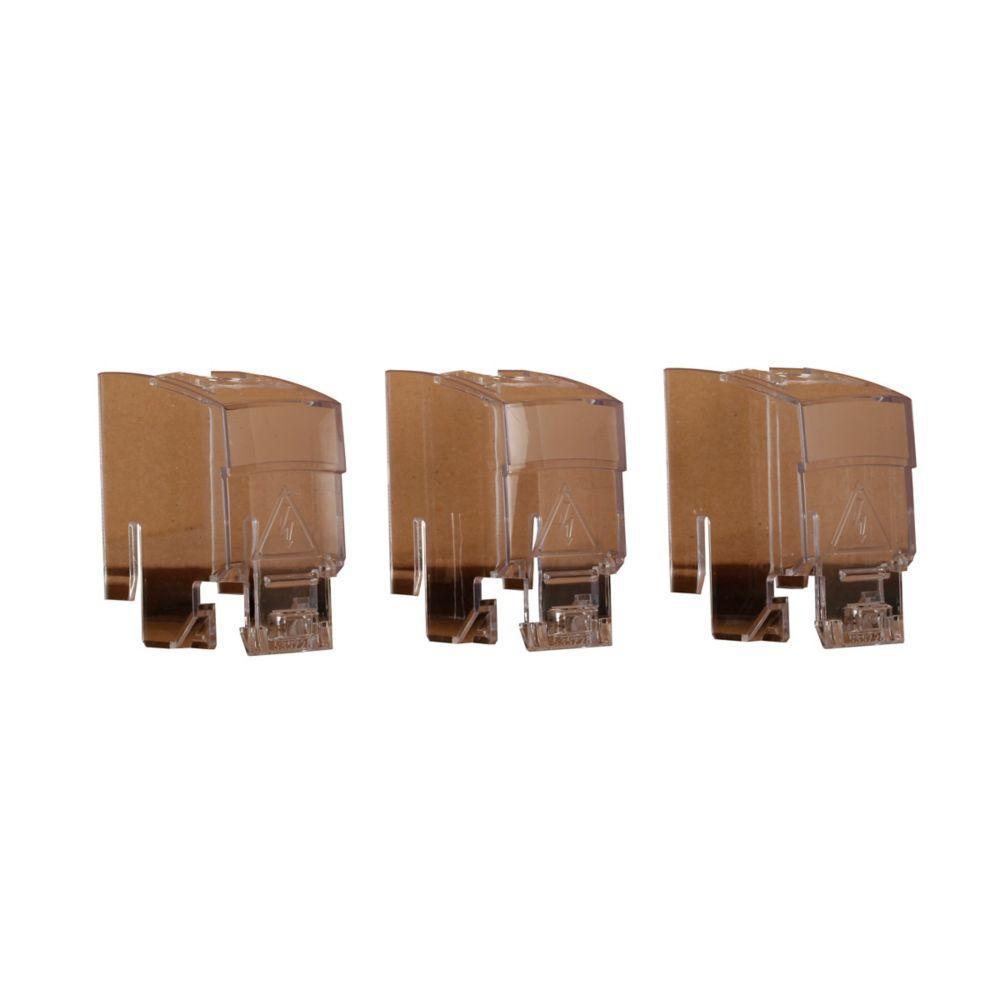

TSR9L3 CH TERMINAL SHROUD FOR R9 SERIES L FRAME SWITCH 3P TOP OR

Mouse over image to zoom, click to enlarge

  • TSR9L3 CH TERMINAL SHROUD FOR R9 SERIES L FRAME SWITCH 3P TOP OR
  • TSR9L3 CH TERMINAL SHROUD FOR R9 SERIES L FRAME SWITCH 3P TOP OR

Description: EATON Terminal Shroud, Series: R9, 200 A Switch, For Use With: R9 Series 3-Pole Rotary Disconnect, 3.29 in H x 1.74 in W x 2.83 in D

Manufacturer PN: TSR9L3

UPC:  78668541024

Kendall Electric Inc PN: 3612805

Invoice Description:

TSR9L3 CH TERMINAL SHROUD FOR R9 SERIES L FRAME SWITCH 3P TOP OR


SPEC SHEET

▸ See All in Safety/Disconnect Switch Terminal Shroud


How Can We Make This Page Better?

EATON TSR9L3 R9 Terminal Shroud, Switch Rating 200 A, For Use With R9 Series 3-Pole Rotary Disconnect

Log In for Pricing and Availability




Description

Eaton's full-range of rotary disconnects offers a compact, economical, and high-quality choice for switching and isolation spanning a range from 16A - 1200A. The R5 Series of switches are UL 508 listed devices, suitable for use as motor disconnects. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance, or anywhere a local means of disconnect is needed or required.
EATON Terminal Shroud, Series: R9, 200 A Switch, For Use With: R9 Series 3-Pole Rotary Disconnect, 3.29 in H x 1.74 in W x 2.83 in D

Specifications

 Application Electrical Assemblies, Panels and EOEMs, Commercial/Institutional Buildings/Structures
 Brand Name EATON
 Dimensions 3.29 in H x 1.74 in W x 2.83 in D
 Manufacturer Part Number TSR9L3
 PART NUMBER KEYWORDS TSR9L3 ; 11039207 ; 786685410241 ; 78668541024 ; 00786685410241
 Series R9
 Standards/Approvals Contact Manufacturer
 Suitable For Use With R9 Series 3-Pole Rotary Disconnect
 Switch Amperage Rating 200 A
