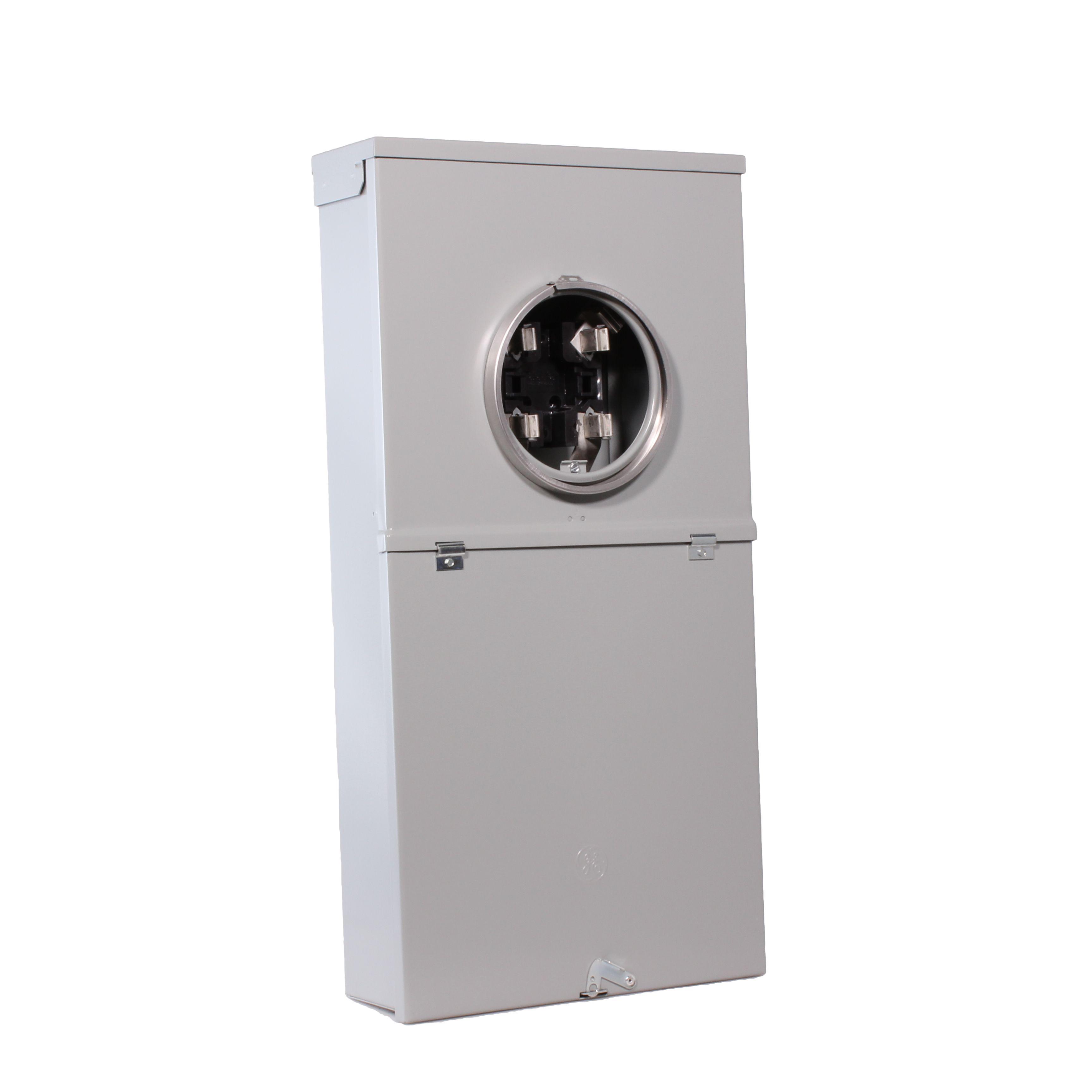

Description: GE PowerMark Gold™ Meter Socket Loadcenter, 3-Wire 4/8-Circuit Main Breaker, 120/240 V AC, 200 A, 1 ph, Overhead/Underground Feed, 6 AWG to 350 kcmil Aluminum/Copper Wire, Ring Cover, Feed-Through Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 28-1/2 in H x 14 in W x 4-1/2 in D Dimensions

Manufacturer PN: TSM420CSCUP

UPC:  78316439685

Kendall Electric Inc PN: 4742623

Invoice Description:

TSM420CSCUP GE MSLC MB RNG 200A22K 4/8 SURF UGOH RETAIL


SPEC SHEET

▸ See All in Meter Socket Loadcenter Combinations


How Can We Make This Page Better?

GE PowerMark Gold™ TSM420CSCUP 3-Wire 4/8-Circuit Main Breaker Meter Socket Loadcenter With Bonded Neutral, 120/240 V AC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

GE PowerMark Gold™ Meter Socket Loadcenter, 3-Wire 4/8-Circuit Main Breaker, 120/240 V AC, 200 A, 1 ph, Overhead/Underground Feed, 6 AWG to 350 kcmil Aluminum/Copper Wire, Ring Cover, Feed-Through Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 28-1/2 in H x 14 in W x 4-1/2 in D Dimensions

Specifications

 Amperage Rating 200 A
 Application Outdoor and Residential Applications
 Brand Name GE
 Cover Type Ring
 Dimensions 28-1/2 in H x 14 in W x 4-1/2 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Includes Removable Closing Cap
 Manufacturer Part Number TSM420CSCUP
 Mounting Type Surface
 Phase 1
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed
 Terminal Type Feed-Through Lug
 Type 3-Wire 4/8-Circuit Main Breaker
 Voltage Rating 120/240 V AC

Features

▪ Increased durability and reliability
▪ Maximum circuit layout flexibility and ease of installation add up to a lower total installed cost
▪ Hinged door is removable for installation convenience
▪ Accepts 1 in THQL or 1/2 in THQP branch circuit breakers
▪ Minimum 100% neutral terminations
▪ Generous wire room

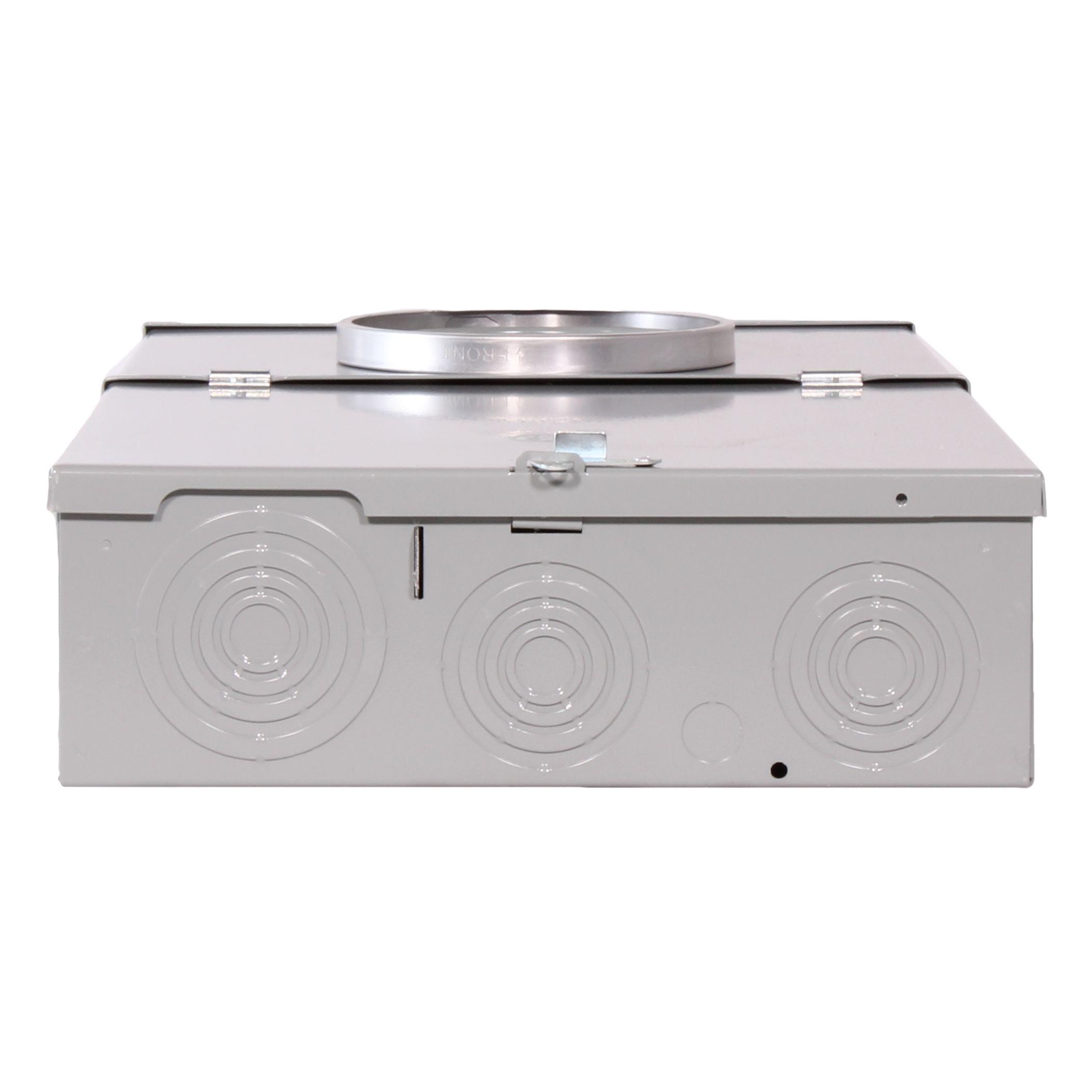

▪ 3 in concentric knockout
▪ Factory installed main breaker
▪ 1-piece copper bus, tin plated for corrosion resistance
