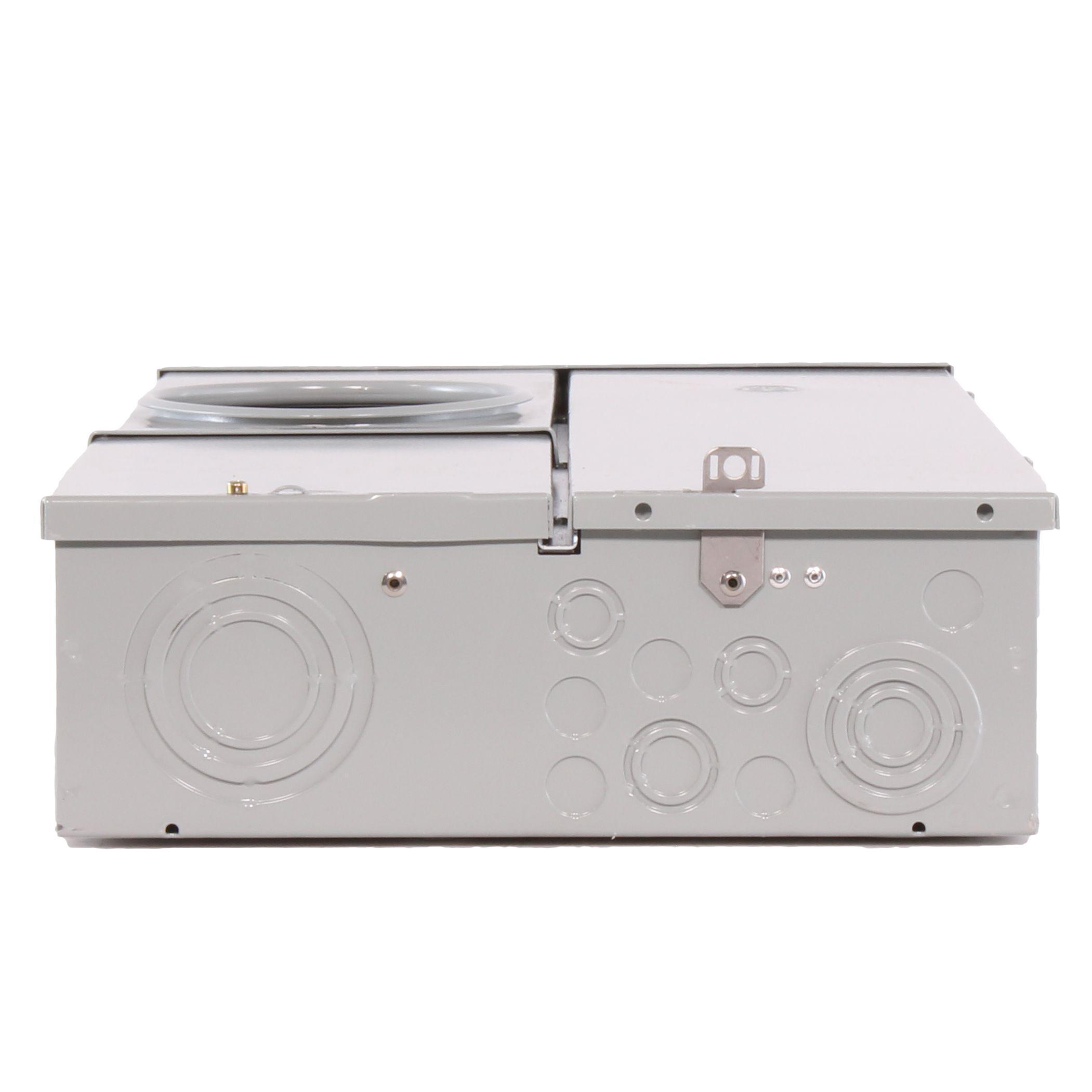

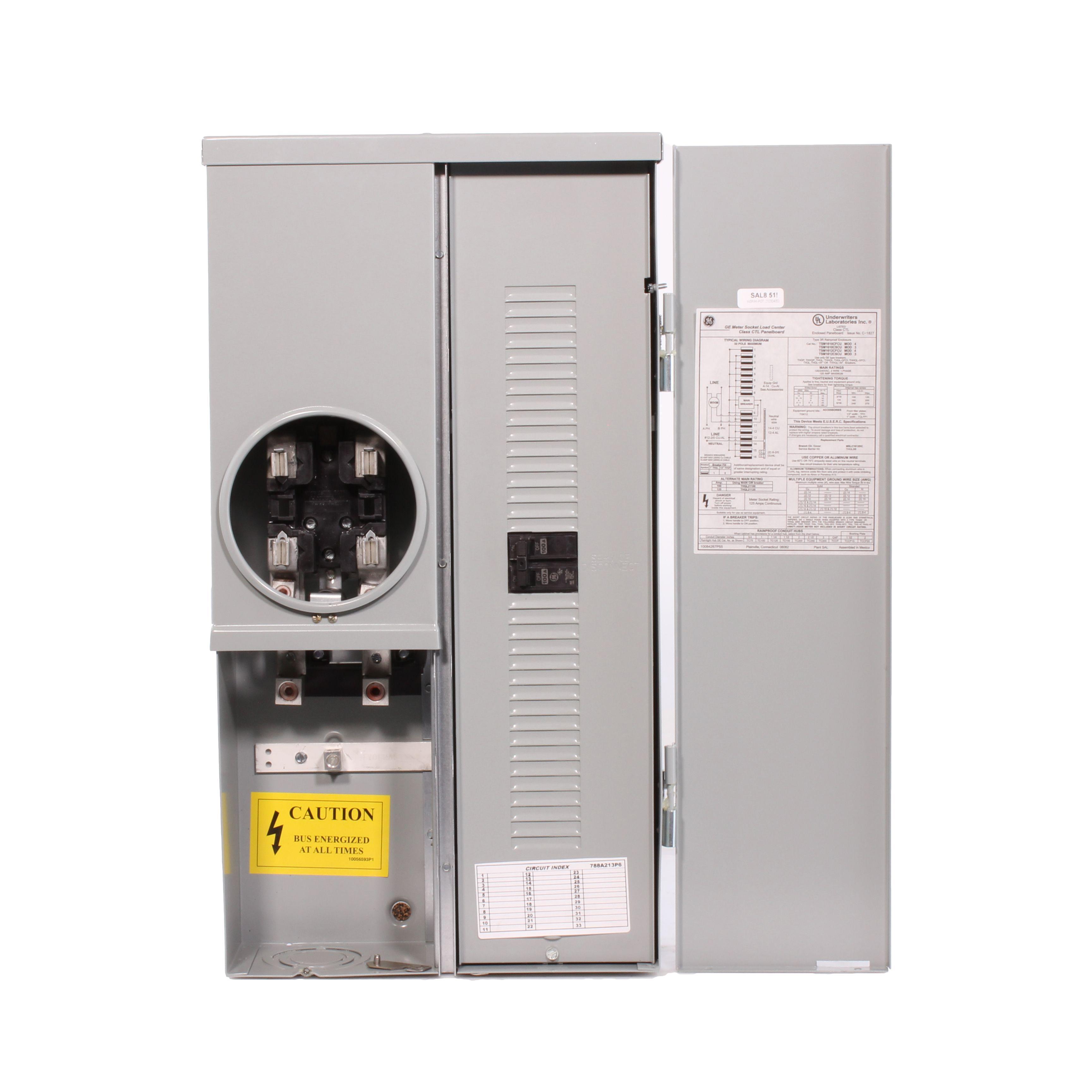

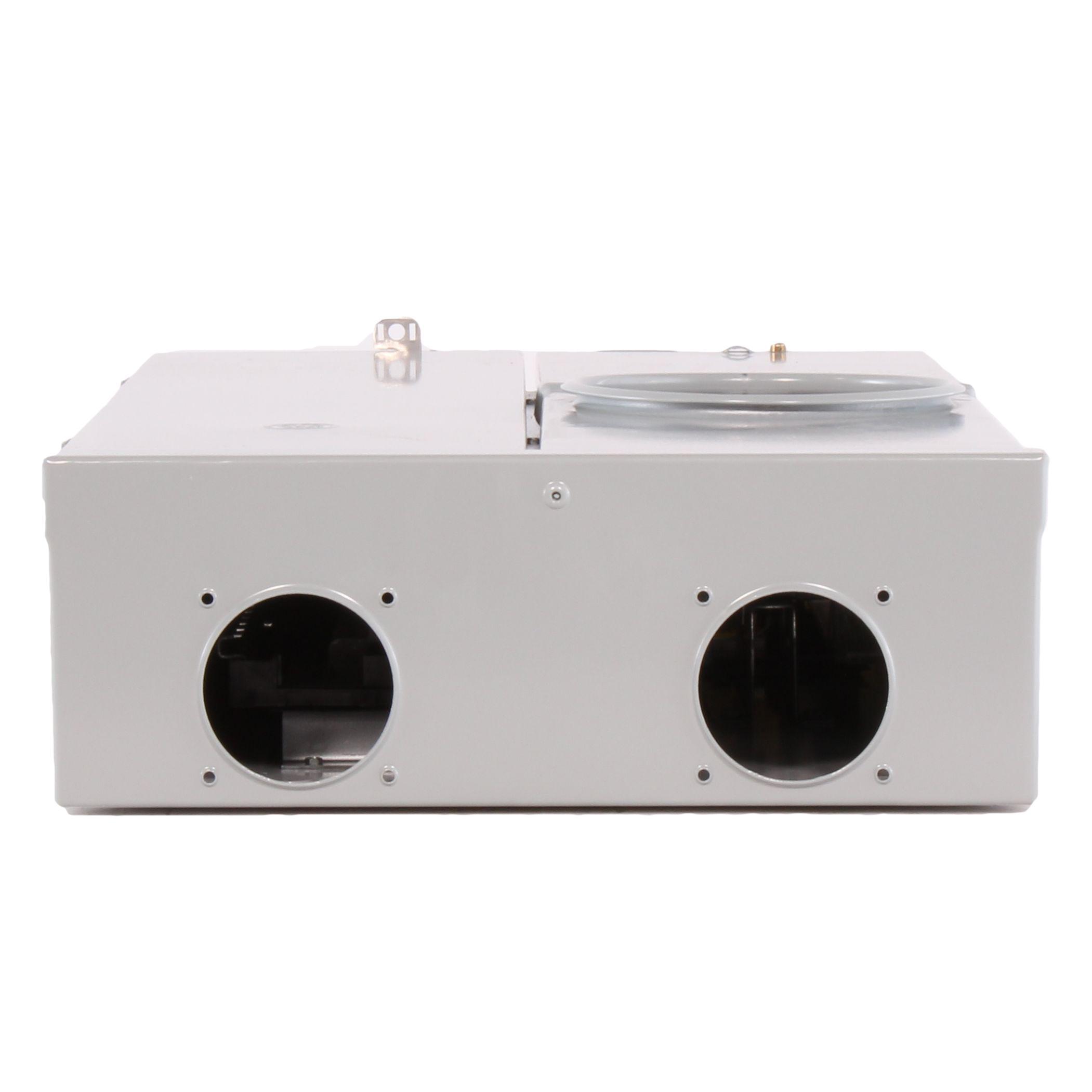

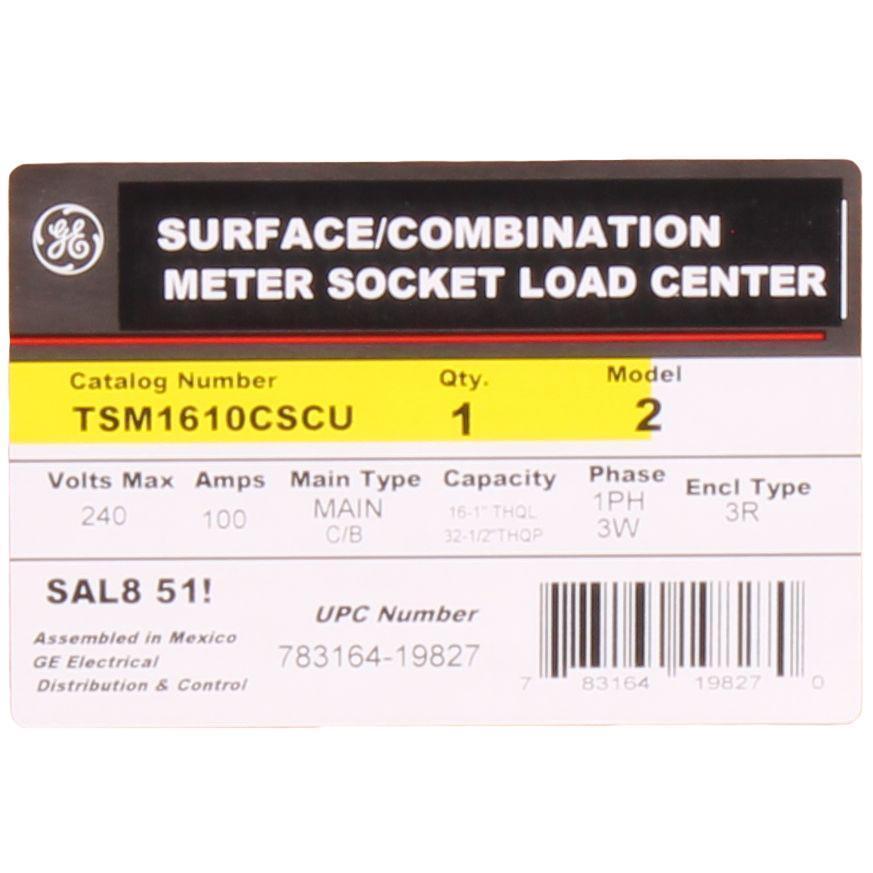

  • TSM1610CSCU GE METER SOCKET LOAD CENTER 16-CIRCUIT
  • TSM1610CSCU GE METER SOCKET LOAD CENTER 16-CIRCUIT
  • TSM1610CSCU GE METER SOCKET LOAD CENTER 16-CIRCUIT
  • TSM1610CSCU GE METER SOCKET LOAD CENTER 16-CIRCUIT
  • TSM1610CSCU GE METER SOCKET LOAD CENTER 16-CIRCUIT
  • TSM1610CSCU GE METER SOCKET LOAD CENTER 16-CIRCUIT

Description: GE PowerMark Gold® Meter Socket Breaker, 16-Circuit 1-Pole 3-Wire Ring, 120/240 V AC, 100 A, 1 ph, Overhead/Underground Feed, 12 to 2/0 AWG Wire, Feed-Through Lug Terminal, Surface Mount, NEMA 3R, 14-3/4 in W x 5-7/16 in D x 27-5/16 in H

Manufacturer PN: TSM1610CSCU

UPC:  78316419827

Kendall Electric Inc PN: 2483988

Invoice Description:

TSM1610CSCU GE METER SOCKET LOAD CENTER 16-CIRCUIT


SPEC SHEET

▸ See All in Meter Socket Loadcenter Combinations


How Can We Make This Page Better?

GE PowerMark Gold® TSM1610CSCU 16-Circuit 1-Pole 3-Wire Ring Meter Socket Breaker With Bonded Neutrals, 120/240 V AC, 100 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

GE PowerMark Gold® Meter Socket Breaker, 16-Circuit 1-Pole 3-Wire Ring, 120/240 V AC, 100 A, 1 ph, Overhead/Underground Feed, 12 to 2/0 AWG Wire, Feed-Through Lug Terminal, Surface Mount, NEMA 3R, 14-3/4 in W x 5-7/16 in D x 27-5/16 in H

Specifications

 Amperage Rating 100 A
 Application Outdoor, Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 14-3/4 in W x 5-7/16 in D x 27-5/16 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Includes Removable Closing Cap
 Manufacturer Part Number TSM1610CSCU
 Mounting Type Surface
 PART NUMBER KEYWORDS TSM1610CSCU ; 7699410 ; 783164198270 ; 78316419827 ; 00783164198270
 Phase 1
 Standards/Approvals EUSERC Approved|UL Listed
 Terminal Type Feed-Through Lug
 Type 16-Circuit 1-Pole 3-Wire Ring
 Voltage Rating 120/240 V AC

Features

▪ Copper bus
▪ (16) 1 in space 1-pole, (8) 1 in space 2-poles, (32) 1/2 in space 1-pole, (14) 1/2 in space 2-poles
▪ Accepts field installed fifth jaw terminal in the 3 or 9 o'clock position
▪ Surface mounted units have two hub provisions on top end wall
▪ 200 A meter socket load center 20-circuits ring
