Eaton

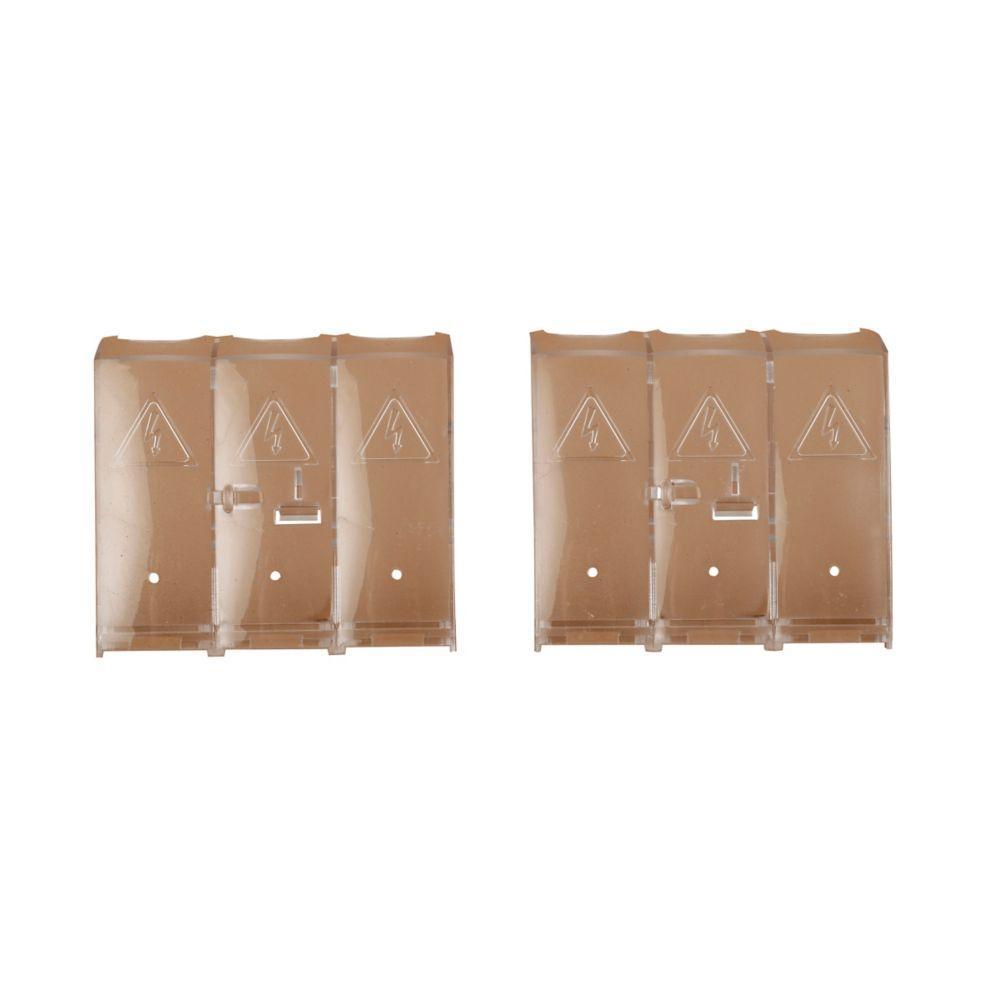

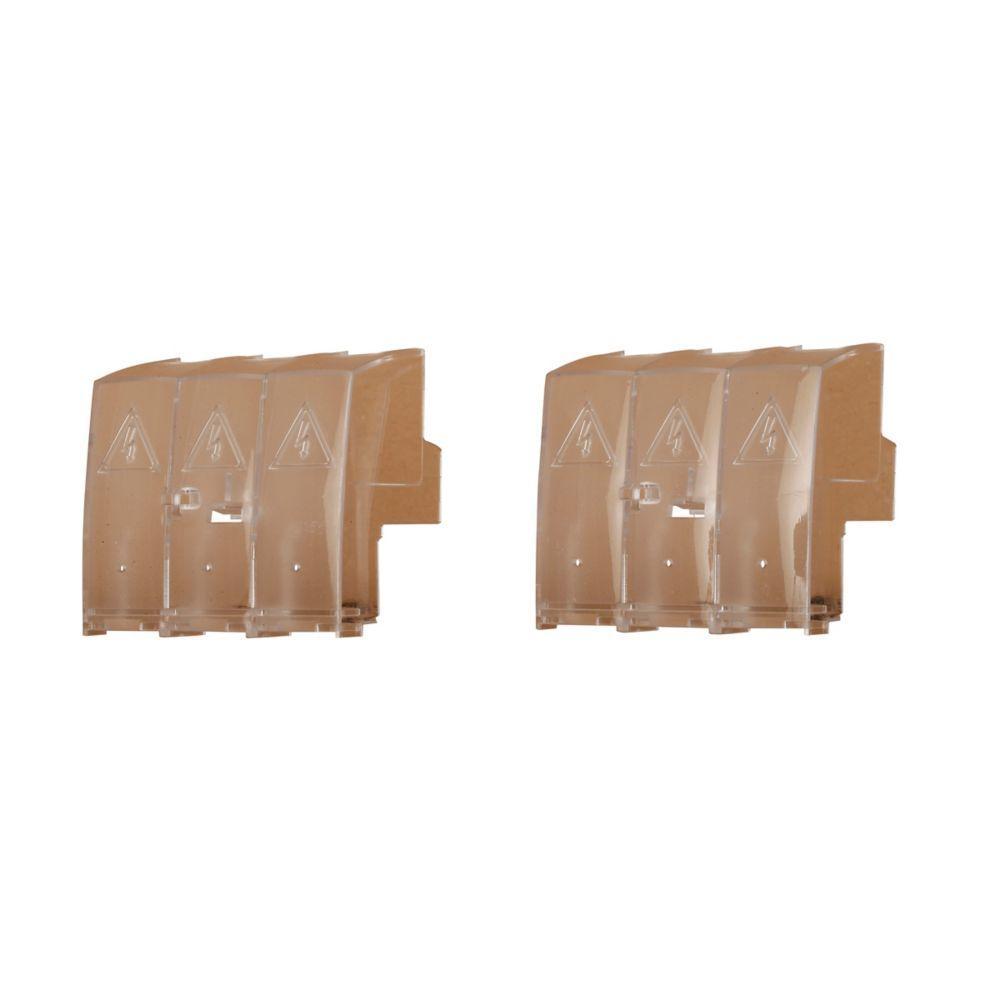

TS3R9CV CH TERMINAL SHROUD, 3POLE,USE W/ R9 C&V-FRAME.(2X)TOP&BOTTOM

Mouse over image to zoom, click to enlarge

  • TS3R9CV CH TERMINAL SHROUD, 3POLE,USE W/ R9 C&V-FRAME.(2X)TOP&BOTTOM
  • TS3R9CV CH TERMINAL SHROUD, 3POLE,USE W/ R9 C&V-FRAME.(2X)TOP&BOTTOM
  • TS3R9CV CH TERMINAL SHROUD, 3POLE,USE W/ R9 C&V-FRAME.(2X)TOP&BOTTOM

Description: EATON Rotary Disconnect Terminal Shroud, 3-Pole Heavy Duty Line/Load Side, Series: 10250T, 30 to 100 A Switch, For Use With: R9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch Operator, 88.9 mm L x 88.9 mm W x 50.8 mm H

Manufacturer PN: TS3R9CV

UPC:  78668540387

Kendall Electric Inc PN: 3436540

Invoice Description:

TS3R9CV CH TERMINAL SHROUD, 3POLE,USE W/ R9 C&V-FRAME.(2X)TOP&BOTTOM


SPEC SHEET

▸ See All in Safety/Disconnect Switch Terminal Shroud


How Can We Make This Page Better?

EATON TS3R9CV 10250T 3-Pole Heavy Duty Line/Load Side Rotary Disconnect Terminal Shroud, Switch Rating 30 to 100 A, For Use With R9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch Operator

Log In for Pricing and Availability




Description

Eaton's full-range of rotary disconnects offers a compact, economical, and high-quality choice for switching and isolation spanning a range from 16A - 1200A. The R5 Series of switches are UL 508 listed devices, suitable for use as motor disconnects. The R9 offering consists of UL 98 listed fusible and non-fusible products that may be used for service entrance, or anywhere a local means of disconnect is needed or required.
EATON Rotary Disconnect Terminal Shroud, 3-Pole Heavy Duty Line/Load Side, Series: 10250T, 30 to 100 A Switch, For Use With: R9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch Operator, 88.9 mm L x 88.9 mm W x 50.8 mm H

Specifications

 Brand Name EATON
 Dimensions 88.9 mm L x 88.9 mm W x 50.8 mm H
 Manufacturer Part Number TS3R9CV
 Series 10250T
 Standards/Approvals Contact Manufacturer
 Suitable For Use With R9 Series Non-Fusible Enclosed Rotary Disconnect and Non-Illuminated Knob Type Selector Switch Operator
 Switch Amperage Rating 30 to 100 A
 Type 3-Pole Heavy Duty Line/Load Side
 Video Links

Features

▪ Line and load protection against direct contact with terminals or connection parts
▪ Perforations allowing thermo graphic inspection
▪ -25 to 50 deg C temperature rating
