Eaton

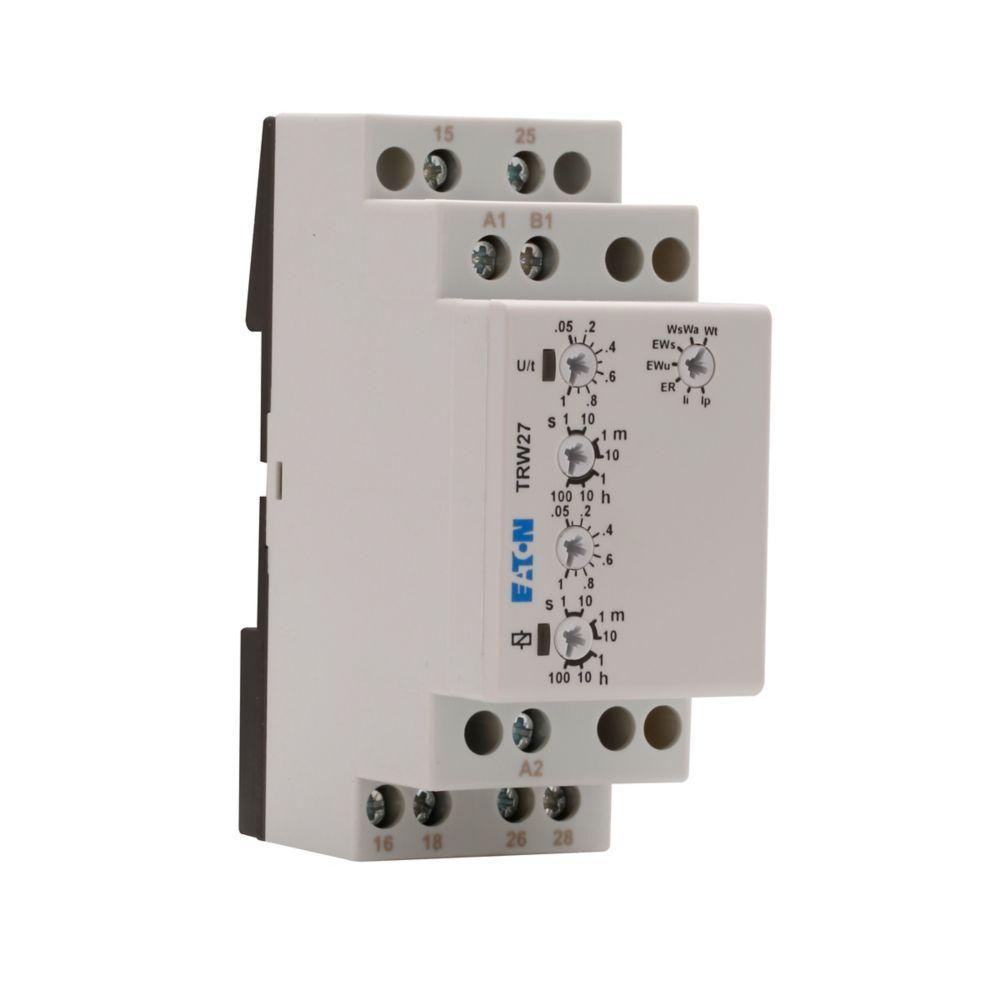

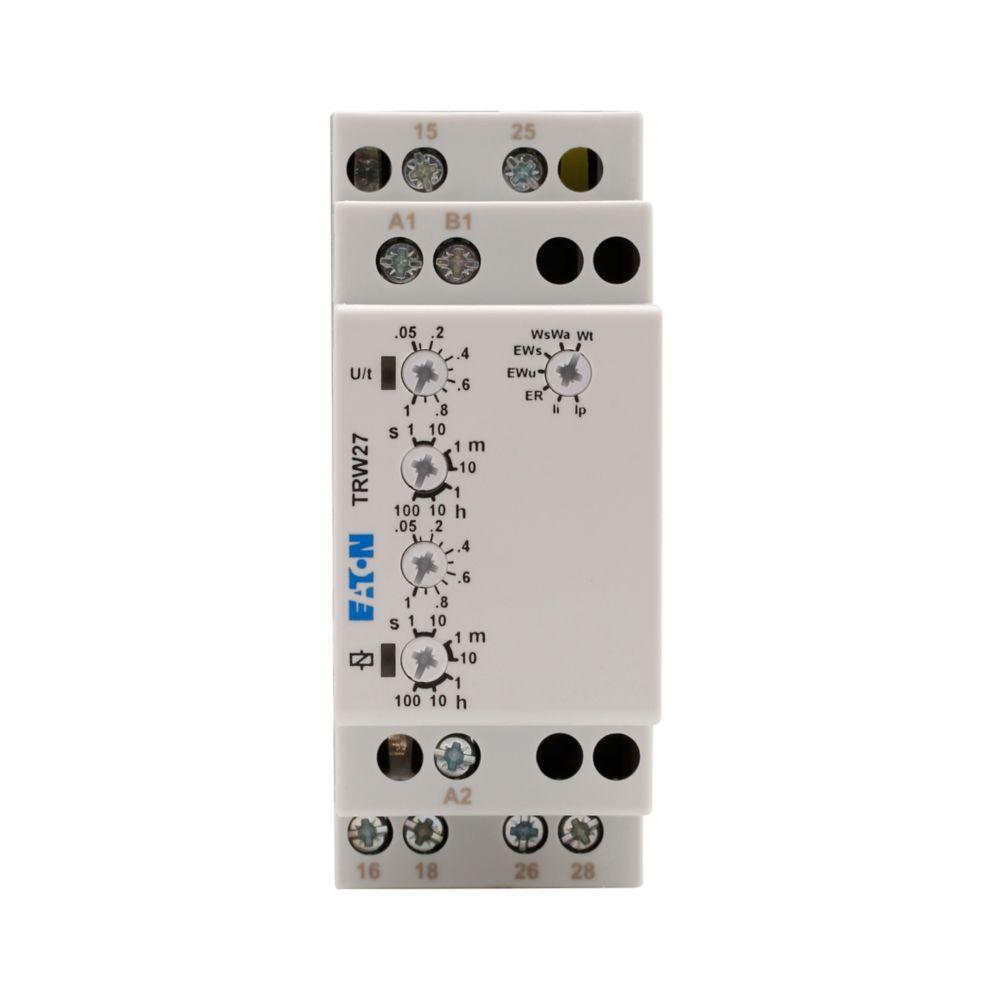

TRW27 CH TIMING RELAY 7 FUNCTION PULSE GENERATOR FLASHER WITH SEPARATE ON AND OFF RANGES TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE

Mouse over image to zoom, click to enlarge

  • TRW27 CH TIMING RELAY 7 FUNCTION PULSE GENERATOR FLASHER WITH SEPARATE ON AND OFF RANGES TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE
  • TRW27 CH TIMING RELAY 7 FUNCTION PULSE GENERATOR FLASHER WITH SEPARATE ON AND OFF RANGES TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE
  • TRW27 CH TIMING RELAY 7 FUNCTION PULSE GENERATOR FLASHER WITH SEPARATE ON AND OFF RANGES TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE

Description: EATON Timing Relay, 4-Function Compact Universal, Series: TR Series, Operation Mode: 7-Function, 12 to 240 V AC/DC, 8 A, 2 Pole, 2 Form C DPDT, 0.05 s to 100 hr, IP40, DIN Rail Mount, 2.56 in L x 1.38 in W x 3.43 in H

Manufacturer PN: TRW27

UPC:  78668531360

Kendall Electric Inc PN: 2749576

Invoice Description:

TRW27 CH TIMING RELAY 7 FUNCTION PULSE GENERATOR FLASHER WITH SEPARATE ON AND OFF RANGES TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE


SPEC SHEET

▸ See All in Control Relays


How Can We Make This Page Better?

EATON TRW27 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Setting, 12 to 240 V AC/DC, 2 Form C DPDT Contact, 2 Poles

Log In for Pricing and Availability




Description

Universal TR series, TMRP, TMR and E5-248 timing relays combine flexibility with ease of use and installation, while compact designs save panel space. With multiple mount options, models, a wide range of input voltage, timing range and functionality, there are versatile timing relays to meet any timing requirements.
EATON Timing Relay, 4-Function Compact Universal, Series: TR Series, Operation Mode: 7-Function, 12 to 240 V AC/DC, 8 A, 2 Pole, 2 Form C DPDT, 0.05 s to 100 hr, IP40, DIN Rail Mount, 2.56 in L x 1.38 in W x 3.43 in H

Specifications

 Amperage Rating 8 A
 Application Automation and Logic Control Equipment Applications
 Brand Name EATON
 Contact Form 2 Form C DPDT
 Dimensions 2.56 in L x 1.38 in W x 3.43 in H
 Enclosure IP40
 Manufacturer Part Number TRW27
 Mounting Type DIN Rail
 Number of Poles 2
 Operation Mode 7-Function
 PART NUMBER KEYWORDS TRW27 ; 10572642 ; 786685313603 ; 78668531360 ; 00786685313603
 Series TR Series
 Standards/Approvals cULus Listed,CSA Certified,TUV,CE Marked
 Time Setting 0.05 s to 100 hr
 Type 4-Function Compact Universal
 Voltage Rating 12 to 240 V AC/DC

Features

▪ Multiple user selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units
▪ Universal input voltages from 12 to 240 VAC/VDC eliminate the need to order and stock separate coil voltages
▪ Compact, DIN-rail mountable case reduces panel size
▪ Advanced LED indication makes troubleshooting easy
▪ Staggered terminal locations allow access to lower level terminals after wiring
▪ Self-extinguishing plastic enclosure material
▪ Asymmetrical flasher pause or pulse first, On/Off delay with control contact, on delay, single shot leading or trailing edge voltage controlled and control contact, pulse sequence monitoring functions
