Eaton

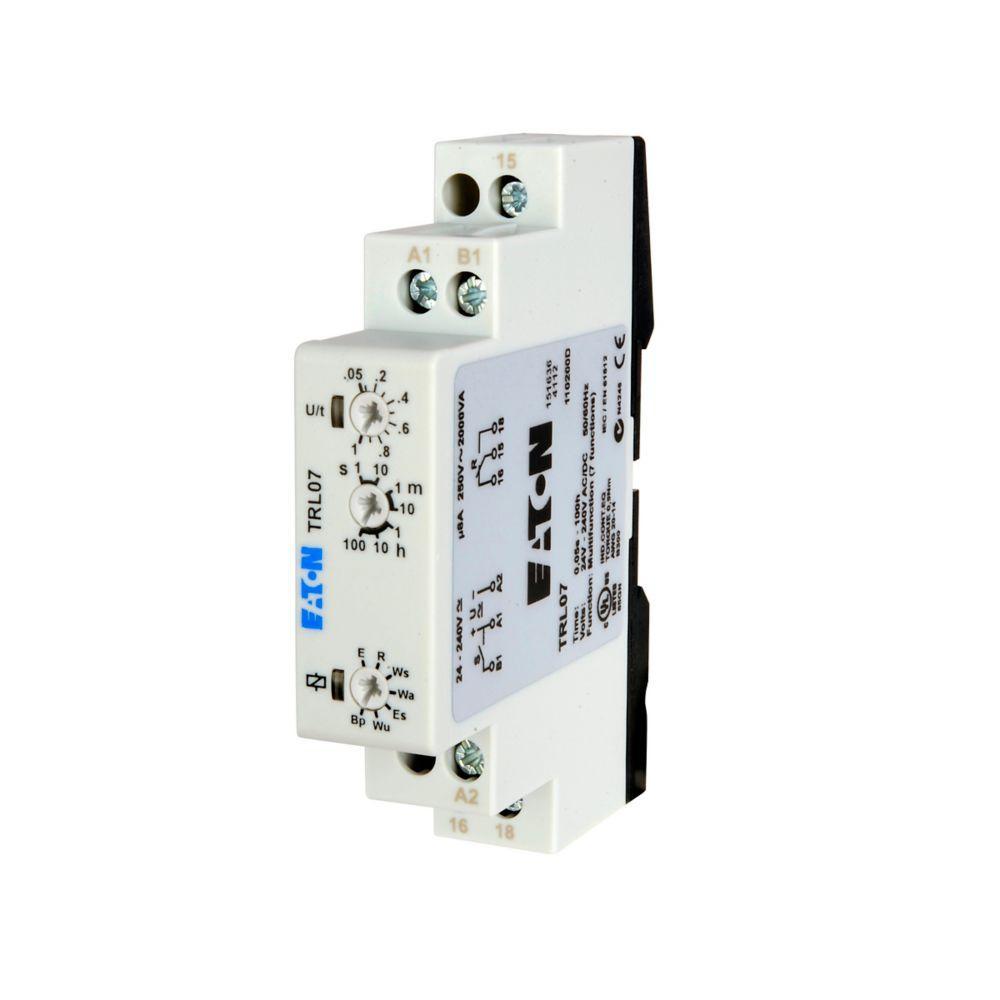

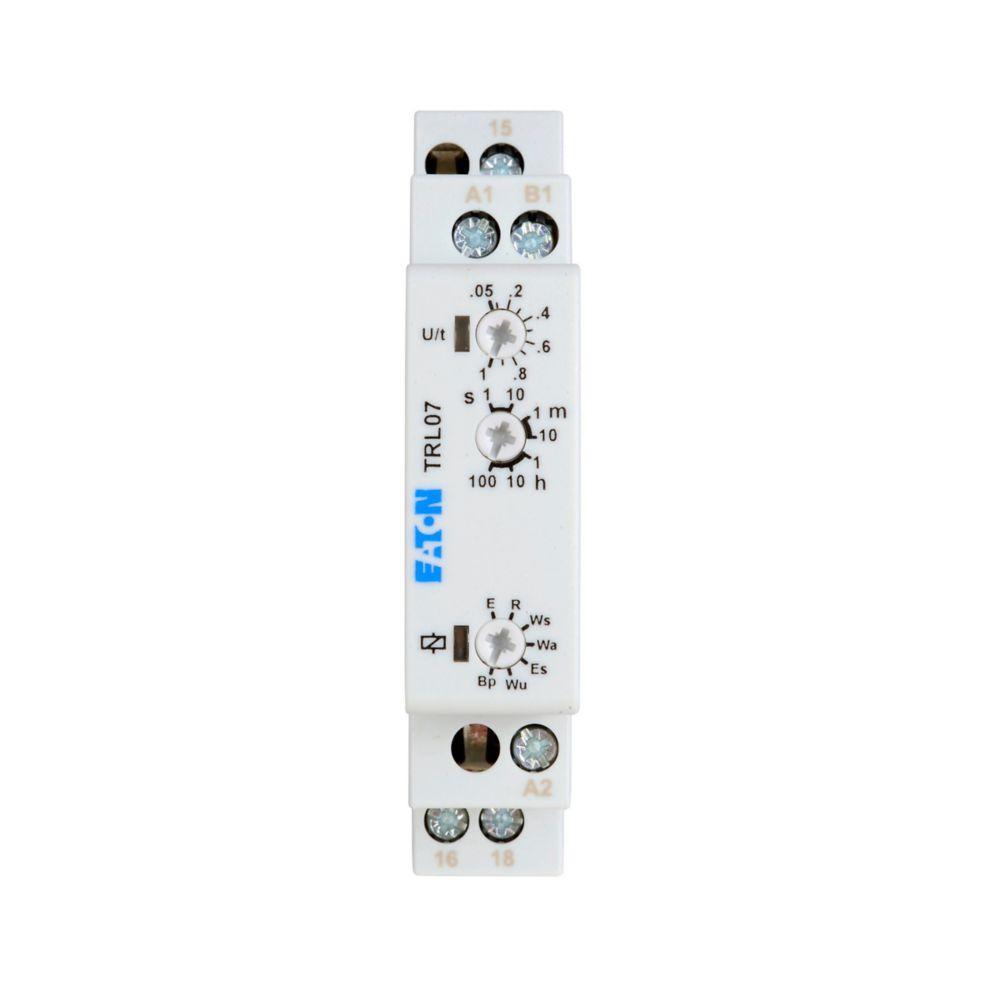

TRL27 CH TIMING RELAY 7 FUNCTION TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE

Mouse over image to zoom, click to enlarge

  • TRL27 CH TIMING RELAY 7 FUNCTION TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE
  • TRL27 CH TIMING RELAY 7 FUNCTION TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE
  • TRL27 CH TIMING RELAY 7 FUNCTION TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE

Description: EATON Timing Relay, 4-Function Compact Universal, Series: TR Series, Operation Mode: 7-Function, 12 to 240 VAC/VDC, 8 A, 2 Pole, DPDT, 0.05 s to 100 hr, IP40, DIN Rail Mount, 2.56 in L x 1.38 in W x 3.43 in H

Manufacturer PN: TRL27

UPC:  78668531359

Kendall Electric Inc PN: 2715671

Invoice Description:

TRL27 CH TIMING RELAY 7 FUNCTION TIMER RANGE 0.05SEC-100HOURS 24-240VAC/VDC DPDT 8AMP DIN MOUNT 35MM WIDE


SPEC SHEET

▸ See All in Timing Relays -Selectable Mode Operation


How Can We Make This Page Better?

EATON TRL27 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Setting, 12 to 240 VAC/VDC, DPDT Contact, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON universal TR series timers are our most flexible and cost effective timing relays available. products are available with up to seven user selectable functions and seven user selectable time ranges. each unit is DIN-rail mountable with a direct connection, eliminating the need for additional sockets. the universal TR series timers are available in SPDT and DPDT contact configurations and have a compact IEC style footprint and a universal input voltage range for AC and DC applications.
EATON Timing Relay, 4-Function Compact Universal, Series: TR Series, Operation Mode: 7-Function, 12 to 240 VAC/VDC, 8 A, 2 Pole, DPDT, 0.05 s to 100 hr, IP40, DIN Rail Mount, 2.56 in L x 1.38 in W x 3.43 in H

Specifications

 Amperage Rating 8 A
 Application Automation and Logic Control Equipment Applications
 Brand Name EATON
 Contact Form DPDT
 Dimensions 2.56 in L x 1.38 in W x 3.43 in H
 Enclosure IP40
 Manufacturer Part Number TRL27
 Mounting Type DIN Rail
 Number of Poles 2
 Operation Mode 7-Function
 Series TR Series
 Standards/Approvals UL Listed|cULus Listed|CE Certified|CSA Certified|TUV Certified|HACR Rated
 Time Setting 0.05 s to 100 hr
 Type 4-Function Compact Universal
 Voltage Rating 12 to 240 VAC/VDC

Features

▪ Multiple user selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units
▪ Universal input voltages from 12 to 240 VAC/VDC eliminate the need to order and stock separate coil voltages
▪ Compact, DIN-rail mountable case reduces panel size
▪ Advanced LED indication makes troubleshooting easy
▪ Staggered terminal locations allow access to lower level terminals after wiring
▪ Self-extinguishing plastic enclosure material
▪ ON/OFF delay, power triggered, single shot leading or trailing edge voltage controlled and control input, flasher pause first, on delay control signal start, trailing edge Off functions
