Eaton
TR7730W CWD SWI/TR DECO COMB SP/GRD RECP 15A 25V WH

Mouse over image to zoom, click to enlarge

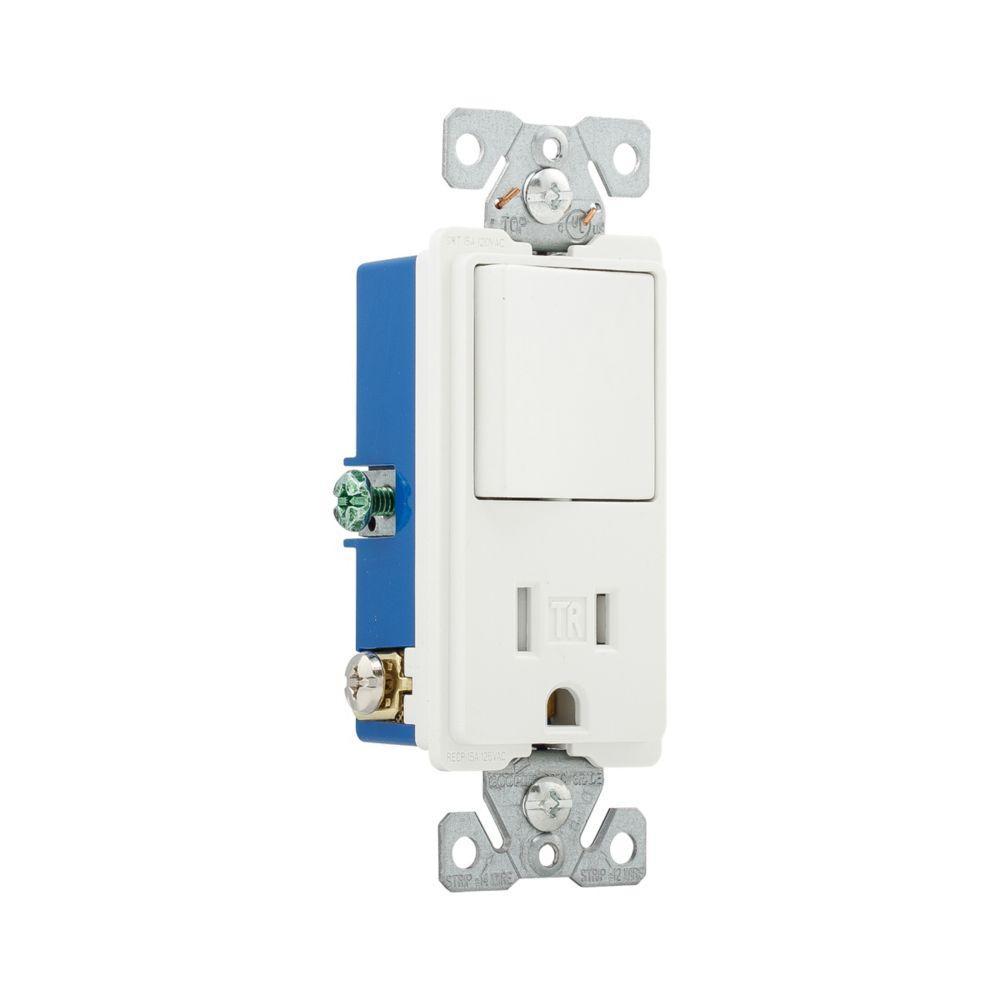

  • TR7730W CWD SWI/TR DECO COMB SP/GRD RECP 15A 25V WH
  • TR7730W CWD SWI/TR DECO COMB SP/GRD RECP 15A 25V WH

Description: EATON Arrow Hart™ Combination Device, Decorator Switch /Tamper Resistant Receptacle Standard, 120/277 V AC, 15 A Electrical Rating, 1 Pole, 3 Wires, PVC Insulation, Flush Mounting, Screw Terminal, 1500 VAC Dielectric strength, PVC, White, 4.19 in H x 1.1 in D Dimensions

Manufacturer PN: TR7730W

UPC:  03266475028

Kendall Electric Inc PN: 3549774

Invoice Description:

TR7730W CWD SWI/TR DECO COMB SP/GRD RECP 15A 25V WH


SPEC SHEET

▸ See All in Switches & Receptacles


How Can We Make This Page Better?

EATON Arrow Hart™ TR7730W Decorator Switch /Tamper Resistant Receptacle Standard Combination Device With Receptacle, 120/277 V AC, 15 A, 1 Poles, 3 Wires

Log In for Pricing and Availability




Description

Decorator heavy duty grade combination device features 15 A 120 VAC switch and tamper resistant 15 A receptacle. Features UL Listed tamper resistant shutters designed to prevent the insertion of foreign objects. TR7730 switch is horsepower rated for motor loads per UL 20. Thermoplastic rocker, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide superior ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94-V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
EATON Arrow Hart™ Combination Device, Decorator Switch /Tamper Resistant Receptacle Standard, 120/277 V AC, 15 A Electrical Rating, 1 Pole, 3 Wires, PVC Insulation, Flush Mounting, Screw Terminal, 1500 VAC Dielectric strength, PVC, White, 4.19 in H x 1.1 in D Dimensions

Specifications

 Brand Name EATON
 Color White
 Dielectric Strength 1500 V AC
 Dimensions 4.19 in H x 1.1 in D
 Electrical Ratings 120/277 V AC, 15 A
 Manufacturer Part Number TR7730W
 Material PVC
 Mounting Flush
 Number of Poles 1
 Number of Wires 3
 PART NUMBER KEYWORDS TR7730W ; 14064640 ; 032664750281 ; 32664750281 ; 03266475028 ; 00032664750281
 Standards/Approvals cULus Listed,RoHS Compliant
 Terminal Type Screw
 Type Decorator Switch /Tamper Resistant Receptacle Standard

Features

▪ Backwire clamps on side terminals provide for easy installation of 12 and 14 AWG wire
▪ Screw connection
▪ 120/277 VAC rating ideal for fluorescent lighting fixtures and a broad variety of applications
▪ Decorator heavy duty grade combination devices
▪ Switches are horsepower rated for motor loads per UL 20
▪ Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
▪ Steel mounting strap is zinc plated for added corrosion resistance
▪ Convenient patented built-in wire stripper speeds installation
▪ Triple wipe blade contacts and double wipe ground contacts to insure long term plug retention
▪ Tri combo screw heads offer greater installation flexibility
▪ Back and side wire connection

Resources

 Catalog Page
 Product Data Sheet
