Hubbell

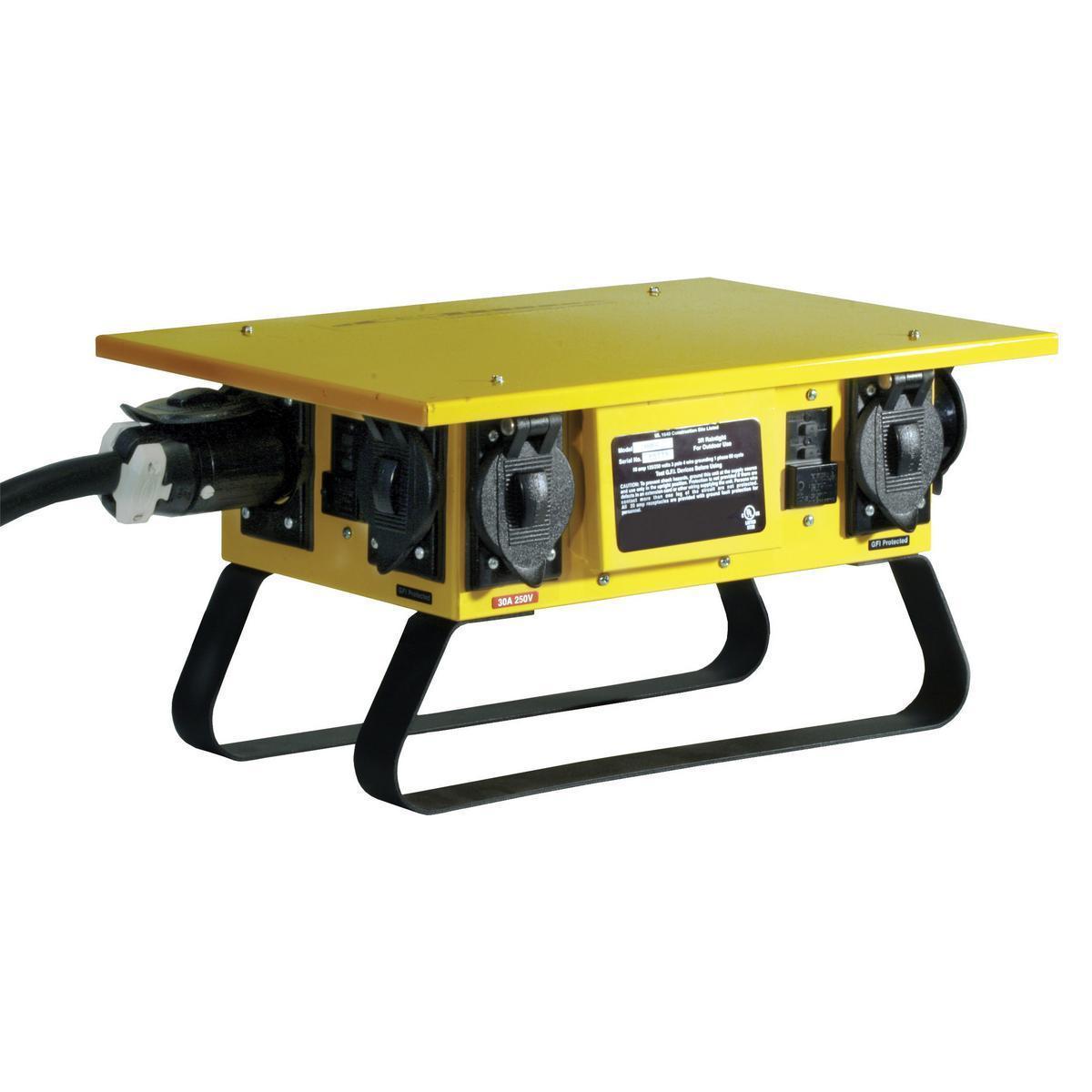

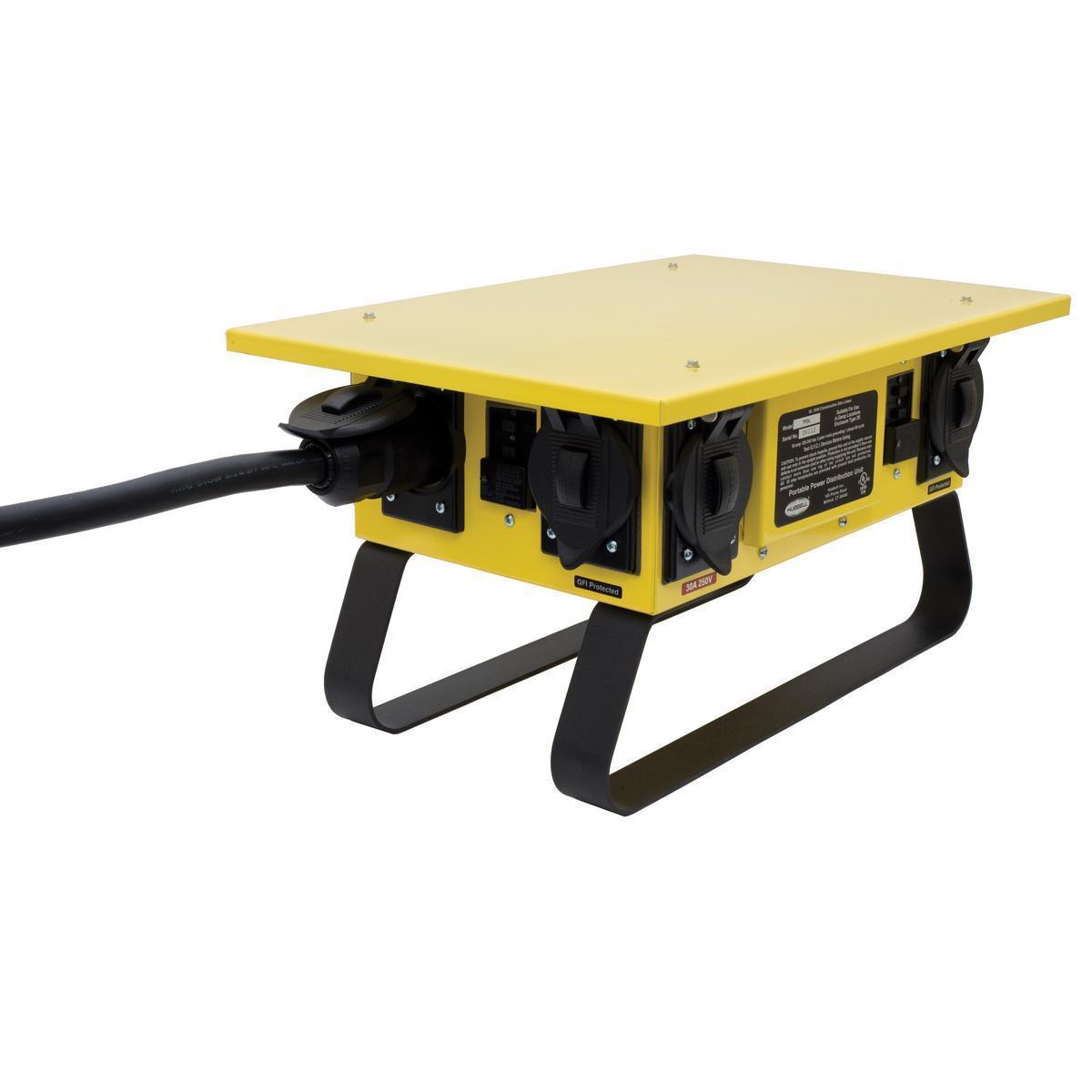

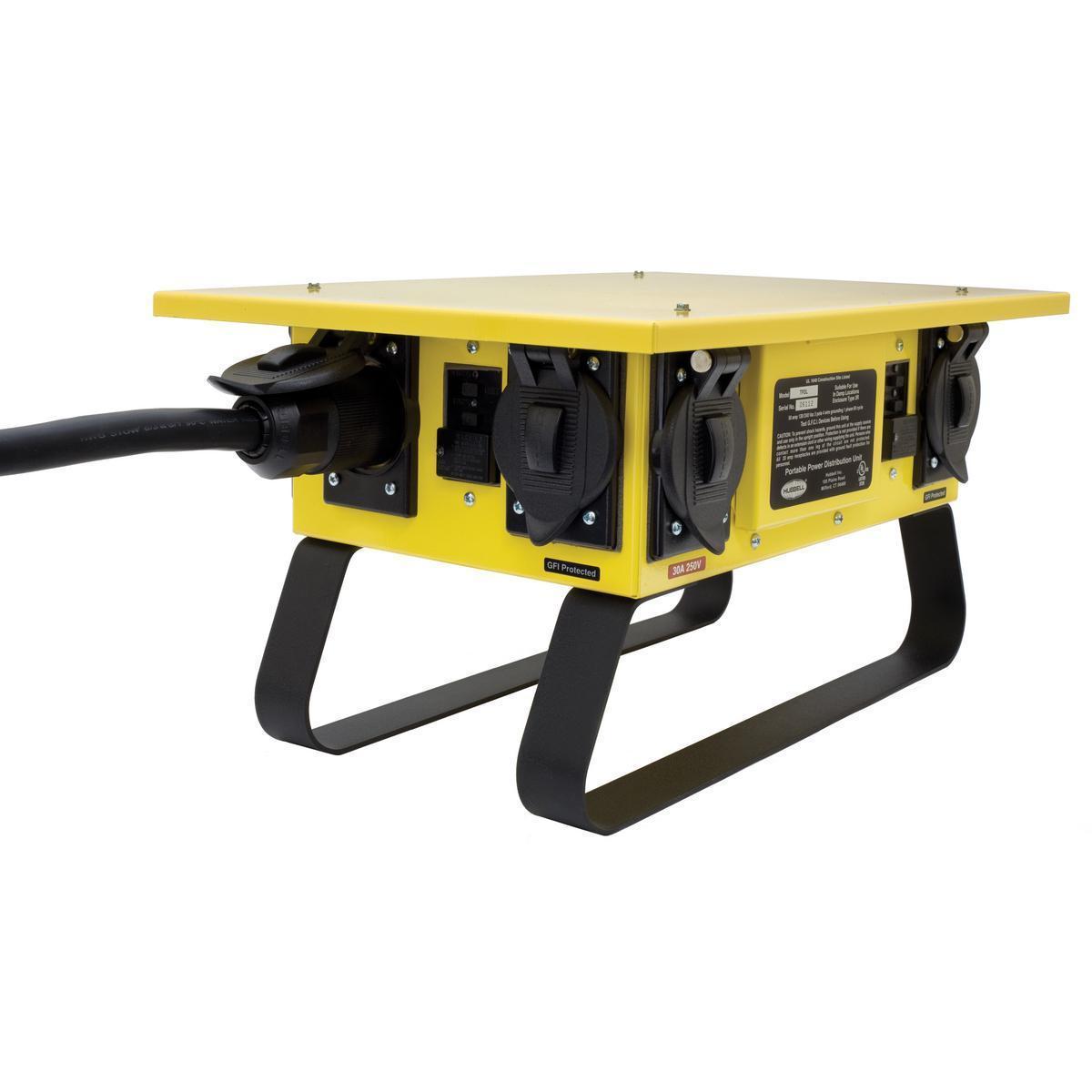

TPDL HUBBELL DISTRIB BOX, 50 AMP LOCKING 78358509384

Mouse over image to zoom, click to enlarge

  • TPDL HUBBELL DISTRIB BOX, 50 AMP LOCKING 78358509384
  • TPDL HUBBELL DISTRIB BOX, 50 AMP LOCKING 78358509384
  • TPDL HUBBELL DISTRIB BOX, 50 AMP LOCKING 78358509384
  • TPDL HUBBELL DISTRIB BOX, 50 AMP LOCKING 78358509384

Description: Hubbell Wiring Device-Kellems, TPDL, Temporary Power Box, 1-Phase Grounding Multi-Outlet Non-NEMA Standard, 120/240 V AC, 50 A, 12500 W Power, 2 Pole, 3 Wires, NEMA 3R Enclosure, Thermoplastic, Yellow, 21.5 in L x 14.5 in W x 12.52 in H Dimensions

Manufacturer PN: TPDL

UPC:  78358509384

Kendall Electric Inc PN: 3475283

Invoice Description:

TPDL HUBBELL DISTRIB BOX, 50 AMP LOCKING 78358509384


SPEC SHEET

▸ See All in Temporary Power Distribution Boxes/Carts


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems TPDL 1-Phase Grounding Multi-Outlet Non-NEMA Standard Temporary Power Box, 120/240 V AC, 50 A, 12500 W Power Rating, 2 Poles, 3 Wires

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems, TPDL, Temporary Power Box, 1-Phase Grounding Multi-Outlet Non-NEMA Standard, 120/240 V AC, 50 A, 12500 W Power, 2 Pole, 3 Wires, NEMA 3R Enclosure, Thermoplastic, Yellow, 21.5 in L x 14.5 in W x 12.52 in H Dimensions

Specifications

 Amperage Rating 50 A
 Application Indoor/Outdoor and Temporary Power Distribution Applications
 Brand Name Hubbell Premise Wiring
 Color Yellow
 Dimensions 21.5 in L x 14.5 in W x 12.52 in H
 Enclosure NEMA 3R
 Includes (6) 20 A, 125 VAC and (1) 30 A, 250 VAC Twist-Lock® Grounding Receptacles
 Manufacturer Part Number TPDL
 Material Thermoplastic
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS TPDL ; 10887093 ; 13492339 ; 783585093840 ; 78358509384 ; 00783585093840 ; 0783585093840
 Power Rating 12500 W
 Standards/Approvals UL 498|UL 943/1640
 Type 1-Phase Grounding Multi-Outlet Non-NEMA Standard
 Voltage Rating 120/240 V AC

Features

▪ Save space in the warehouse and on the truck with nesting leg design
▪ Durable Hi Visibility Yellow Powder Coated Steel Construction
▪ Individual GFCI modules
