TMRP5100 CH 10-FUNCTION TIME DELAY RELAY, DPDT, 12A, 12-240V

Mouse over image to zoom, click to enlarge

Description: EATON Timing Relay, 11-in Octal, Series: TMRP, Operation Mode: Control Switch Trigger/ON-OFF Delay, 12 to 240 V AC/DC, 12 A, 11 Pins, 2 Form C DPDT Contact Form, 0.1 s to 9990 hr Time Setting, Octal Electrical Connections, -10 to 55 deg C, DIN Rail Mounting, 3.5 in L x 1.88 in W x 2.83 in H Dimensions

Manufacturer PN: TMRP5100

UPC: 78668521535

Kendall Electric Inc PN: 3627857

Invoice Description:

TMRP5100 CH 10-FUNCTION TIME DELAY RELAY, DPDT, 12A, 12-240V

SPEC SHEET

▸ See All in Timing Relays - Fixed Mode Operation

How Can We Make This Page Better?

EATON TMRP5100 11-in Octal Timing Relay, 0.1 s to 9990 hr Setting, 12 to 240 V AC/DC, 11 Pin, 2 Form C DPDT Contact

Note: Lead times are estimates only

Description Specifications Features Resources

Description

Universal TR series, TMRP, TMR and E5-248 timing relays combine flexibility with ease of use and installation, while compact designs save panel space. With multiple mount options, models, a wide range of input voltage, timing range and functionality, there are versatile timing relays to meet any timing requirements.

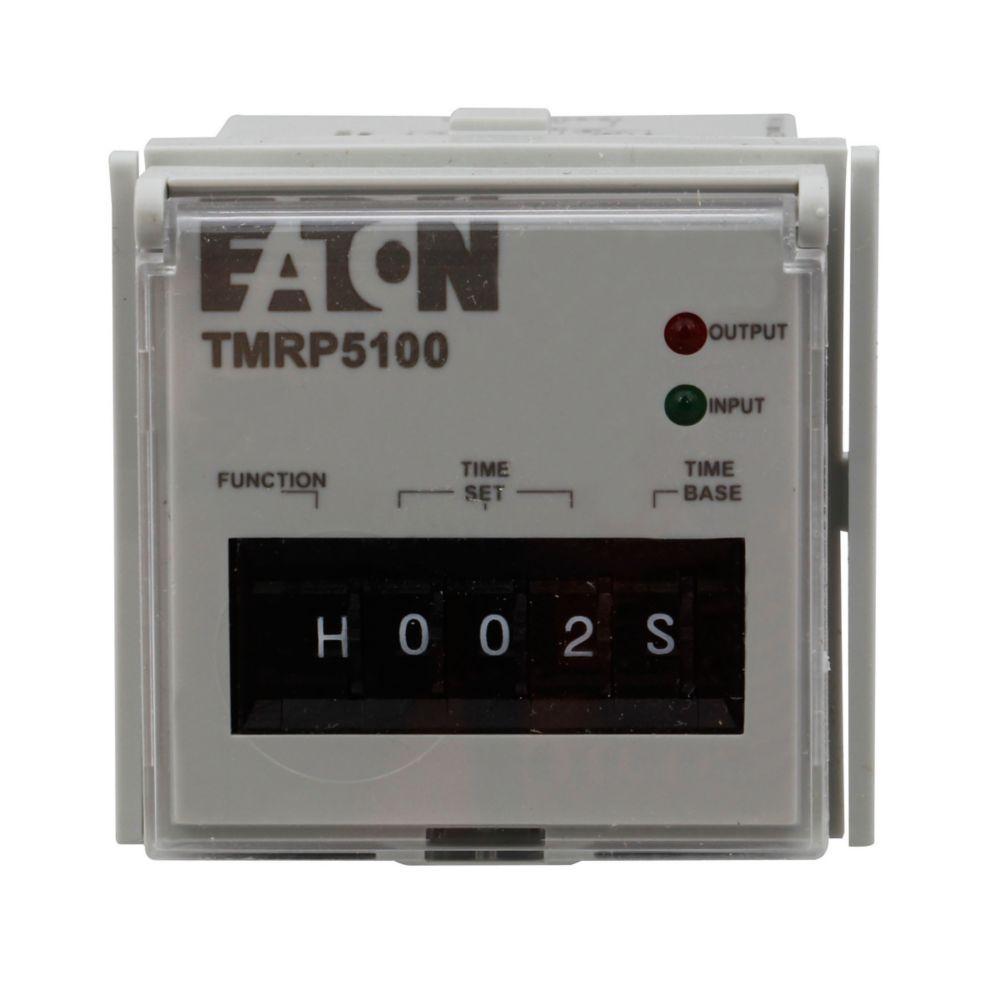

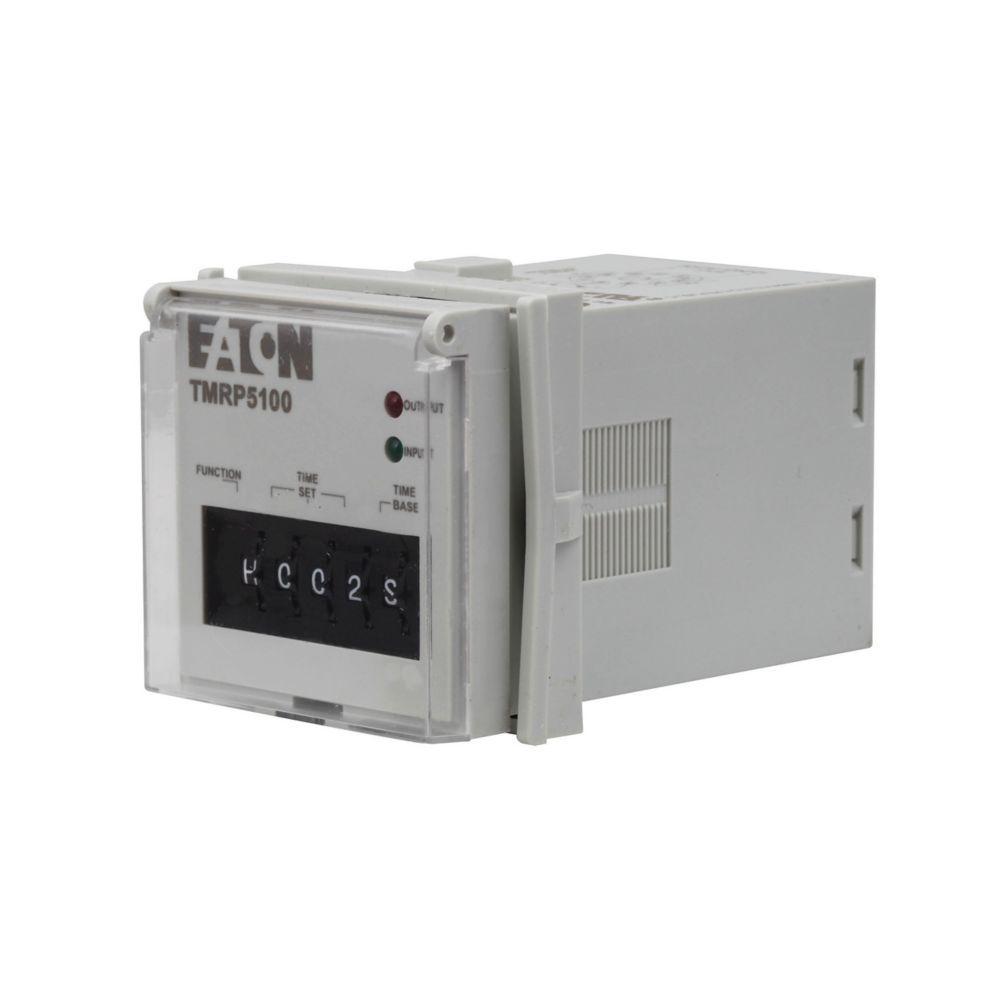

EATON Timing Relay, 11-in Octal, Series: TMRP, Operation Mode: Control Switch Trigger/ON-OFF Delay, 12 to 240 V AC/DC, 12 A, 11 Pins, 2 Form C DPDT Contact Form, 0.1 s to 9990 hr Time Setting, Octal Electrical Connections, -10 to 55 deg C, DIN Rail Mounting, 3.5 in L x 1.88 in W x 2.83 in H Dimensions

Specifications

Amperage Rating	12 A
Application	Commercial, Institutional Buildings, Structures, Controls and Power Distribution Applications
Brand Name	EATON
Contact Form	2 Form C DPDT
Dimensions	3.5 in L x 1.88 in W x 2.83 in H
Electrical Connections	Octal
Manufacturer Part Number	TMRP5100
Mounting Type	DIN Rail
Number of Pins	11
Operation Mode	Control Switch Trigger/ON-OFF Delay
Series	TMRP
Standards/Approvals	UL Listed,CE Marked,RoHS Compliant
Temperature Rating	-10 to 55 deg C
Time Setting	0.1 s to 9990 hr
Type	11-in Octal
Voltage Rating	12 to 240 V AC/DC

Features

▪ Multiple user selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units

▪ Universal input voltages from 12 to 240 VAC/VDC eliminate the need to order and stock separate coil voltages

▪ Timing ranges up to 9990 hr

▪ Dual led indication makes troubleshooting easy

▪ Flexible design for backpanel through panel or din rail mounting

▪ SPDT or DPDT contacts with 12 a ratings

▪ Plastic dust cover keeps out contaminants and eliminates accidental set point changes

▪ High variability operations such as systems integrators, distributors and small equipment manufacturers the flexible enclosure design allows for back panel mounting through panel mounting or din rail mounting
