Schneider Electric
  • TM173ODM22R SQD CONTROLLER, MODICON M171/M172/M173, OPTIMIZED DISPLAY, 22 IO, 2 RS485
  • TM173ODM22R SQD CONTROLLER, MODICON M171/M172/M173, OPTIMIZED DISPLAY, 22 IO, 2 RS485
  • TM173ODM22R SQD CONTROLLER, MODICON M171/M172/M173, OPTIMIZED DISPLAY, 22 IO, 2 RS485
  • TM173ODM22R SQD CONTROLLER, MODICON M171/M172/M173, OPTIMIZED DISPLAY, 22 IO, 2 RS485
  • TM173ODM22R SQD CONTROLLER, MODICON M171/M172/M173, OPTIMIZED DISPLAY, 22 IO, 2 RS485

Description: Schneider Electric, TM173ODM22R, Programmable Controller, 24 V AC/DC, 2.5 mA, 10 W Power, 22 Inputs, 22 Outputs, 6 Ports, Memory: 380 KB RAM/1 MB Flash, DIN Rail/Panel Mounting, -4 to 149 deg F Operating Temperature, -22 to 158 deg F Storage Temperature, 4.33 in H x 2.83 in W x 2.36 in D Dimensions

Manufacturer PN: TM173ODM22R

UPC:  60648700733

Kendall Electric Inc PN: 4885898

Invoice Description:

TM173ODM22R SQD CONTROLLER, MODICON M171/M172/M173, OPTIMIZED DISPLAY, 22 IO, 2 RS485


SPEC SHEET

▸ See All in Programmable Logic Controllers


How Can We Make This Page Better?

Schneider Electric TM173ODM22R Programmable Controller, 24 V AC/DC, 2.5 mA, 22 Inputs, 22 Outputs

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

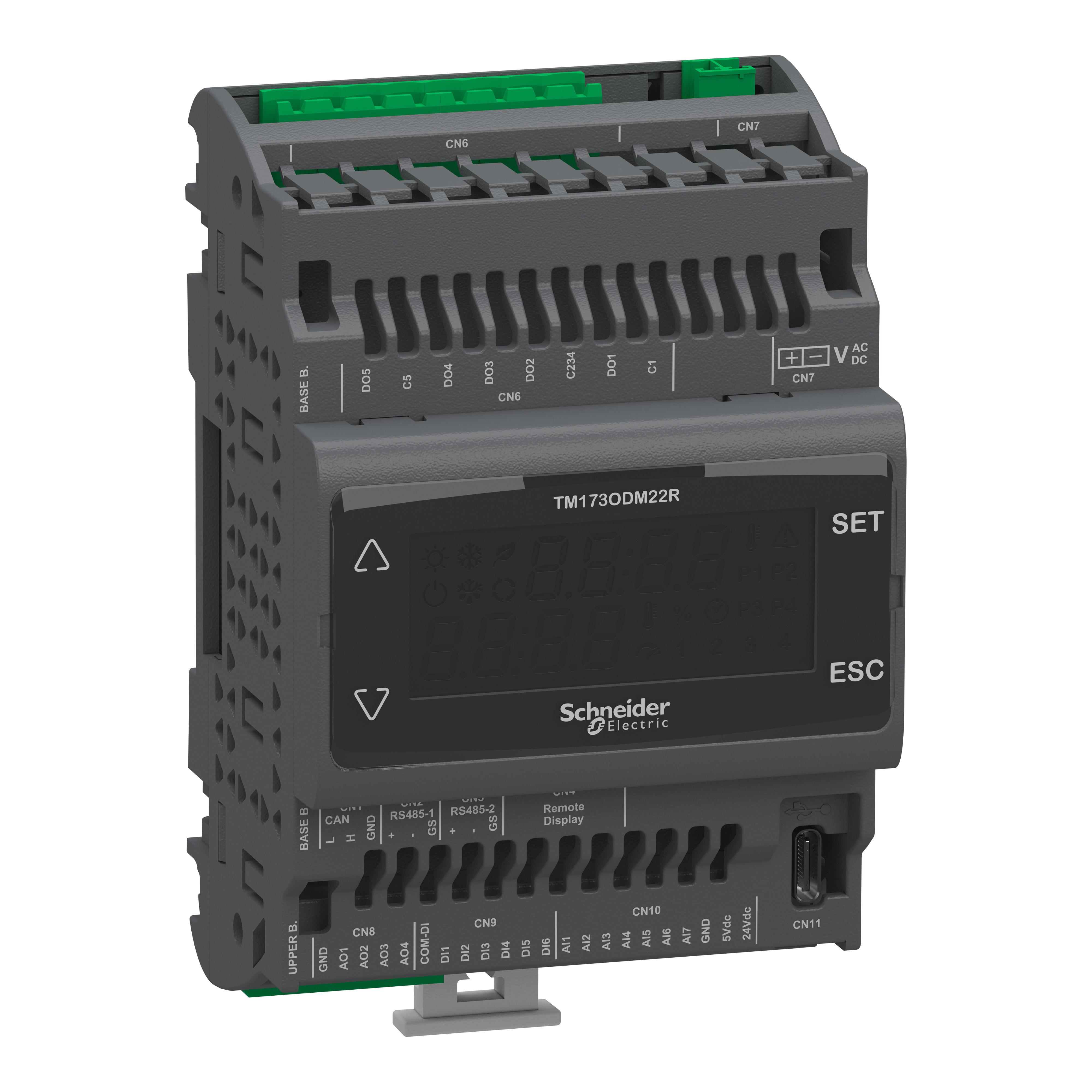

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 6 digital inputs, 7 analog inputs, 5 digital outputs, 4 analog outputs, and a display. This programmable controller embeds 2 communication ports for RS485 and one CAN expansion bus port. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. DIs are volt-free, pulse reading (up to 2kHz), and AIs are NTC (b3435 - 10kW), PT1000, 0-10V, 4-20mA, 5V, 10V, and DIs. Dos are relay 3A SPST with the same common, and AOs are 0-10V/4-20mA, 0-10 V/PWM (10Hz...2kHz). It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.182kg. This controller is designed for HVAC and pumping applications. It is certified by CE, CURus, CSA, RCM and EAC. It is compatible with IO expansion modules and Secure Interfaces It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Schneider Electric, TM173ODM22R, Programmable Controller, 24 V AC/DC, 2.5 mA, 10 W Power, 22 Inputs, 22 Outputs, 6 Ports, Memory: 380 KB RAM/1 MB Flash, DIN Rail/Panel Mounting, -4 to 149 deg F Operating Temperature, -22 to 158 deg F Storage Temperature, 4.33 in H x 2.83 in W x 2.36 in D Dimensions

Specifications

 Amperage Rating 2.5 mA
 Brand Name Square D

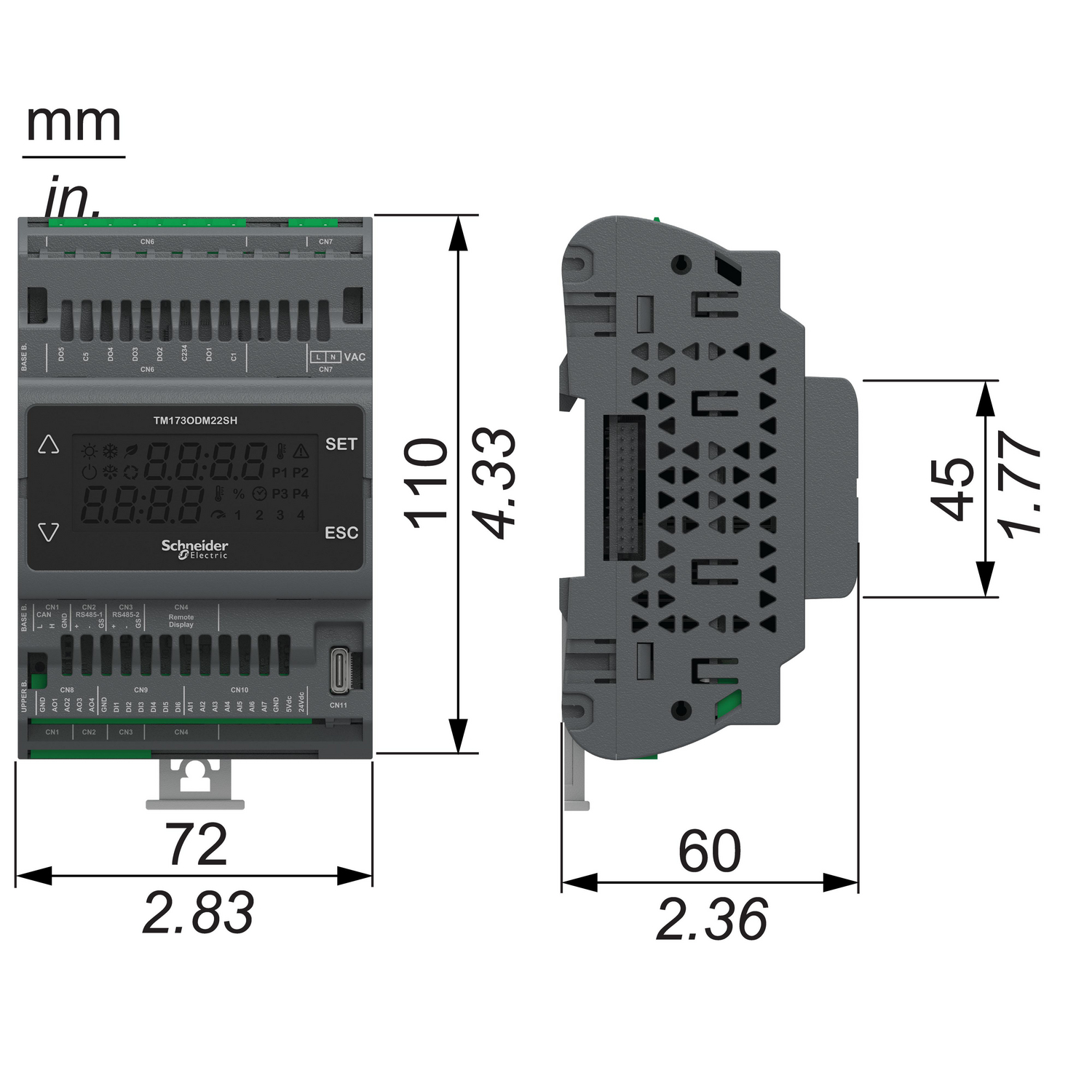

 Dimensions 4.33 in H x 2.83 in W x 2.36 in D
 Manufacturer Part Number TM173ODM22R
 Mounting Type DIN Rail/Panel
 Number of Outputs 22
 PART NUMBER KEYWORDS TM173ODM22R ; 21018622 ; 3606487007333
 Power Rating 10 W
 Standards/Approvals RoHS Compliant|REACH Declaration|Green Premium promises compliant|UL Listed|EAC|CE|cURus|CSA|RCM|CAN/CSA-E60730-1|CSA|E60730-2-9|EN 60068-2-27|EN 60068-2-6 Fc|EN 60730-1|EN 60730-2-9|UL 60730-1|UL 60730-2-9|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|IEC 61000-4-5|IEC 61000-4-6|IEC 61000-4-11|UL94
 Temperature Rating -4 to 149 deg F Operating Temperature, -22 to 158 deg F Storage Temperature
 Voltage Rating 24 V AC/DC

Features

▪ Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
▪ Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
▪ All of the features and functions you need to design and build machines more profitably are already embedded
▪ Stay connected everywhere with multiple BMS connectivity and web server embedded
