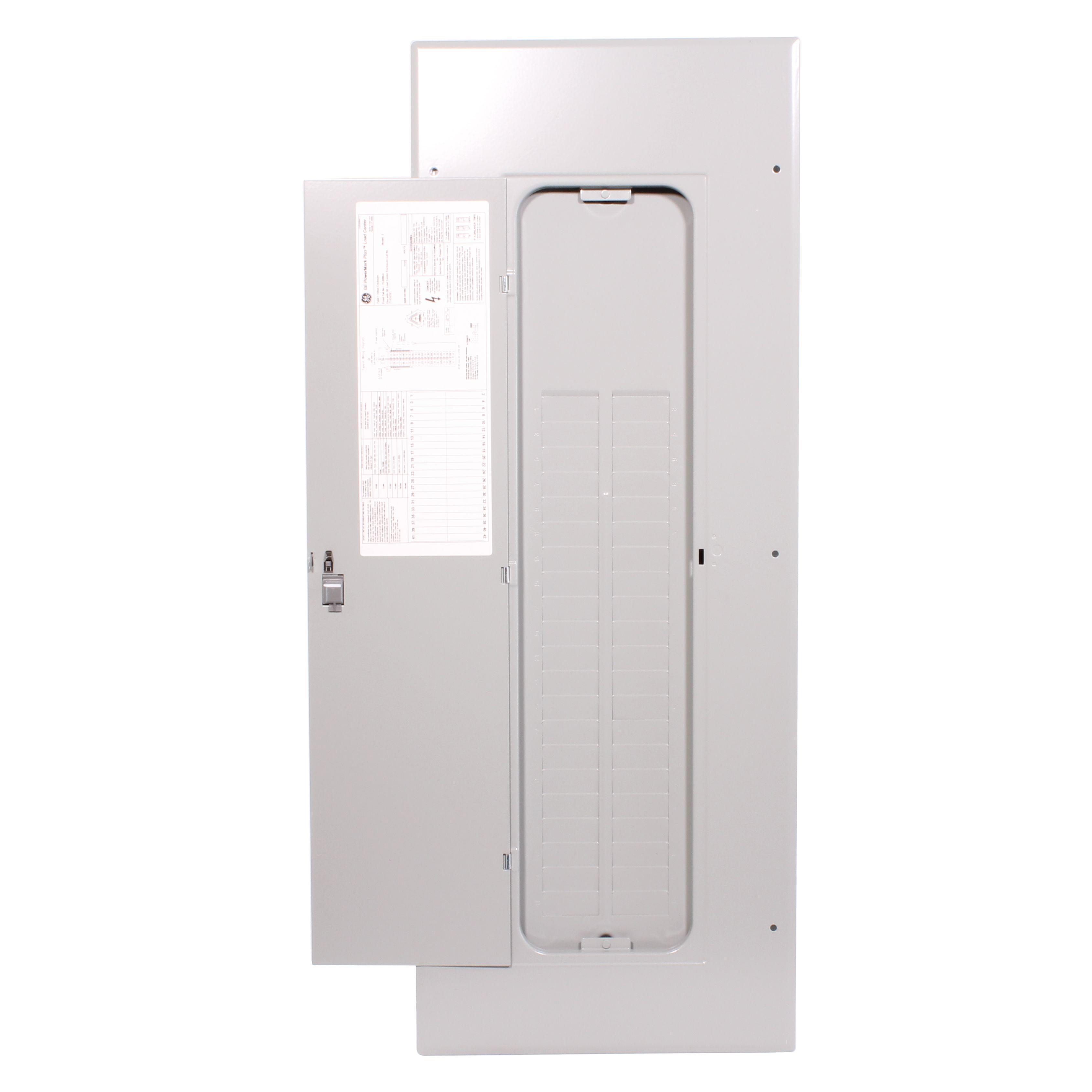

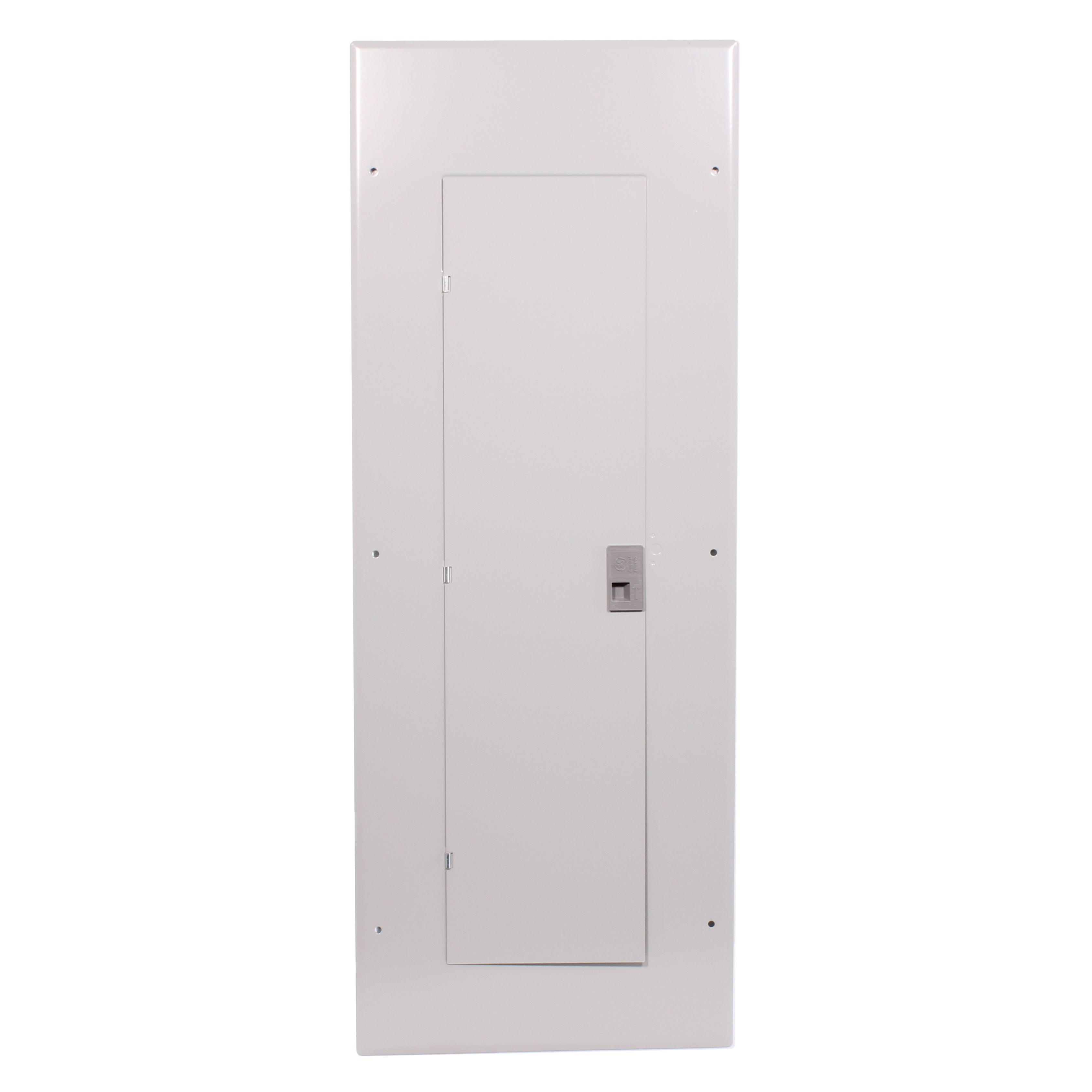

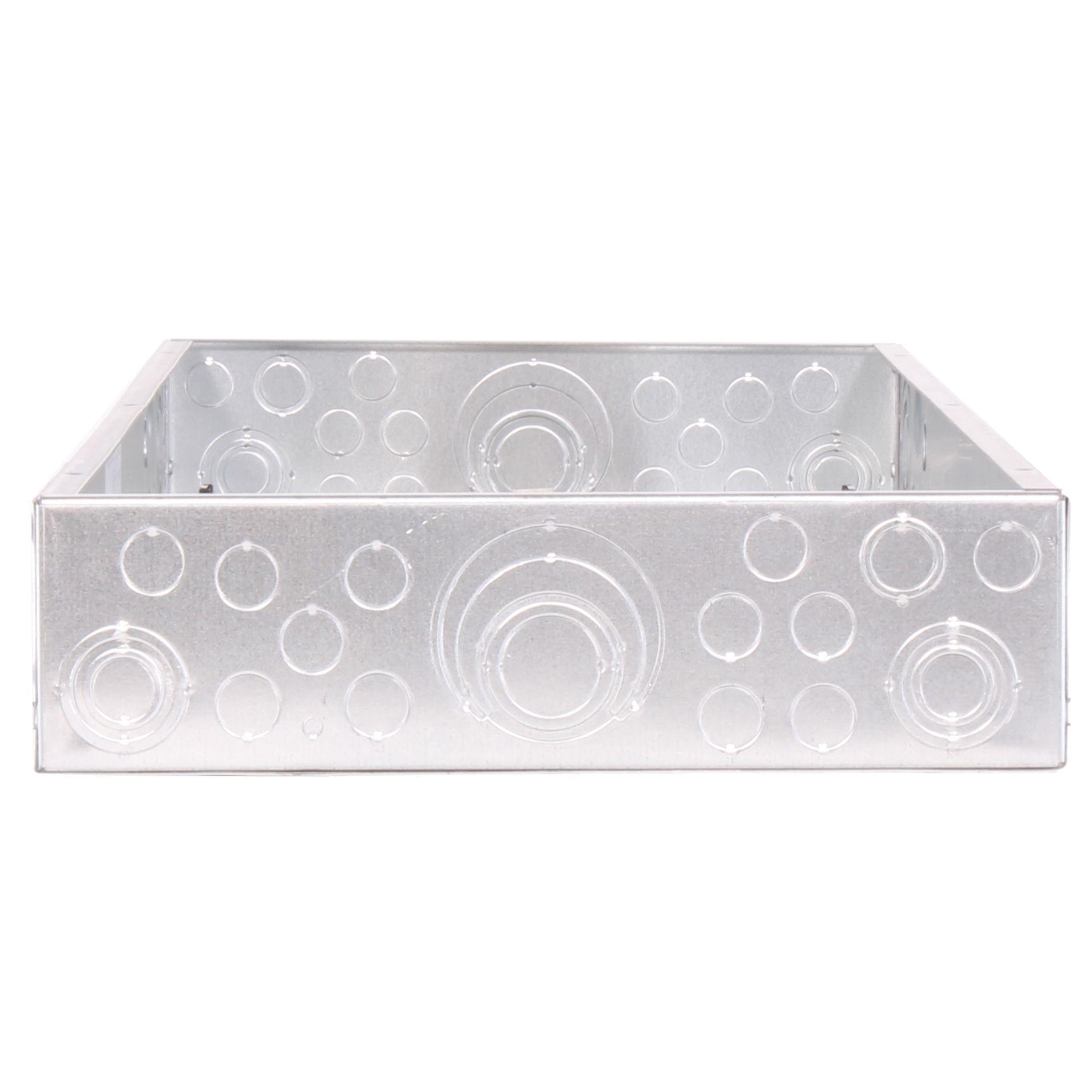

  • TL42420C GE 200A MLO LD-CNTR 3PH 42-CIRCUIT, INDOOR
  • TL42420C GE 200A MLO LD-CNTR 3PH 42-CIRCUIT, INDOOR
  • TL42420C GE 200A MLO LD-CNTR 3PH 42-CIRCUIT, INDOOR
  • TL42420C GE 200A MLO LD-CNTR 3PH 42-CIRCUIT, INDOOR
  • TL42420C GE 200A MLO LD-CNTR 3PH 42-CIRCUIT, INDOOR
  • TL42420C GE 200A MLO LD-CNTR 3PH 42-CIRCUIT, INDOOR

Description: GE PowerMark Plus™ Industrial Solutions Main Lug Loadcenter, 3-Phase Standard, 208Y/120 V AC, 200 A, 22 kA Interrupt, 42 Circuits, THQL Breaker, 4-Wire Wiring Configuration, 42 Spaces, 1 AWG to 250 kcmil, 2/0 AWG to 250 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA 13 Enclosure Box, 39-3/16 in H x 14 in W x 3-3/4 in D Dimensions

Manufacturer PN: TL42420C

UPC:  78316418994

Kendall Electric Inc PN: 2493837

Invoice Description:

TL42420C GE 200A MLO LD-CNTR 3PH 42-CIRCUIT, INDOOR


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

GE PowerMark Plus™ Industrial Solutions TL42420C 3-Phase Standard Main Lug Loadcenter, 208Y/120 V AC, 200 A, 22 kA Interrupt

Log In for Pricing and Availability




Description

The PowerMark® Plus™ 3-phase load center is designed for use in commercial or high rise residential units the galvanized box and tin plated copper stabs ensure the reliability and durability of the load center. The product is available with the main circuit breaker factory installed or the main lugs factory installed.
GE PowerMark Plus™ Industrial Solutions Main Lug Loadcenter, 3-Phase Standard, 208Y/120 V AC, 200 A, 22 kA Interrupt, 42 Circuits, THQL Breaker, 4-Wire Wiring Configuration, 42 Spaces, 1 AWG to 250 kcmil, 2/0 AWG to 250 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA 13 Enclosure Box, 39-3/16 in H x 14 in W x 3-3/4 in D Dimensions

Specifications

 Amperage Rating 200 A
 Application Indoor, Commercial, High Rise Residential, Electrical Distribution and Control Applications
 Brand Name GE
 Breaker Type THQL
 Dimensions 39-3/16 in H x 14 in W x 3-3/4 in D
 Enclosure NEMA 1
 Enclosure Box Size NEMA 13
 Manufacturer Part Number TL42420C
 Mounting Type Flush
 Number of Circuits 42
 Number of Spaces 42
 Standards/Approvals UL
 Type 3-Phase Standard
 Voltage Rating 208Y/120 V AC
 Wiring Configuration 4-Wire

Features

▪ Aluminum bus with copper mounting stabs providing copper-to-copper stab connections
▪ Top and bottom feed
▪ 1-piece interior removes and reinstalls easily
▪ Full length neutrals are easier to wire, 2 reducing installation time and cost
▪ Minimum 100% neutral terminations
▪ Combination slotted/Robertson square drive speeds screw wiring
▪ Tie bar may be removed to split neutral ground
▪ (42) 1 in space, (42), (1000) 1/2 in space
▪ 2/0 AWG to 250 kcmil aluminum
▪ Combination mounting
▪ Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
▪ 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
▪ 60 to 70 deg C conductor rating
▪ Main lug models field convertible to main breaker
▪ Split neutrals extend the full length of the interior for ease of wiring
▪ Entire main lug line converts easily to main breaker
▪ Front packed in inner carton for added protection
▪ Straight through main wiring
▪ Compact box maintains optimum wire bending space
