Eaton

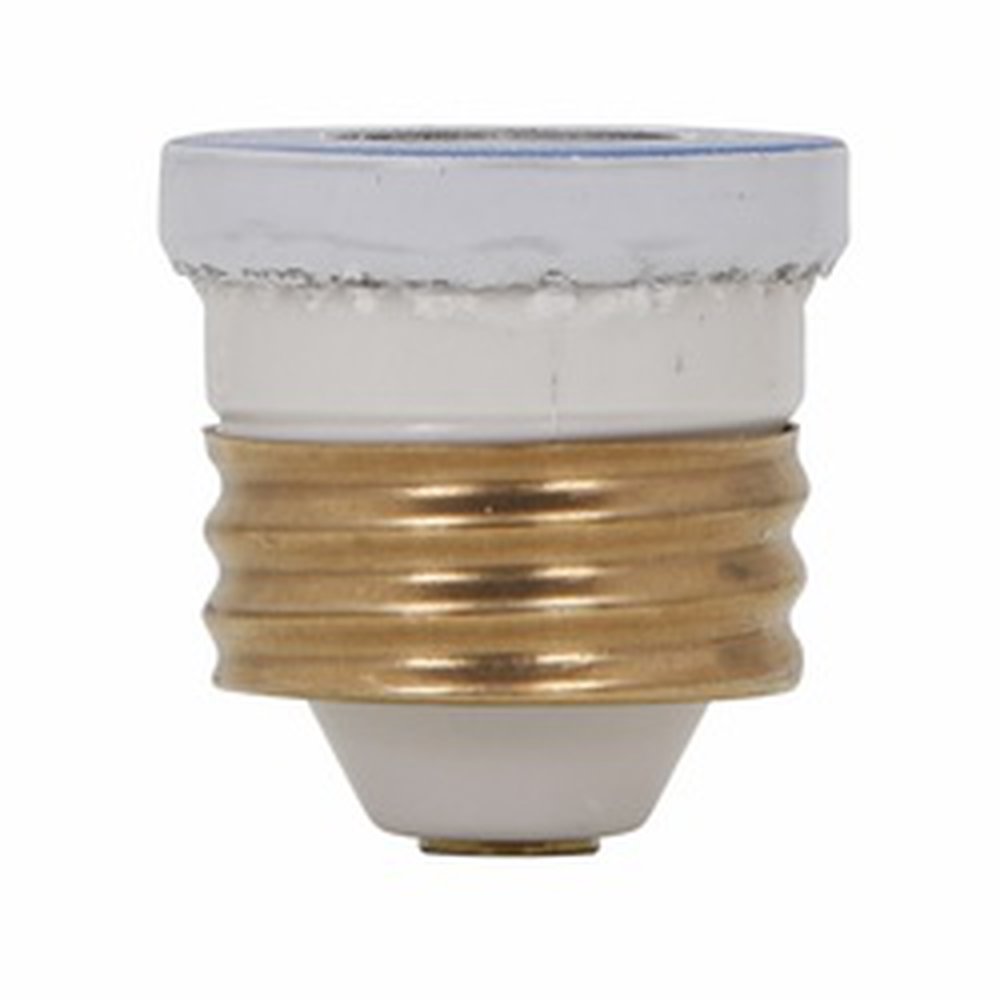

TL15 BUS TIME DELAY FUSE

Mouse over image to zoom, click to enlarge

  • TL15 BUS TIME DELAY FUSE
  • TL15 BUS TIME DELAY FUSE
  • TL15 BUS TIME DELAY FUSE

Description: Bussmann Fusetron™ Plug Fuse, Low Voltage Time Delay, Series: TL Series, Indicating/Non-Indicating: Non-Indicating, 15 A, 125 V AC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Edison Base/Round Body Type, Dual Element, Plastic Body/Brass Thread, 1-1/4 in L x 1/4 in W x 1/4 in H Body Size

Manufacturer PN: TL-15

UPC:  05171210131

Kendall Electric Inc PN: 23356

Invoice Description:

TL15 BUS TIME DELAY FUSE


SPEC SHEET

▸ See All in Plug Fuses


How Can We Make This Page Better?

Bussmann Fusetron™ TL-15 Low Voltage Time Delay Plug Fuse, 15 A, 125 V AC, 10 kAIC Interrupt, Edison Base/Round Body

Log In for Pricing and Availability




Description

Bussmann Fusetron™ Plug Fuse, Low Voltage Time Delay, Series: TL Series, Indicating/Non-Indicating: Non-Indicating, 15 A, 125 V AC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Edison Base/Round Body Type, Dual Element, Plastic Body/Brass Thread, 1-1/4 in L x 1/4 in W x 1/4 in H Body Size

Specifications

 Amperage Rating 15 A
 Application Residential Buildings and Facilities, Small Motor and High Inductive Load Circuits with High In-Rush Current Levels, Box Cover Units to Provide Equipment Protection and Residential or Light Applications
 Body Size 1-1/4 in L x 1/4 in W x 1/4 in H
 Body Type Edison Base/Round
 Brand Name Bussmann
 Element Dual
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number TL-15
 Material Plastic Body/Brass Thread
 Mounting Type Threaded
 PART NUMBER KEYWORDS TL-15 ; TL15 ; 7592830 ; 051712101318 ; 51712101318 ; 05171210131 ; 00051712101318 ; 5027590510714
 Series TL Series
 Short Circuit Current Rating 10 kA
 Standards/Approvals CE Certified|UL 248-11 Guide No. JEFV File No. E12112
 Terminal Type Stud
 Type Low Voltage Time Delay
 Video Links
 Voltage Rating 125 V AC

Features

▪ Time delay loaded link TL series Edison base plug fuses pass motor overload starting currents without opening and allow closer sizing to motor load for added protection
▪ Time delay loaded link SL series fuses provide a rejection feature (when used alone or with Fustat® adapters to retrofit Edison base holders) to help prevent over fusing
