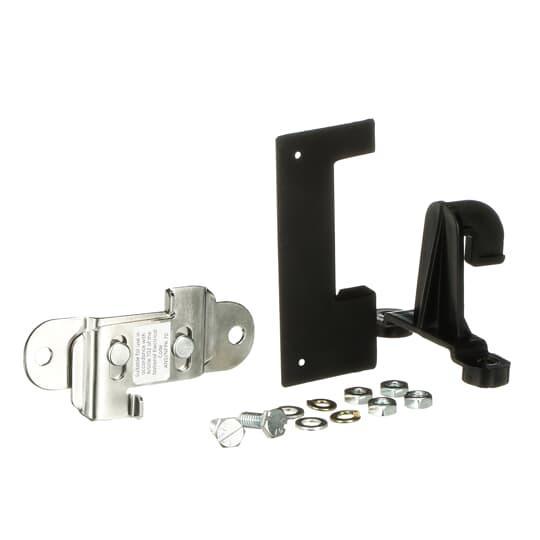

  • THQLLX1 GE PM GOLD GENERATON INTERLOCK KIT 78316440034
  • THQLLX1 GE PM GOLD GENERATON INTERLOCK KIT 78316440034
  • THQLLX1 GE PM GOLD GENERATON INTERLOCK KIT 78316440034

Description: GE PowerMark Gold™ Industrial Solutions Generator Interlock Kit, Type THQL, For Use With: Any Mod 6 150 to 225 A Main Breaker Load Center, 304 Stainless Steel, 4-1/2 in H x 3-1/4 in W x 4 in D Dimensions

Manufacturer PN: THQLLX1

UPC:  78316440034

Kendall Electric Inc PN: 2381616

Invoice Description:

THQLLX1 GE PM GOLD GENERATON INTERLOCK KIT 78316440034


SPEC SHEET

▸ See All in Breaker Mechanical Interlocks


How Can We Make This Page Better?

GE PowerMark Gold™ Industrial Solutions THQLLX1 Type THQL Generator Interlock Kit, For Use With Any Mod 6 150 to 225 A Main Breaker Load Center, 304 Stainless Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

With the PowerMark® Gold™ generator interlock kit, there no need for a separate generator panel. The kit contains everything needed to make an existing load center a generator panel. It quick, it easy, It saves time and money.
GE PowerMark Gold™ Industrial Solutions Generator Interlock Kit, Type THQL, For Use With: Any Mod 6 150 to 225 A Main Breaker Load Center, 304 Stainless Steel, 4-1/2 in H x 3-1/4 in W x 4 in D Dimensions

Specifications

 Application Residential, Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 4-1/2 in H x 3-1/4 in W x 4 in D
 Includes Interlock Plate, Base Plate, Rivets, Interlock Label, Hole Drilling Template, Auxiliary Breaker Retainer, Mounting Hardware and DEH-41103 Instruction Sheet
 Manufacturer Part Number THQLLX1
 Material 304 Stainless Steel
 PART NUMBER KEYWORDS THQLLX1 ; 9428817 ; 783164400342 ; 78316440034 ; 00783164400342
 Standards/Approvals UL Listed|ANSI Specified|NFPA 70|NEC Certified
 Suitable For Use With Any Mod 6 150 to 225 A Main Breaker Load Center
 Type Type THQL

Features

▪ Converts any PowerMark® Gold™ load center with a main breaker having a left right handle orientation to be used as a generator panel
▪ Interlocks 4-pole main breaker with 2-pole branch breakers in breaker 2 to 4 positions
▪ Ensures that the main breaker is in the off position before the branch breaker is back fed from the generator for safety
▪ Used to prevent the panel from being energized by both the utility and generator power at the same time
▪ It ensures that either the main breaker (utility supplied) or branch mounted generator input breaker are open at all times
▪ For miniature circuit breaker
▪ The generator interlock kit is used to prevent the panel from being energized by both the utility and generator power at the same time
