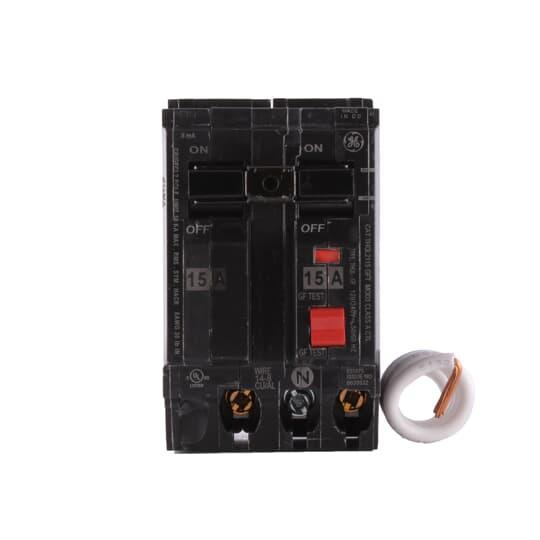

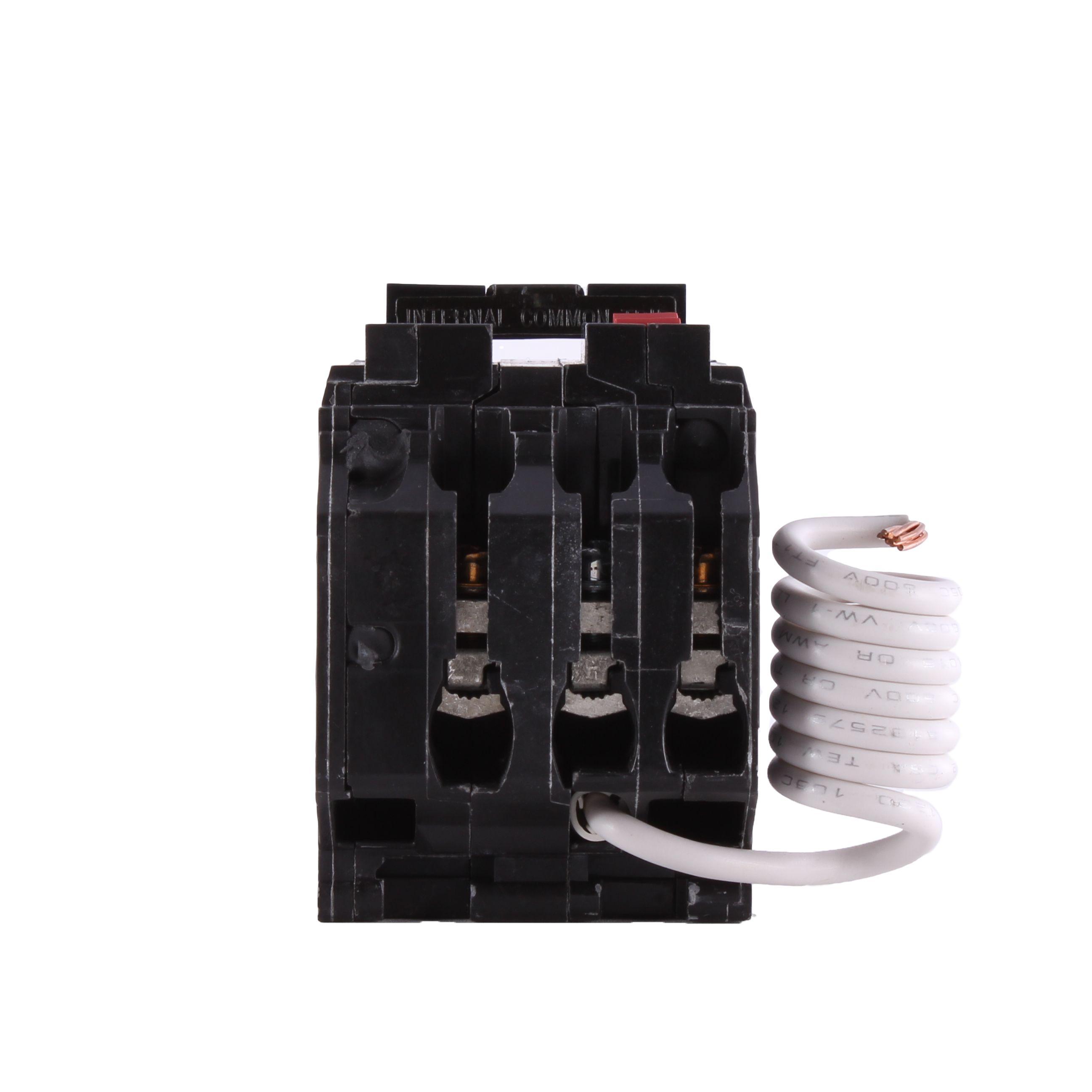

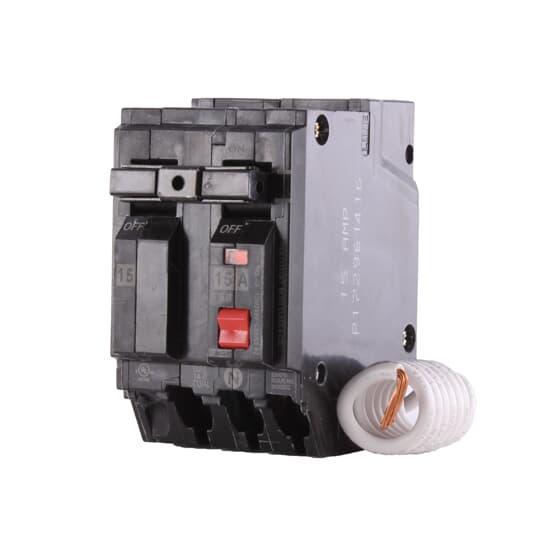

Description: GE Q-Line® Ground Fault Circuit Breaker, Type THQL Model 3 Self-Test, 120/240 V AC, 15 A, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 5 mA Trip, 2 Pole, 1 ph, 14 to 8 AWG Cu, 12 to 8 AWG Al Wire, Plug-In Mounting, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions

Manufacturer PN: THQL2115GFT

UPC:  78316448533

Kendall Electric Inc PN: 4364496

Invoice Description:

THQL2115GFT GENERAL ELECTRIC THQL 2P 120/240V 15A GFCI SELF-TEST


SPEC SHEET

▸ See All in Ground-Fault Circuit Breakers


How Can We Make This Page Better?

GE Q-Line® THQL2115GFT Type THQL Model 3 Self-Test Ground Fault Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability




Description

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.
GE Q-Line® Ground Fault Circuit Breaker, Type THQL Model 3 Self-Test, 120/240 V AC, 15 A, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 5 mA Trip, 2 Pole, 1 ph, 14 to 8 AWG Cu, 12 to 8 AWG Al Wire, Plug-In Mounting, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions

Specifications

 Amperage Rating 15 A
 Application Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 3-9/32 in H x 2 in W x 2-3/8 in D
 Frame Q-Line
 Manufacturer Part Number THQL2115GFT
 Mounting Type Plug-In
 Number of Poles 2
 PART NUMBER KEYWORDS THQL2115GFT ; 13207515 ; 783164485332 ; 78316448533 ; 00783164485332
 Phase 1
 Standards/Approvals UL 489 File No. E51075|cULus Listed|Federal Specification W-C-375B|HACR Rated
 Trip Range 5 mA
 Type Type THQL Model 3 Self-Test
 Voltage Rating 120/240 V AC

Features

▪ Suitable for reverse feed
▪ Standard continuous current rated
▪ Feeder plug-in circuit breakers
▪ 60 deg C/75 deg F conductor rating
▪ Box type terminals
▪ Multi-pole circuit breakers incorporate internal common trip
▪ The national electrical code requires GFCI protection of receptacles located outdoors, in bathrooms, garages and spa areas
▪ This applies not only to new construction, but also to existing homes
▪ When an electrical outlet is replaced in a location that requires ground fault protection, the new outlet must be GFCI protected, according to the NEC®
▪ The GFCI circuit interrupter provides protection against overloads, short circuits and ground faults
▪ It detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
▪ Push button test validates the ground fault detection capability of the breaker
▪ Class A 5 mA ground fault circuit interrupter
▪ Quick-make, quick-break mechanism
▪ Fixed long time and fixed instantaneous trip function
