ABB

Mouse over image to zoom, click to enlarge

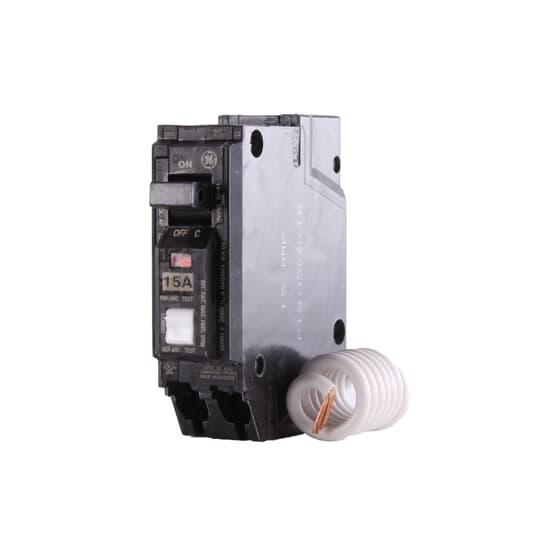

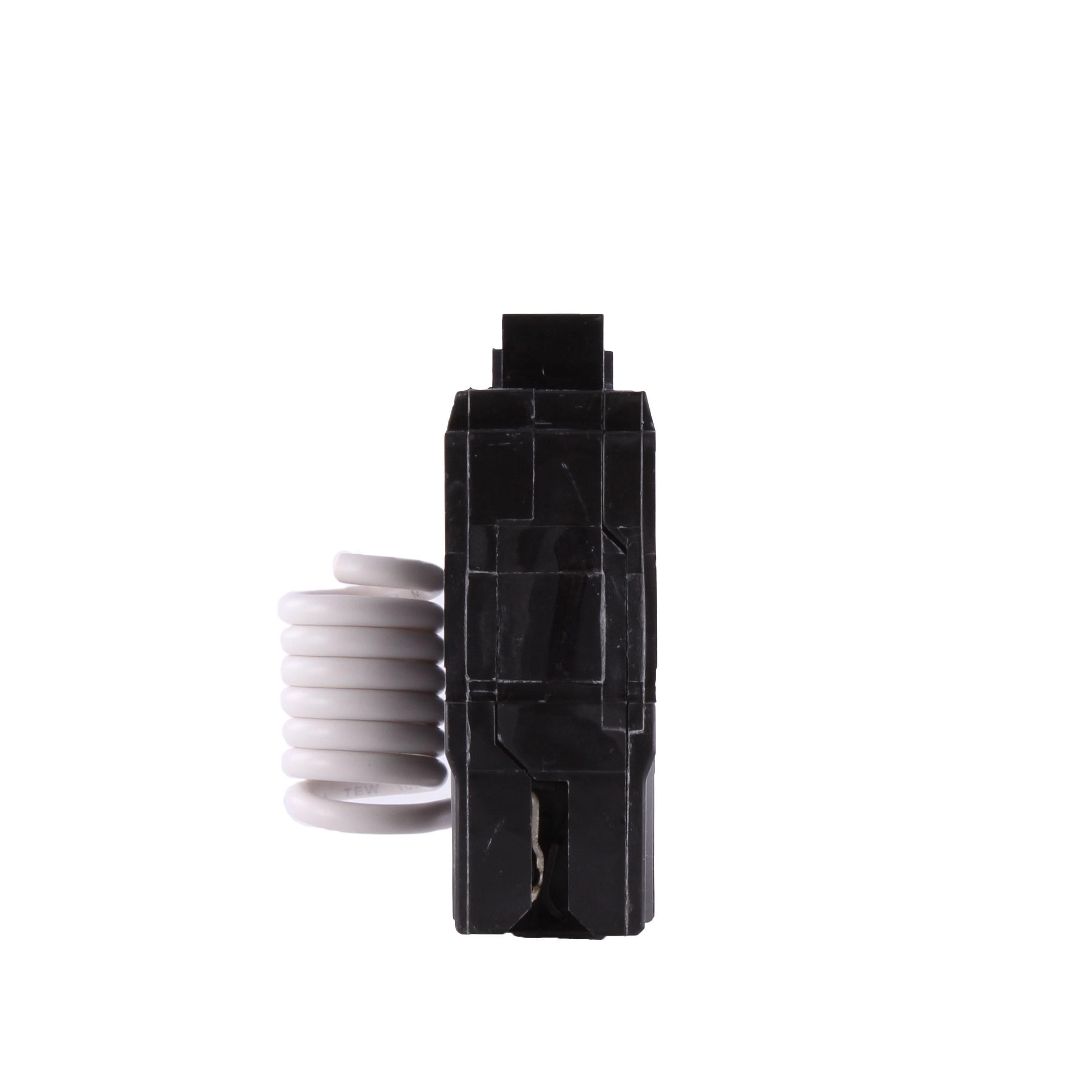

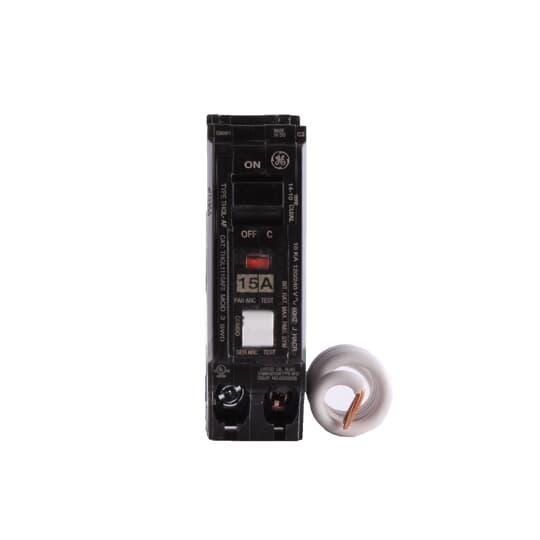

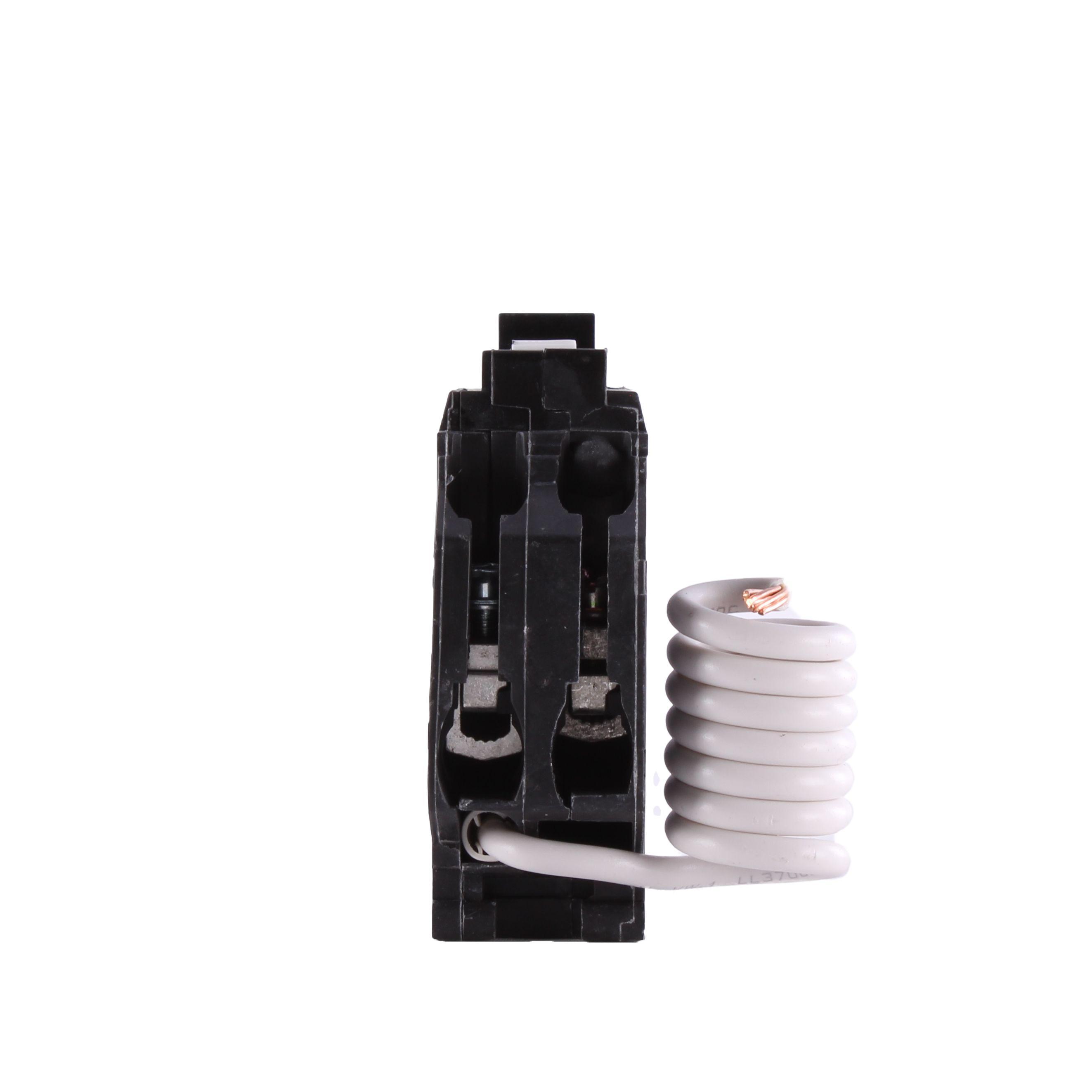

Description: GE Q-Line® Arc Fault Circuit Breaker, Type THQL, 120/240 V AC, 15 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Box Connection, 14 to 10 AWG Wire, Plug-In Mounting, 3-9/32 in H x 1 in W x 2-3/8 in D Dimensions, Thermoset

Manufacturer PN: THQL1115AF2

UPC: 78316465280

Kendall Electric Inc PN: 2567847

Invoice Description:

THQL1115AF2 GE 15A 1P 120VAC PLUG IN AFCI COMBO

SPEC SHEET

▸ See All in Arc-Fault Circuit Breakers

How Can We Make This Page Better?

GE Q-Line® THQL1115AF2 Type THQL Arc Fault Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Description Specifications Features Resources

Description

This is an arc fault breaker. Q-Line® circuit breakers are one-inch wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications. AF2 is called combination and meets 2005 NEC® and 2008 NEC®.

GE Q-Line® Arc Fault Circuit Breaker, Type THQL, 120/240 V AC, 15 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Box Connection, 14 to 10 AWG Wire, Plug-In Mounting, 3-9/32 in H x 1 in W x 2-3/8 in D Dimensions, Thermoset

Specifications

Amperage Rating	15 A
Application	Reverse Feed and Electrical Distribution and Control Applications
Brand Name	GE
Connection Type	Box
Dimensions	3-9/32 in H x 1 in W x 2-3/8 in D
Manufacturer Part Number	THQL1115AF2
Material	Thermoset
Mounting Type	Plug-In
Number of Poles	1
PART NUMBER KEYWORDS	THQL1115AF2 ; 9575286 ; 783164652802 ; 78316465280 ; 00783164652802
Phase	1
Standards/Approvals	E11592
Type	Type THQL
Voltage Rating	120/240 V AC

Features

▪ Quick-make, quick-break mechanism

▪ Easy to spot trip indication ensures safety and reliability

▪ Multi pole circuit breakers incorporate internal common trip

▪ The unit has tin plated copper stabs to create reliable, permanent and corrosion-resistant connections

▪ The case is made of heat-resistant thermoset for stability and structural integrity

▪ Circuit breaker has 35 mm DIN-rail mounting for easy installation

▪ It has tin plated copper stabs to create reliable, permanent and corrosion-resistant connections and heat-resistant thermoset for stability and structural integrity
