  • THQB1120GFT GE THQB 1P 120V 20A GFCI SELF-TEST
  • THQB1120GFT GE THQB 1P 120V 20A GFCI SELF-TEST
  • THQB1120GFT GE THQB 1P 120V 20A GFCI SELF-TEST
  • THQB1120GFT GE THQB 1P 120V 20A GFCI SELF-TEST

Description: GE Q-Line® Ground Fault Circuit Breaker, Type THQB Miniature Molded Case Self-Test, 120 V AC, 20 A, 10 kA Interrupt, TEY Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 3-9/32 in H x 1 in W x 2-3/8 in D Dimensions

Manufacturer PN: THQB1120GFT

UPC:  78316448547

Kendall Electric Inc PN: 3527271

Invoice Description:

THQB1120GFT GE THQB 1P 120V 20A GFCI SELF-TEST


SPEC SHEET

▸ See All in Ground-Fault Circuit Breakers


How Can We Make This Page Better?

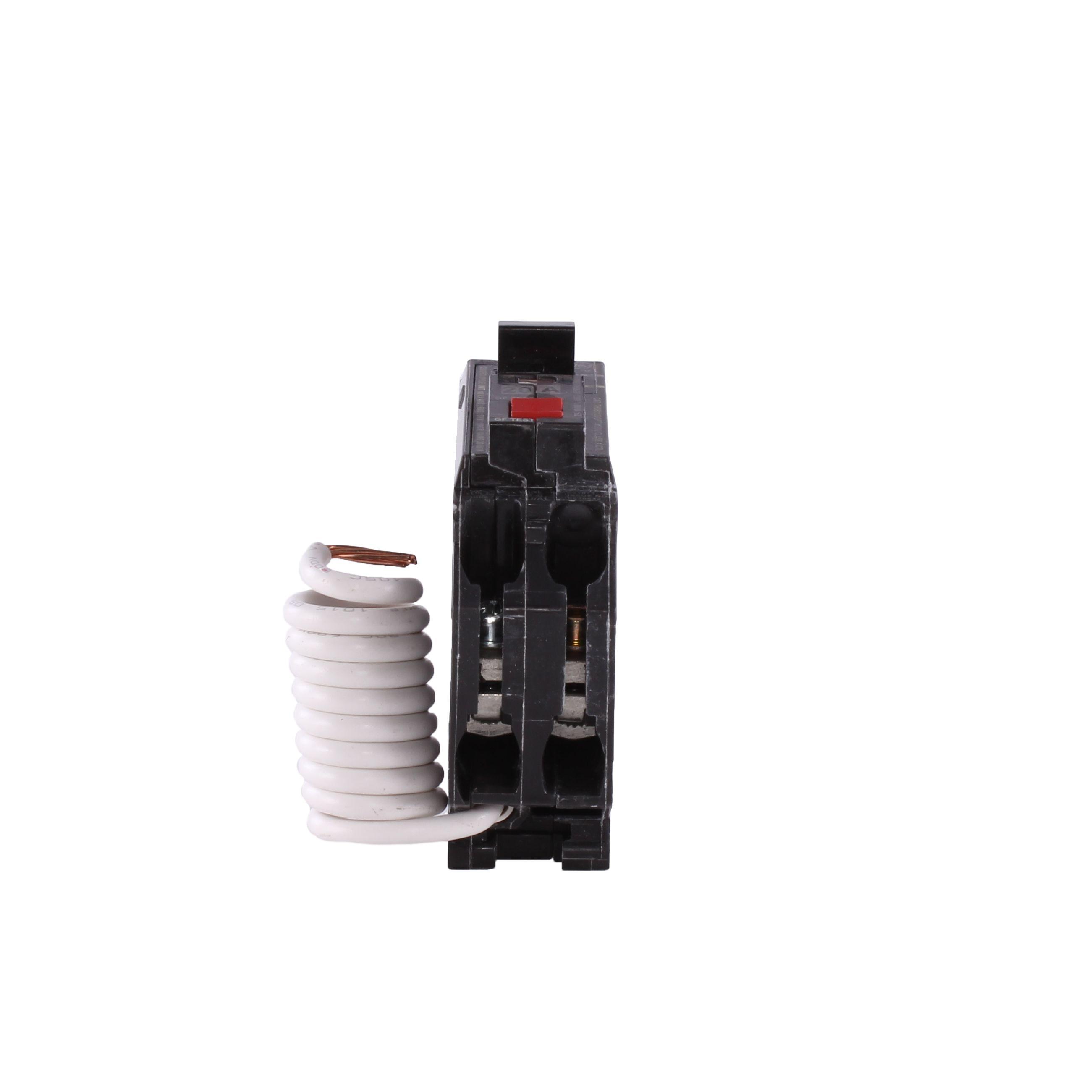

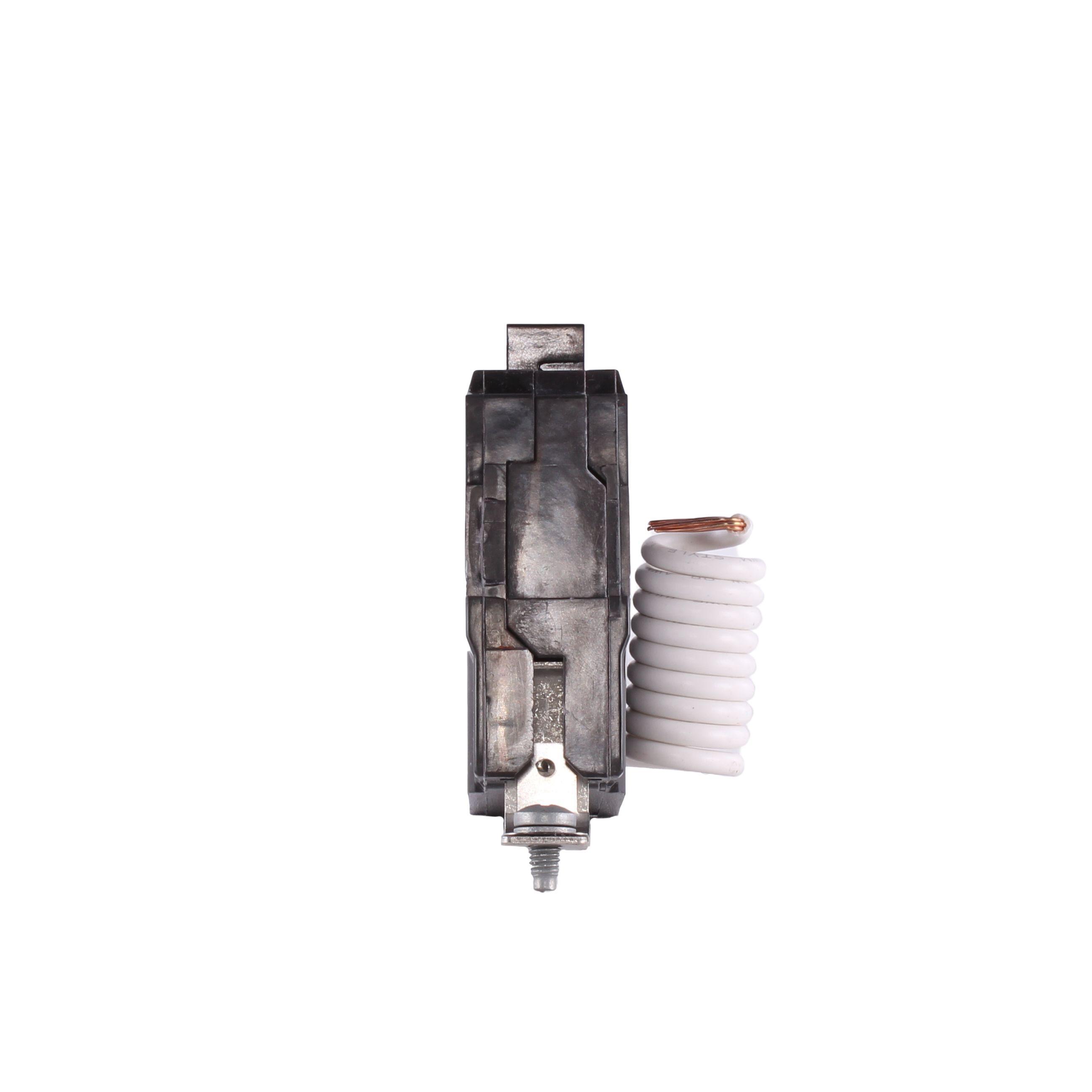

GE Q-Line® THQB1120GFT Type THQB Miniature Molded Case Self-Test Ground Fault Circuit Breaker, 120 V AC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Log In for Pricing and Availability




Description

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.
GE Q-Line® Ground Fault Circuit Breaker, Type THQB Miniature Molded Case Self-Test, 120 V AC, 20 A, 10 kA Interrupt, TEY Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 3-9/32 in H x 1 in W x 2-3/8 in D Dimensions

Specifications

 Amperage Rating 20 A
 Application Electrical Distribution and Control Applications
 Brand Name GE
 Dimensions 3-9/32 in H x 1 in W x 2-3/8 in D
 Frame TEY
 Manufacturer Part Number THQB1120GFT
 Mounting Type Bolted-On
 Number of Poles 1
 PART NUMBER KEYWORDS THQB1120GFT ; 13207493 ; 783164485479 ; 78316448547 ; 00783164485479
 Phase 1
 Standards/Approvals UL File No. E51075|cULus Listed|HACR Rated
 Type Type THQB Miniature Molded Case Self-Test
 Voltage Rating 120 V AC

Features

▪ Fixed long time and fixed instantaneous trip function
▪ Suitable for reverse feed
▪ Standard continuous current rated
▪ Miniature circuit breakers

Resources

 Catalog Page
 Product Data Sheet
