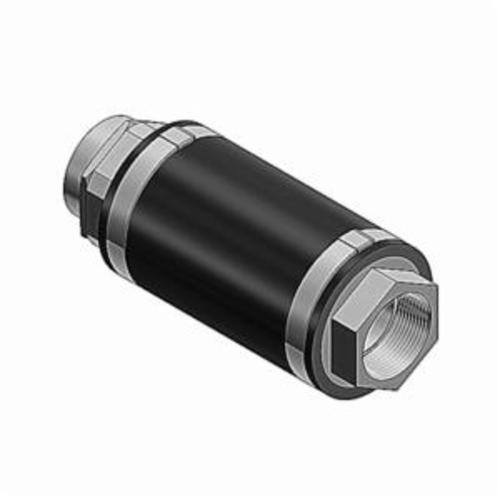

THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING

Mouse over image to zoom, click to enlarge

  • THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING
  • THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING
  • THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING

Description: T&B® Expansion/Deflection Coupling, Series: XD Series, 1-1/4 in, For Use With: Rigid Conduits, 30 deg, Ductile Cast Iron, Electro-Zinc Plated

Manufacturer PN: XD4-TB

UPC:  78620989414

Kendall Electric Inc PN: 4367214

Invoice Description:

THOMAS & BETTS XD4-TB 1 1/4 INCH EXP/DEFL COUPLING


SPEC SHEET

▸ See All in Conduit Expansion-Deflection Couplings


How Can We Make This Page Better?

T&B® XD4-TB Expansion/Deflection Coupling, 1-1/4 in, For Use With Rigid Conduits, Ductile Cast Iron, Electro-Zinc Plated

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

T&B® pioneered many industry standard rigid fittings including CHASE® nipples and Erickson® couplings. The innovation continues with BlueKote® conduit bodies and many new features and products for ordinary and hazardous locations.
T&B® Expansion/Deflection Coupling, Series: XD Series, 1-1/4 in, For Use With: Rigid Conduits, 30 deg, Ductile Cast Iron, Electro-Zinc Plated

Specifications

 Application Bridges, Tunnels, Inter-building Walkways, Docks and Piers, Wastewater and Water Treatment Facilities Applications
 Brand Name T&B®
 Finish Electro-Zinc Plated
 Manufacturer Part Number XD4-TB
 Material Ductile Cast Iron
 PART NUMBER KEYWORDS XD4-TB ; XD4TB ; 7TAD013840R0004 ; 10762560 ; 786209894144 ; 78620989414 ; 00786209894144
 Series XD Series
 Size 1-1/4 in
 Standards/Approvals CSA C22.2 File No. 18.3|UL 514B|UL File No. E23018
 Suitable For Use With Rigid Conduits

Features

▪ Accommodates axial expansion/contraction up to 3/4 in
▪ Parallel deflection up to 3/4 in
▪ Angular misalignment up to 30 deg
▪ Watertight flexible neoprene outer jacket, zinc plated and acrylic painted hubs and stainless steel Tamper proof straps ensure superior corrosion resistance, ideal for use in harsh environment

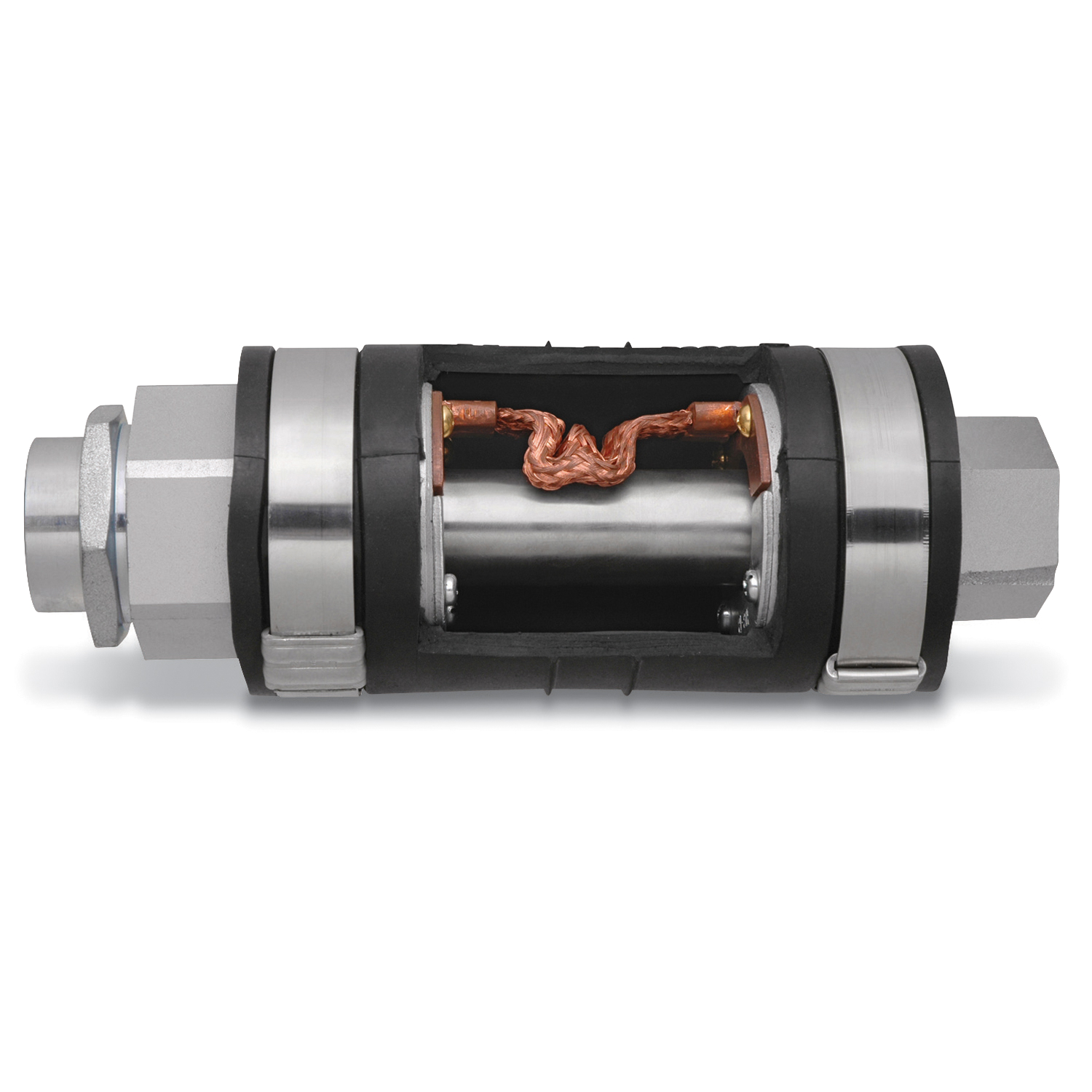

▪ Copper ground mounting plates and internal grounding bonding jumper both entirely enclosed to safeguard against theft
▪ Includes an Erickson® type conduit union for faster, easier installation to reduce labor costs
▪ Durable stainless steel inner sleeve provides a constant, smooth inner diameter in any position to ease wire pulling and protect wire insulation from damage
▪ NPT threaded hubs fit standard threaded rigid metal conduit
