  • THOMAS & BETTS 61975 BI-METAL PIN 700-750MCM CONNECTOR
  • THOMAS & BETTS 61975 BI-METAL PIN 700-750MCM CONNECTOR
  • THOMAS & BETTS 61975 BI-METAL PIN 700-750MCM CONNECTOR
  • THOMAS & BETTS 61975 BI-METAL PIN 700-750MCM CONNECTOR
  • THOMAS & BETTS 61975 BI-METAL PIN 700-750MCM CONNECTOR

Description: Color-Keyed® Pin Connector, Bi-Metal Dual Rated, Aluminum/Copper Conductor, 500 kcmil Conductor, Die Code: 107H, 2 in Pin Length, 600 V AC, Specifications: 1-15/16 in L Wire Stripe, 3-3/4 in Body Length after Installing, Tin Plated, Aluminum, 90 deg C, 4.9 in Overall Length, Orange

Manufacturer PN: 61975

UPC:  78621061975

Kendall Electric Inc PN: 4405814

Invoice Description:

THOMAS & BETTS 61975 BI-METAL PIN 700-750MCM CONNECTOR


SPEC SHEET

How Can We Make This Page Better?

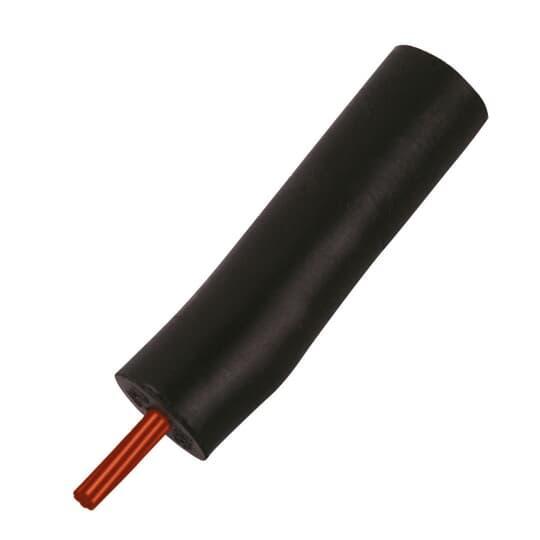

Color-Keyed® 61975 Bi-Metal Dual Rated Pin Connector With Insulating Cover, 500 kcmil Conductor, 2 in L Pin, Aluminum, Orange

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® Pin Connector, Bi-Metal Dual Rated, Aluminum/Copper Conductor, 500 kcmil Conductor, Die Code: 107H, 2 in Pin Length, 600 V AC, Specifications: 1-15/16 in L Wire Stripe, 3-3/4 in Body Length after Installing, Tin Plated, Aluminum, 90 deg C, 4.9 in Overall Length, Orange

Specifications

 Brand Name Color-Keyed®
 Color Orange
 Conductor Size 500 kcmil
 Conductor Type Aluminum/Copper
 Die Code 107H
 Manufacturer Part Number 61975
 Material Aluminum
 Overall Length 4.9 in
 PART NUMBER KEYWORDS 61975 ; 7TAH007770R0099 ; 10746321 ; 786210619750 ; 78621061975 ; 00786210619750
 Pin Length 2 in
 Specifications 1-15/16 in L Wire Stripe, 3-3/4 in Body Length after Installing, Tin Plated
 Standards/Approvals CSA Certified|UL File No. E63167
 Temperature Rating 90 deg C
 Type Bi-Metal Dual Rated
 Voltage Rating 600 V AC

Features

▪ Converts an aluminum cable into a 2 sizes smaller copper pigtail
▪ Upgrades connection by eliminating cold flow and oxidation of aluminum
▪ Barrel prefilled with joint compound
▪ Aluminum cable size 700 to 750 kcmil
▪ 500 kcmil copper pigtail wire
▪ Neoprene insulation
▪ Aluminum cable, copper pigtail wire
▪ Electro tin plated finish
